1200C Electric Rotary Sintering Tube Furnace Used for Laboratory
- Category: >>>
- Supplier: Zhengzhou Sutong Electric Equipment Co. Ltd.
Share on (502334285):
Product Overview
Description
1200C Electric Rotary Sintering Tube Furnace Used for Laboratory
Brief Introduction:
Furnace tube size:Dia50xL400mm(Dia2.0xL16")
Max. Temperature:1200 °C( < 3 hrs)
Working temperature:1100 °C ( continuous )
Heating elements:Fe -Cr-Al wire
Thermocouple:K type
Tube rotating Speed:0-7RPM (Reversible)
Furnace tilt angle:0-30°( variable)
ST-1200RTF Rotary Tube Furnaces Detailed:
Furnace tube | Dia50 x400 mm(2.0"x16") |
Max.temperature: | 1200°C |
Working temperature: | 1100°C |
Temperature control: | 30 segments programmable and PID auto control |
Heating rate: | 0-15 °C /min |
Temperature accuracy: | +/- 1 °C |
Heating element: | Fe-Cr-Al wire |
Vacuum seal | Two stainless steel flanges with vacuum gauge and valves |
Max. Vacuum level | 0.1Pa |
Working Voltage | AC 220V 50Hz 1phase(as per customer requirements) |
Furnace structure: | double shell with fan cooling |
Tube rotating Speed: | 0-7RPM (Reversible) |
Furnace tilt angle: | 0-30° variable |
Standard Sizes:
Model | Chamber size(DiaxL) | Max. Temperature |
ST-1200RTF | Dia40 x300 mm(1.6 "x12") | 1200°C |
ST-1200RTF | Dia40 x400 mm(1.6 "x16") | 1200°C |
ST-1200RTF | Dia50 x300 mm(2.0 "x12") | 1200.C |
ST-1200RTF | Dia50 x400 mm(2.0 "x16") | 1200.C |
ST-1200RTF | Dia60 x300 mm(2.5 "x12") | 1200.C |
ST-1200RTF | Dia60 x400 mm(2.5 "x16") | 1200.C |
ST-1200RTF | Dia80 x300 mm(3.2 "x12") | 1200.C |
ST-1200RTF | Dia80 x400 mm(3.2 "x16") | 1200.C |
ST-1200RTF | Dia100 x300 mm(4.0 "x12") | 1200.C |
ST-1200RTF | Dia100 x400 mm(4.0 "x16") | 1200.C |
Applications:
1.Crystallize;
2.Sintering or Roasting or Forging or calcining;
3.Ashing;
4.Heat treating or Preheating;
5.Quench or Hardening or Austemper
6.Annealing or Tempering or Normalizing
7.melting or smelting
8.Synthesis and degradation or pyrolysis or decomposing
used in chemical analysis,decomposition and synthesis of substances,sintering super hard material(as ceramics),smelting and refining rare and precious metals,researching technology for metal heating processing.

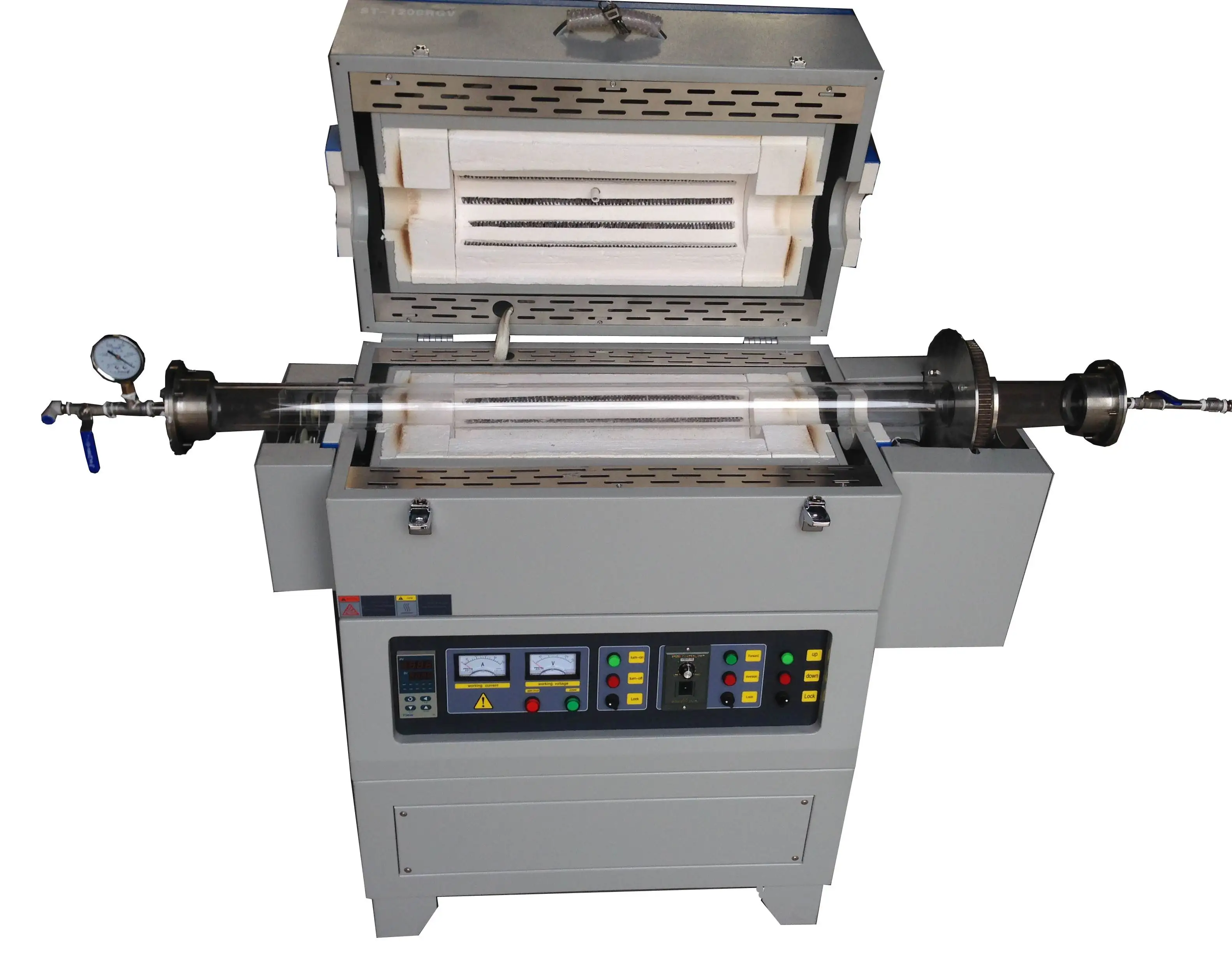

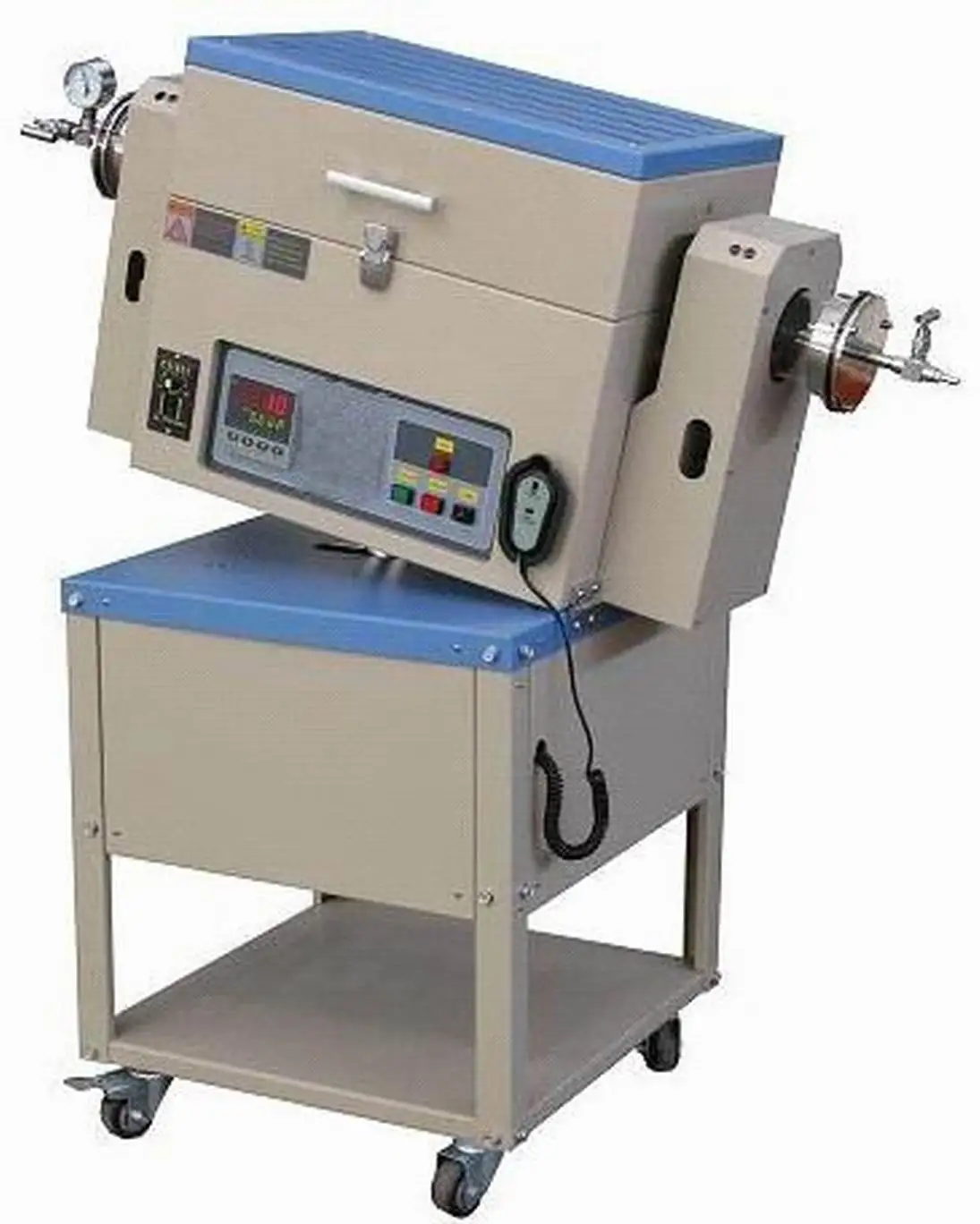

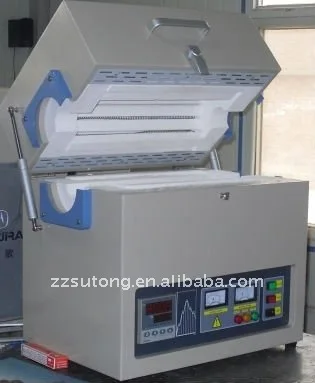

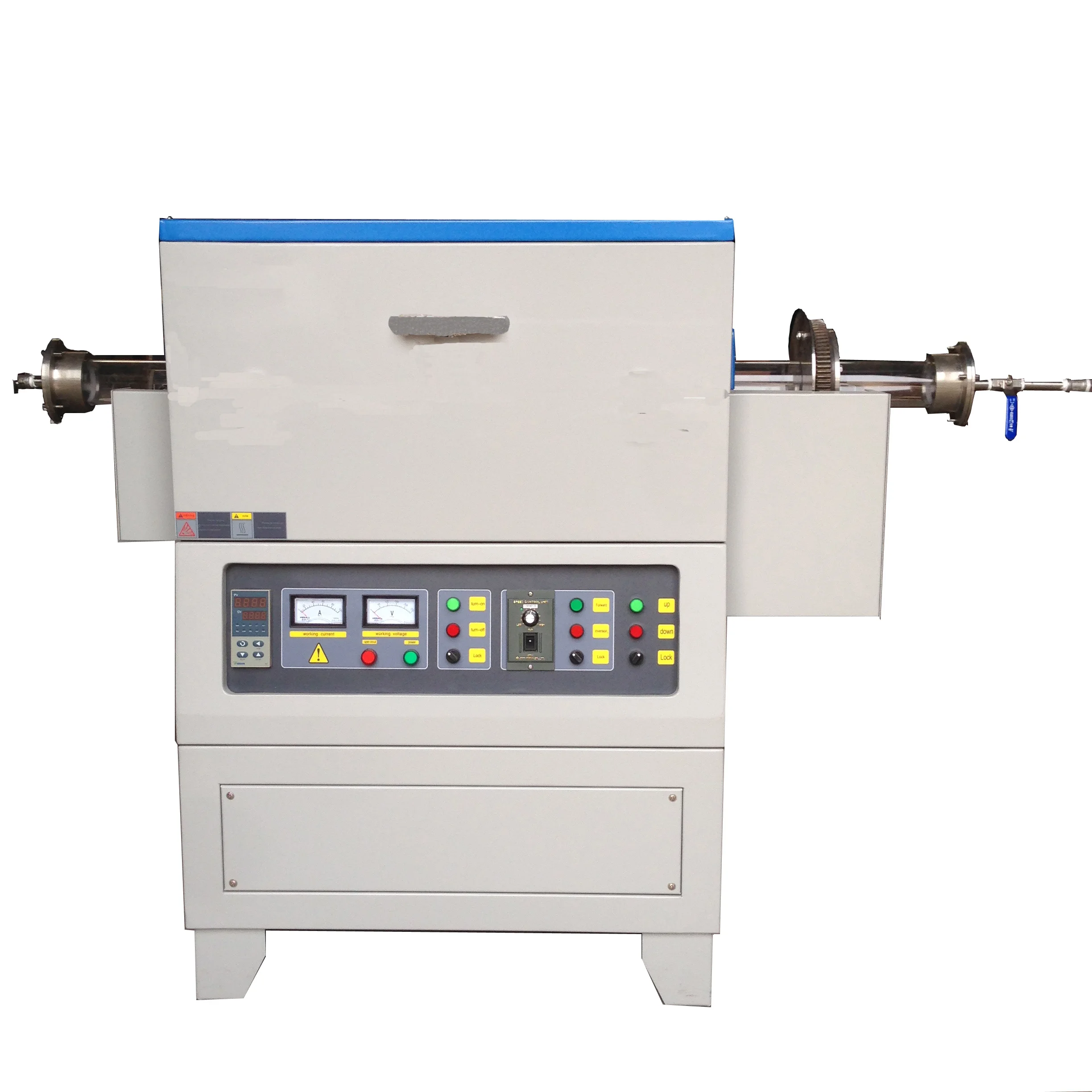

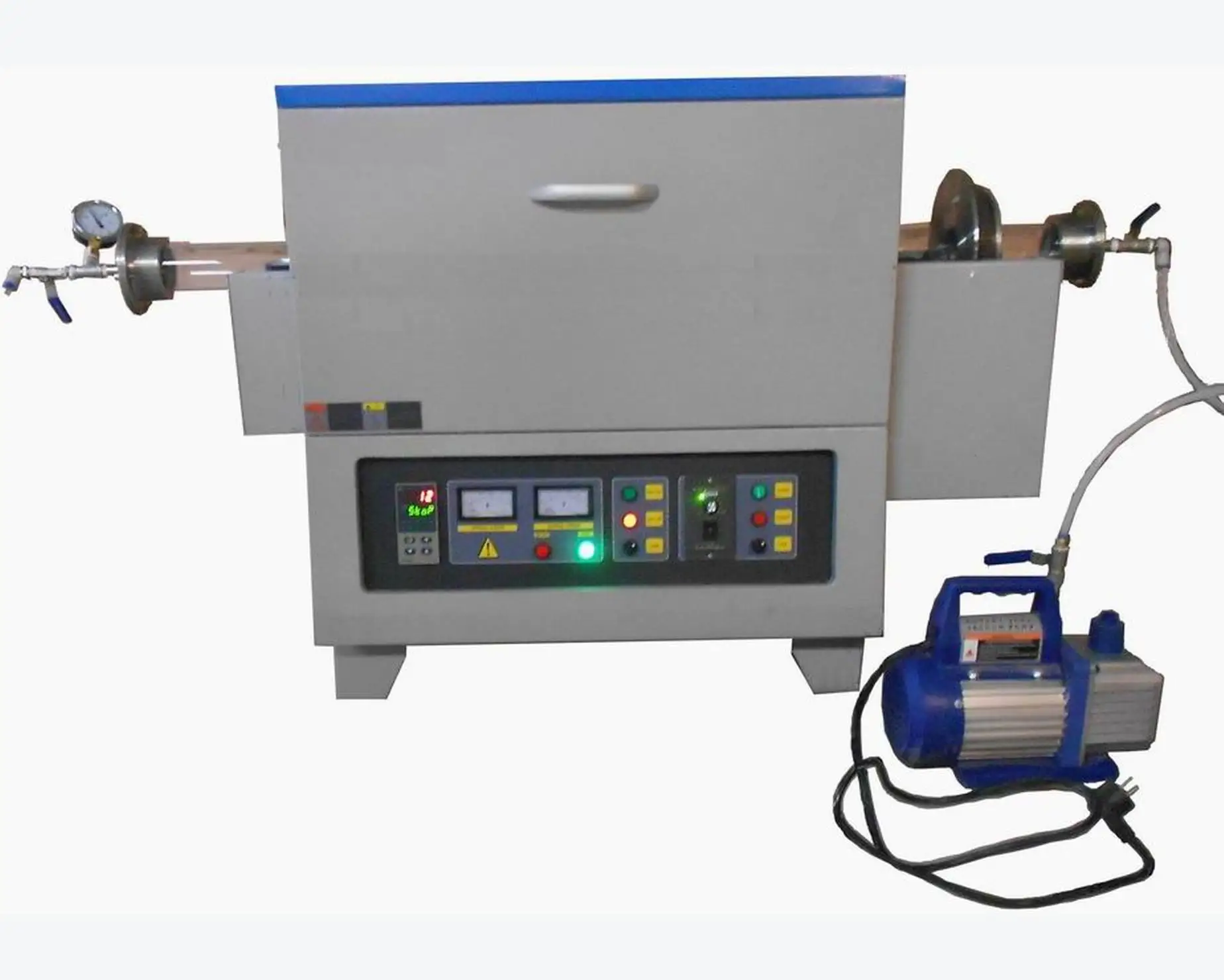

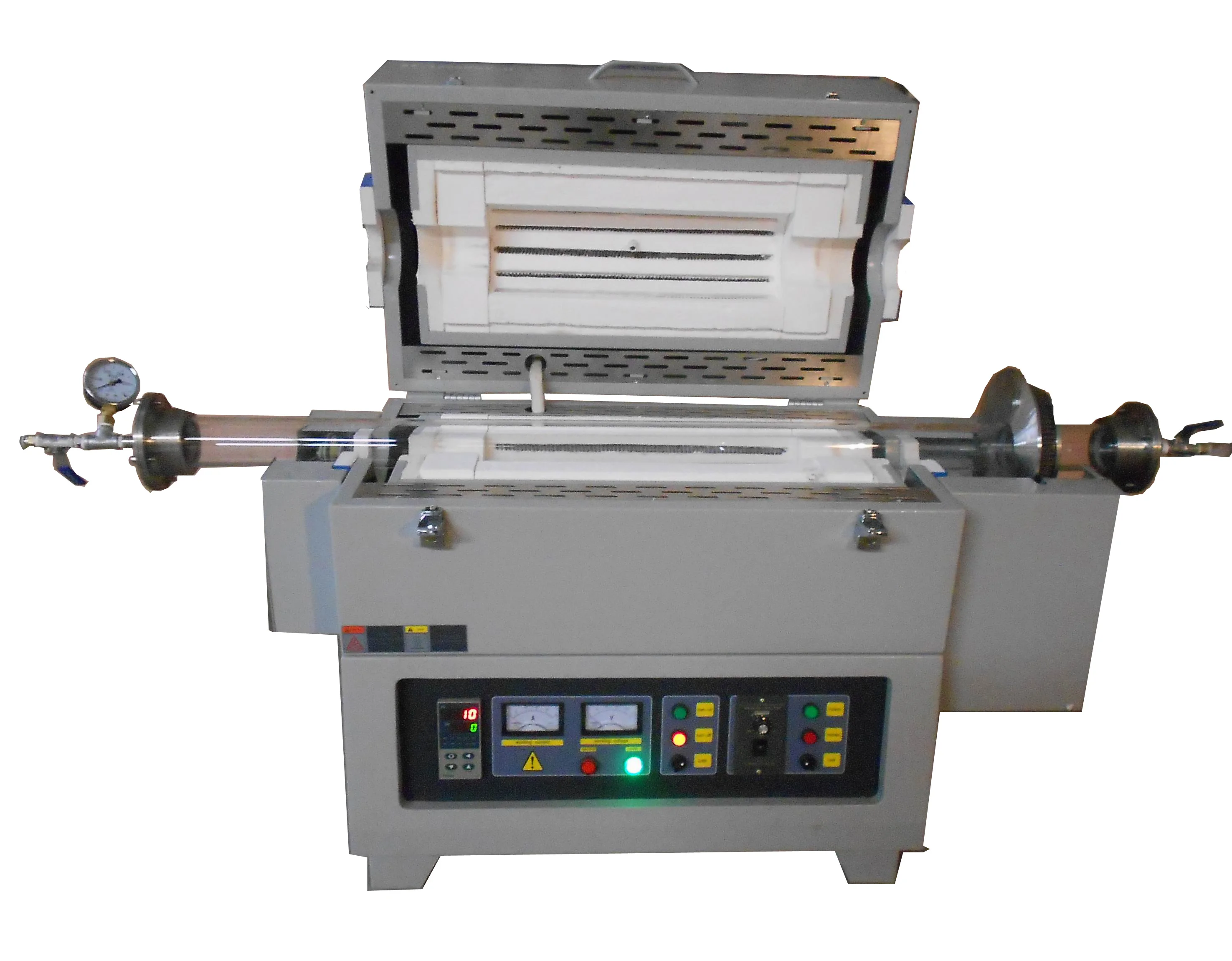

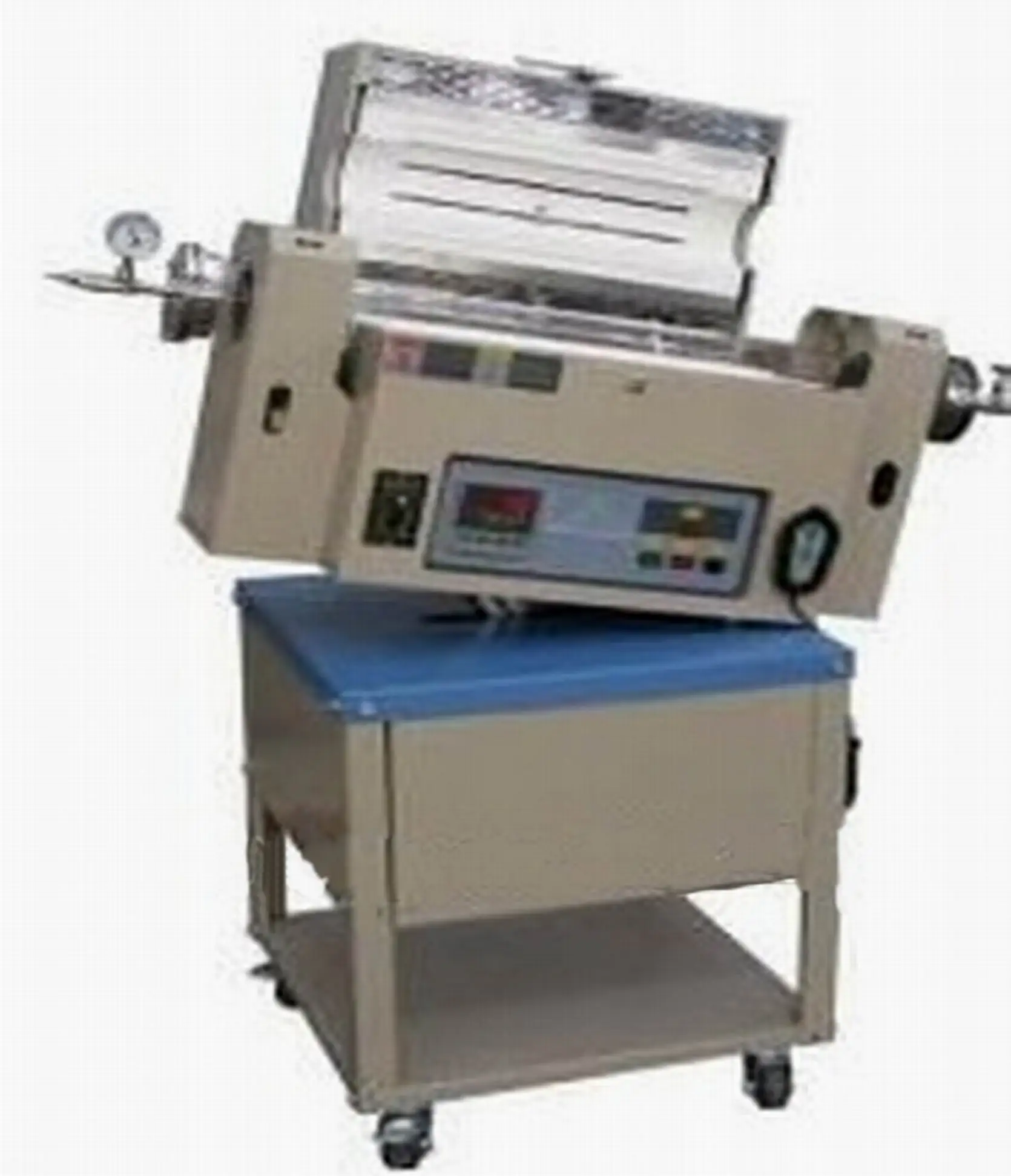

Picture of product:
