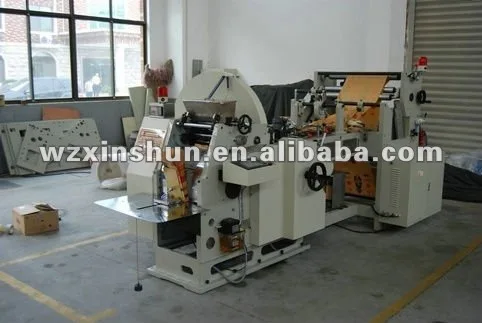

Xinshun NEW Semi Automatic Paper Bag Making Machine

Product Overview

Description

Xinshun NEW Semi Automatic Paper Bag Making Machine



Introduction:
This machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag
Easy operation, low power consumption, high efficiency.

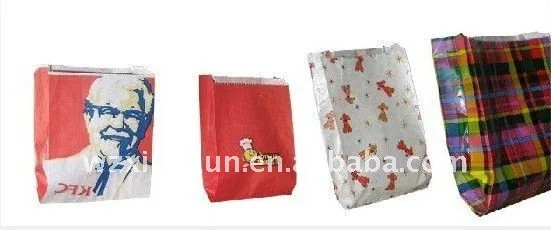

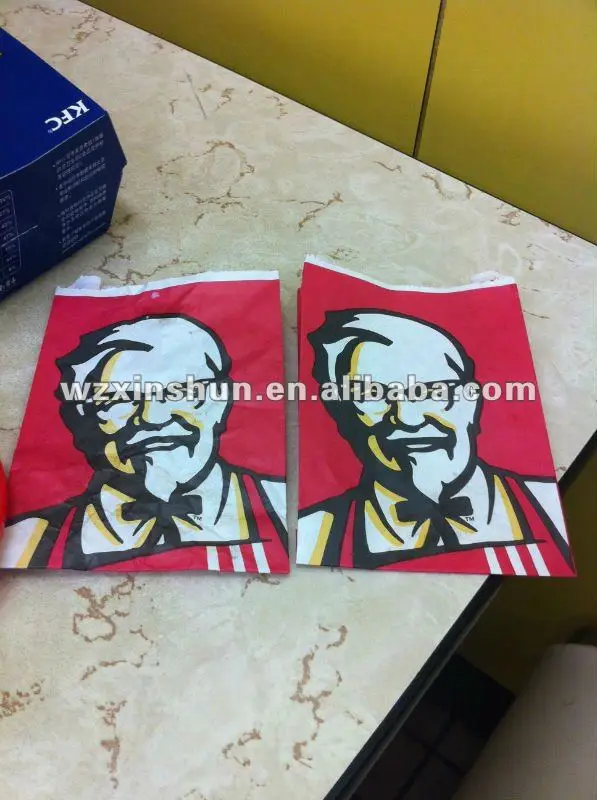

 It is an ideal machine for producing food bags like bread bags, KFC bags and Mcdonald’s bags.

Features:
a)  Suited for 30-80gsm paper.
 b)  Controls bag length through the human-machine touch screen interface.
 c)  PLC programmable  servo motor control system
d)  Equipped with an accurate photocell system for printed mark tracking.
e)  Color mark error automatic alarming and stopping system
f)  Automatic oil lubrication system

Specifications:

a)  Cutting length(C):150-400mm

b)  Bag length(H): 140-390mm

c)  Bag width(L): 80-250mm

d)  Gusset depth(S): 10-50mm

e)  Standard fl ap(P):12-17mm

f)  speed: 100-300pcs/min

g)  Paper thickess: 30-80g/m2

h)  Power: 6kw

i)  Total weight: 3500kg

j)  Machine dimensions: 4400(L)x1650(W)x1850(H)mm
