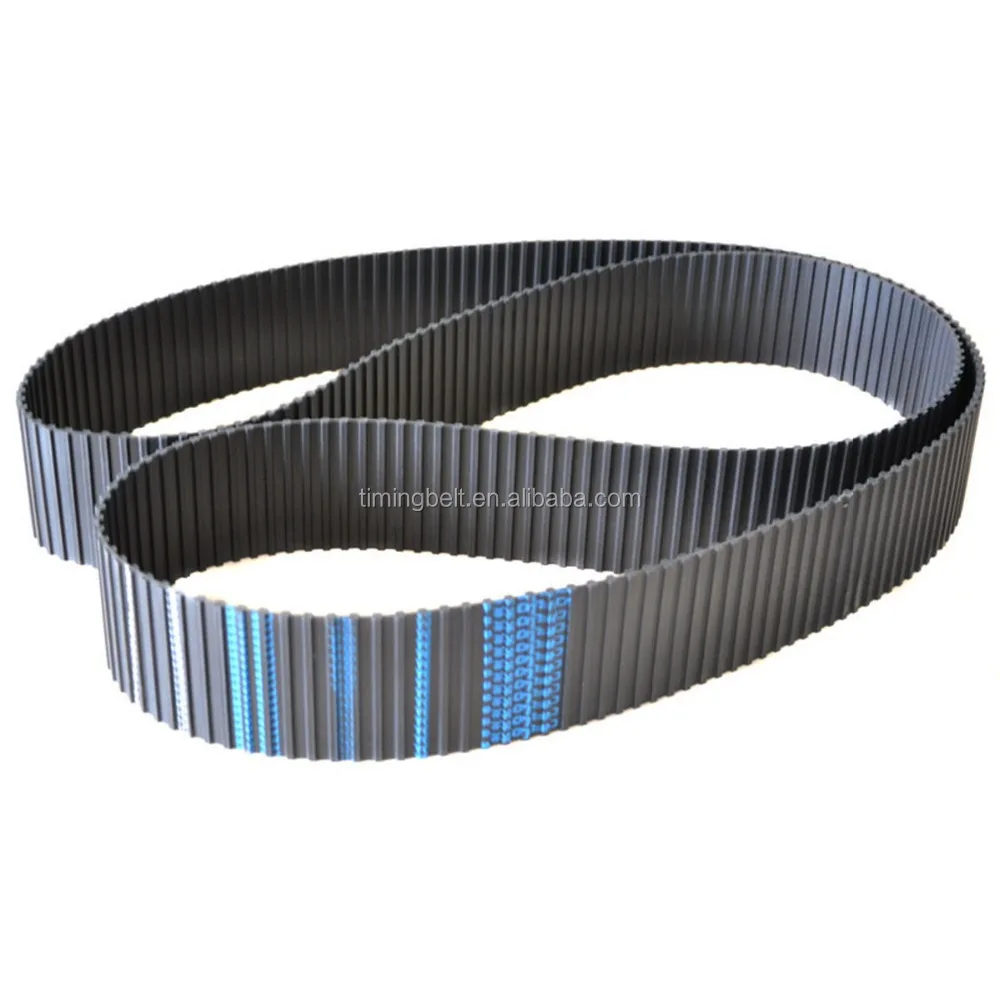

HTD HDT STD SDT RPP Industrial Synchronous Belt
- Category: >>>
- Supplier: Ningbo Fulong Synchronous Belt Co. Ltd.
Share on (502848162):
Product Overview
Description
Company Information
Founded in 1984, FULONG covers 45,000 square meters with over 350 employees. As a national high-tech enterprise now, we passed ISO9001, TS16949. With national lab(CNAS) and municipal innovation center, we set over ten national and trading standards. What’s more, annual output is more than 10 million pieces of belts and 600 thousand pieces of pulleys. Matched belts and pulleys make sure the life-span of products longer.
Product Description
| TYPE | SUPPLY CHARACTERISTIC |
| MXL XXL XL L H XH XXHT2.5 T5 T10 T20 AT5 AT10 AT20 HTD:2M 3M 5M 8M 14M 20M STS:S2M S3M S4.5M S5M S8M S14M RPP:RP2M RP3M RP5M RP8M RP14M | 1.Company leading products, more than 4000 moulds are available. 2.Cutting or provide sleeve according to customer's requirement. 3.Anti-static,heat-resistant,low temperature resistance ect. 4. Normal product no minimum order quantity requirements. |
Tooth Profile & Size
Trapezoidal Tooth Profile
| Type | Pitch Pb(mm) | Tooth height ht(mm) | Belt thickness hs(mm) | Angle β° | Details |
| MXL | 2.032 | 0.51 | 1.14 | 40 | Details |
| XXL | 3.175 | 0.76 | 1.52 | 50 | Details |
| XL | 5.080 | 1.27 | 2.30 | 50 | Details |
| L | 9.525 | 1.91 | 3.60 | 40 | Details |
| H | 12.70 | 2.29 | 4.30 | 40 | Details |
| XH | 22.225 | 6.35 | 11.20 | 40 | Details |
| XXH | 31.750 | 9.53 | 15.70 | 40 | Details |
| T2.5 | 2.5 | 0.7 | 1.30 | 40 | Details |
| T5 | 5 | 1.20 | 2.20 | 40 | Details |
| T10 | 10 | 2.50 | 4.50 | 40 | Details |
| T20 | 20 | 5.00 | 8.00 | 40 | Details |
| AT5 | 5 | 1.20 | 2.70 | 50 | Details |
| AT10 | 10 | 2.50 | 5.00 | 50 | Details |
| AT20 | 20 | 5.00 | 9.00 | 50 | Details |
Curvilinear Tooth Profile
| Type | Pitch Pb(mm) | Tooth height ht(mm) | Belt thickness hs(mm) | Angle β° | Details |
HTD | 2M | 2 | 0.75 | 1.36 | Details |
| 3M | 3 | 1.17 | 2.4 | Details | |
| 5M | 5 | 2.06 | 3.8 | Details | |
| 8M | 8 | 3.36 | 6.00 | Details | |
| 14M | 14 | 6.02 | 10.00 | Details | |
| 20M | 20 | 8.4 | 13.20 | Details | |
STPD/STS | S2M | 2 | 0.76 | 1.36 | Details |
| S3M | 3 | 1.14 | 2.20 | Details | |
| S4.5M | 4.5 | 1.71 | 2.81 | Details | |
| S5M | 5 | 1.91 | 3.4 | Details | |
| S8M | 8 | 3.05 | 5.3 | Details | |
| S14M | 14 | 5.3 | 10.2 | Details | |
RPP/HPPD | 2M | 2 | 0.76 | 1.36 | Details |
| 3M | 3 | 1.15 | 1.9 | Details | |
| 5M | 5 | 1.95 | 3.5 | Details | |
| 8M | 8 | 3.2 | 5.5 | Details | |
| 14M | 14 | 6.00 | 10 | Details |
