Самовращающаяся насадка/насадка для подачи воды под высоким давлением
- Category: Plumbing >>>
- Supplier: Wuxi Hongyuan Pump Manufacturing Co. Ltd.
Share on (502875796):
Product Overview
Description

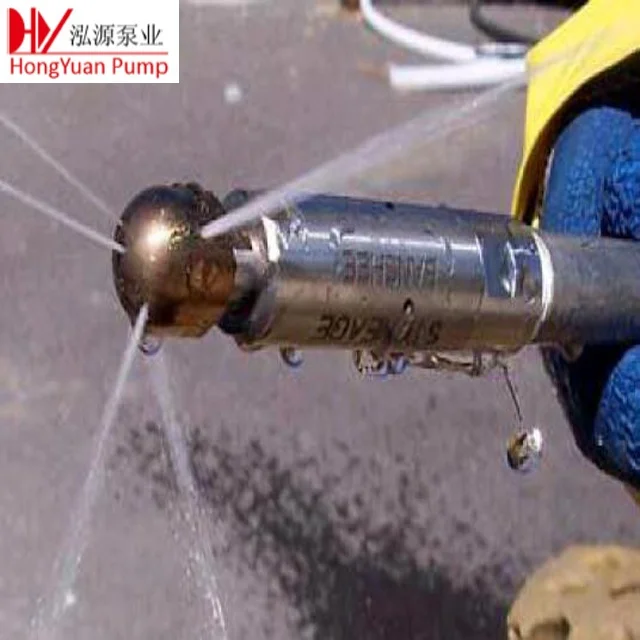

Self rotary nozzle/High pressure water jetting nozzle

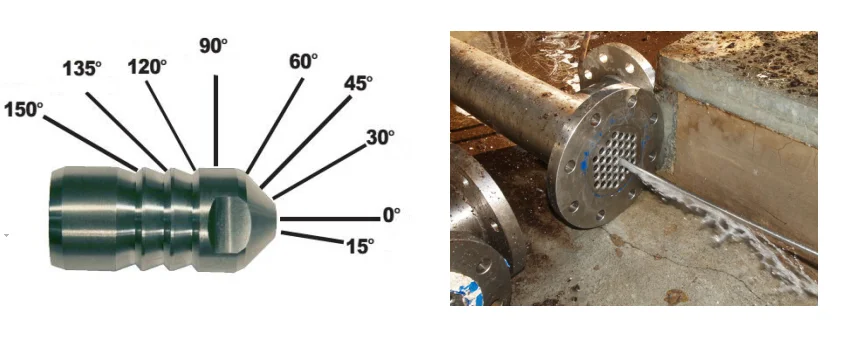

WHYG series and Z series Nozzles is designed to go with flex or rigid lances with either right or left hand. Autoclave-type medium pressure threads, a special seating design with wrench flats for easy installation, and offer a wide range of options for precision drilled orifices. Please specify drilling pattern, pressure and flow when ordering.
Nozzle Specification | |||
Model | Inlet Connection (male) | Length | Outside Diameter |
mm | mm | ||
WHY-Z11 | ZG1/16 | 22 | 11 |
WHY-Z14 | ZG1/16 | 22 | 14 |
WHY-Z18 | M10x1 | 30 | 18 |
WHY-Z22 | M16x1.5 | 30 | 22 |
WHY-Z28 | M20x1.5 | 38 | 28 |
WHY-Z35 | M20x1.5 | 47.5 | 35 |
Nozzle Specification | |||
Model | Inlet Connection (Female) | Length | Outside Diameter |
mm | mm | ||
WHY-G11 | M7×1 | 30 | 11 |
WHY-G14 | M10×1 | 27 | 13 |
WHY-G18 | ZG1/4 | 34 | 17 |
WHY-G20 | M20x1.5 | 38 | 21 |
WHY-G26 | M26x1.5 | 48 | 26 |
WHY-G35 | M20x1.5 | 55 | 32 |

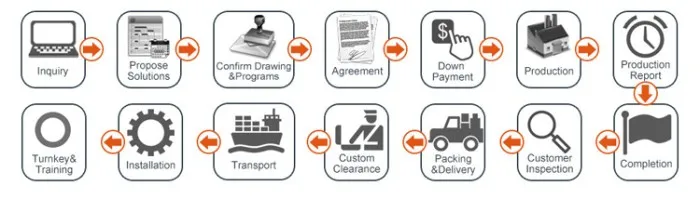

Purchase Process
≡≡ Purchase Process
Product Certificates
≡≡ Product Certificates

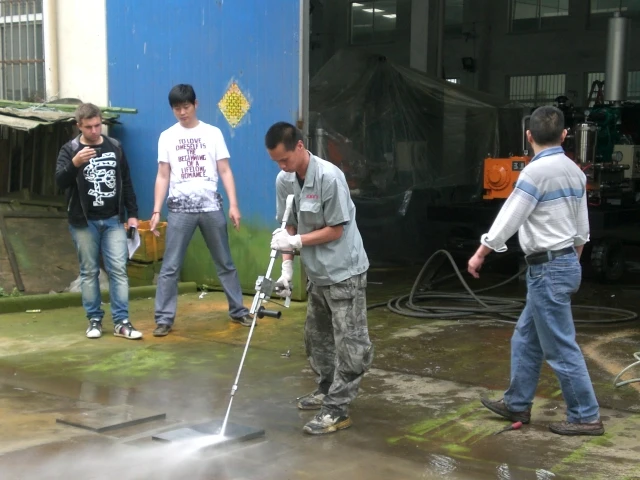

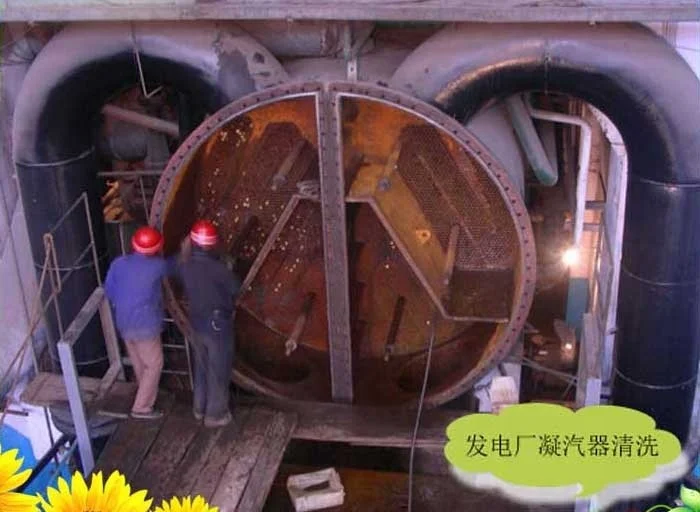

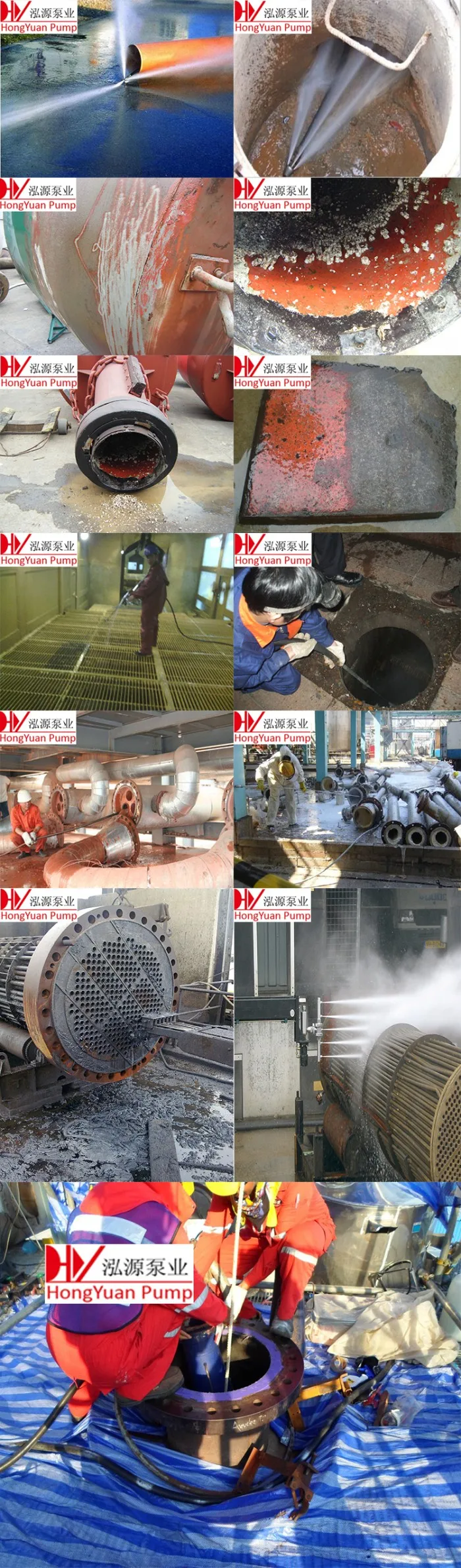

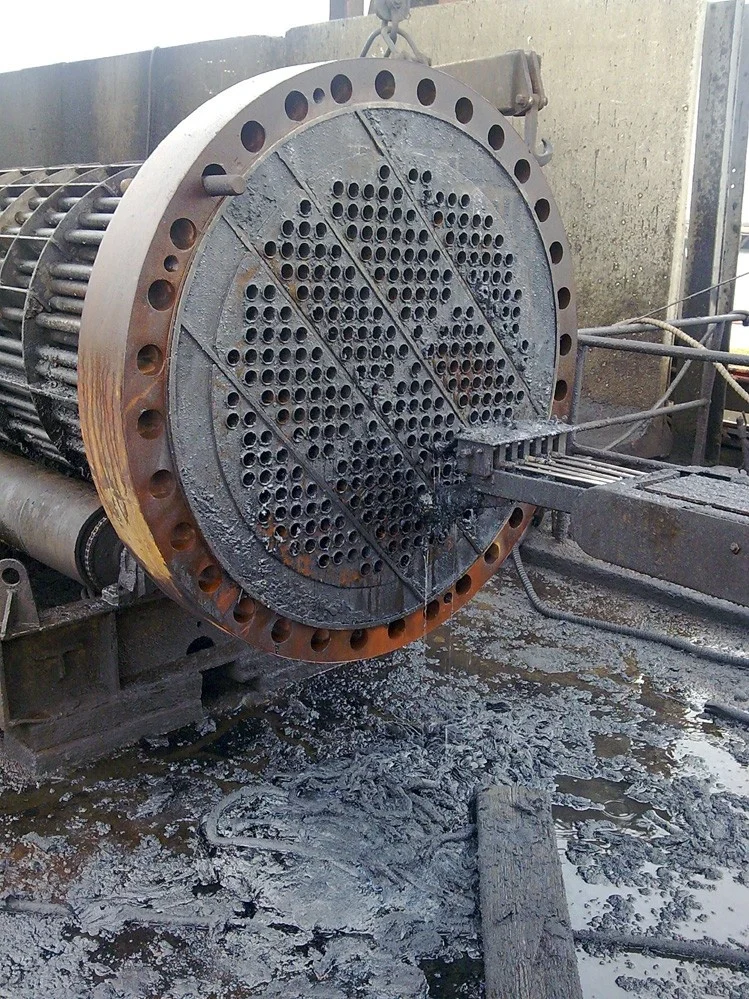

Machine working site
≡≡ Machine Working Site
Clients visit
≡≡ Clients visit
Company Information
≡≡ About Hongyuan Pump
Wuxi Hongyuan Pump Manufacturing Co., Ltd. was established in 1993 and has 20 years of history. We are dedicated to the research and development, production, sale and service of high pressure cleaners and high pressure piston pump machines. We are a high-tech enterprise in the field. Our company is located beside the beautiful Taihu Lake - Wuxi New District Industrial Park, with a strategic location and convenient transportation.
Wuxi Hongyuan Pump Manufacturing Co., Ltd. is engaged in the production of super high pressure cleaners, pressure washers and high pressure cleaning machine pumps! We are engaged in the research and development and introduction of new technology. Our products are in accordance with JB/T8093-1999 standard. We passed ISO9001 quality system management certification, focusing on the introduction of German KAMAT technology and constantly improving our excellent products and allowing users to reduce the cost of production and improve efficiency.
Products can be customized according to customers' requirements. As to after-sales service, Hongyuan's objective is "life-long free maintenance, solve users' problems"!
Hong Yuan's idea: the latest technology, quality products and services
FAQ
≡≡ FAQ
Guidance for choosing high pressure cleaning machine
1.Required cleaning material,e.g.Oil,paint,heavy rust,scale,pit,stain,etc
2.Surface preparation,pipe inside cleaning,concrete demolition or machinery cleaning
3.Cleaning pressure
4.Operating flow
5.Driven type,e.g.Diesel engine or electrical motor
Triplex plunger high pressure pump feature and effect
High pressure cleaning machine mostly adopt piston pump,generally,due to piston pump high operation efficiency and long service life.
The core component of high pressure water jetting equipment is high pressure pump.Its main function is to make fixed amount water into high pressure water flow,which has a powerful cleaning impact.
Advantages of high pressure water jet cleaning
1.Low cleaning costs
2.High cleaning quality
3.Non-corruption of metals
4.Quick and high efficiency
5.Wide application ranges
