Automatic paint mixer and manual paint dispenser combined JY 50A

Product Overview

Description

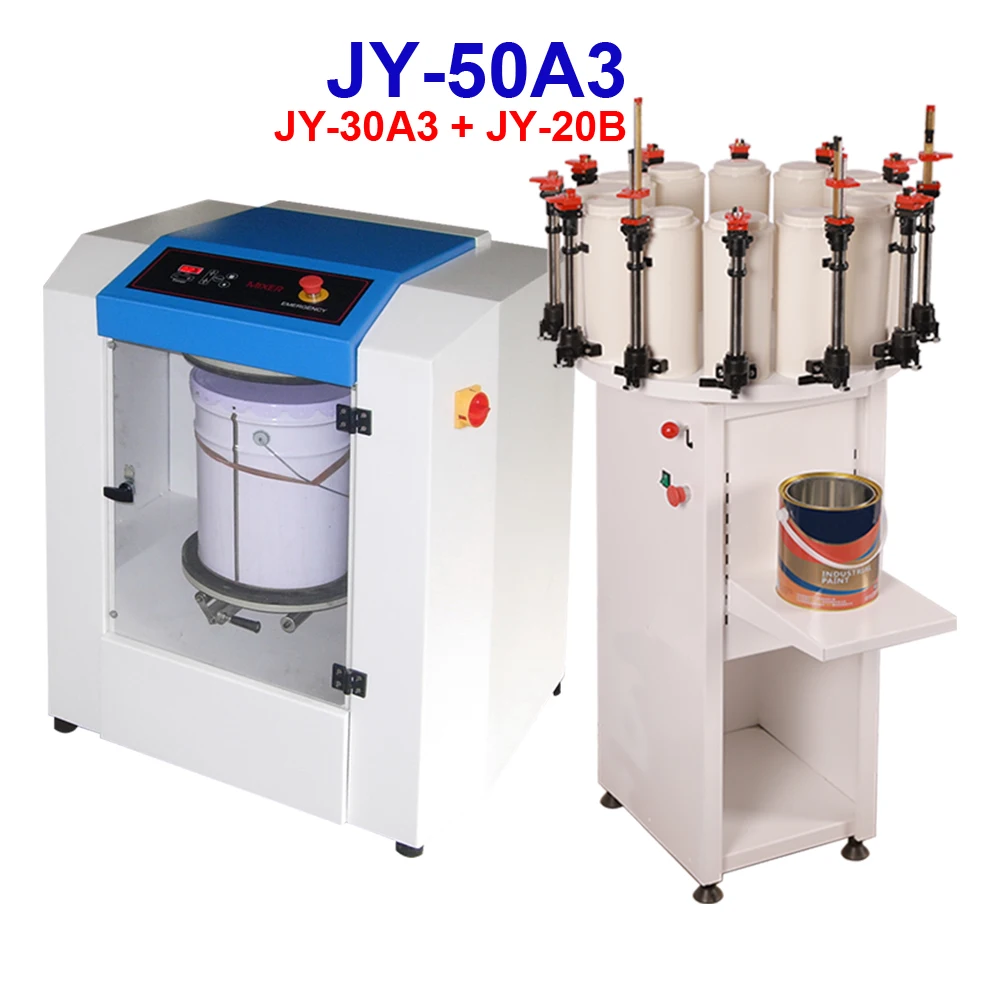

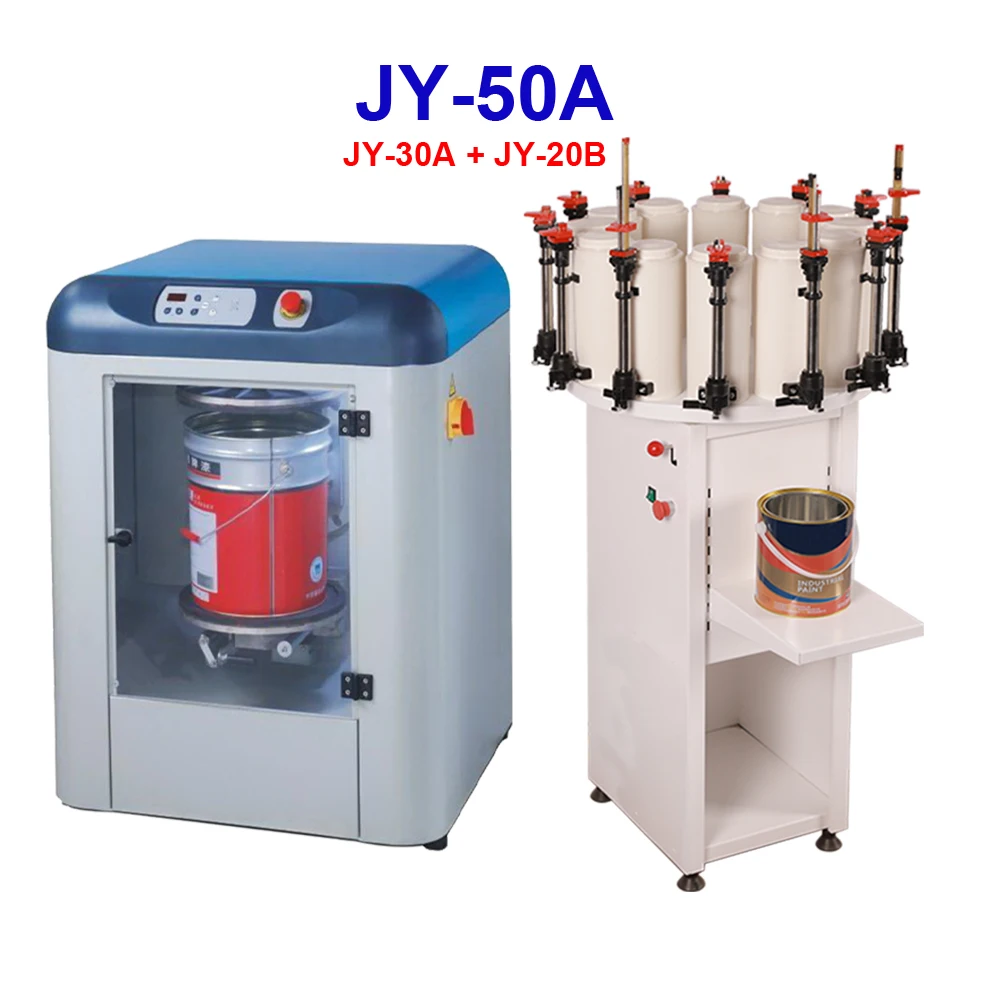

Automatic paint mixer and manual paint dispenser combined JY-50A

This model machine is a combined with manual  paint mixer JY-30A and manual paint dispenser JY-20B

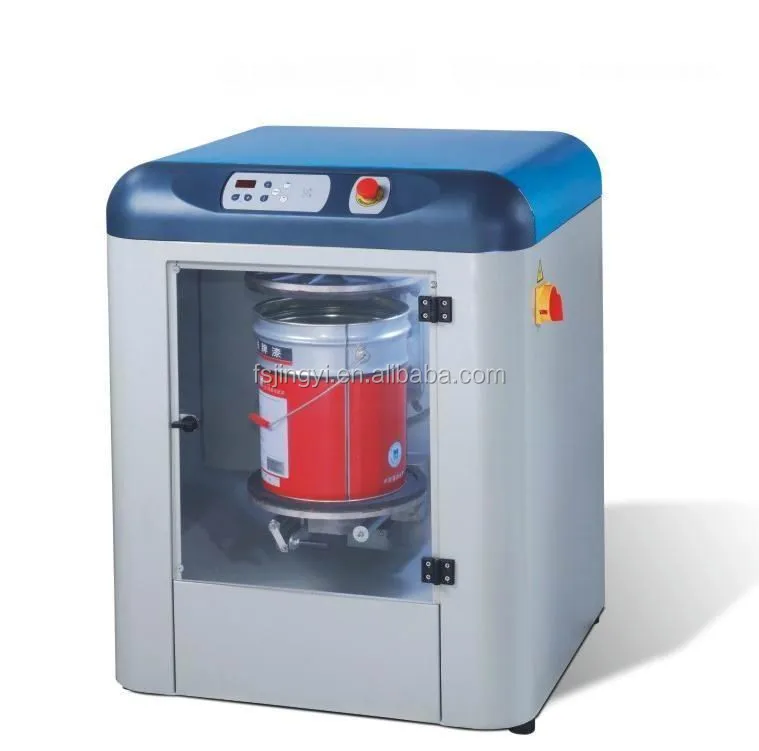

JY-30A rotating mixer:

1. Technical data:

1) Applicable range: 0.5-20 L ( paint in drum );

2) Height in the drum: 7 till 38cm, diameter of the drum: 7 till 30cm;

3) Revolution speed: 60 till 200r/min;

4) Working power: 220V 50/60HZ, power supply: 0.75KW;

5) Net weight: 185kg, gross weight: 230kg;

6) Case size: 950 (H) x 820 (W) x 750 (D) mm;

7) Packing size: 1170 (H) x 900 (W) x 810 (D) mm;



2. Features:

1) Start self-checking program automatically before operation. In case of any abnormality, the controller will activate alarm through digital display and buzzer will sound.

2) Digital display will show the actual time set and time used, so that the operation may have exact mixing time idea for better result.

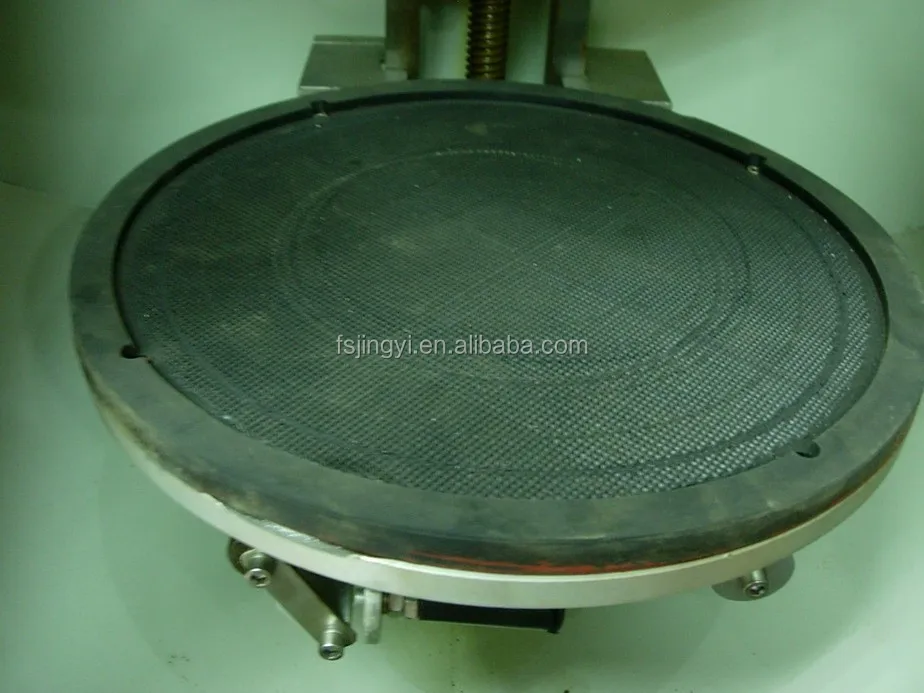

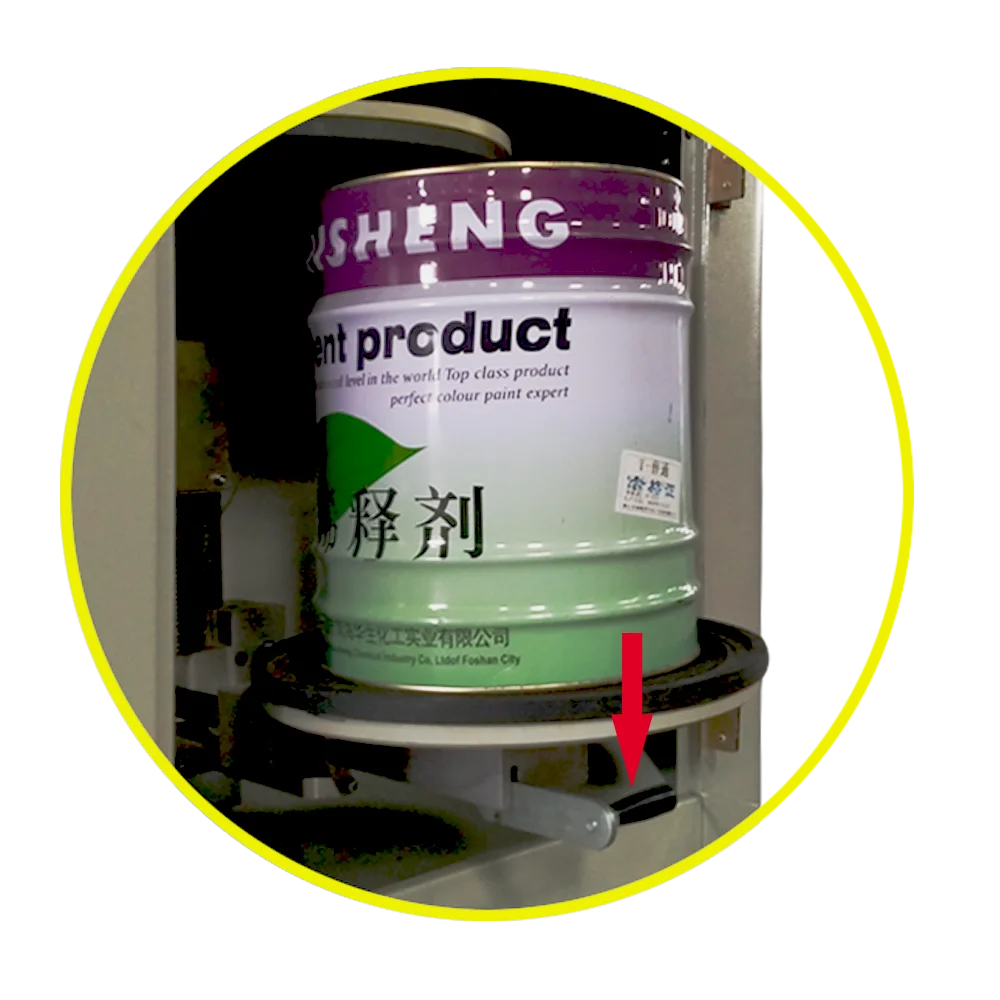

3) Easy moving or fixing of interior case support.

4) Automatic identifying size of the drum to offer adequate clamping power and rotating speed.

5) Automatic clamping and open setting, revolution and rotation may start synchronously during paint mixing.

6) Multi-grade intelligent timing inverter, adequate speed control ensures stable operation; Stopping automatically when the door is opened due to excellent safety and features.

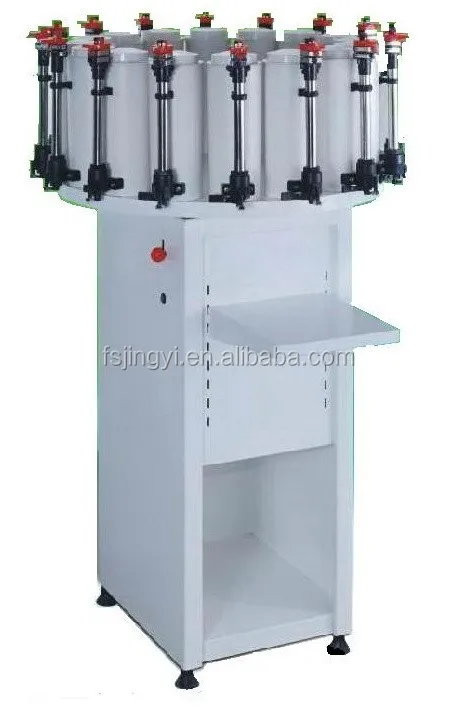

The JY-20B manual dispenser:

Technical data:

1) Application: Water or oil colorant (1 to 20types)

2) Canister: 2.3L plastic canisters or stainless steel canister (please tell us when ordering, they are different price)

3) Canisters quantity to choose: 12,14,16, 20pcs

4)Max discharge per time: 2 fluid ounce

5) Accuracy: 1/192Y or 1/384Y or 0.1ml or others

6) Working power: 220V/50Hz or 110V/60 Hz; Power supply: 750W



Features:

1) Double-pump and double-gauge ensures stability of accuracy and repeatability.

2) Automatic blending of rotating blades ensures equal distribution of colorant and has no deposition.

3) Colorant tray that can automatically rotate fix brings more convenience for operation.

4) Optional part:

Timer---- after adding this timer, machine will mix the colorants for some time automatically every several hours

Spring on the discharging handle---with the spring on the handle will prevent the customer forget to close the discharging mouth, insure the colorants will not leak.
