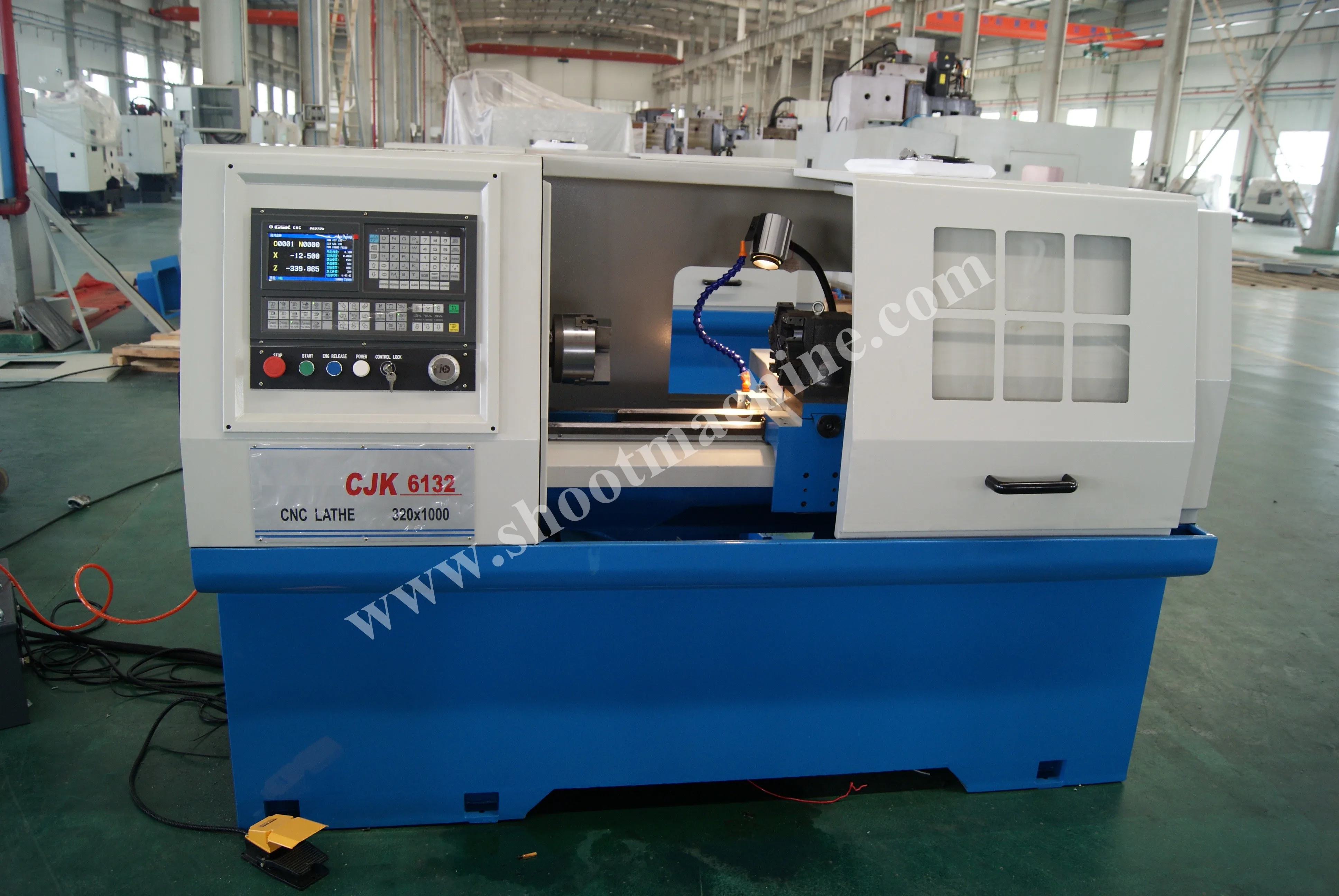

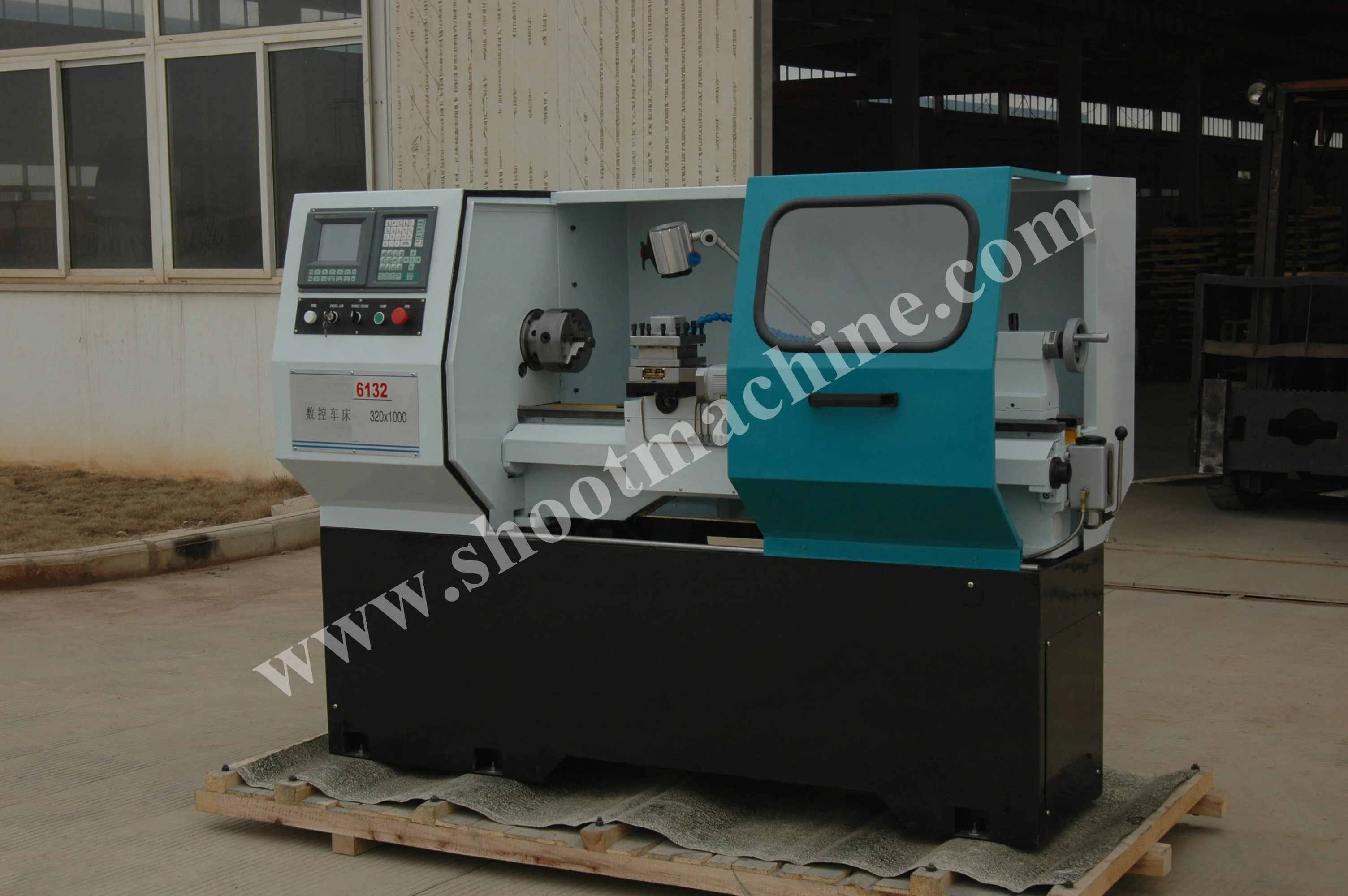

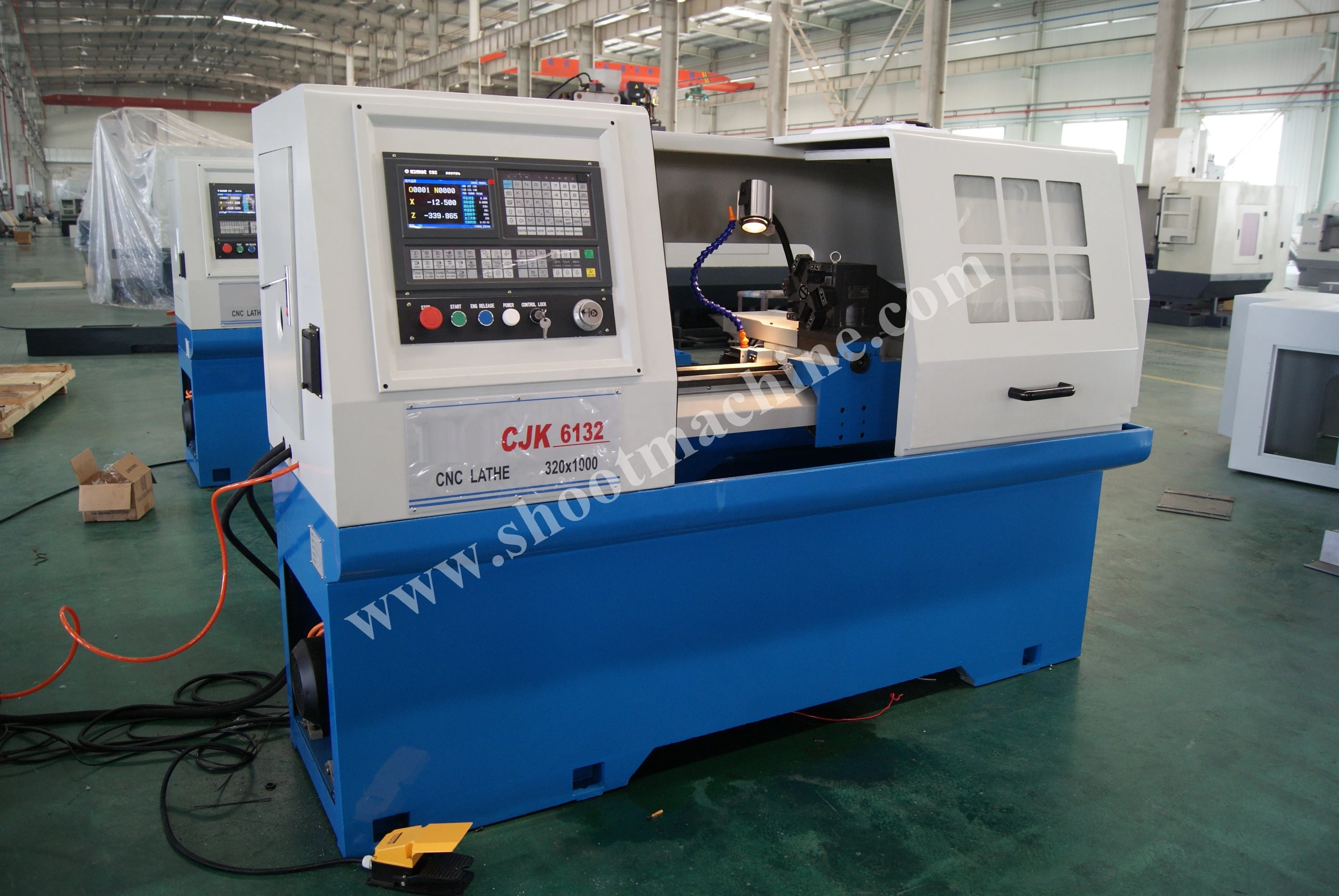

Shoot Brand CNC Lathes, SHCJK6132/500,SHCJK6132/750,SHCJK6132/1000
- Category: >>>
- Supplier: Yantai Shoot CNC Machine Co. Ltd
Share on (503593050):
Product Overview
Description
Product Description
| CNC Lathes | |
| Feature | |
| The machine can process precisely internal or external diameter, face, taper, arc and threading with high efficiency | |
| Standard toolpost is 4-stations, also 6-stations toolpost can be optional selection | |
| Spindle speed changed by frequency | |
| Induction harden bed-way. Bed saddle with plastic sticker can improve the accuracy and service life of the machine | |
| The spindle is supported by imported precision bearings | |
| Normally machine is provided with 3-jaw chuck. According to customer's optional selection, hydraulic chuck or pneumatic chuck also can be supplied | |
| The main configuration | |
| 1. Siemens 808DA15 system (English) | |
| 2. Servo motor. | |
| 3. "Delta" inverter | |
| 4. Manual pulse generator | |
| 5. Power off the sliding door and electrical box to open the door | |
| 6. The wire is a shielded wire | |
| 7. Electrical components meet "CE" requirements | |
| 8. Cam lock spindle | |
| 9. Equipped with 160mm three-jaw self-centering chuck | |
| 10. 4-station tool holder | |
| 11. Cooling system | |
| 12. LED strip work light | |
| 13. Automatic lubrication system | |
| 14. Chuck cam locking connection | |
| 15. Note: Use the new model, fully enclosed shield | |
| Model | SHCJK6132/500 |
| Swing over bed | Φ320mm |
| Swing over carriage | Φ130mm |
| Distance between centers | 500mm |
| Taper of barrel | M.T.5 |
| Spindle hole | Φ38mm |
| Range of speed(variable) | 100~2500r/min |
| Feed motor power(X/Z) | 4N.M/6N.M |
| X rapid traverse | 5m/min |
| Z rapid traverse | 10m/min |
| Max. travel of X axis | 160mm |
| Max. travel of Z axis | 400mm |
| Motor power | 3Kw |
| Tool-post | 4 stations |
| Max.tool size | 16×16mm |
| Min input unit | 0.001mm |
| repeatability accuracy(X/Y) | 0.016mm |
| Barrel travel of tailstock | 150mm |
| Barrel taper of tailstock | M.T.3 |
| Overall size(L×W×H) | 1850×1100×1650mm |
| Packing size(L×W×H) | 2200×1150×1850mm |
| N/G Weight | 800/900kg |
| Loading amount | 5pcs/20' container |
| Model | SHCJK6132/750 |
| Swing over bed | Φ320mm |
| Swing over carriage | Φ130mm |
| Distance between centers | 750mm |
| Taper of barrel | M.T.5 |
| Spindle hole | Φ38mm |
| Range of speed(variable) | 100~2500r/min |
| Feed motor power(X/Z) | 4N.M/6N.M |
| X rapid traverse | 5m/min |
| Z rapid traverse | 10m/min |
| Max. travel of X axis | 160mm |
| Max. travel of Z axis | 650mm |
| Motor power | 3Kw |
| Tool-post | 4 stations |
| Max.tool size | 16×16mm |
| Min input unit | 0.001mm |
| repeatability accuracy(X/Y) | 0.016mm |
| Barrel travel of tailstock | 150mm |
| Barrel taper of tailstock | M.T.3 |
| Overall size(L×W×H) | 1900×1100×1650mm |
| Packing size(L×W×H) | 2300×1150×1850mm |
| N/G Weight | 900/1000kg |
| Loading amount | 5pcs/20' container |
| Model | SHCJK6132/1000 |
| Swing over bed | Φ320mm |
| Swing over carriage | Φ130mm |
| Distance between centers | 1000mm |
| Taper of barrel | M.T.5 |
| Spindle hole | Φ38mm |
| Range of speed(variable) | 100~2500r/min |
| Feed motor power(X/Z) | 4N.M/6N.M |
| X rapid traverse | 5m/min |
| Z rapid traverse | 10m/min |
| Max. travel of X axis | 160mm |
| Max. travel of Z axis | 900mm |
| Motor power | 3Kw |
| Tool-post | 4 stations |
| Max.tool size | 16×16mm |
| Min input unit | 0.001mm |
| repeatability accuracy(X/Y) | 0.016mm |
| Barrel travel of tailstock | 150mm |
| Barrel taper of tailstock | M.T.3 |
| Overall size(L×W×H) | 2300×1100×1650mm |
| Packing size(L×W×H) | 2380×1150×1850mm |
| N/G Weight | 1000/1100kg |
| Loading amount | 4pcs/20' container |
Packaging & Shipping
Packing: by Plywood Case or Plastic Film
Shipping: Qingdao Port
Deliver time: 30days after receive payment
Company Information
Yantai Shoot CNC Machine Co.,Ltd
Yantai Shoot Woodworking Machine Co.,Ltd
wechat: 0086 13906451612
whatsapp: 0086 13906451612
viber: 0086 13906451612
website: www.shootmachine.com
| Standard accessories | |
| 3-jaw chuck and tool post wrench | |
| Allen wrench | |
| Electrical tool post (4 station) | |
| Cooling system | |
| Manual lubricating system | |
| Working lamp | |
| GSK CNC controller system | |
| The base is welded with angle steel and steel plate | |
| Optional accessories | |

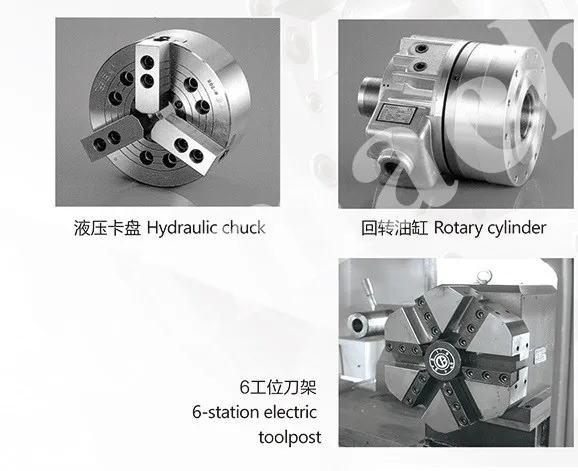

| 6-stations toolpost | |
| Pneumatic chuck | |
| Hydraulic chuck | |
| Controller system siemens 808D | |
| Auto-lubricating system |

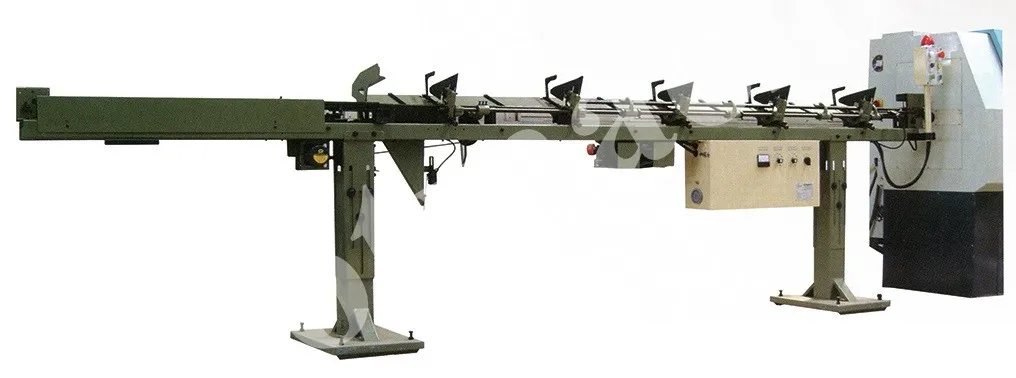

| Optional accessories | Bar auto-feeding |
| Optional accessories | 6-station electrical toolpost |
