No matter where you are,JIASIDA company will be your trusted partner!
>>>JIASIDA*GHS sheet has become widely designated goods of the global architects and designers as an outstanding brand that has been established since 2003.There are hundreds of species combination as different structure,color,coating and surface treatment,hence the goods of the sheet has extraordinarily broad in the current market.
Type | Model | Thickness (mm) | Weight (kg/㎡) | color | Max Width (mm) | Max of Light Transmission (%) |

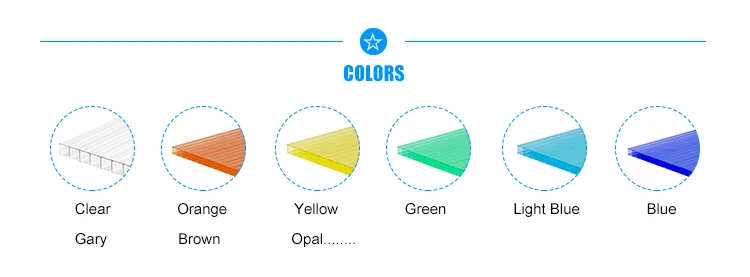

Twin-wall | GHS2R-V GHS2R-AD GHS2R-EC GHS2R-B | 4 6 8 10 12 | 1.0 1.3 1.5 1.7 1.9 | Clear Opal Brown Green Blue Gray Orange Pink Red etc | 2100 | 78 77 76 74 72 |
Triple-wall | GHS3R-V GHS3R-AD GHS3R-EC GHS3R-B | 10 12 14 16 18 | 1.9 2.1 2.3 2.5 2.7 | 73 72 72 72 70 | ||
Four-wall | GHS4R-V GHS4R-AD GHS4R-EC GHS4R-B | 6 8 10 | 1.5 1.7 1.9 | 72 71 70 | ||
Honeycomb | GHS4H-V GHS4H-AD GHS4H-EC GHS4H-B | 6 8 10 12 | 1.5 1.7 1.9 2.1 | 59 58 57 56 | ||
Four-wall X profile | GHS4X-V GHS4X-AD GHS4X-EC GHS4X-B | 6 8 10 12 | 1.5 1.7 1.9 2.1 | 71 70 69 69 | ||
Five-wall X profile | GHS5X-V GHS5X-AD GHS5X-EC GHS5X-B | 16 18 20 25 30 | 2.6 2.8 3.0 3.5 4.0 | 67 66 65 61 60 |

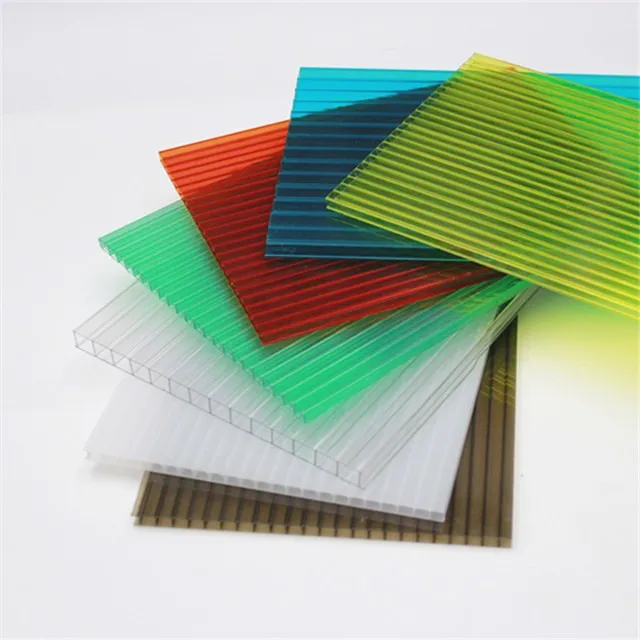

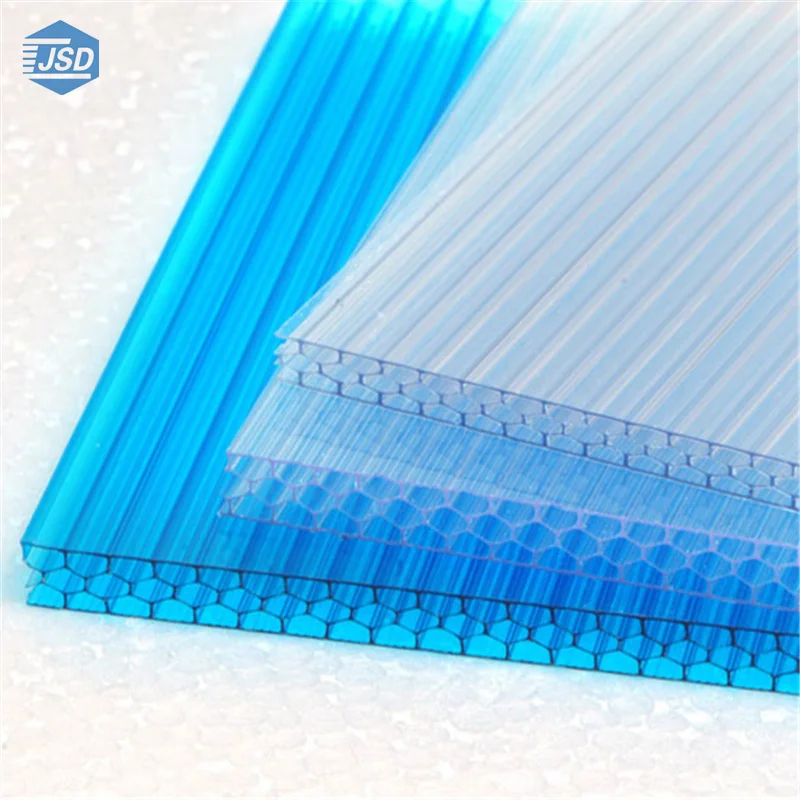

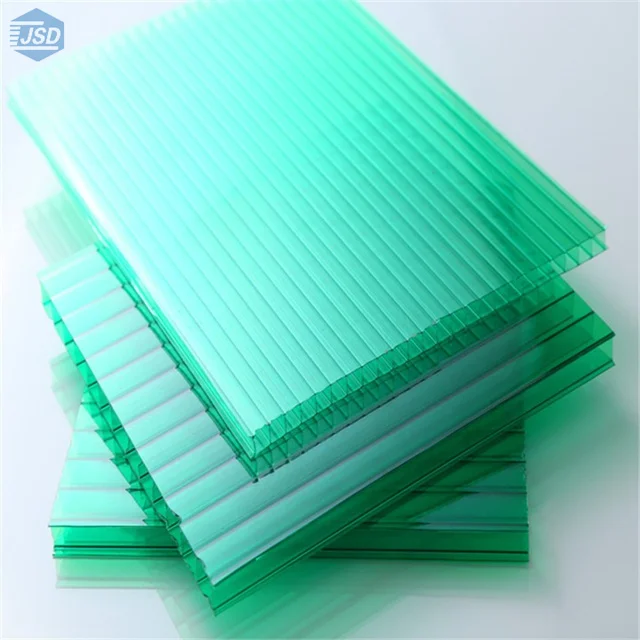

Twin-wall hollow sheet Four-wall hollow sheet Four-wall X profile hollow sheet Honey-comb hollow sheet
Features:
-Excellent balance of low weight and high intensity,reduce the load of steel structure and balance the strength of sheet;
-Easy installation - The PC sheet does not need preforming,which easily cut with traditional tools in-place;
-Excellent thermal insulation effect,low K value of heat transfer coefficient;
-Good weather-ability,UV coating to enhance the life of sheet;
-Good fireproof performance,building fire resistant is B1 level;
-Long term high transmittance,better through solar thermal energy;
-Scoentific and reasonable structure,increase the anti-wind pressure and anti-snow pressure of the sheet.
skylight roofing covering UV coated high impact polycarbonate hollow sheet

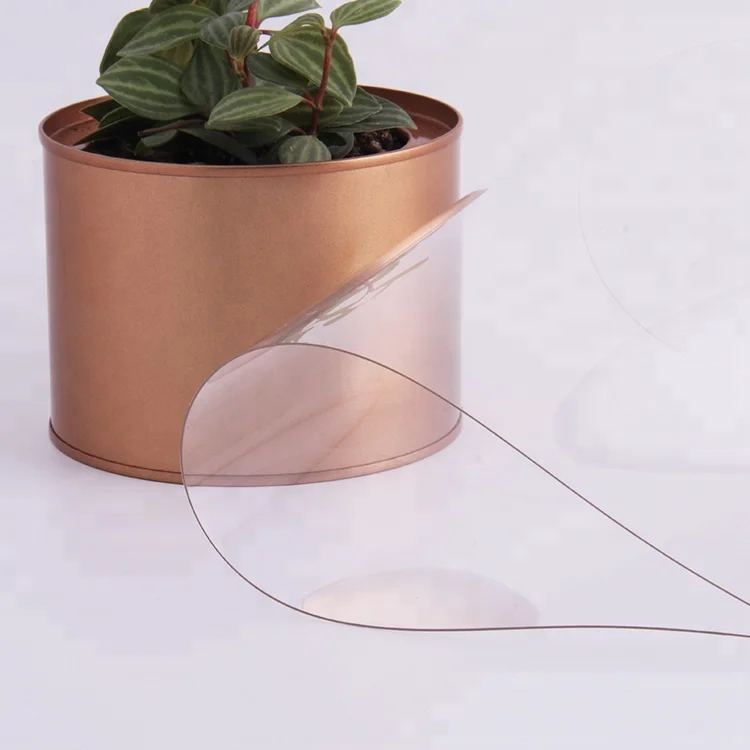

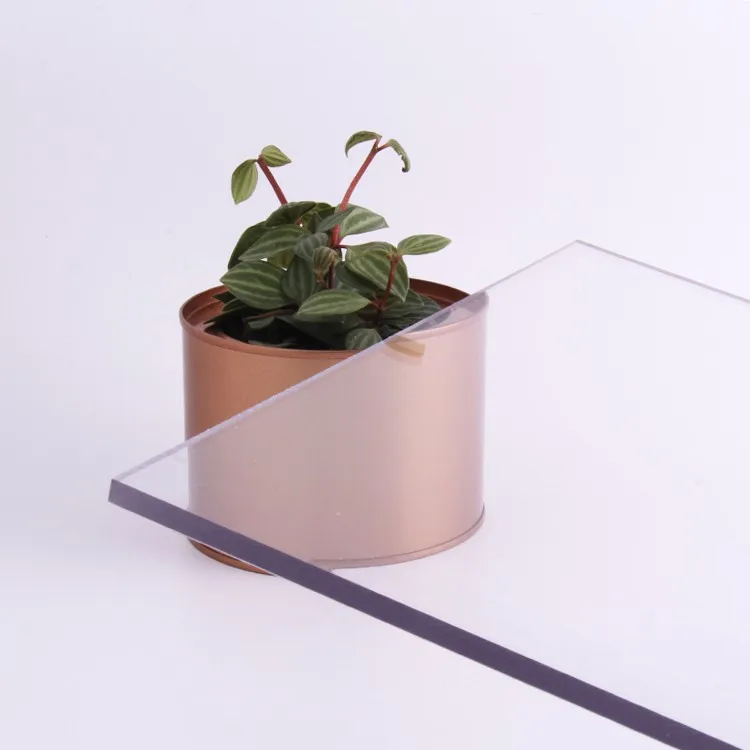

Solid film

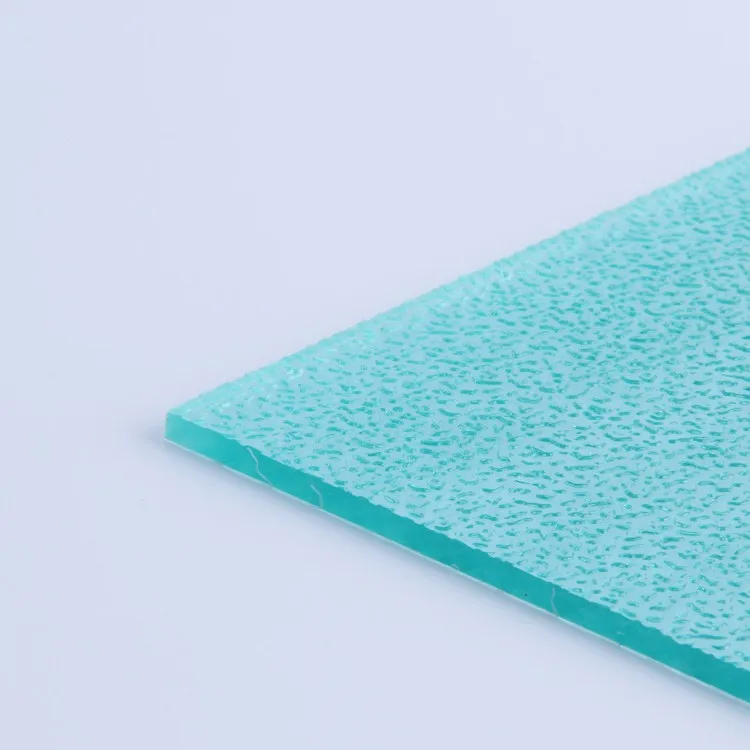

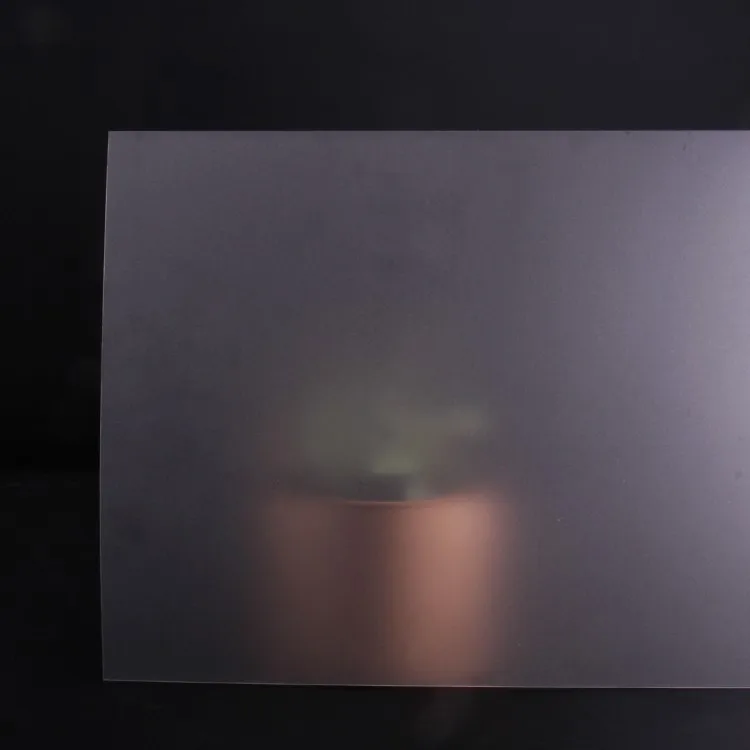

Diffusion Embossed Frosted Hollow
skylight roofing covering UV coated high impact polycarbonate hollow sheet
Q – What is the fire rating of Polycarbonate sheet ?
Class B1 fire rating which is an excellent fire rating.
Q – Is the Polycarbonate sheet unbreakable?
The material is virtually unbreakable, and will resist most impact resistant situations, however they will not guarantee 100% the material is unbreakable, for example if the material was to be in an explosive situation or to be used in a ballistic situation.
Q – Can I cut Polycarbonate sheet at home and I do need any special tools?
You can use our cut to size service to save the hassle of cutting, however if you do need to cut the panels at home you can use a jigsaw, Band Saw and fret saws.
Q – How can I clean my polycarbonate sheet ?
Do not use abrasive materials as will affect the material, the best advice is to use warm soapy water with a soft cloth.
Q – What is the difference between Polycarbonate sheet and Acrylic sheet ?
The main difference between the two is Polycarbonate is virtually unbreakable, acrylic is much stronger than glass, but it will break/shatter if force is applied. Polycarbonate is a class 1 fire rating where Acrylic is a class 3 / 4 fire rating.
Q – What is the difference between Polycarbonate and Lexan ?
There is no difference, Lexan is a brand name for Polycarbonate sheet, other common brand names relating to Polycarbonate sheet include Makrolon, Marlon, Palsun and quinn.
