Product Overview
Description
For the detailed specification of the Mini Lathe, pls see the table:
|
Model |

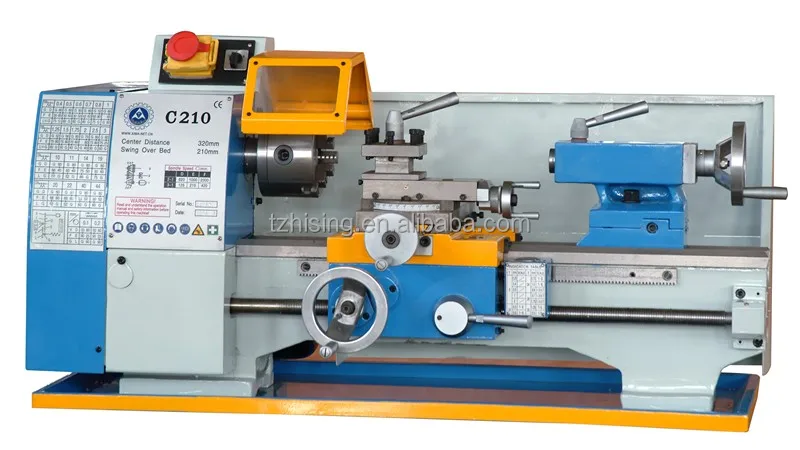

C210V |

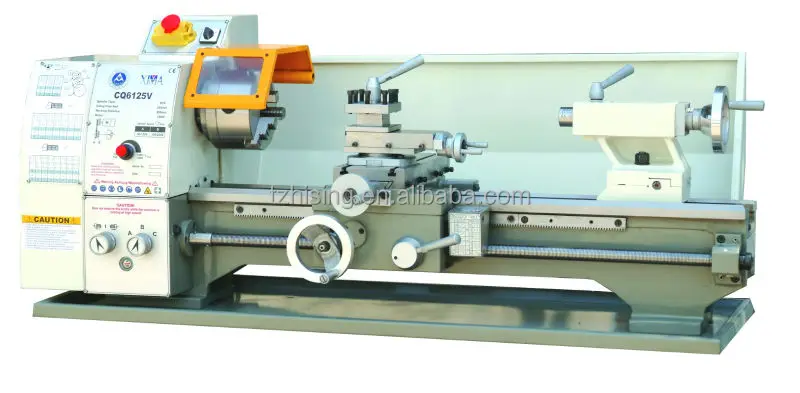

CQ6125V |
|
Max. Swing over bed |
Φ210mm |
Φ250mm |
|
Max.swing over cross slide |
Φ110mm |
Φ150mm |
|
Distance between centers |
320mm |
400/550/750mm |
|
Width of bed |
135mm |
135mm |
|
Spindle bore |
20mm |
26mm |
|
Taper of spindle bore |
M.T.#3 |
M.T.#4 |
|
Range of spindle speeds |
125-2000rpm |
125-2000rpm |
|
Taper of tailstock quill |
M.T.#2 |
M.T.#2 |
|
Metric threads can be cut |
0.4-3mm |
0.4-3.5mm |
|
Inch threads can be cut |
10-44TPI |
8-56T.P.I |
|
CQ6125Range of longitudinal feeds |
0.1-0.2mm/rev |
0.07-0.20mm/rev |
|
Max.travel of cross slide |
110mm |
115mm |
|
Max.travel of top slide |
70mm |
70mm |
|
Max.travel of tailstock quill |
65mm |
65mm |
|
Motor power |
750w(DC motor) |
750w(DC motor) |
|
Net/Gross weight |
105kg/143kg |
112/116/126kg 152/156/166kg |
|
Foot stands(Net/Gross weight) |
44kg/48kg |
44kg/48kg |
Feature:
Precision ground and supersonic frequency hardened bed ways.It features with high accuracy and well wear-resisting
The spindle is supported with precision roller bearing.
Safety magnetic switch or lock key switch.
The spindle bore is 26mm.
Variable control for quick spindle speed changing.
Standard Accessories:
3-Jaw Chuck;
Change Gears Set;
Tool Box and Tools;
Dead Centers
Optional Accessories:
4-Jaw Chuck;
Face Plate;
Steady Rest;
Follow Rest;
Live Center;
Turning Tool Set;
Splash Guard:
Oil Tray;
Foot Stands;
Leadscrew Guard;
Chuck Guard;
Drill Chuck +Drill Arbor
