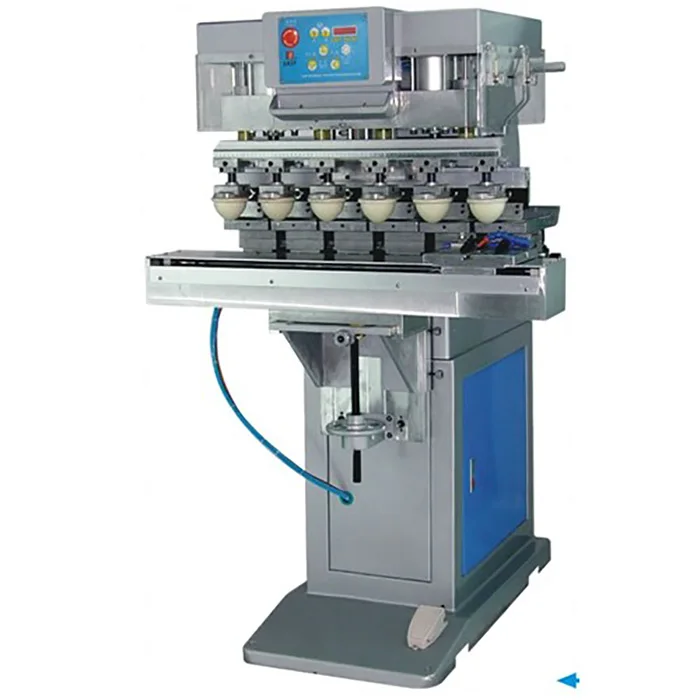

6 Color Pad Printer with Shuttle S6/S

Product Overview

Description

6 Color Pad Printer with Shuttle

Price Terms: FOB GuangZhou
Payment Terms: T/T, LC
Packing: Wooden case
Lead Time: Within 5 days
Standards Certificate:ISO9001-2000
Power Supply:110/220v60/50Hz
Colour Painted:Silver
Specifications:
1.Max. plate size: 100×150mm;
2.Max. worktable area: 170×200mm;
3.Max. printing area:85×130mm;
4.Max. printing speed: 700pcs/hr;
5.Air consumption: 169Litre/min(6bar);
6.Colour Number: 6;
7.Shuttle stroke: 125mm.
8. Machine Dimension:1220*920*1380mm
Advantages:
1,Each function controlled by microprocessor ;
2,Five-digit auto counter built in;
3,Coin aluminium structure make solid and weight light;
4,ink roller is used for ink covering;
5,Independent pad up/down stroke and speed adjustment;
6,Auto balanced doctor blade ;
7,Printing speed adjustable to fulfil various requirements;
8,"Inking twice, printing once" for thick ink film;
9,Able to sweep forward/backward without lowering pad to avoid ink drying at intervals;
10,6-colour ,5 colour ,4-color, 2-color and 1-color printing available;
11,Drying with auto air blowing for easy color registration.
12. SMC Cylinder& FESTO Pneumactic Parts
Machine Fittings:
1. Six 4"*6" plates,
2. Six pads
3. Two blades
4. A tool box.
Ship Date:
By sea:
within 30 days after receive T/T
Testing:Please provide:
1. 110V or 220V power supply.
2. 5-7 bar compress air.
3. Etching plate 6 pcs.
4. Fixture 18 pcs.
5. 50-100 pcs product samples.
6. Pad ink and thinner.
