North America Commercial Kitchen Stainless Steel Range Hood
- Category: Range Hoods >>>
- Supplier: Shengzhou Jilu Ventilation Equiment Co. Ltd.
Share on (504734110):
Product Overview
Description

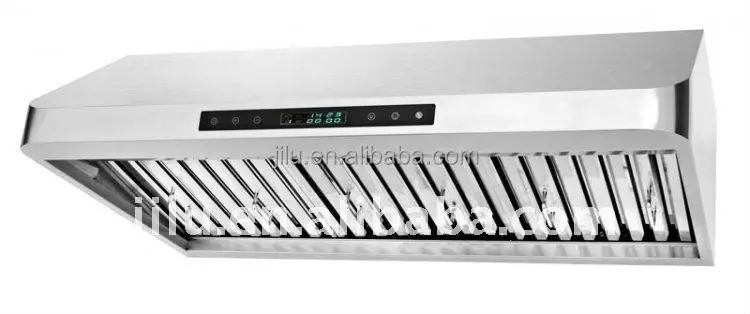

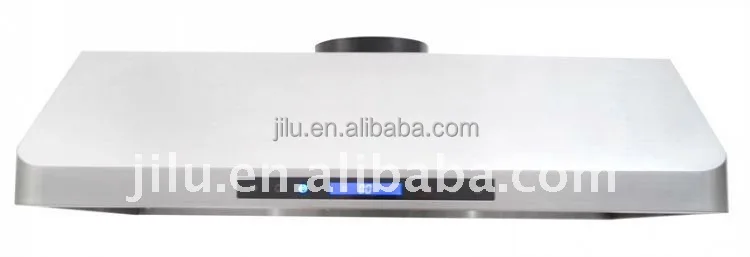

Commercial Kitchen Range Hood
Model: CXW-298-A17
Optional Size: 30" 36" 42" 48"
Powerful Motor:
Powerful Motor:
Quite 385cfm (1.5 sone--46dB)
Low Speed 460cfm (3.5 sone--58dB)
Medium Speed 615cfm (5.3 sone--64dB)
High Speed 900cfm (7.5 sone--69dB)
Time Delay Controls: The time delay system features a 3 minuet delay shut off (1 push on/off) or immediately shutdown( 2 puch
on/off)
Bright Halogen Light: 2 bright 12V 20W halogen lights for 30" 36" ; 3 lights for 42" 48"
Baffle Filters: This hood includes Baffle filter; 2 for 30" 36" & 3 for 42" 48"
Material: 18- Gauge Commercial Grade Stainless Steel.Optioal Duct cover
Low Speed 460cfm (3.5 sone--58dB)
Medium Speed 615cfm (5.3 sone--64dB)
High Speed 900cfm (7.5 sone--69dB)
Time Delay Controls: The time delay system features a 3 minuet delay shut off (1 push on/off) or immediately shutdown( 2 puch
on/off)
Bright Halogen Light: 2 bright 12V 20W halogen lights for 30" 36" ; 3 lights for 42" 48"
Baffle Filters: This hood includes Baffle filter; 2 for 30" 36" & 3 for 42" 48"
Material: 18- Gauge Commercial Grade Stainless Steel.Optioal Duct cover
Voltage | 120V 60Hz or 220V 50Hz |
Motor type | Twin Centrifugal Squirrel Cage |
Exhaust | Top Transition Rectangular to 7" round X1 |
Controls | Six Electronic Buttons with Exposed LED indicator lights |
Halogen Light | 12V 20W X2(30" 36" ) 12V 20W X3 (42" 48") |
Hood Dimension | 30" 29-3/4" X 22" X10" 36" 35-3/4" X 22" X10" 42" 41-3/4" X 22" X10" 48" 47-3/4" X 22" X10" |
Weight(lbs) | 30" Net: 50 Gross: 61 36" Net: 53 Gross: 66 42" Net: 61 Gross: 76 48" Net: 67 Gross: 85 |
