chopped steel fiber for brake pads

Product Overview

Description

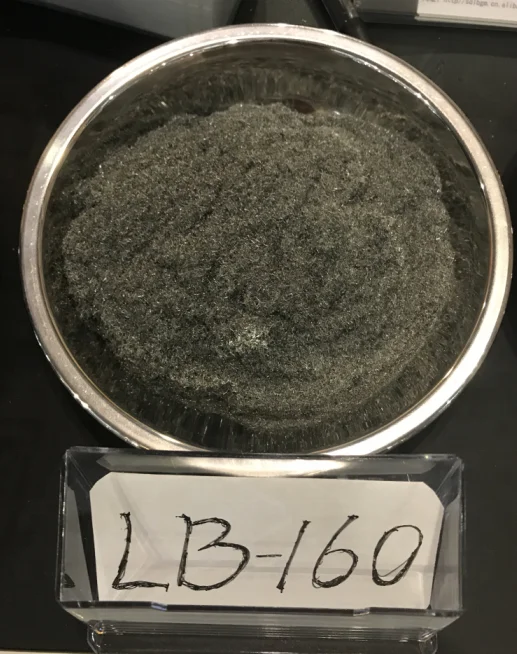

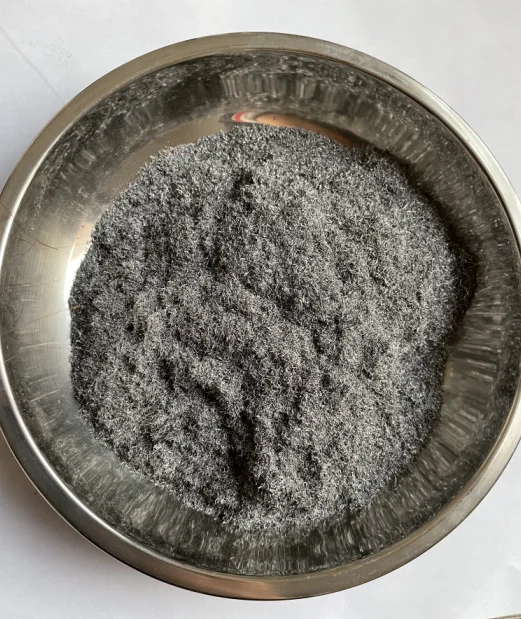

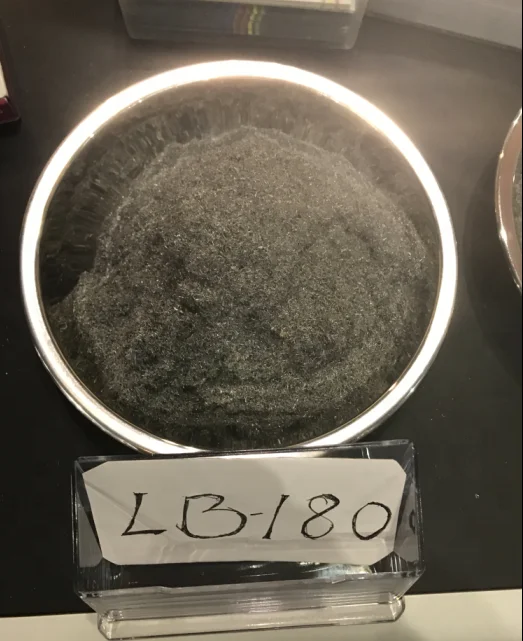

Chopped steel wool fiber:

Chopped steel fiber is made from high quality low carbon steel wire.It is produced through craping, choping and mixing.



Specification:

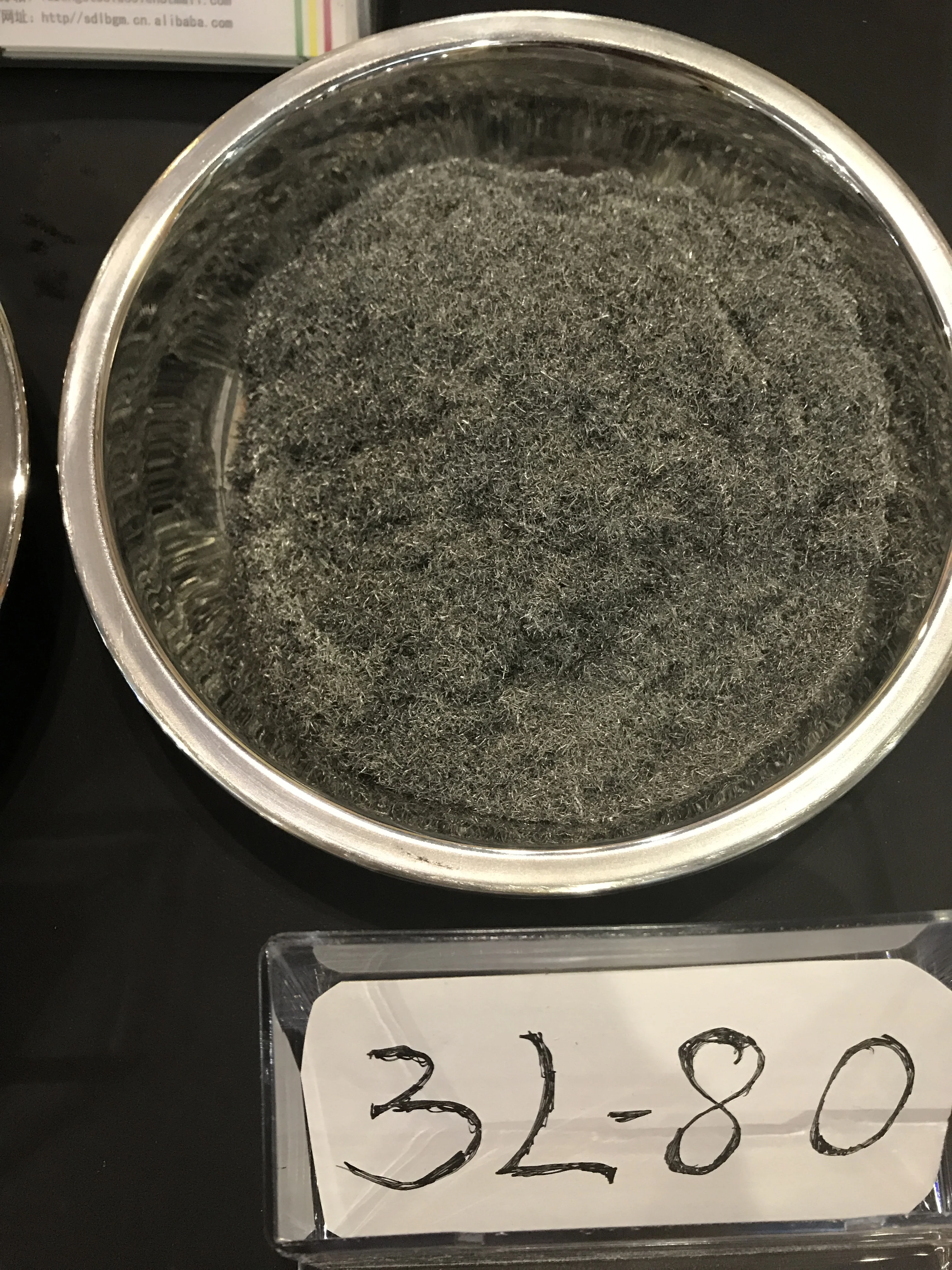

D0-160, D1-80, AD1-80, 1-80, 3L-80, 3-60, Q4-80



Packing:

25kgs/bag (two layers of paper and a piece of plastic film)

40bags/pallet

Or according to your requirement





spes	volum CC/G	14#	20#	40#	70#	100#	Pan(-150um)	oil %
D-021	0.95-1.2	0-1	0-1	0-10	15-25	5-15	55-75	≤0.3
D-05	0.9-1.2	0-1	0-2	0-10	10-25	5-15	50-70	≤0.3
D1-80	0.9-1.1	0-1	0-5	5-15	15-30	5-25	50-70	≤0.3
D3-52F	0.8-1.2	0-1	0-5	8-25	10-25	5-25	30-55	≤0.3
D3-52C	0.6-1.1	0-0.1	0-4	0-6	14-40	10-35	10-60	≤0.3
GMT 180	0.8-1.1	0-1	0-5	5-15	15-30	5-25	45-65	≤0.3

others  :according to customer requirement



         Chemistry  Composition (%)

           C :0.07-0.12%

        Mn : <0.95%

        Si :<0.07%

        P :<0.05%

         S :<0.05%

      Melting Point

      1530°c
