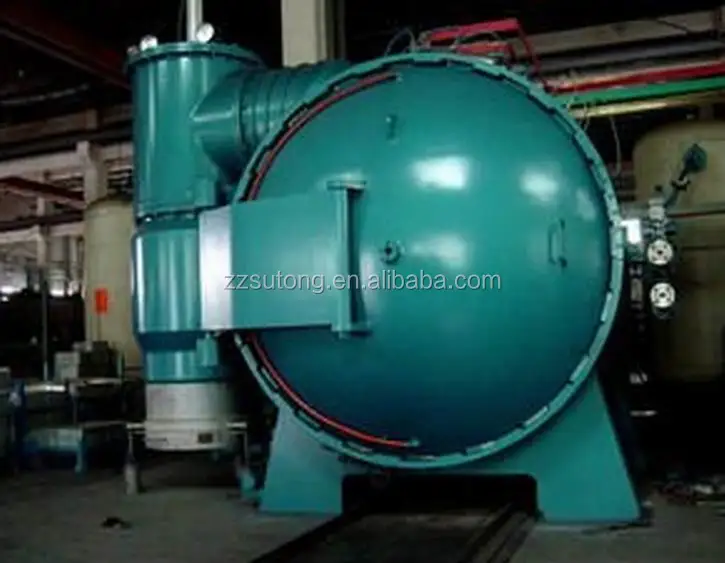

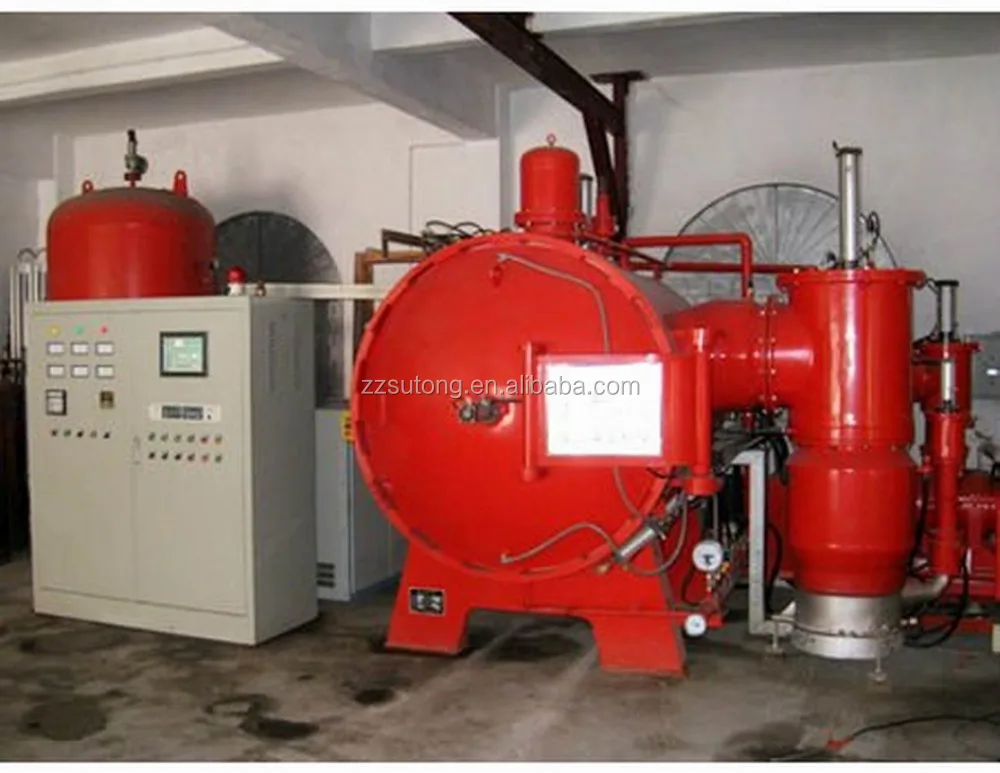

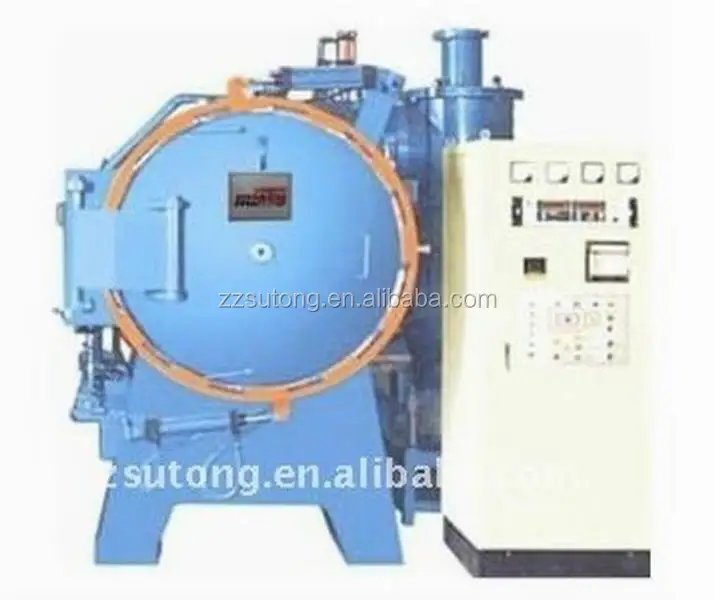

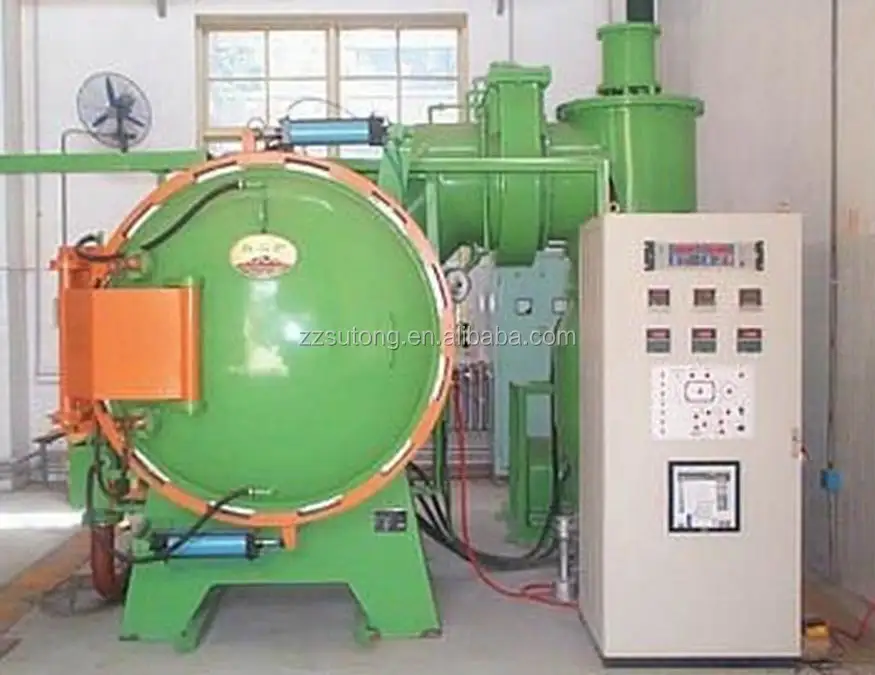

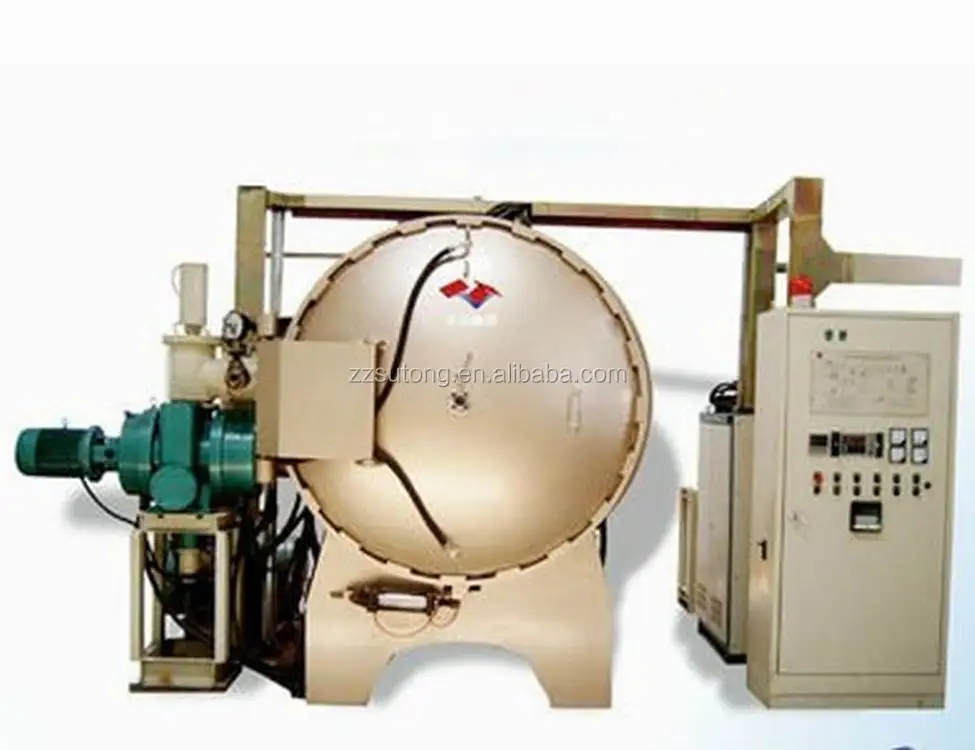

1350 C Vacuum Silicon Carbide Furnace for Fritting Metal

Product Overview

Description



1350 C Vacuum Silicon Carbide Furnace for Fritting Metal

We offer OEM service for you!

1350 C Vacuum silicon carbide Furnace for fritting with chamber 200x200x300mm(8x8x12")
1.SiC heating element

2.Vacuum:4*0.001Pa

3.Capacity:50Kg

4.200*200*300mm

Description of Product:

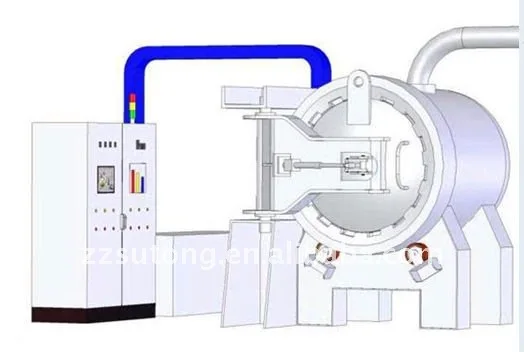

ST-CVTQ series of single chamber high pressure gas quenching furnace consists of furnace body, vacuum system, water cooling system, gas inflation system, gas cooling system, electric control system and furnace outer material car etc. It is used for high pressure gas quenching of materials like high-speed steel, tool & mould steel, high temperature alloy, martensitic stainless steel, titanium alloy ,etc., and also for annealing magnetic material. It has special compacted inner furnace structure, with high-efficiency heat exchanger; it uses inside 360-degree nozzle all around cooling method and the highest gas quenching pressure can reach up to 1MPa. It is configured with optimization designed gas quenching system and electric control system and there is little deformation of components.

Main Specifications and type:

Heating elements	SiC heater(silicon carbide )
Furnace structure	Double shell with water cooling system
Furnace temperature uniformity	±5°C
Loading Capacity	50~1500Kg

Type	ST-CVTQ-223	ST-CVTQ-335	ST-CVTQ-447	ST-CVTQ-669	ST-CVTQ-7712	ST-CVTQ-8812	ST-CVDQ-9912	ST-CVDQ-101015
Power	30Kw	57Kw	75Kw	140Kw	200Kw	250Kw	300Kw	350Kw
Loading Capacity	50Kg	100Kg	200Kg	500Kg	700Kg	800Kg	1000Kg	1500Kg
Effective heating zone   (W*H*L)	200*200*300mm	300*300*500mm	450*400*670mm	600*600*900mm	700*700*1200mm	800*800*1200mm	900*900*1200mm	1000*1000*1500mm
Utmost vacuum degree	2*0.1Pa 4*0.001Pa	2*0.1Pa 4*0.001Pa	2*0.1Pa 4*0.001Pa	2*0.1Pa 4*0.001Pa	2*0.1Pa 4*0.001Pa	2*0.1Pa 4*0.001Pa	2*0.1Pa 4*0.001Pa	2*0.1Pa 4*0.001Pa
Highest temperature	1350°C	1350°C	1350°C	1350°C	1350°C	1400°C	1400°C	1400°C
Gas quenching pressure	2Bar	2Bar	2Bar	2Bar	2,4,6Bar	2,4,6Bar	2,4, 6,10Bar	2,4, 6,10Bar
Furnace temp uniformity	±5°C	±5°C	±5°C	±5°C	±5°C	±5°C	±5°C	±5°C
Pressure increasing rate	0.65Pa/h	0.65Pa/h	0.65Pa/h	0.65Pa/h	0.67Pa/h	0.67Pa/h	0.68Pa/h	0.68Pa/h

Note:

We can design and produce according to the users' specific requirements of technical parameters.

Applications:

1.Gravimetric analysis;

2.Quantitative analysis;

3.Sintering or Roasting or Forging or calcining;

4.Heat treating or Preheating;

5.Quenching or Hardening or Austempering

6.Annealing or Tempering or Normalizing

7.Stress Relieving

Warranty:Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.

Replacement will be shipped to you after photo or other evidence are provided and investigated.

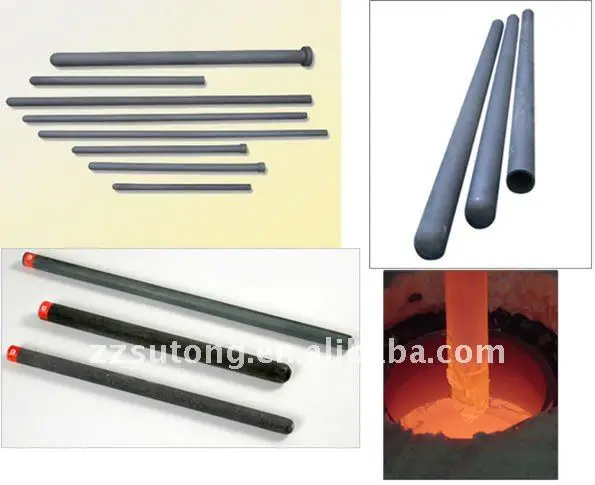

SiC heating element
