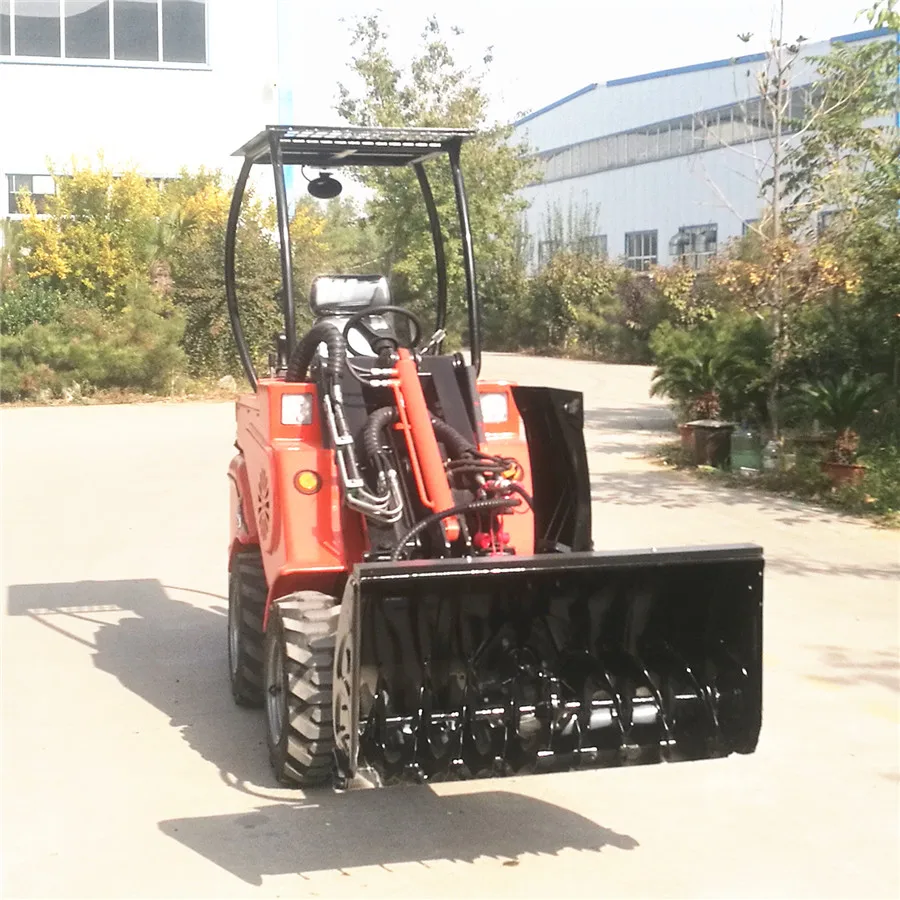

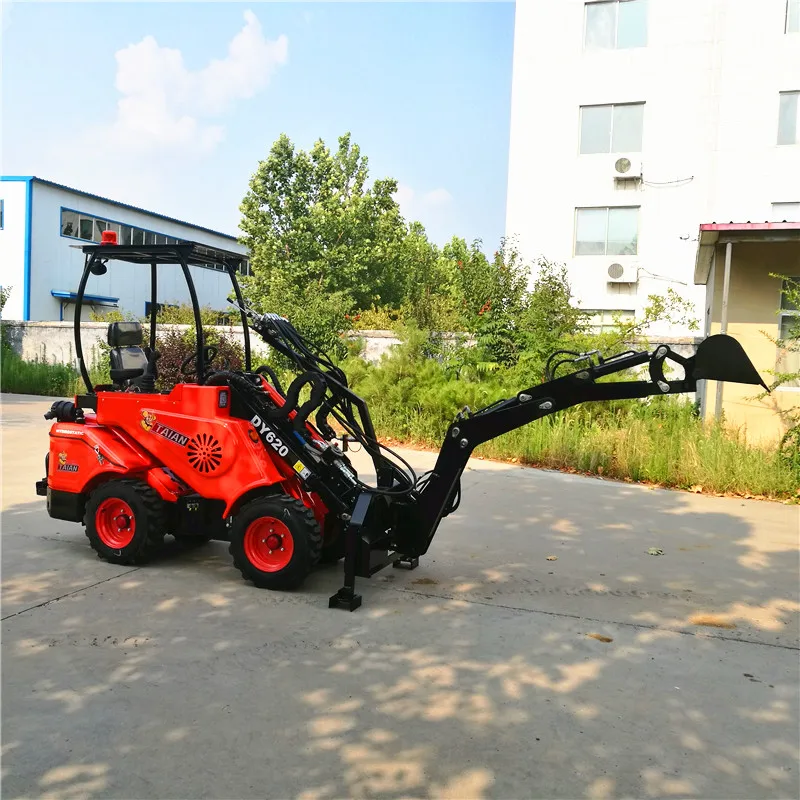

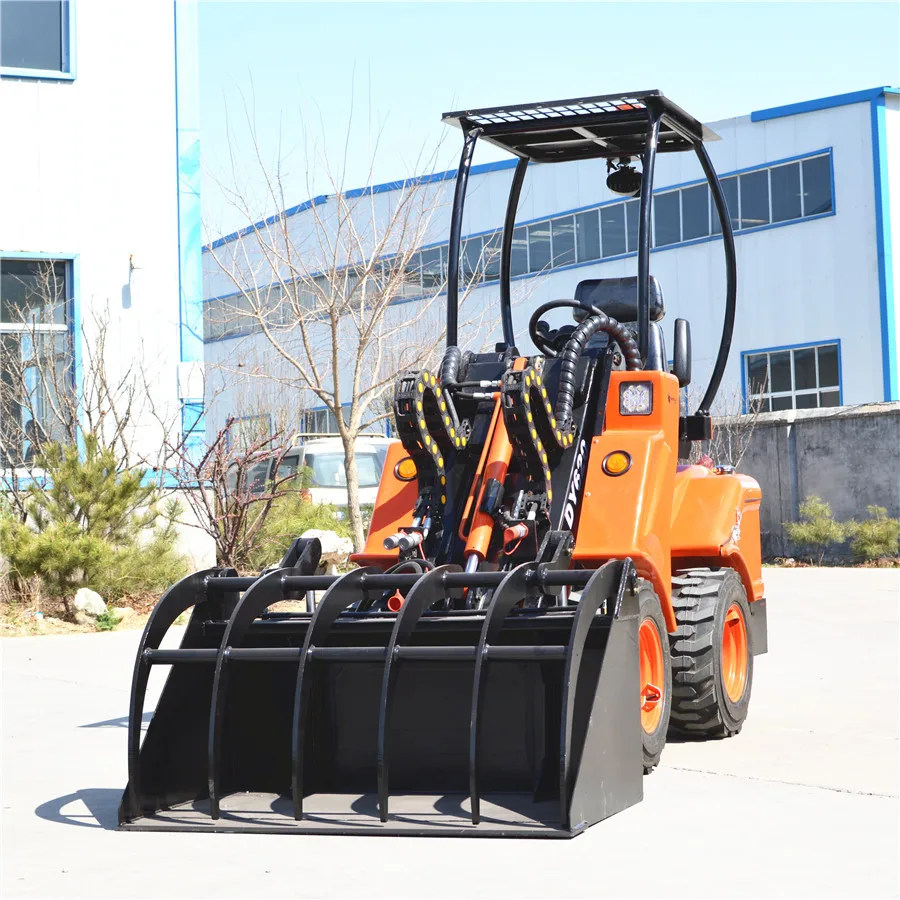

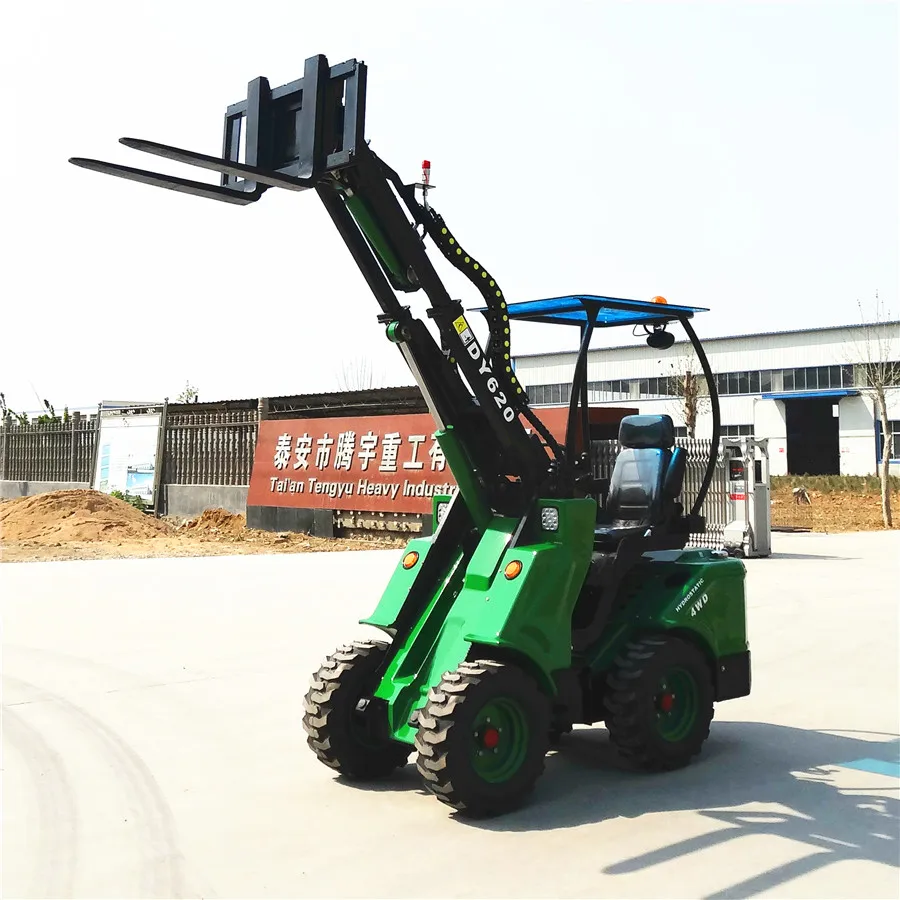

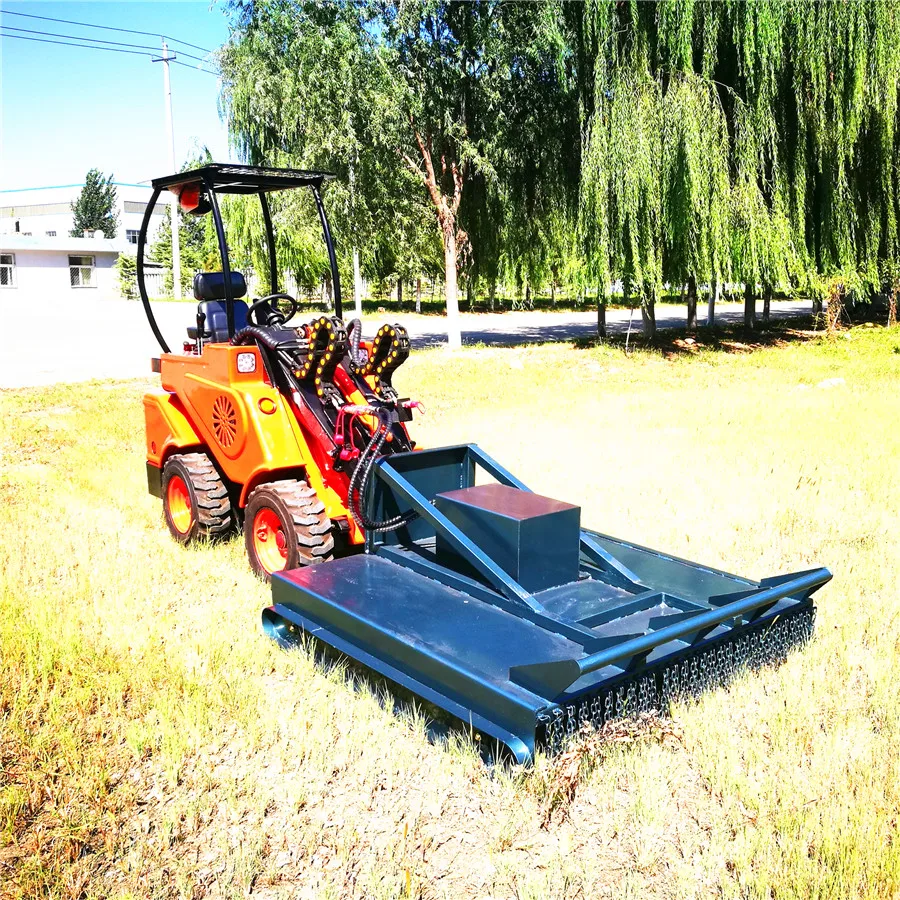

DY620 mini articulated wheel loader with many attachments
- Category: >>>
- Supplier: Taian Dongyue Carrying Machinery Co. Ltd.
Share on (505558872):
Product Overview
Description
Features
1.Compact design
2.Hydrostatic four wheel drive
3.Telescopic boom
4.Self levering.
5.Differential lock.
6.Boom floating
7.European standard quick coupling plate
8.Front articulated structure makes the turning radius much smaller.
Maintenance
1. The engine cover can be opened easily
2. Oil level check hole on the rear cover,.
3. Rotating warning light on top.
4. Sound alarm system
5. Convenient Cigar lighter.
6. Pressure testing connector on the chassis
Technical data
Model | DY620 |
Max. length | 2195 mm |
Max. width | 980 mm |
Max. height | 2150 mm |
Max. reach(boom extended) | 2750mm |
Max. reach(boom retracted) | 2480mm |
Bucket capacity | 300L |
Rated loading capacity | 500kg-800kg |
Min. turning radius | 1980mm |
Turning angle | 40° |
Speed | 0-10 km/h |
Weight | 1100 kg |
Standard tire | 23X8.5-12 |
Tire pressure | 2.8 bar |
Oil tank capacity | 35L |
Pressure | 190bar |
Working oil flow | 33L/min |
Tracking oil flow | 50L/min |
Oil model(mineral oil) | L-HL46 |
Engine brand | Yanmar 3TNV76 |
Number of cylinder | 3 |
Cooling system | Water cooling |
Rated power | 18.7Kw |
Rotation speed | 3000 r/min |
Fuel tank capacity | 18L |
Battery capacity | 55Ah |
Voltage | 12v |
OPTIONS OF ENGINE | |
Engine brand | Yanmar 3TNV80F |
Number of cylinder | 3 cylinders |
Cooling system | water cooled. |
Rated power | 18KW |
Rotation speed | 3000rpm |
OTHER OPTIONS | |
Counterweight (3PCS) | |
Collapsible Roll Bar | |
Trailer hook | |

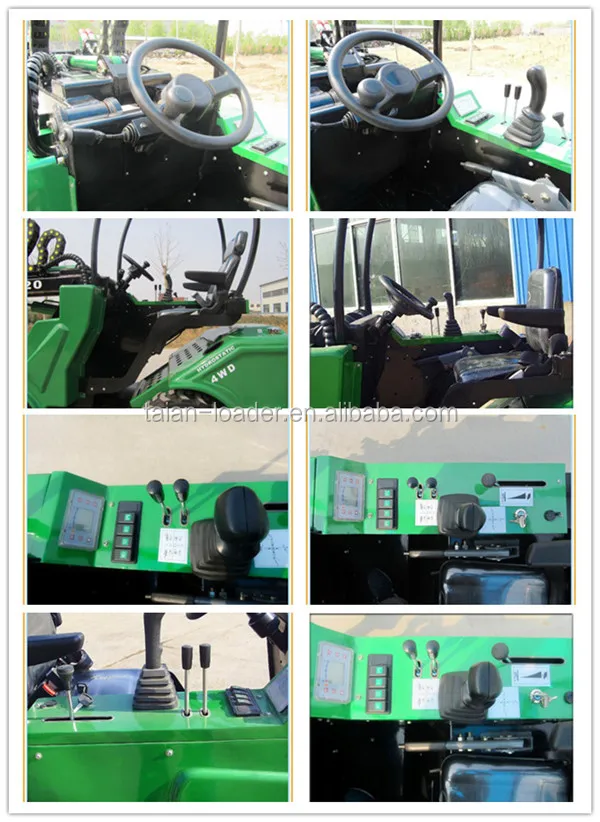

Details
