17 inch touch screen/touch monitor/ELO 1739L structure compatible
- Category: Touch Screen Monitors >>>
- Supplier: KeeTouch Co. Ltd.
Share on (505599303):
Product Overview
Description
17 inch lcd touch screen monitor:
ELO 1739L compatible.
1)17 inch LCD monitor Features:
· Bezel seal standard:NEMA3 and IEC IP65
· High quality panel with high brightness,high contrast ratio and broad viewing angle
· Finger or gloved hand operation
· Dual USB/Serial touch interface port
· Dual VGA/DVI input video format
2)17 inch LCD monitor Specifications:
Model No. | KOT-0170US-SA4BCW | ||||
Series | OT,Water-proof and Compact | ||||
LCD Type | 17"Active matrix TFT-LCD | ||||
Active Area | 13.3"(338mm)×10.6"(270mm) | ||||
Monitor Dimensions | Width: 368mm Width with brackets:389.4 mm Height with brackets: 327.4mm | ||||
Suggested Resolution | 1280×1024 | ||||
Support Colors | 16.7M | ||||
Brightness(Typ.) | Pure LCD Panel | 300cd/m2 | |||
With SAW Glass Sensor | 275cd/m2 | ||||
Response Time(Typ.) | 5ms | ||||
Viewing Angle (Typ.at CR>10)) | Horizontal(left/right) | 80°/80° | |||
Vertical(up/down) | 80°/80° | ||||
Contrast Ratio(Typ.) | 800:1 | ||||
Video Input | Dual Analog RGB and DVI video format | ||||
Frequency(H/V) | 30~80KHz / 60~75Hz | ||||
Power Supply | Type: External brick | ||||
Environment | Operating Temp. | 0~50°C | |||
Storage Temp. | -20~60°C | ||||
Operating RH: | 20%~80% | ||||
Storage RH: | 10%~90% | ||||
MTBF | 50,000 Hours | ||||
LCD Back light Life(Typ.) | 50,000 Hours | ||||
Weight(N.W/G.W) | 5Kg / 7.2Kg (Approx.) | ||||
Power Consumption | 40W Max. | ||||
Mount Interface | 1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical (Standard mount brackets are supplied) | ||||
OSD Control | Buttons | AUTO,+,POWER,-,MENU | |||
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | ||||
Touch screen Type | Keetouch 17" SAW 3/4/6mm compact touch sensor | ||||
Touch System Interface | Having USB and Serial(RS232) interface | ||||
Touch Response time | USB/Serial: 8.4/10.4ms | ||||
Agency Approval | ETL,FCC,CE,RoHS | ||||
Regular Warranty | 5 years for SAW Sensor; 3 years for controller; 1 year for LCD | ||||

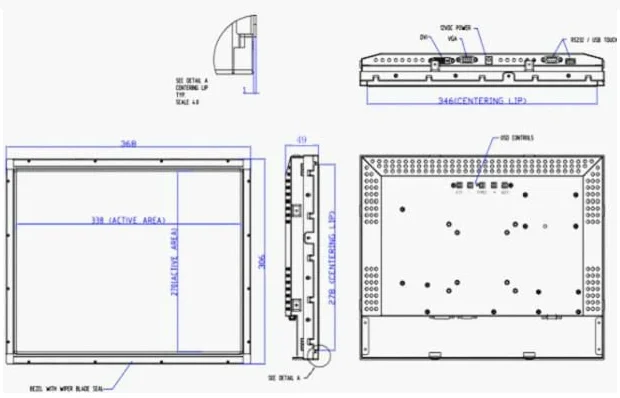

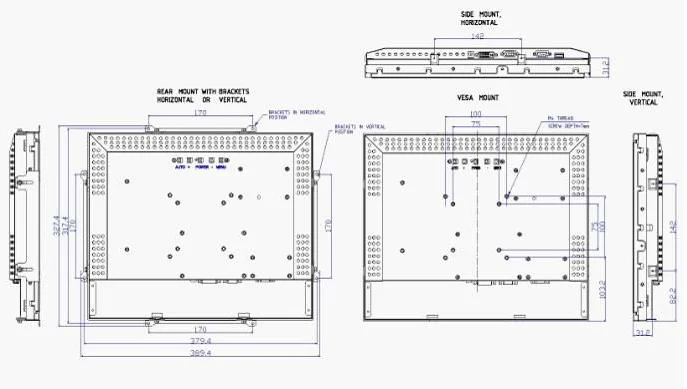

3)17 inch LCD monitor Mechanical Dimension:
4)Accessorie:
Power Cable Power Supply Brick,Touch/Vid,eo/DVI Cables,L-brackets:Four standard L-brackets are included.
