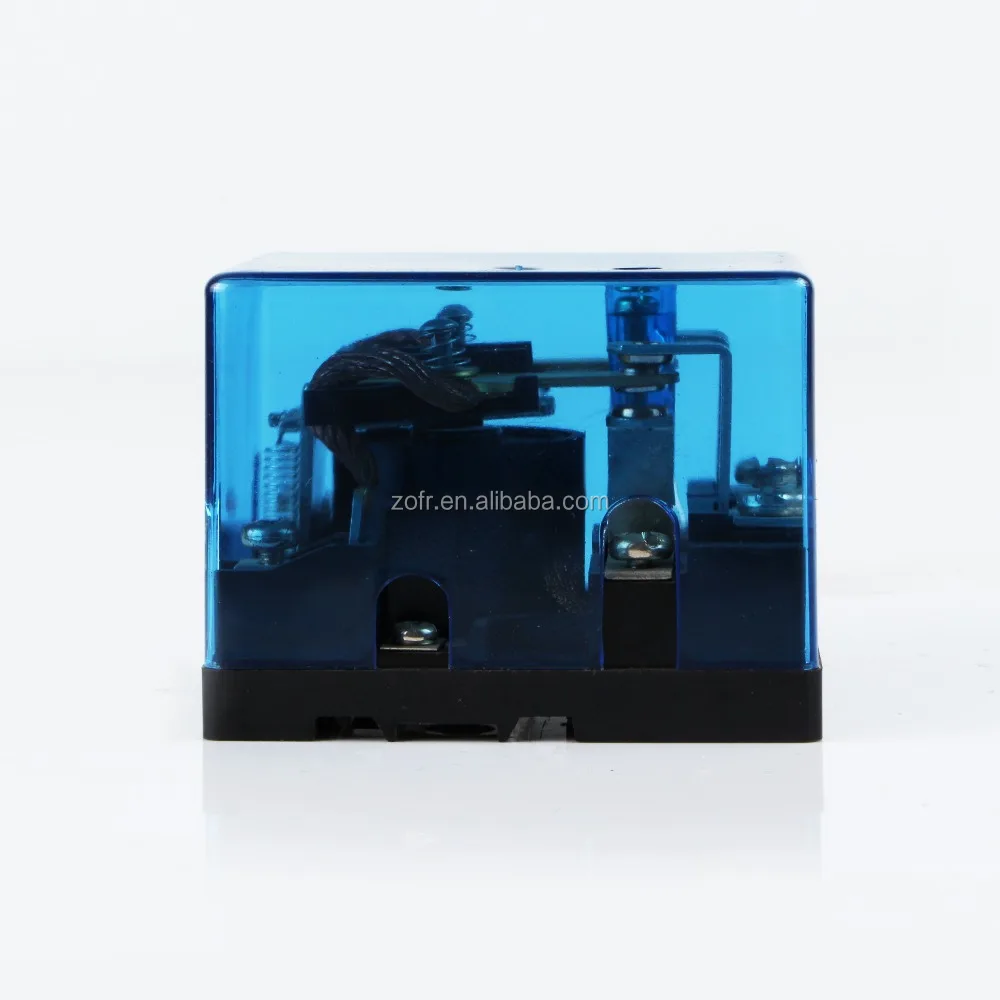

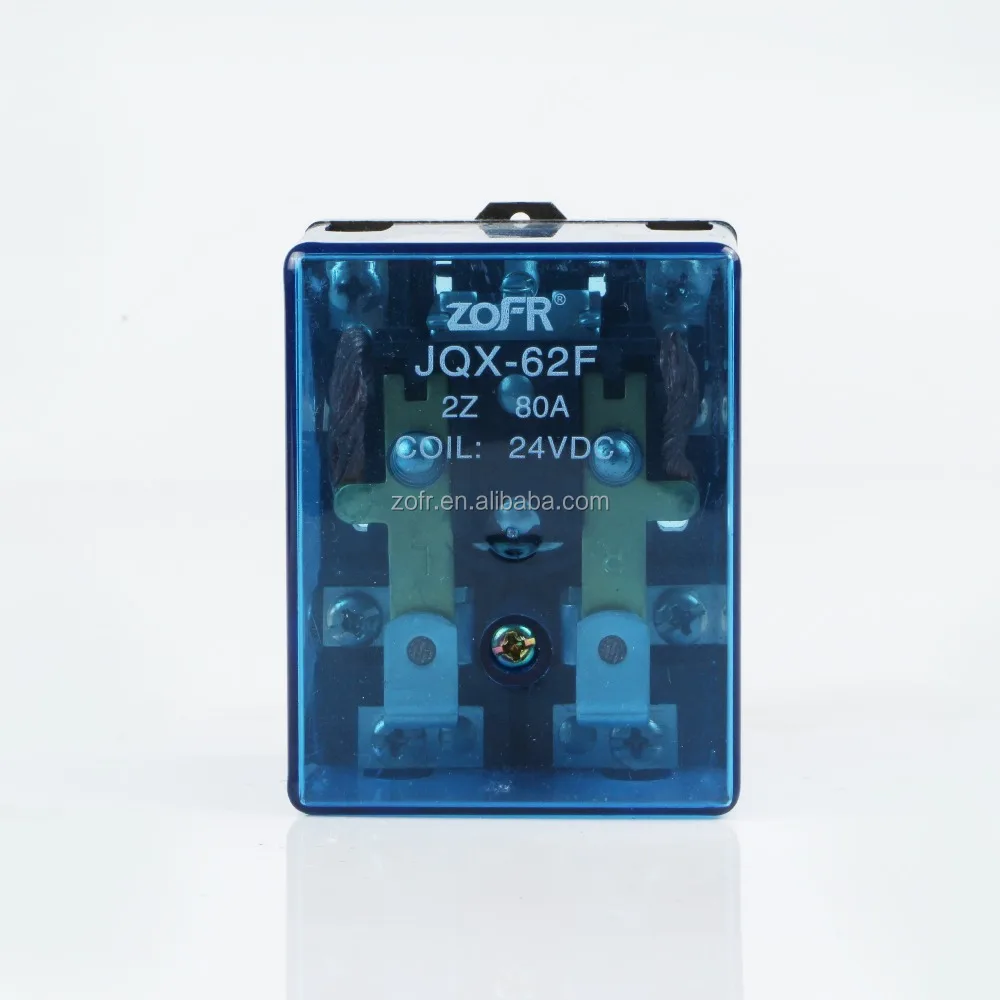

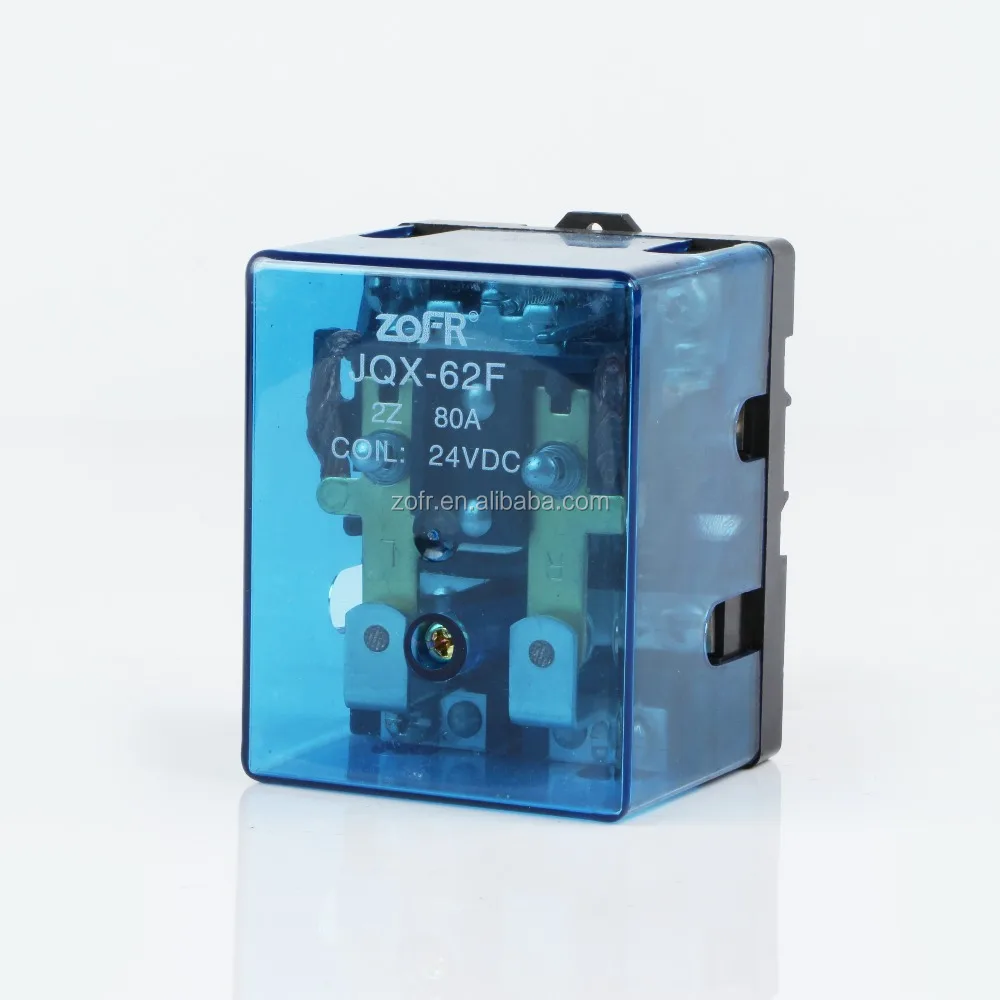

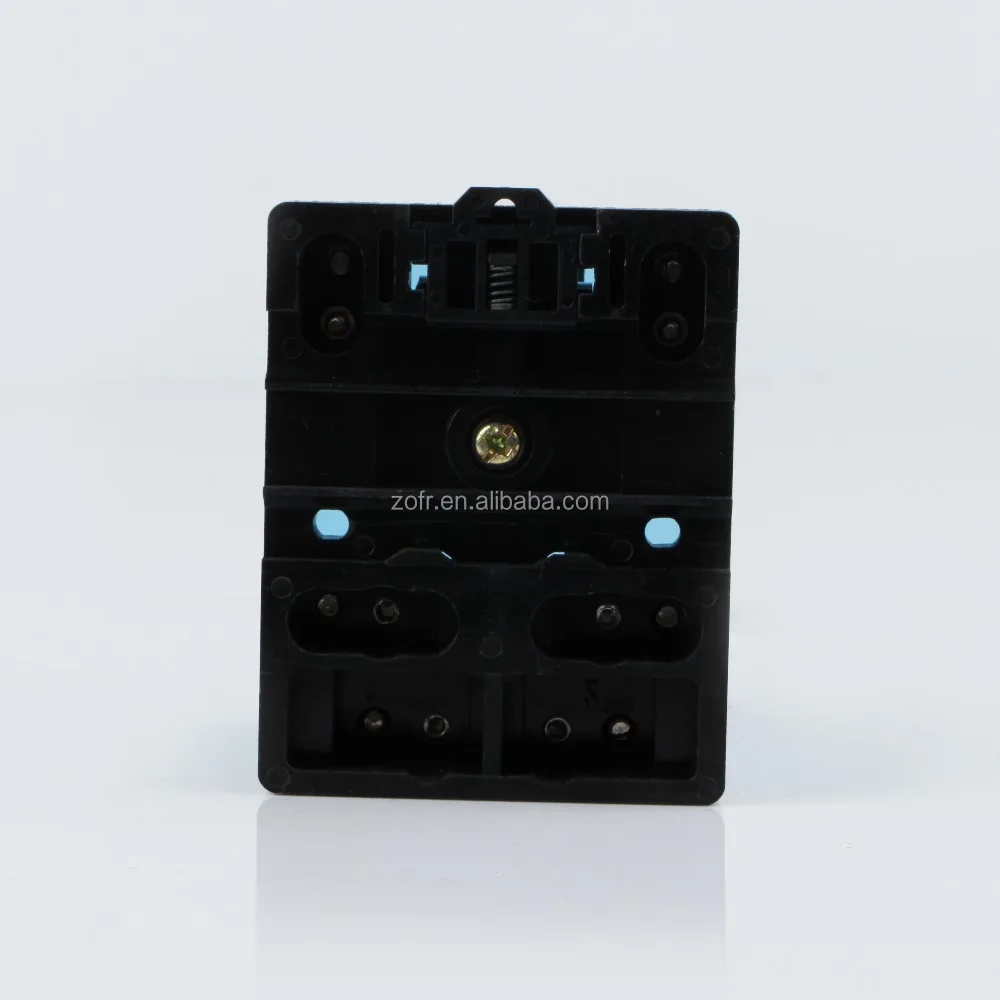

Blue color DPDT JQX 62F 2Z 80A power switch relay
- Category: >>>
- Supplier: Zhejiang Zhongji Technology Co. Ltd.
Share on (506084740):
Product Overview
Description
Blue color DPDT JQX-62F 2Z 80A power switch relay
Features:
Power relay
1) Outline dimensions: 69.0*68.2*62
2) Contact data:
a) Contact arrangement: 1Z(1D 1H)
b) Material: silver alloy
3 Max. switching current: 120A
4)Max. switching voltage: 30V DC / 250V AC
5) Coil data:
a) Nominal voltage: 6 - 220V DC / 6 - 380V AC
b) Pick-up voltage: AC≤90%, DC≤75%
c)Drop-out voltage: AC≥30% DC≥10%
d) Coil power: 2.0W / 10VA
6) Specifications data:
a) Contact resistance: ≤50mΩ
b) Insulation resistance:≥500MΩ
c) Dielectric strength Vr.m.s:
i) Between open contacts: ≥1,500VAC
ii) Between coil and contacts: ≥2,000VAC
iii) Between contacts form:
d) Ambient temperature: -45 - +70oC
e) /Operation/release time: ≤20/20ms
Wiring Diagram:
