Top plate pre stretch pallet door wrapping machine

Product Overview

Description

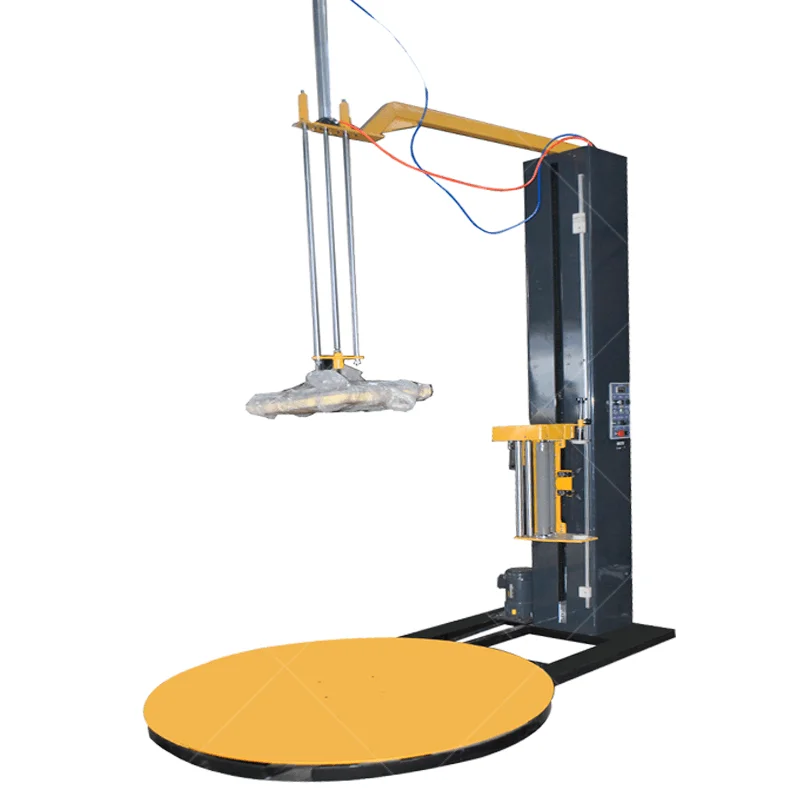

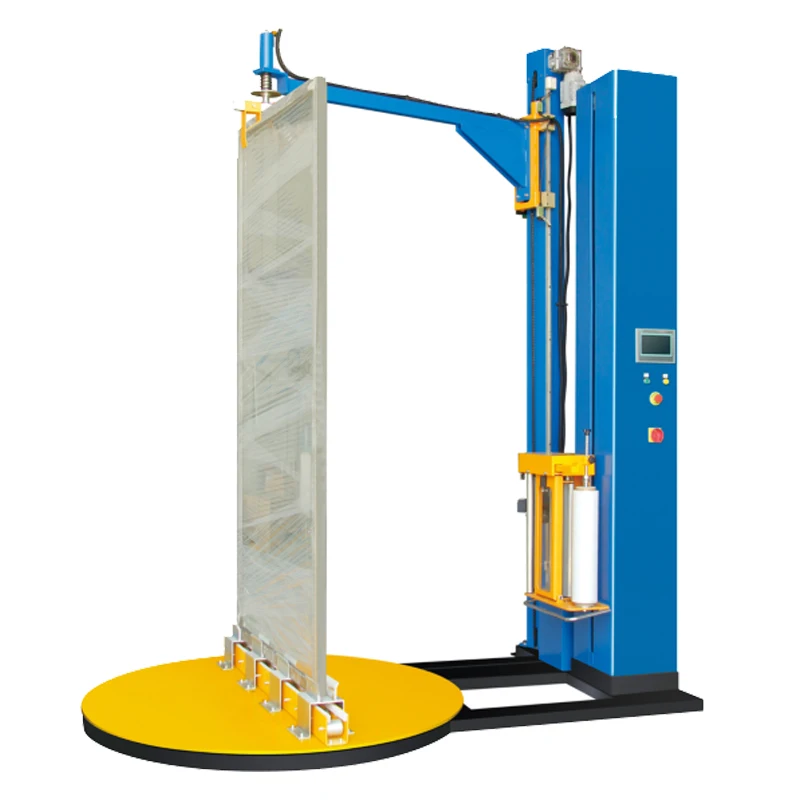

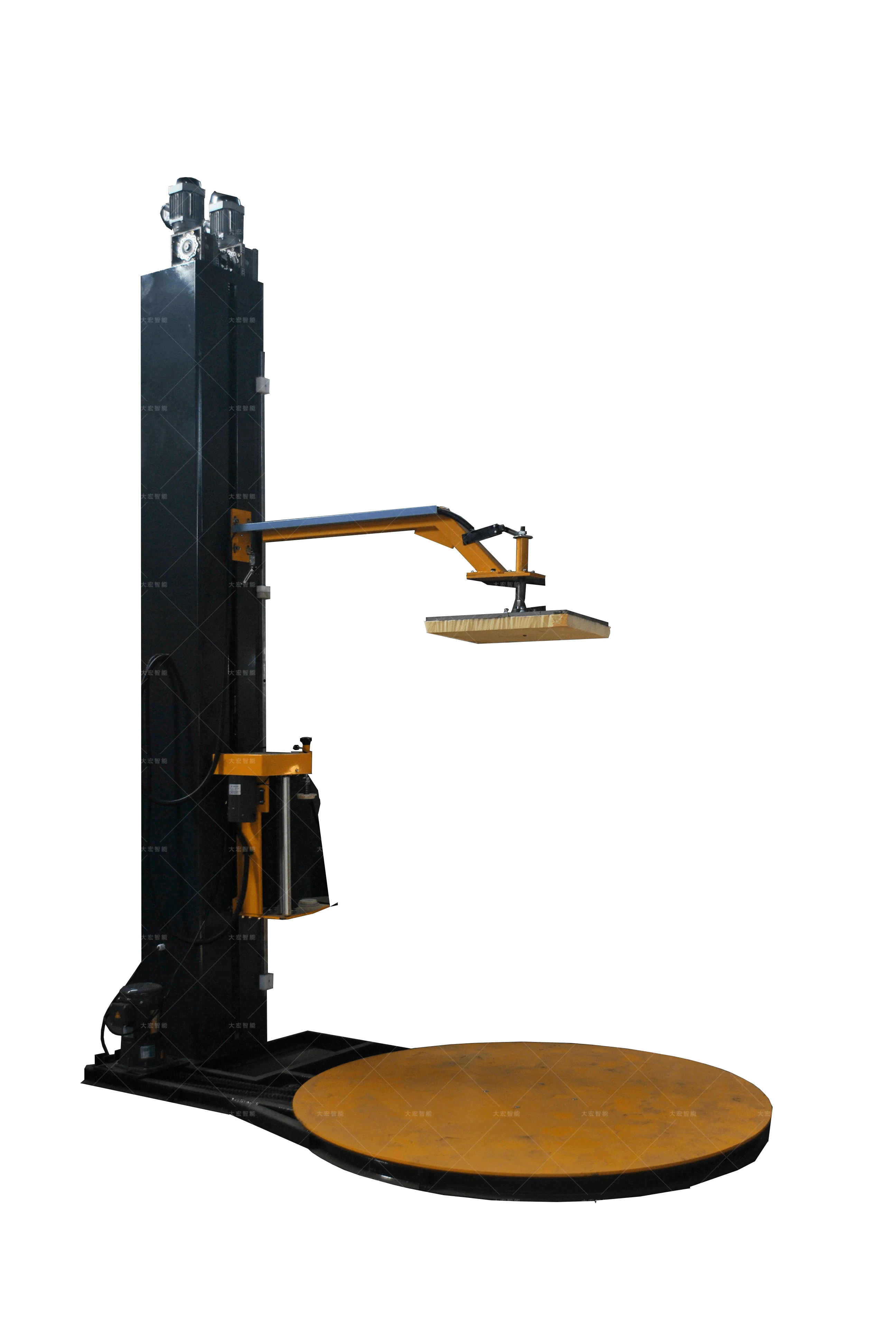

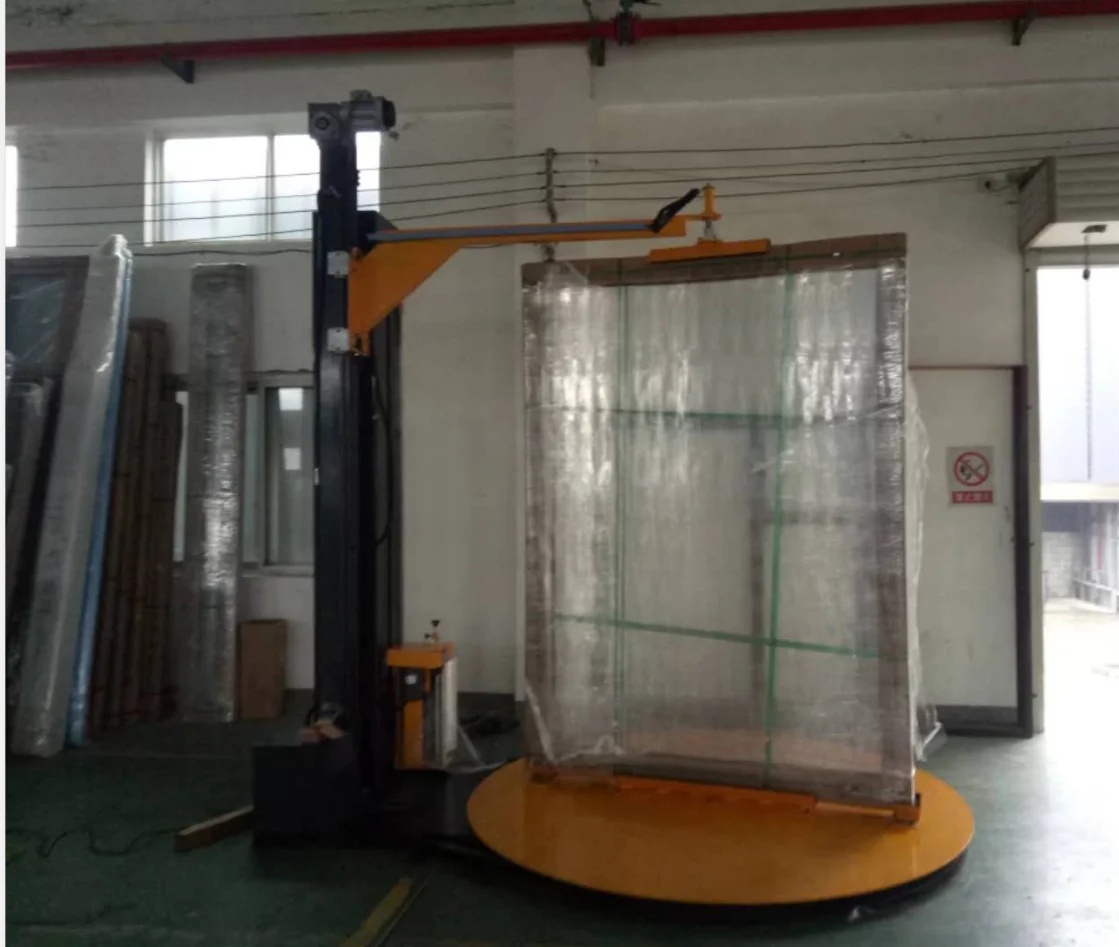

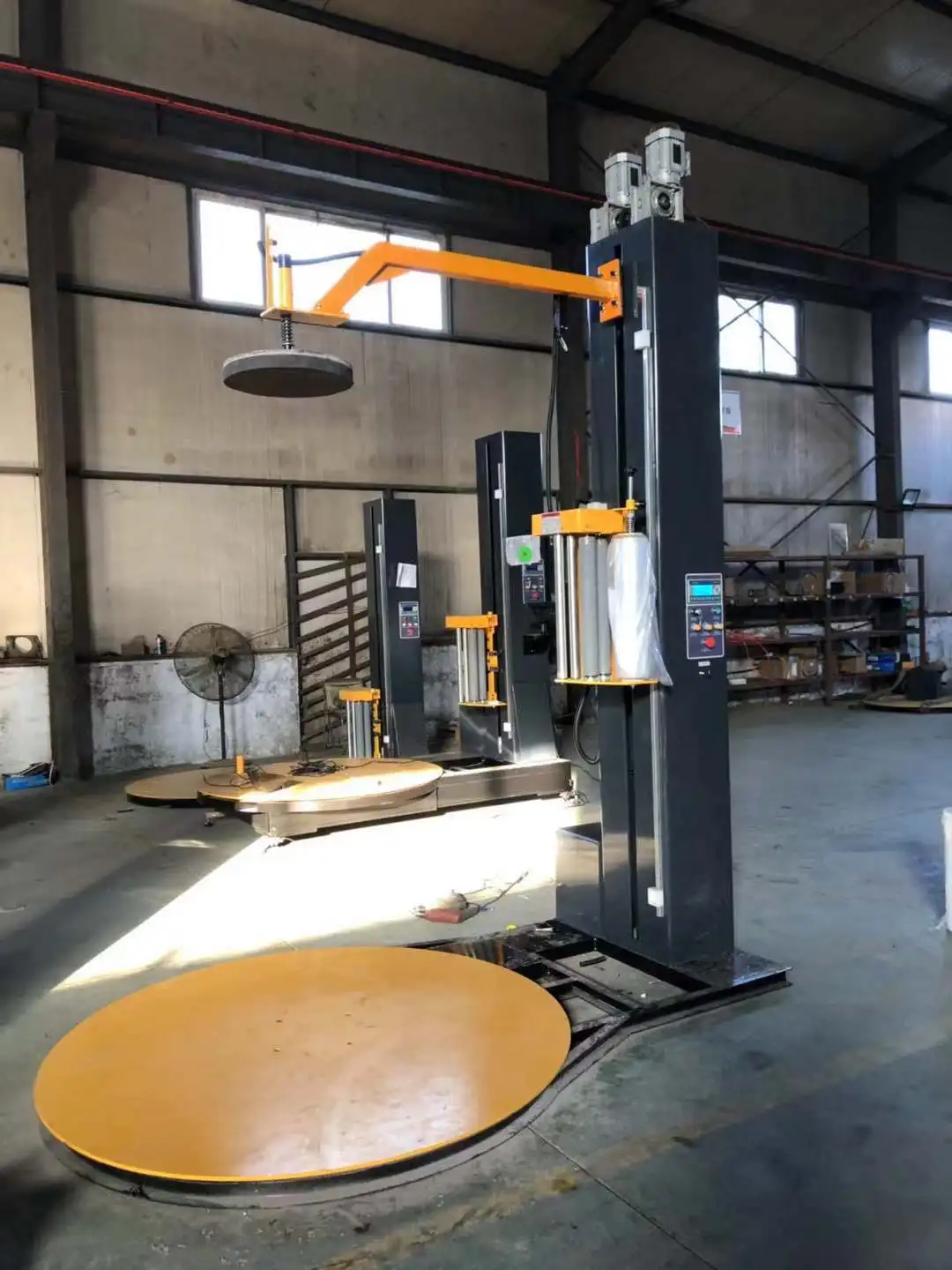

Top plate pre-stretch pallet door wrapping machine



Machine introduction

Fit motorised top plate based on T1650F. This machine is widely suitable for tall and unstable good, top plate provides a press to the top of load and ensure it safety packing. This machine is widely suitable for tall unstable good, top plate provides a press to the top of load and ensure it safety packing.



Technology Data

Wrapping size(L*W)             (500~1200)×(500~1200)mm .

Packing Height                    2000mm

Turntable diameter                  1650mm.

Turntable Height                    85 mm.

Turntable weight capacity             2000kg

Turntable speed                      0-12rpm.

Top pressure                         20 kg

Electrics                             380V 50HZ .

Power                               1.5kw

Machine dimensions (mm)             2745(L)×1650(W)×3300(H)

Packing efficiency                   20-40 loads/hour base on load

Top Plate Device                Adopt Pneumatic Direct Transmit Orbit Top Plate.

Penumatic Systerm Pressure(mpa)      0.6-1.0

Penumatic Systerm Consumption     1000ml/min.

Machine weight                   800kg
