din 3352 pn16 rubber seat non rising stem flange gate valve
- Category: Gate Valves >>>
- Supplier: Tianjin Tanggu Jinbin Valve Co. Ltd.
Share on (506517895):
Product Overview
Description
Product Description
din 3352 pn16 rubber seat non rising stem flange gate valve
Flanged gate valve Specification:
Valve Standard: BS EN 13789 MSS SP-85
Nominal diameter: 2"-48"/DN50–DN1200
Working pressure: PN10/16Bar
Face-to-face: EN558 Series10 ANSI B16.10
Connection: ANSI B16.1 Class125/150 MSS SP44 Class150 EN1092-2 PN16
Tightness check: API 598 ISO 5208 EN12226-2
Epoxy fusion coating.
Ruber-seat non rising stem gate valve Pressure and Temperature ratings:
Working Pressure | PN10 / PN16 / PN25 |
Testing Pressure | Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. |
Working Temperature | -10°C to 80°C (NBR) -10°C to 120°C (EPDM) |
Suitable Media | Water, Oil and gas. |
Non rising stem gate valve Materials:
Parts | Materials |
Body | Ductile iron |
Disc | Ductile iron+EPDM |
Seat | EPDM |
Stem | 2Cr13/SS431/ SS304 |
Stem nut | Bronze |

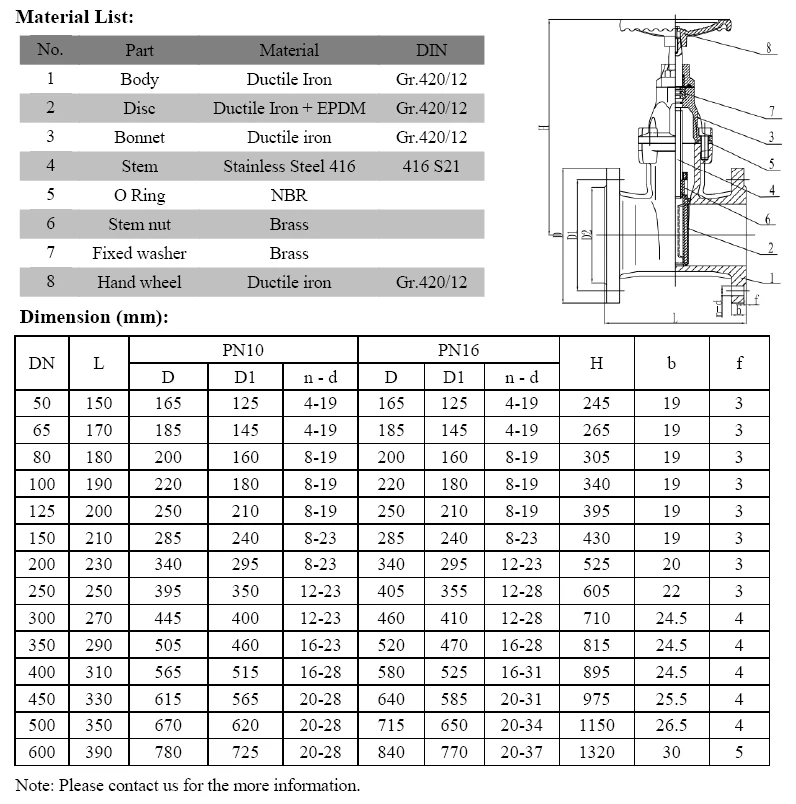

Non rising stem gate valve Technical Data:
Flanged gate valve Feature:
1. The flanged gate valve design of rubber lind disc to avoid the
2. O-Ring make can reduce the leakage and is replaceable with pressure and constant water.
3. Precision maching stme to low the torqure operation.
4. Non-toxic epoxy fusion coating inside and outside to enhance the anit-corrosive and make sure the quality of water.

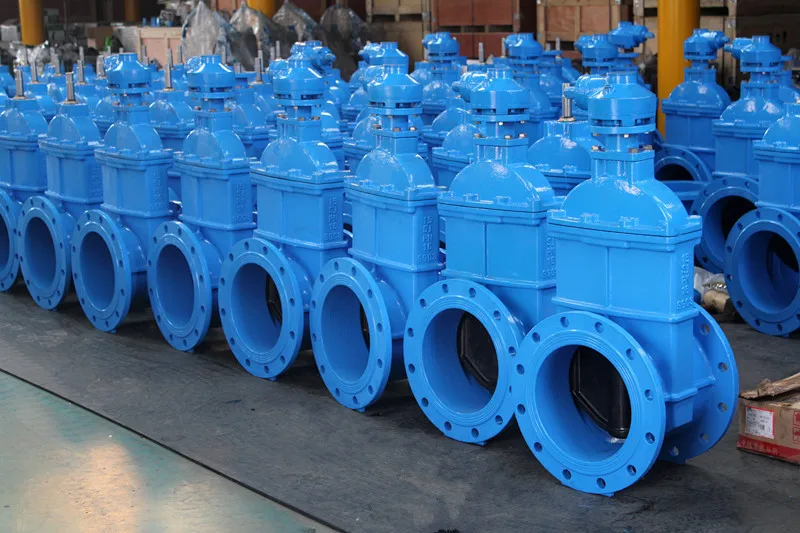

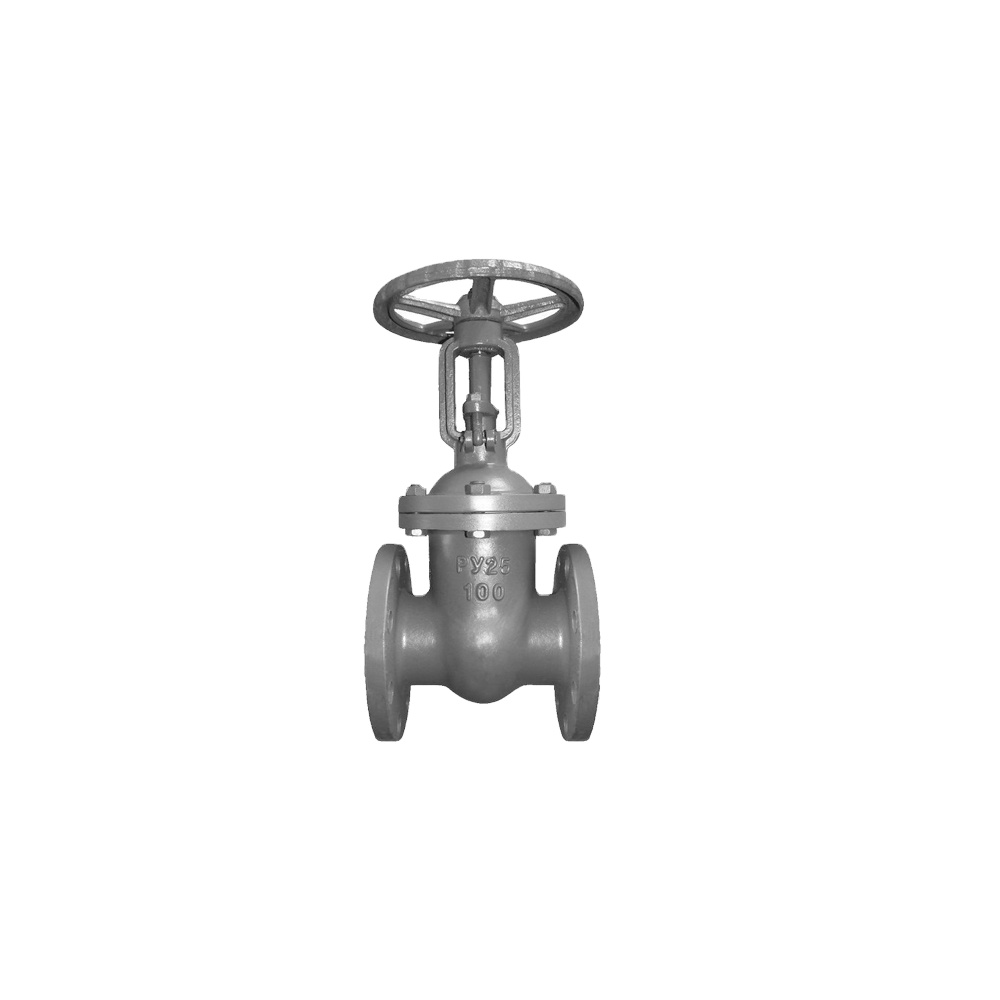

Non rising stem gate valve Product Picture Display:

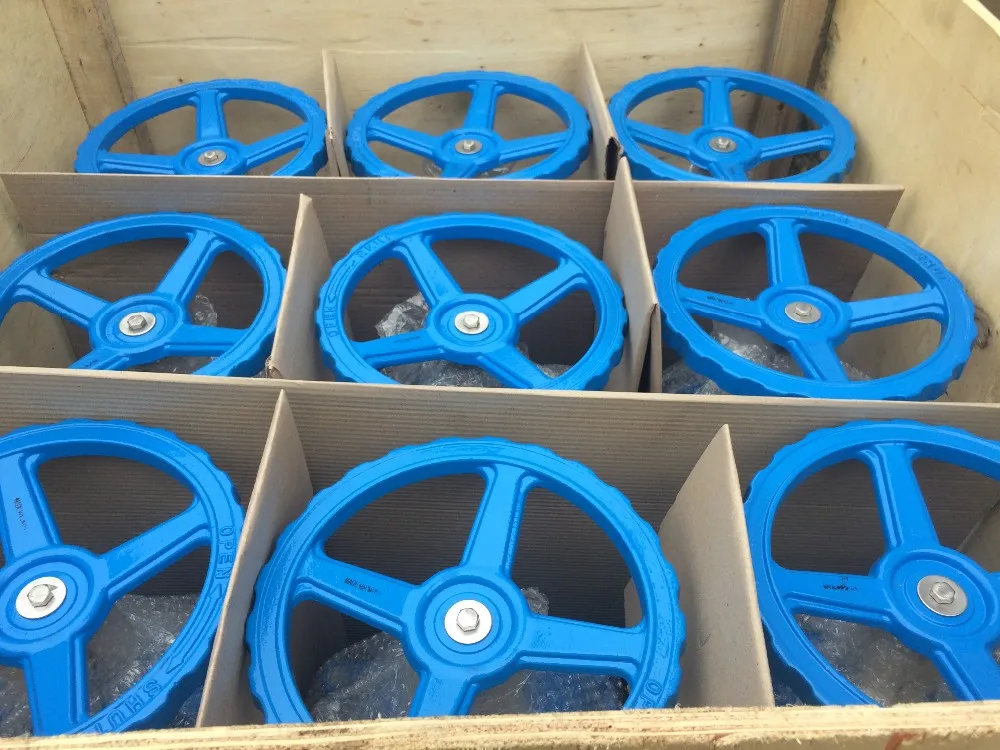

Packaging & Shipping
Each non rising stem gate valves are seperately packed with carton in plywood case to avoid the damage when delivery.
Related Products
Company Information
Product Process

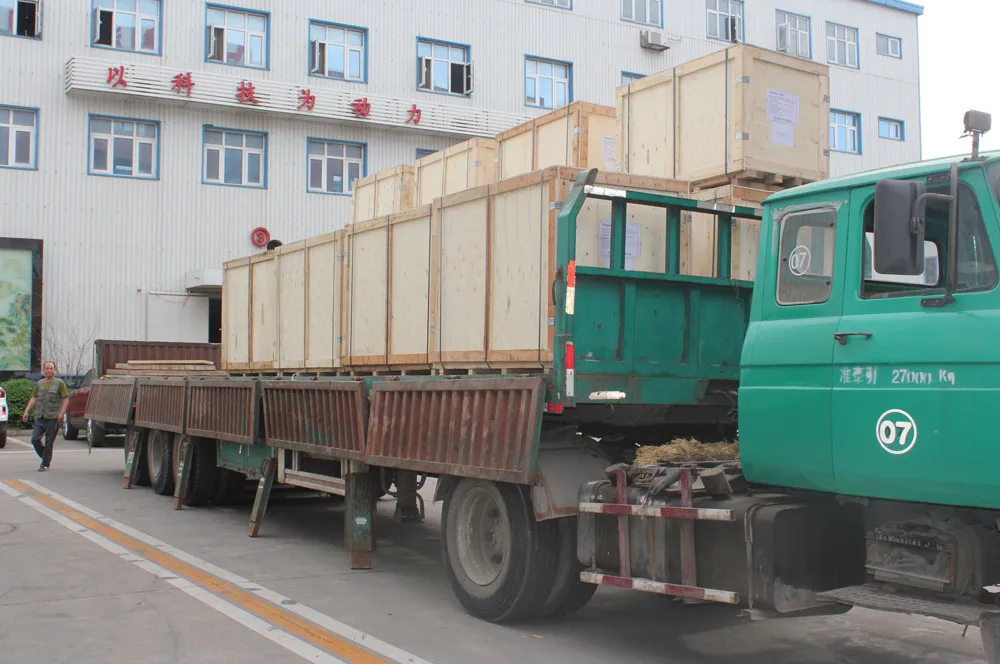

Packing&Logistics
Contact Us
FAQ
Q1: Can I have my own customized product?
A: Yes, your customized requirements for color, size, package, mark, etc.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shippment
other water valves-butterfly valve
other water valves-check valve
other water valves-hydraulic control valves series
We Recommend
MTS-1008 Brass Lockable Gate Valve
US $1.00-$10.00

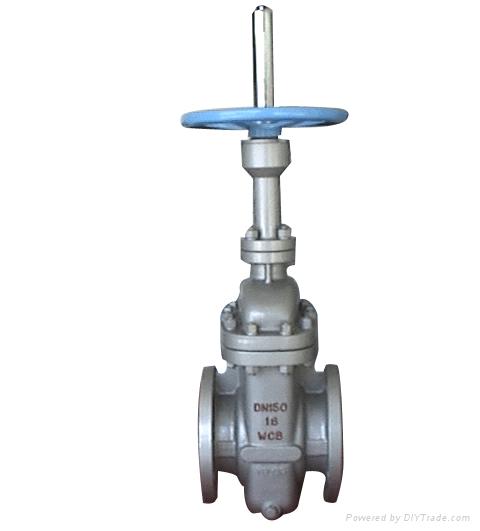

Cast Steel Flanged Large Gate Valve Flanged Gate Valve
US $200.00-$60000

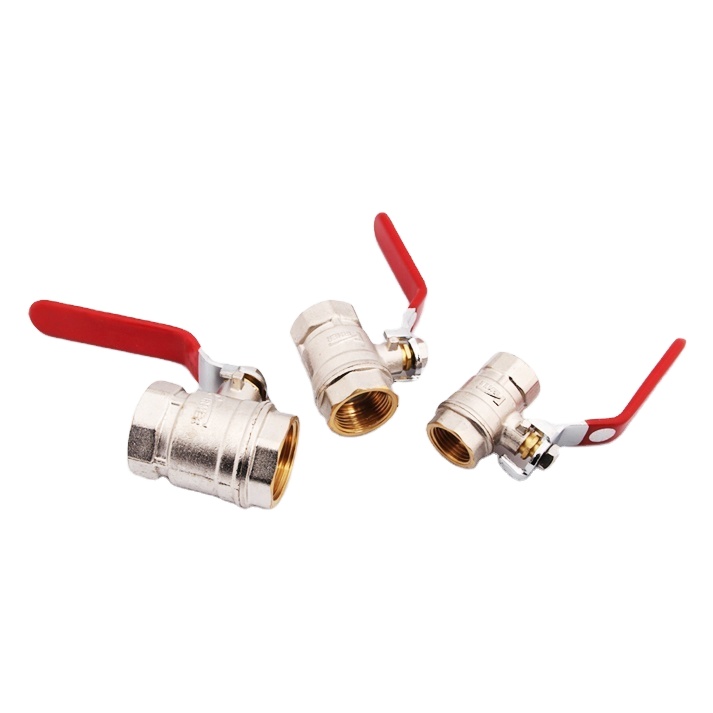

High Quality 1/2'' Brass Threaded Water ball valve
