Manual Tray Sealing Tray Sealer

Product Overview

Description

Item Name: MANUAL TRAY SEALER- DS SERIES

Description: The Manual Tray Sealer is widely applicable to the package of raw and cooked meat, seafood, dairy product, fruit and vegetable, rice and flour food. It is an electrically heated, manual tray sealing machine, is used to seal the trays with lidding film. It is a simple and economical food packaging machine which is suitable for food shop and small food processing workshop.



Technical Characters:

1.       Stainless steel construction.

2.       Tray mould fast replacement(DS-1/DS-3).

3.       Electronic temperature controller.

4.       Friendly and simple in operation for user.

5.       Mould in customized dimension is acceptable to be made according to your own tray.



Technology specifications:

Model	DS-1	DS-2	DS-3	DS-4

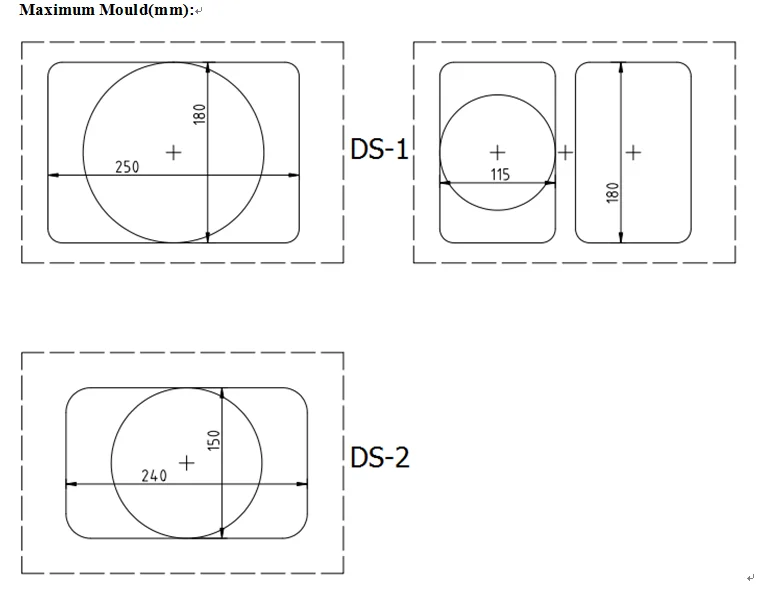

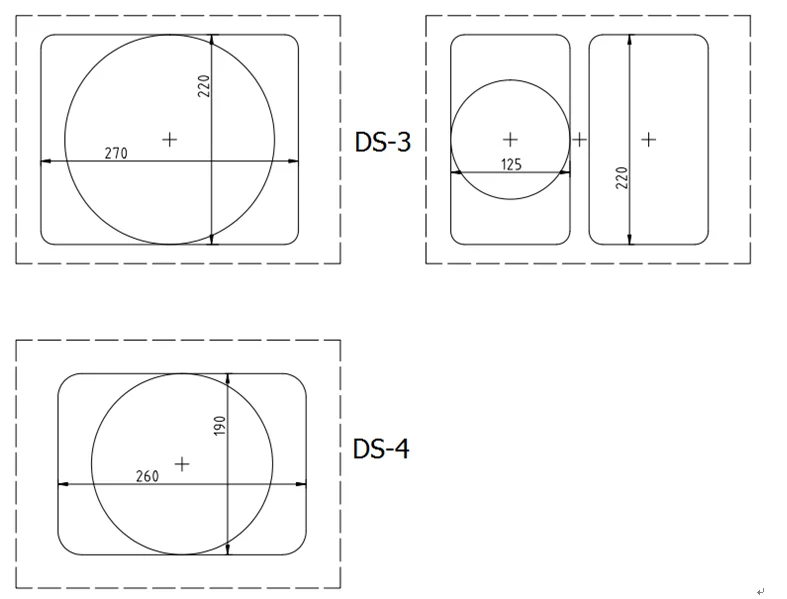

Max. Tray Dimension(mm)	250×180×100	240×150×100	270×220×100	260×190×100
Max. Width of Film(mm)	180	180	220	220
Max. Diameter of Film(mm)	160	160	160	160
Packing Speed(cycle/min)	6-8	6-8	6-8	6-8
Electrical Requirement(v/hz)	220/50  110/60	220/50  110/60	220/50  110/60	220/50  110/60
Consume Power(kw)	0.7	0.7	0.7	0.7
N.W(kg)	17	18	19	20
G.W(kg)	20	21	22	23
Machine Dimension(mm)	525 ×256× 250	525 ×256× 250	545 ×296× 250	545 ×296× 250
Shipping Dimension(mm)	610 ×310× 310	610 ×310× 310	630 ×350× 310	630 ×350× 310
Fob Shanghai Price(USD)	300	395	395	455
