chloride removal catalyst adsorbent (natural gas naphtha light liquid hydrocarbons )

Product Overview

Description

chloride-removal adsorbent HTCR-L is an outstanding adsorbent  most commonly used in adsorbing hydrogen chloride from reformer hydrogen off-gases, natural gas, naphtha, and light liquid hydrocarbons in low-temperature range applications.
It can provide more than 30%  chloride pick-up capacity at 25°C ,and  its chloride pick-up capacity rises with operating temperature in the range of -5°C to 200°C. HTCR-L has been successfully used in a lot of industry units of PETROCHINA and SINOPEC.
Physical and chemical properties:

item	target

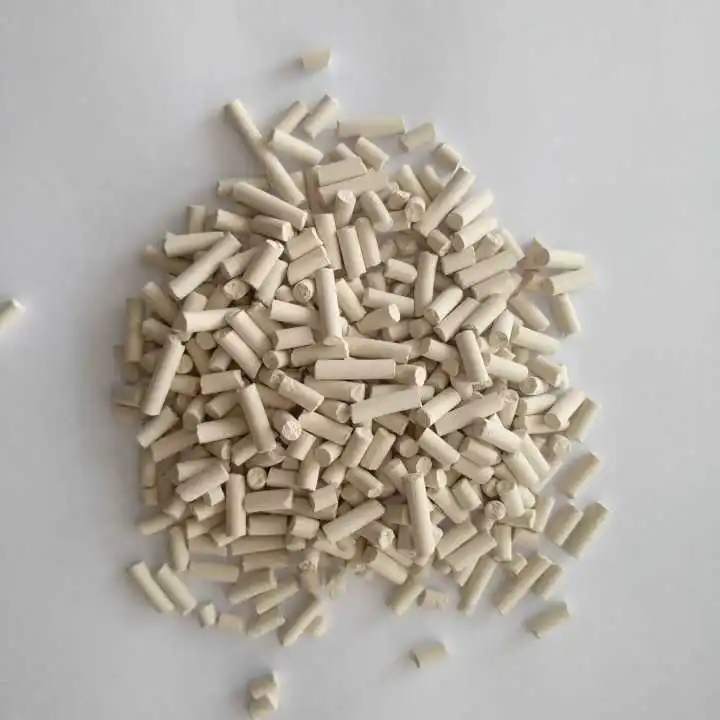

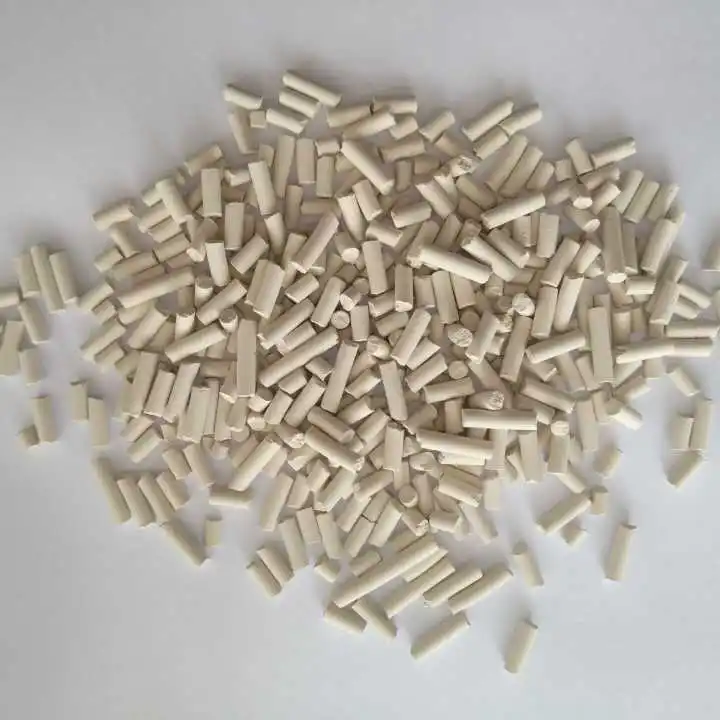

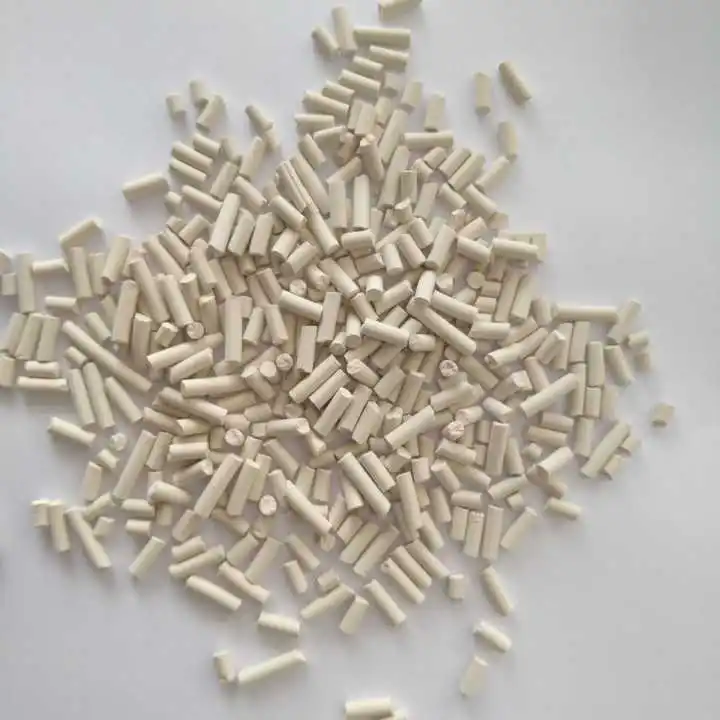

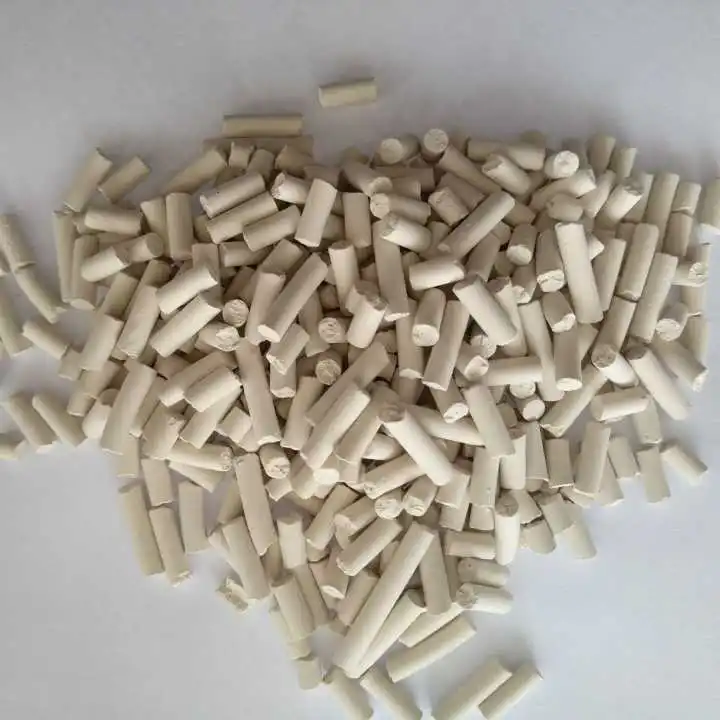

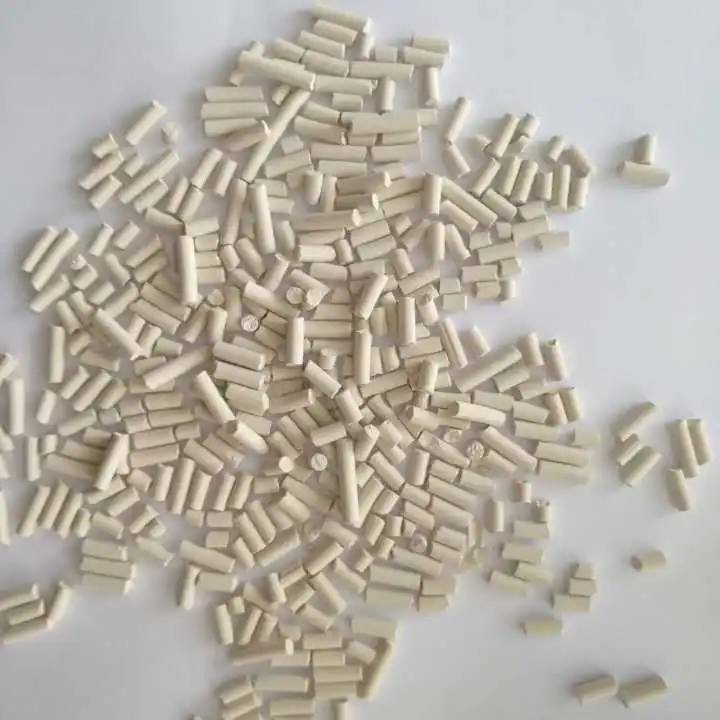

Appearance	white or brown extrudates
Packing density, kg/l	0.75-0.85(white),1.0-1.1(brown)
Chemical composition	CaO plus promoters
Crushing strength, N/cm	min50
Chloride pick-up capacity,	min 30wt%HCl(25°C)



normal operating conditions:

Process parameters	pressure ,Mpa	temperature,°C	Space velocity,hr-1
	0.1-8.0	-5 to 200°C	3.0-8.0(L),500-3000(G)
Raw material	HCl content, 1000 ppm
processed products	HCl content, max 0.1 ppm

Packing: iron drums innerlining double-layer plastic bags.
