ZT 150 Toilet Soap Production Line small scale soap making machine

Product Overview

Description

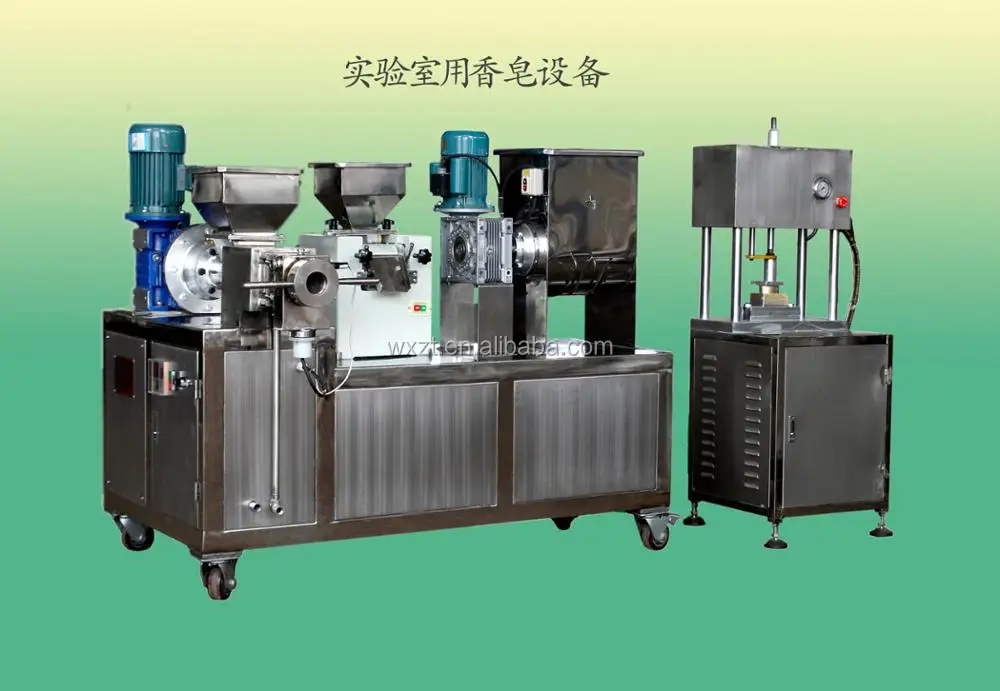

*ZT - 150 Toilet Soap Production Line small scale soap making machine



Toilet Soap or laundry bar soap Produtction Line (small soap making machine)



Application:



ZT - 150 small soap making machine for making toilet soap or small laundry bar soap line was newly developed equipments, which covers Mixer, three roll mill, plodder and stamping machine. This equipment is pilot soap machine mainly for small scale production or lab using making soap as well as tourist hotel soap making. The parts in contact with soap noodle is made by stainless steel.



CHJ - 450 Mixer

No.	Item	Unit	Parameter
1	Mixing Capacity	Kg/h	25
2	Diameter Of Trough	mm	450
3	Mixing Type		Z type
4	Revolution	rpm	50
5	Power Consumption	Kw	2.2





  S - 150 Three Roll Mill

No.	Item	Unit	Parameter
1	Diameter Of Roller	mm	140
2	Length Of Roller	mm	300
3	Revolution Of Roller		1 : 3 : 9
4	1st Revolution	rpm	≈33
5	2st Revolution	rpm	≈78
6	3st Revolution	rpm	≈180
7	Power Consumption	Kw	4



SYJ - 150 Plodder

No.	Item	Unit	Parameter
1	Production Capacity	Kg/h	120
2	Diameter Of Screw Roller	mm	140
3	Cooling Water		<15°C
4	Revolution Of Roller	rpm	0 - 2frequency control
5	Power Consumption	Kw	4







We also have small lab machine if you just need smaller one which only can make soap less than 100g.

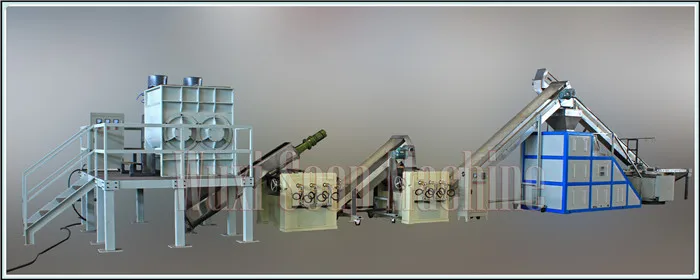

if you need bigger soap line, attached pls find the pictures for your reference:
