395nm Large Area UV LED Curing Machine dryer system

Product Overview

Description

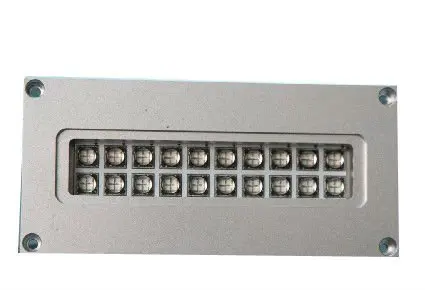

1. 365NM UV LED Linear/Area Curing System – LED Head

(1) Model NO: UVL-100

Dimension: 120*240*96 mm

Emitting Area: 100*3 mm

Cooling method: Air cooling

Max. Intensity: 1500mW/cm2

Wavelength: 365nm

Radiation distance: 5 -10 mm



(2) Model NO: UVL-55

Dimension: 55*18*85 mm

Emitting Area: 55*3 mm

Cooling method: Air cooling

Max. Intensity: 1500mW/cm2

Wavelength: 365nm

Radiation distance: 5 -10 mm

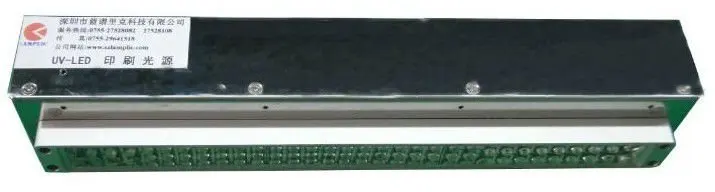

(3) Model NO.: UVL-350

Dimension: 350L*8W*50H (mm)

Emitting Area: 350*8 mm

Cooling method: Air cooling

Wavelength:  365nm

Max. Intensity: 500mW/cm2

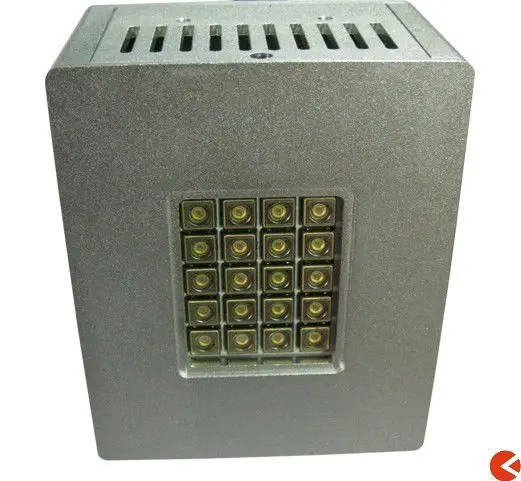

(4) Model NO: UVS-20

Dimension: 94*77*50 mm

Emitting Area: 40*50 mm

Cooling method: Air cooling

Radiation distance: 5 -10 mm

Max. Intensity: 500mW/cm2

Wavelength: 365nm



2. 365NM UV LED Area Curing System - Controller

UVEC-4II

UVEC-4III



Controller Model NO.: UVEC-4II / UVEC-4III

UV LED cure heads’ qty :

1 - 4 PCS of Spot LED heads

1 - 2 PCS of linear/Area LED heads

Controller dimension: 180L*100W*146H(mm)

Time setting: 0 - 999.99 S

Power setting: 0 - 100%

Radiation Mode: Constant power radiation, Step power radiation, Foot pedal control

Power supply voltage: AC220V±15%(50/60HZ)

Material: Aluminum

Additional: Operating Manual, Key, Cables, Power supply

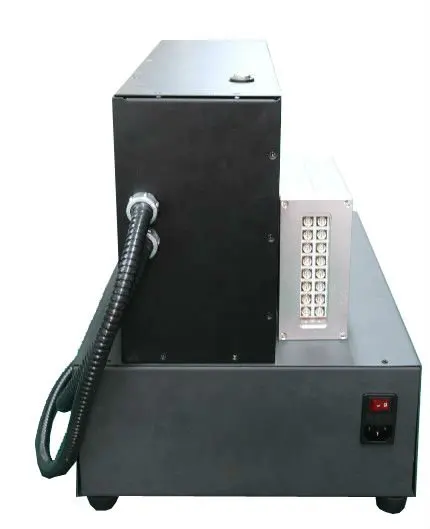

3. 395NM UV LED Area Curing System (395 – 405nm)

Area Radiation System (Controller, Water cooled machine, LED head)

CONTROLLER

Model NO.: UVEL-600

Dimension: L*W*H = 550*280*100 MM

INPUT: 220V AC / 6A

OUTPUT: 800W

WEIGHT: 8KG

(1) Model NO.: LP-UV-10020

Wavelength: 395- 405nm

Emitting Area: 100*20mm

Radiation distance: 5-10mm

Total Electric Power: 640W

Max. Light Intensity: 2W/cm2

Dimension: L*W*H = 150*60*45mm

Cooling method: Water cooled

Application: Printing, Curing



(2) Model NO.: LP-UV-4050

Wavelength: 395- 405nm

Emitting Area: 40*50mm

Radiation distance: 5-10mm

Total Electric Power: 200W

Max. Light Intensity: 2W/cm2

Dimension: 58*70*77mm

Cooling method: Water cooled

(3) Model NO.: LP-UV-30020

Wavelength:  395- 405nm

Emitting Area: 300*20mm

Radiation distance: 5-10mm

Total Electric Power: 600W/960W/1920W

Max. Light Intensity: 2W/cm2

Dimension: L*W*H=350*70*78mm

Cooling method: Water cooled

Application: Printing, Curing

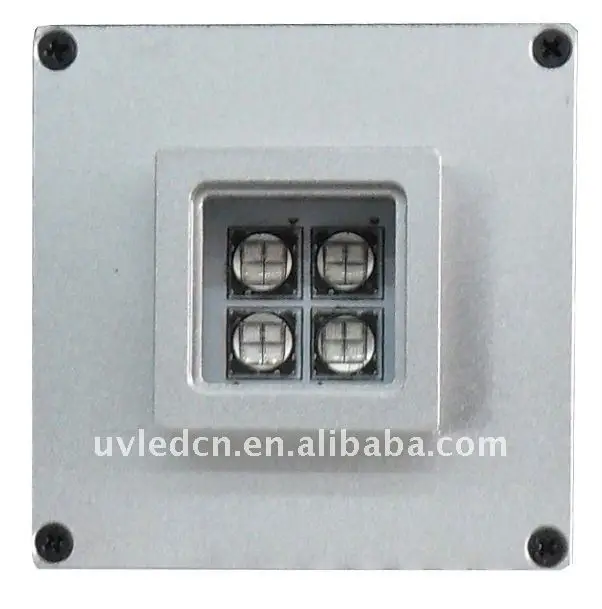

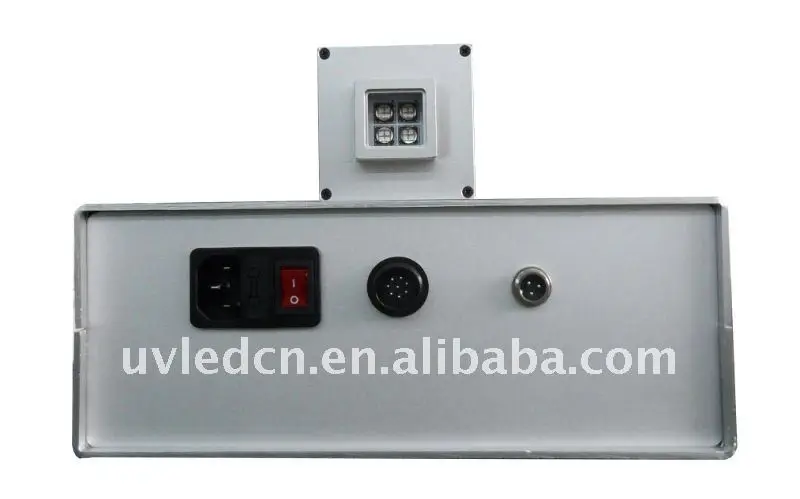

(4) Model NO.: LP-SC20201WO-BA

A. Controller:

Dimension 245*225*100mm

Power supply: 100-240VAVC

Cooling method: Air cooling

B. LED head:

Wavelength:  395- 405nm

Emitting Area: 20*20mm

Radiation distance: 5-10mm

Total Electric Power: 40W

Max. Light Intensity: 2W/cm2

Dimension: L*W*H=60*60*109 mm

Application: Printing, Curing



Main Applications:

(1) UV light curing

(2) UV detection and analysis instrument

(3) UV disinfection

(4) Biological applications

(5) Medicine and Medical Applications
