Semi automatic PET bottle manufactur machine
- Category: >>>
- Supplier: Zhangjiagang Keerman Machinery Co. Ltd.
Share on (508384326):
Product Overview
Description

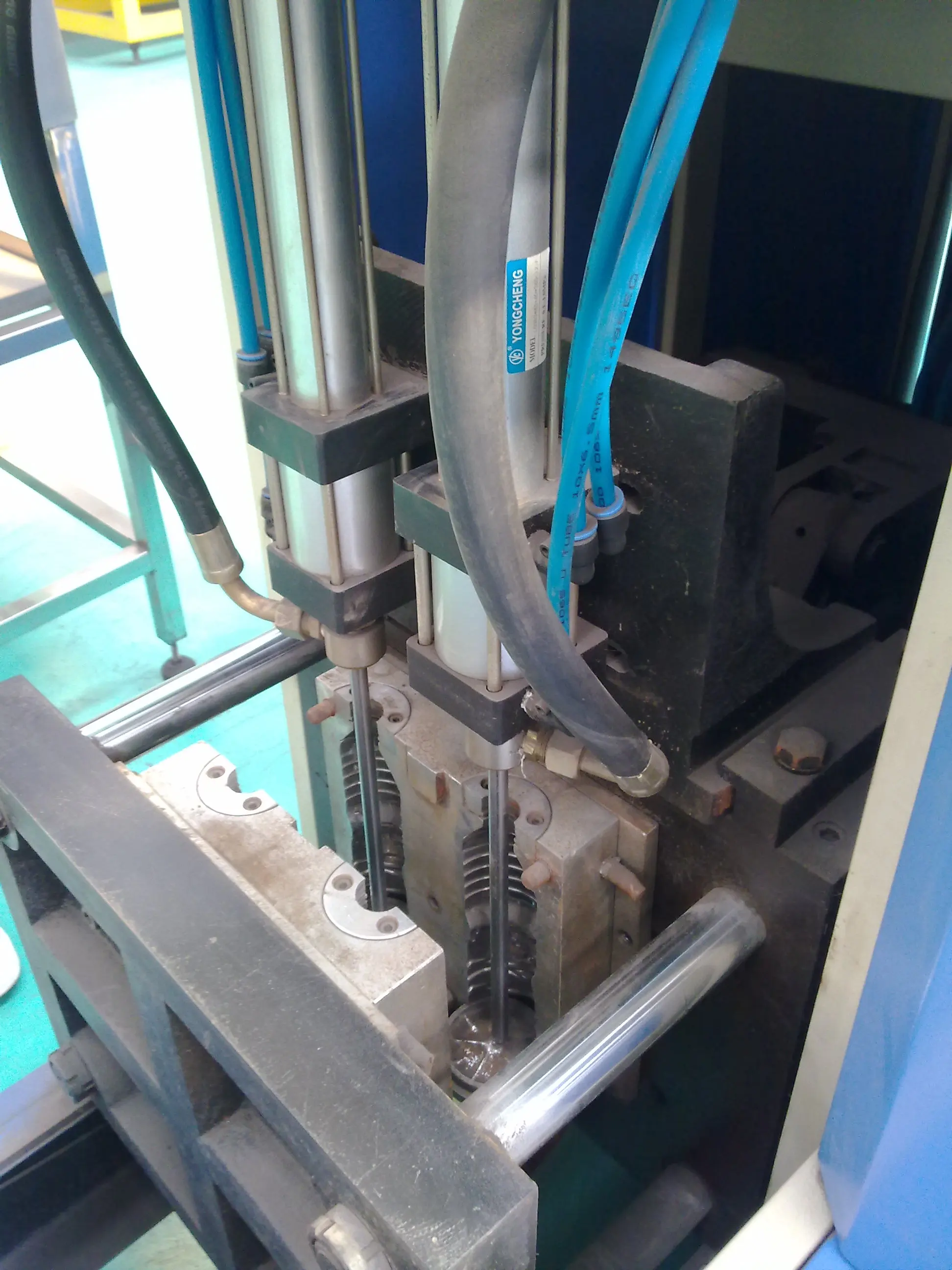

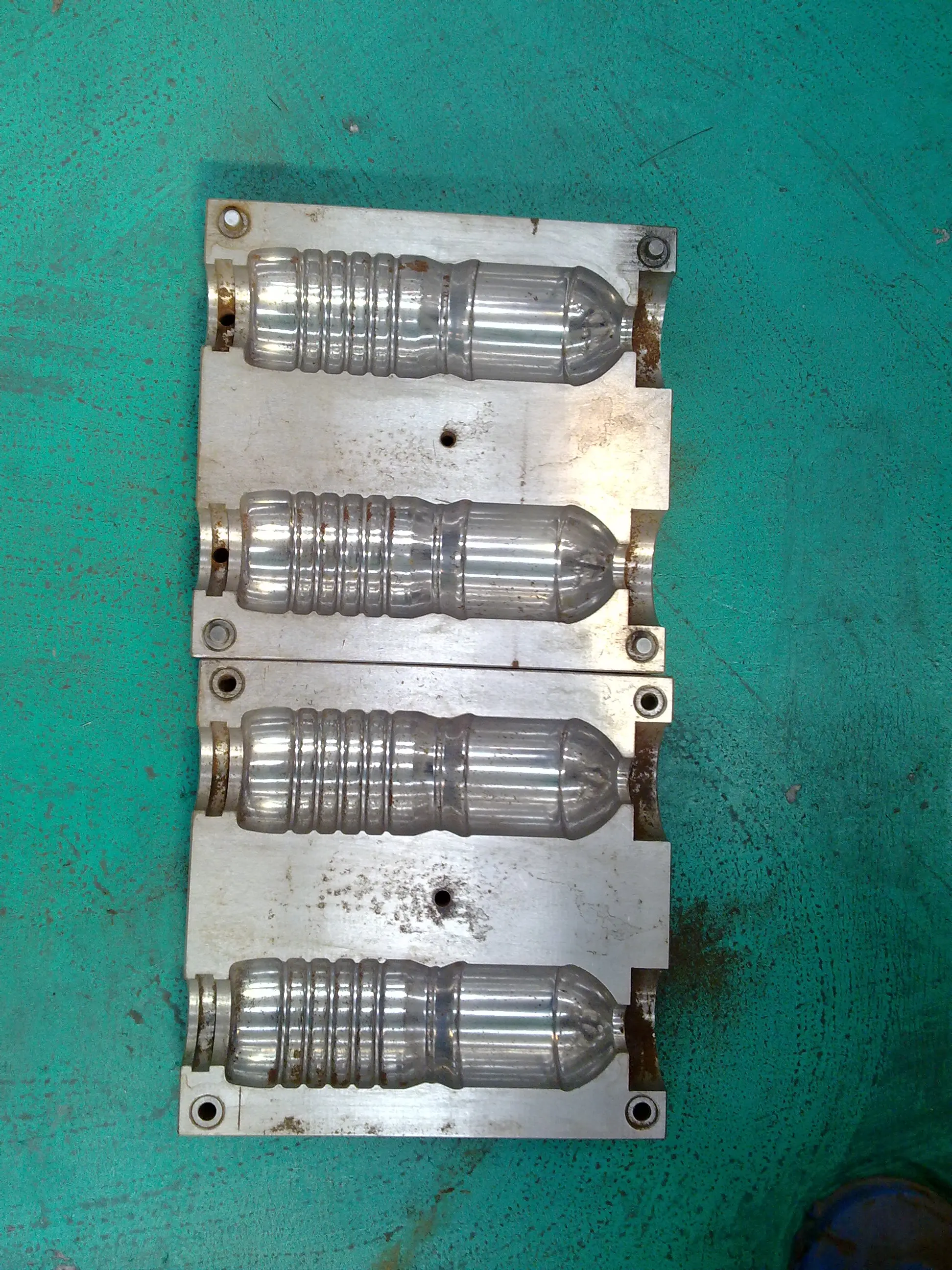

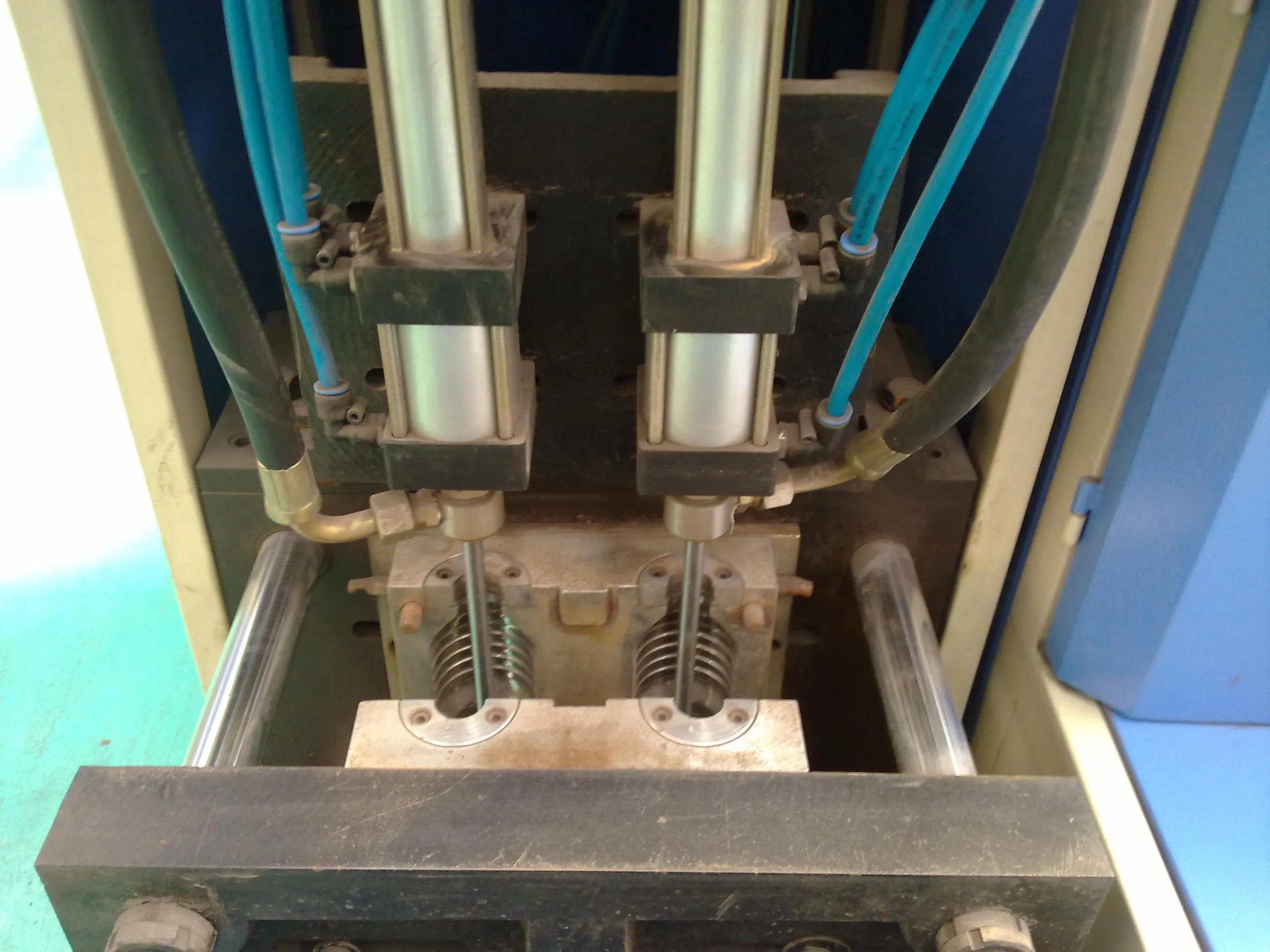

- Adopt the new double crank four-lug bar mold, with the cross to balance and fix the slide.
- Closing mould and rising bar adopt two-bar together design, favorable for the product-molding
- The advanced gas path design ,gas inlet one or two path is OK ,low pressure make the mould close-up,close mouth and rise bars
- Microcomputer control is automatic ,easy to operate
- Adjusting automatic ,easy to operate

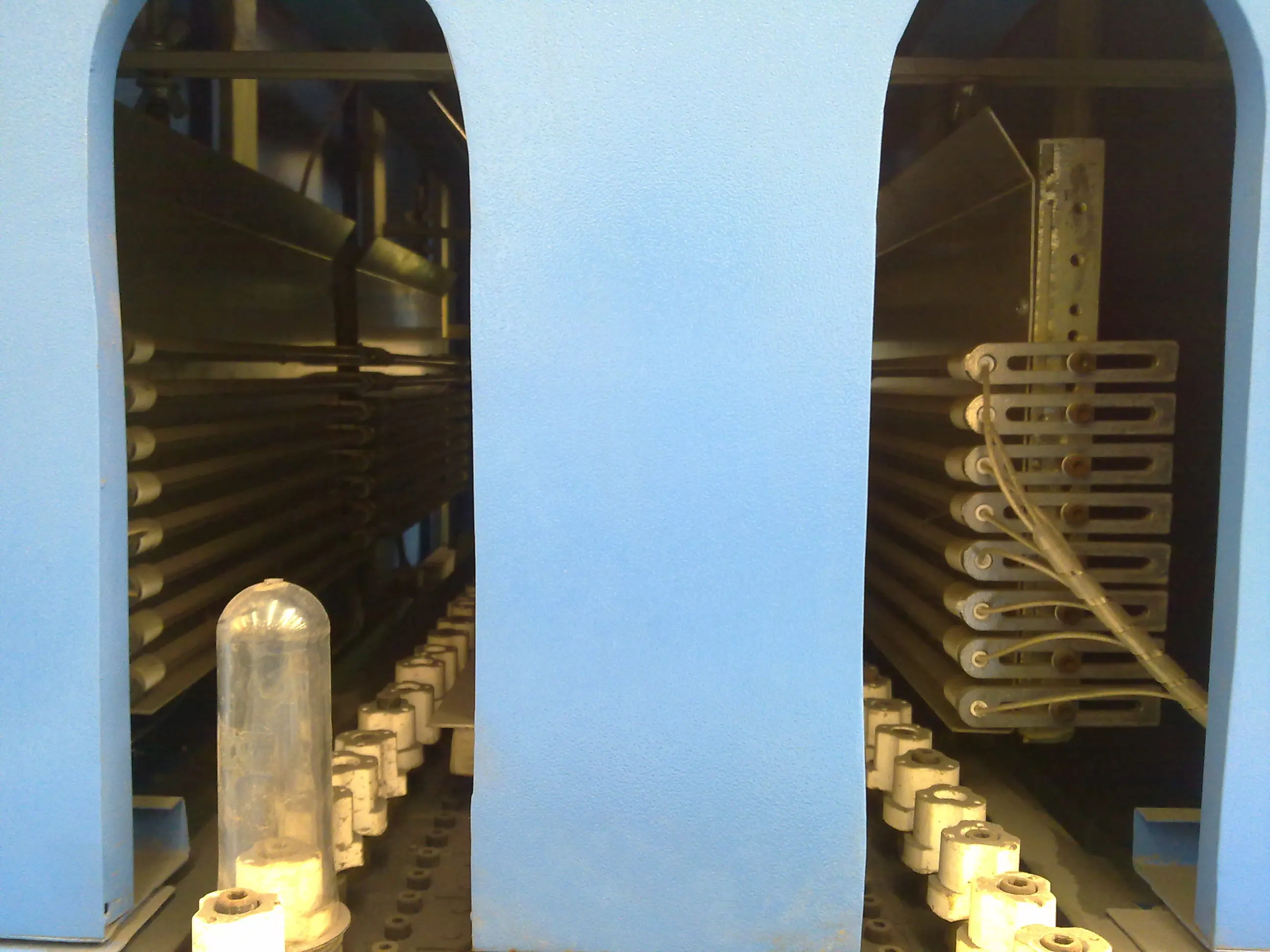

- The perform of bottle is heated by infrared, can control the constant pressure, variable frequency speed control to blow the bottle best.
|
Main machine (blow molding part + oven) |
Model type |
KM-1500 |
|
Product Spec |
Max. product volume(L/cav) |
2 |
|
Max. preform neck size(mm) |
50 |
|
|
Max. product diameter(mm) |
90 |
|
|
Max. product height (mm) |
360 |
|
|
Cavities |
2 |
|
|
Blow molding part |
Die force (KN) |
120 |
|
Die stroke (mm) |
120-210 |
|
|
Max. mould size(mm) |
390*345 |
|
|
Mould thickness |
120-160/220-270 |
|
|
Mould spacing(mm) |
120-170 |
|
|
Max. pulling stroke(mm) |
340 |
|
|
Operation pressure(Mpa) |
0.8-1.0 |
|
|
Operation air pressure consumption (1tr/min) |
300 |
|
|
Blow pressure(Mpa) |
1.2-2.8 |
|
|
Blow air pressure consumption (1tr/min) |
350 |
|
|
Output(pcs/h) |
1500-1800 |
|
|
Machine size(LxWxH)(m) |
1.46*0.58*1.8 |
|
|
Package size (LxWxH) |
1.66*0.77*2.12 |
|
|
Machine weight(KG) |
650 |
|
|
Oven |
Temperature grade(rate) |
6 |
|
Heating time(S) |
90-200 |
|
|
Voltage(V) |
220 |
|
|
Frequency(HZ) |
50 |
|
|
Total power(KW) |
6.3-10.3 |
|
|
Actual power consumption(KW) |
≤5 |
|
|
Oven Size (LxWxH) |
1.35*0.55*1.15 |
|
|
Package size (LxWxH) |
1.55*0.75*1.35 |
|
|
Oven weight (KG) |
300 |
•Auxiliary device
|
Auxiliary device |
Required Spec |
KM-1500 |
|
High pressure air compressor |
Operation air pressure |
3.0 Mpa |
|
Air displacement |
0.75 m3/min |
|
|
Power |
9 Kw |
|
|
R.P.M |
800 |
|
|
Weight |
460 Kg |
|
|
Dimension |
1.86m*0.9m*1.4m |
|
|
Air filter (oil-water separator ) |
Filter precision |
≤5ppm |
|
Weight |
28Kg |
|
|
Dimension |
0.24m*0.26m*0.73m |
•Other configuration ways
|
Other configuration ways about the type KM-1500 |
|||
|
Blow molding part (set) |
Oven (set) |
Use condition |
Remark |
|
1 |
1 |
Standard configuration |
Any type |
|
1 |
2 |
Thick preform which heating time is long |
|
|
2 |
1 |
Thin preform which heating time is very short (normally the volume under 400ml) |
Increase the air compressor displacement up to 1.2m3/min |
•Electrical parts
|
Electrical parts: |
||||
|
Item |
Main control computer |
Temperature gauge |
Transducer |
Infrared ray heating light |
|
Brand |
Compositive minitype computer |
MITSUBISHI |
MITSUBISHI |
KBS |
|
Description |
Conveniency Quickly No malfunction |
Easy operation Steady quality |
Heating and rotating just one step |
High power Long using life time, Strong penetrate |
