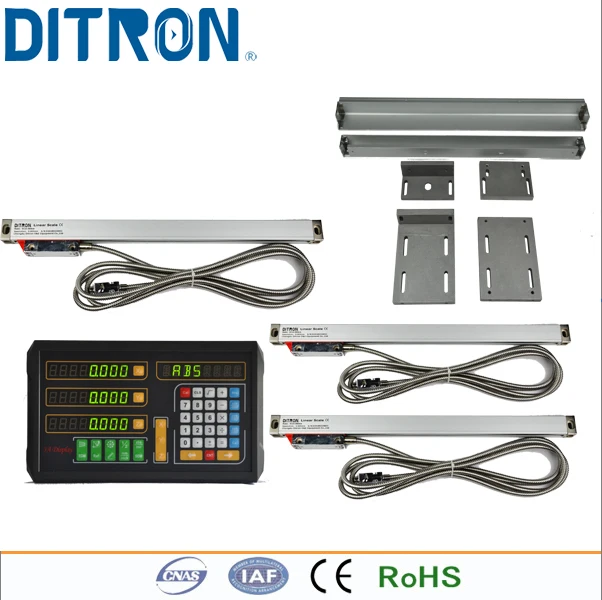

Professional Ditron Digital Readout(DRO) D100 with Linear Scale/High Accuracy Optical Linear Scale System
Professional Ditron Digital Readout(DRO) D100 with Linear Scale/High Accuracy Optical Linear Scale System
Professional Ditron Digital Readout(DRO) D100 with Linear Scale/High Accuracy Optical Linear Scale System
Professional Ditron Digital Readout(DRO) D100 with Linear Scale/High Accuracy Optical Linear Scale System
Professional Ditron Digital Readout(DRO) D100 with Linear Scale/High Accuracy Optical Linear Scale System
Professional Ditron Digital Readout(DRO) D100 with Linear Scale/High Accuracy Optical Linear Scale System
Professional Ditron Digital Readout(DRO) D100 with Linear Scale/High Accuracy Optical Linear Scale System

Professional Ditron Digital Readout(DRO) D100 with Linear Scale/High Accuracy Optical Linear Scale System

Share on (508511988):


Price:

Quantity:


Product Overview

Description



Product Description




D100-7

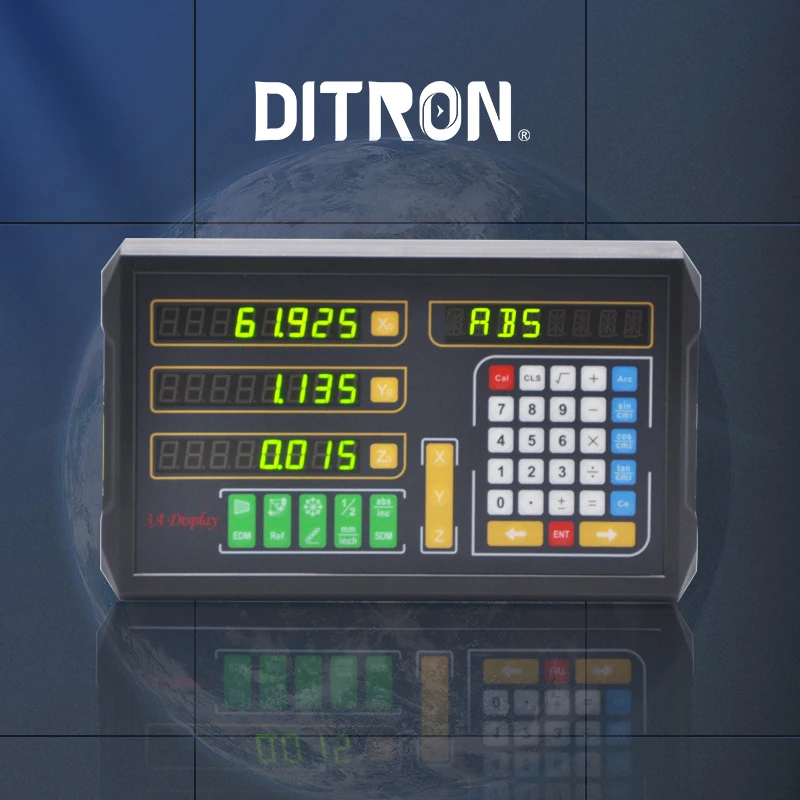

 D100 DRO


1. Displaying as 8 digits with green LED.
2. Unique film makes covering on the Windows makes the displaying much more recognizable.
3. High integration makes the performance be stable.
4. Switching on & switching off can meet more than100,000 times.
5. Adopting the advanced digital filtering makes the counting be more accurate and stable.

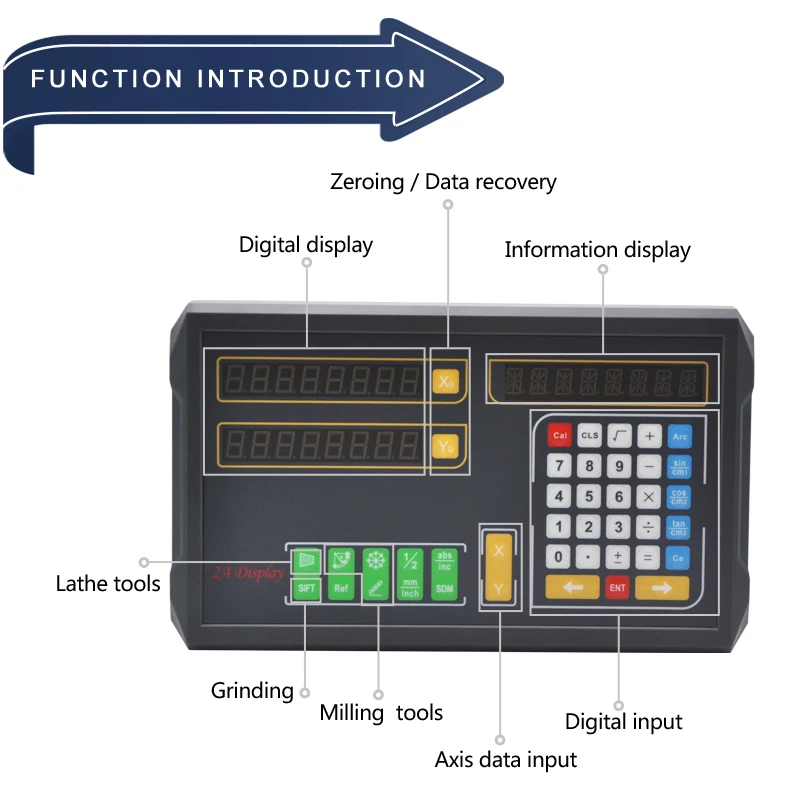

Functions:







































Basic


Functions



1)Zeroing, Data Recovery



9)ABS/INC Coordinate



2)Input Coordinate



10)200 sets of SDM Coordinate



3)Display in Metric British Units



11)Ref Ruler Storage Function



4)Power Off Memory Function



12)Calculator



5)Encoder Selection



13)Non-linear Compensation



6)Resolution Setting



14)1/2 Function



7)Linear Compensation



15)Sleeping Function



8)Counting Direction Selection






















































Special Functions



PLD Function



PCD Function



Simple R Function



Smooth R Function



Taper Measuring Function



Radius/Diameter Conversion



Y+Z Function (special for 3 axis lathes)



Digital Filtering Function



EDM Function



Bevel Machine Function



Rectangle Chambering Function










D100-4

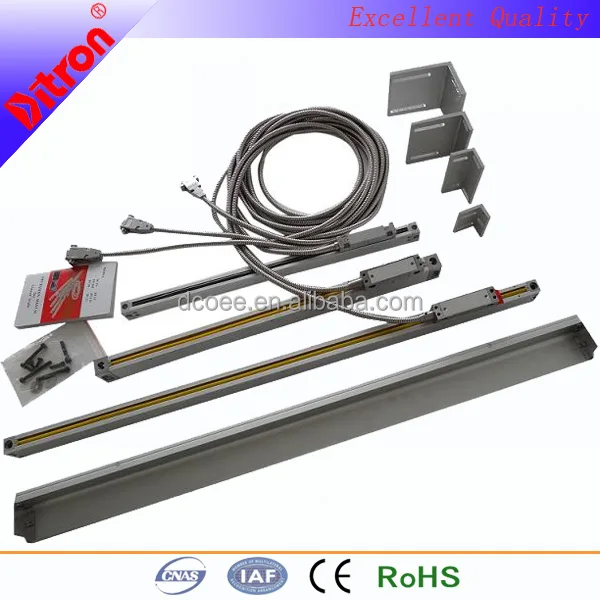

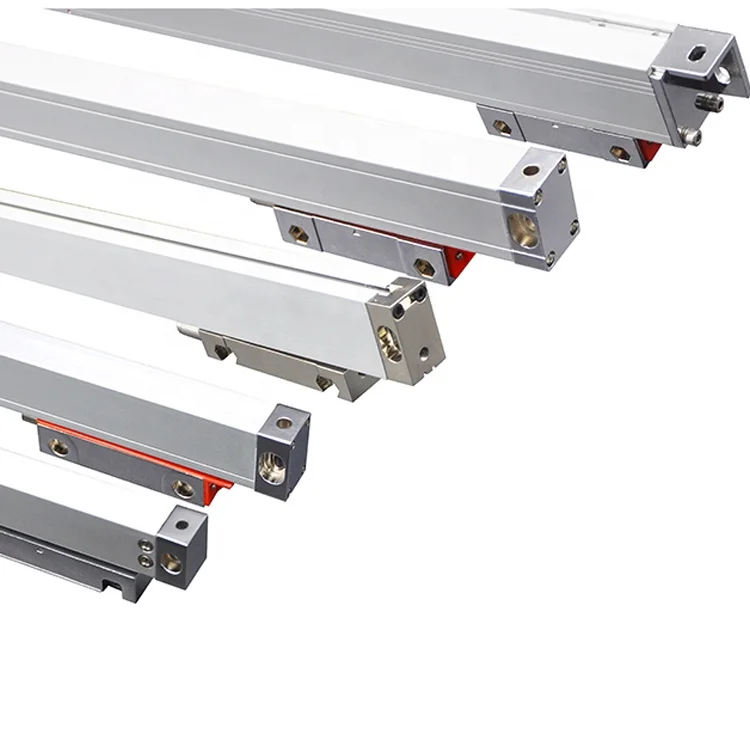

DC Linear scale










































































DC Series Linear Scale



Type



DC10F



DC10



DC20



DC30



Resolution (μm)



 0.1/0.5/1/5/10



Accuracy (μm)



±3/±5/±10μm (L<1m; 20℃)



Measure Length (mm)



50~600



50~1100



50~3000



50~1200



Grating Pitch (μm)



20μm



Reference Point Space



50/100mm



Cross Section (mm)



18x23



20.5x31



27x44



24x35



Max. Response Speed (m/min)



60



Protection Level



IP55



Output Signal



TTL / RS422



Reading head sliding system



Vertical or 45°



Voltage



5V/12V/24V



Plug



   DB9 /7 Holes (can customized )



Cable length



3/5 Meter (can customized )

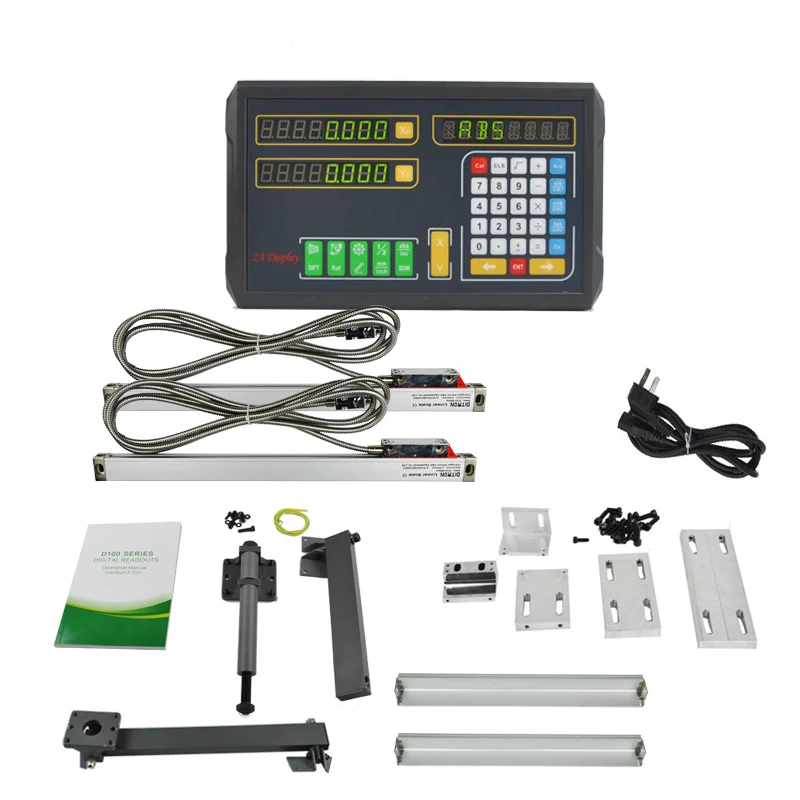

D100-2V + linear scale 2

























Packaging & Shipping









FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A: Samples arrived often need 3-5 days.

Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pcs for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

Q5. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
