Urea Moulding Compound(button and other translucent products)

Product Overview

Description



Main application: button and other translucent products



Appearance: powder



1. Features and applications



UF1P-A series of products are powdery urea moulding compound, which are made by using urea formaldehyde resin as the base material, cellulose as the padding, and adding lubricant, curing agents, pigment and other additives.

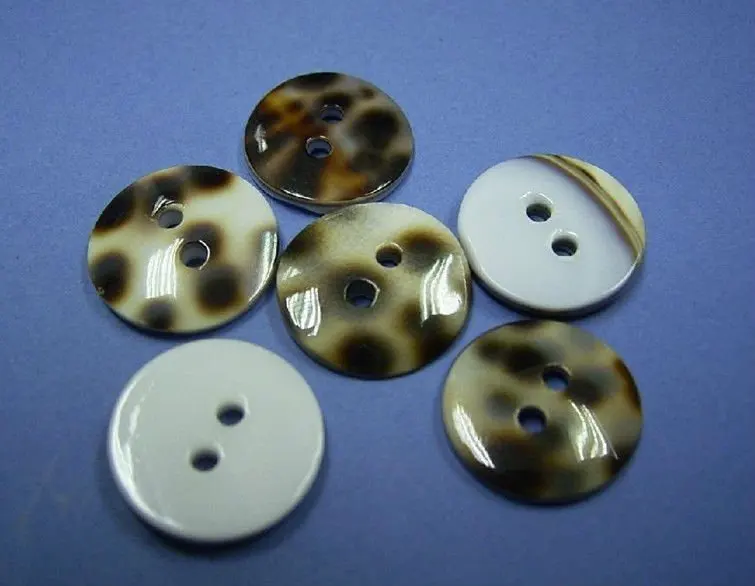

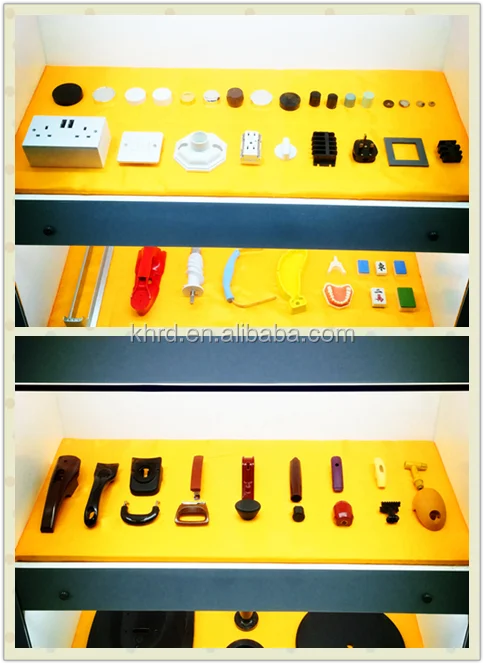

UF1P-A series of products are translucent moulding compound, suitable for molding all kinds of buttons and translucent household appliances.



2. Technical Index



Model Item	UF1P-A
Fluidity  mm	140-200
Volatile %         ≤	4.0
Appearance	Products own bright and smooth surface, and have no bubble as well as crevice. The tinge and impurity confirm to the standard sample.
Endurance for boiling water	No mushy phenomenon in surface, slight cookles and trifling color fading are allowed.
Flexural strength  Mpa ≥	80
Impact strength(notched) KJ/m2  ≥	1.7
Heat distortion temperature°C    ≥	115
Water absorption mg ≤	70
Moulding shrinkage rate,  %	0.5-1.20



3. Reference conditions of compression moulding



Model	Mould temperature °C	Pressure Mpa	Curing Time min/mm
UF1P-A	140-150	25-40	0.5-1.0



4. Product packaging and storage



Packaging: Plastic knitting bag with wet proof inner plastic. 25kg/bag, Kept in airy, dry and cool room.

Storage period: six months from the manufacturing date.



5. Delivery period and loading container



Usually, 1x20GP can load 20 MT, 800 bags. Total volume: 28 CBM, N.W.: 20000 KGS, G.W.: 20240 KGS.

Delivery period: powder material takes 2-3 days for 20 tons, granular material takes 3-5 days for 20 tons.
