Urea Moulding Compound (household appliances or dinnerware)

Product Overview

Description



Main application: household appliances or handles.



Appearance: powder or granule



1. Features and applications

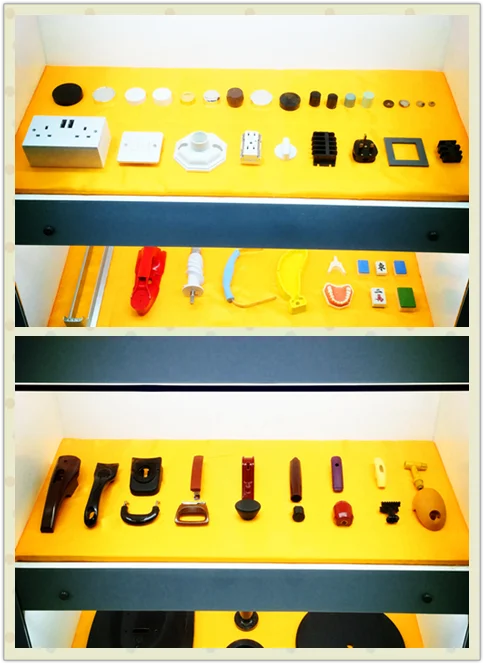

UF1P-A series of products are powdery urea moulding compound, which are made by using urea formaldehyde resin as the base material, cellulose as the padding, and adding lubricant, curing agents, pigment and other additives. UF1P-A series of products are suitable for molding such household appliances as tableware, mahjong pieces, ashtrays, and flower pots.



UF1G-A series of products adopt UF1P-A which has undergone the hot-granulation process. This granular moulding compound has the features of low amount of volatile matter and easy exhaust, suitable for moulding or automatically self-feedings moulding method, Bottle caps, handles,



UF1I-A series of products use UF1P-A which has processed by hot-granulation process. This granular injection moulding compound has smooth and fine surface as well as well-distributed color, with high production efficiency and stable performance. It is suitable for manufacturing various handles and household appliances which have to go through complex and difficult moulding manufacturing and hard mould pressing process.



2. Technical Index



Model Item	UF1P-A	UF1G-A	UF1I-A
Fluidity  mm	140-200	140-200	140-200
Particle size  mm  ≤		1.0-2.0	2.0-3.0
Volatile %         ≤	4.0	4.0	4.0
Appearance	Products own bright and smooth surface, and have no bubble as well as crevice. The tinge and impurity confirm to the standard sample.
Endurance for boiling water	No mushy phenomenon in surface, slight cookles and trifling color fading are allowed.
Flexural strength  Mpa ≥	80	80	80
Impact strength(notched)  KJ/m2    ≥	1.7	1.8	1.7
Heat distortion temperature  °C    ≥	115	120	120
Water absorption mg ≤	70	100	100
Moulding shrinkage rate,  %	0.6-1.00	0.6-1.00	0.6-1.00



3. Reference conditions of compression moulding



Model	Mould temperature °C	Pressure Mpa	Curing Time min/mm
UF1P-A  UF1G-A	140-150	25-40	0.5-1.0



4. Reference conditions of injection moulding



Model	Charging barrel temp. °C		Mould temp. °C		Injection pressure (Mpa)	Closing mould pressure (Mpa)	Continuous Time (S/mm)
	Front	Back	Fixed	Movable
UF1I-A	80-85	50-60	125-130	130-135	100-130	100-200	20-25



5. Product packaging and storage



Packaging: Plastic knitting bag with wet proof inner plastic. 25kg/bag, Kept in airy, dry and cool room.

Storage period: six months from the manufacturing date.



6. Delivery period and loading container



Usually, 1x20GP can load 20 MT, 800 bags. Total volume: 28 CBM, N.W.: 20000 KGS, G.W.: 20240 KGS.



Delivery period: powder material takes 2-3 days for 20 tons, granular material takes 3-5 days for 20 tons.
