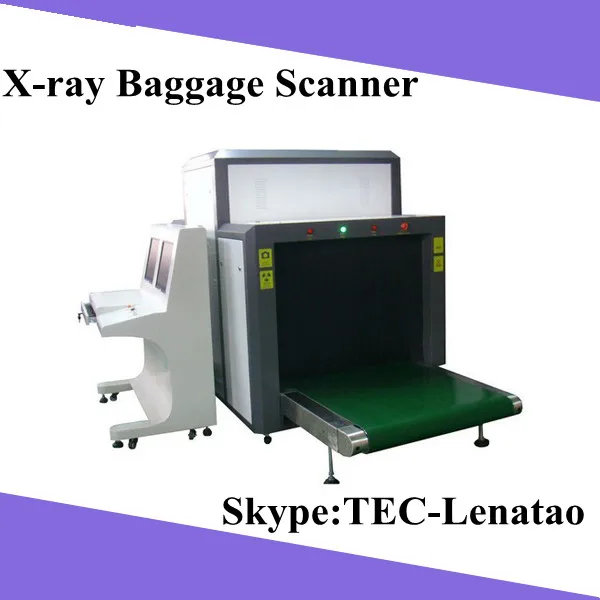

X ray machine baggage inspection system TEC 10080 x ray scanner airport in other security&protection products.

Product Overview

Description

X-ray baggage inspection,x-ray security system



TEC X-ray security inspection system is the global technology leader in X-ray imaging system

Equipment complete the examination by means of that belt making the baggage into the X-ray inspection lanes.  Luggage into the X-ray checkpoint to stop the package detection sensor,the detect signal was sent to the system control part to generate X-ray trigger signal,.  After a bunch of X-ray fan-shaped collimator beam passing through the items on the belt, X-rays were absorbed by seized items, finally, Bombarding dual-energy semiconductor detectors installed in the channel.  The X-ray into the signal through detector, these weak signals are amplified and sent to the signal processing box for further processing.

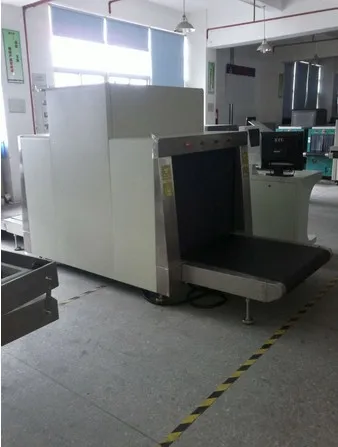

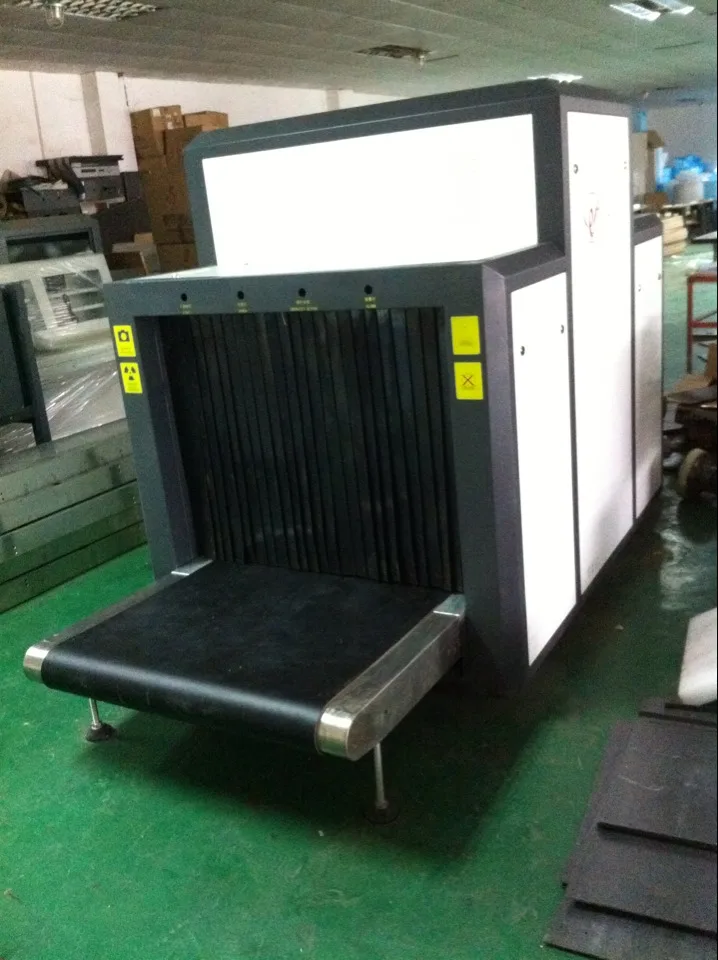

TEC-10080



Specifications

1) General indicators:

Thoroughfare ... ... ... ... ... ... ... ... ... 1000 (W) × 800 (high) mm

conveyor belt speed... ... ... ... ... ... .. ... 0.22 m / s

conveyor maximum belt load ... ... ... ... ... ... 200kg

Dose inspection ... ... ... ... ... ... ... <0.1mR

Leak dose ... ... ... ... ... ... ... ... <0.1mR / h (5cm away from the housing department)

 Meet the health requirements of radiation equipment safety requirements

And national standards

Film ... ... ... ... ... ... ... ... ISO1600film safty

Distinguish ... ... ... ... ... ... ... ... ... diameter 0.1mm metal cable

Penetrate ... ... ... ... ... ... ... ... ... 34mm thick steel plate



2) X-ray generator:

X-RAY direct airt ... ... ... ... ... ... .... Top

Pipe voltage... ... ... ... ... ... .. ... ... 140KV

Pipe electric current ... ... ... ... ... .. ... ... .... 0.5mA

RAY radiation angle ... ... ... ... .. ... 60 °

Cold/work cycle ... ... ... ... airproof oil cold/100



3) Imaging System:

X-ray sensors ... ... ... ........ multi-energy L-shaped photodiode array detector

Monitor ... ... ... ... ... ... ... ... High-resolution 17-inch color display, conform MPR 2 and TCO03 standards

Save image ... ... ... ... ... ... ... Over 10,000 images stored in real time, can burn on CD to save or through the USB port to output

Gray-scale image... ... ... ... ... ..... 4096

Image resolution ... ... ... ... ...... 1280 × 1024

Image Processing ... ... ... ... ... ... ... 24bit real-time processing

Image constituencies and enlarged ... ... ......Optional 1-9 constituencies and enlarged 2,4,8,16-fold, to achieve full-screen continuous observation

Image multi-energy show ... ... ... ...... The organic shown in orange, inorganic shown in blue, green mixture

Black and white image ... ... ... ....... On the absorption rate of different objects show different gray

levels, and black and white reversed display

Image back to the drawing ... ... ... ... ... ... ... show the top 20 images, and can processing the pull back image in real time
