pvc/abs extrusion granules single screw and barrel for PVC pipe granulator recycle pelleitzer

Product Overview

Description

Hello friends~

We manufacture and offer the best quality of screws and barrels for Extrusion machines.

We provide professional CAD drawing design and dimensional mapping. Provide you with as much service as possible.

Our bimetallic screws and barrels could let you use more time for processing.

We can offer with these models and others models, please just contact with us for confirming the details :)

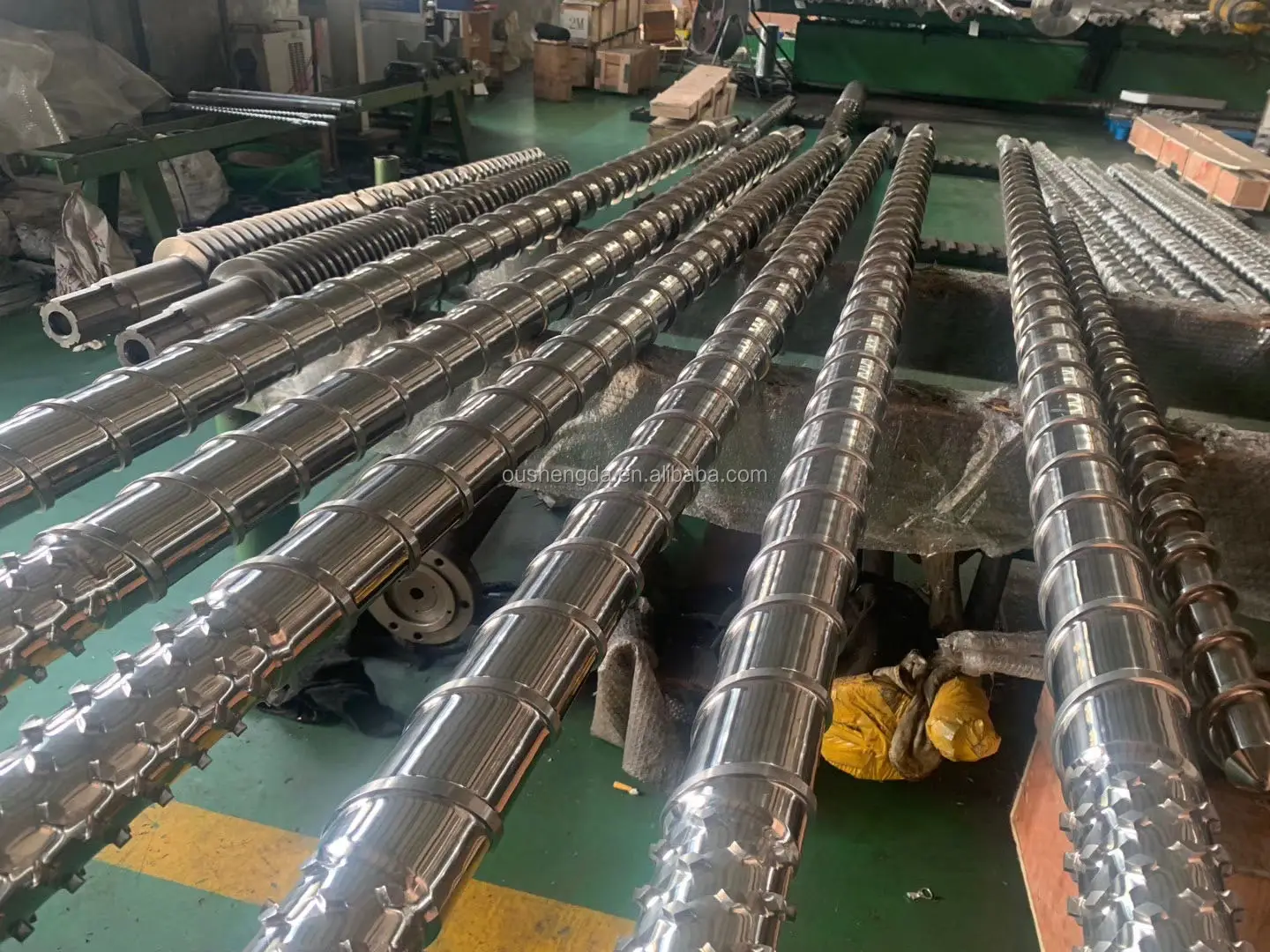

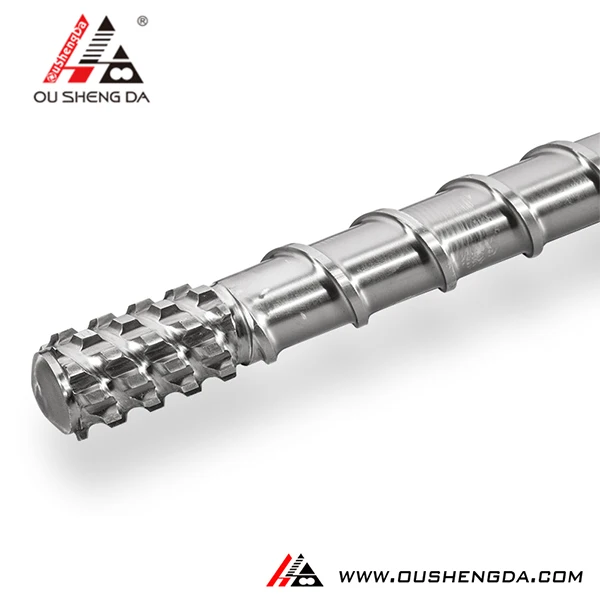

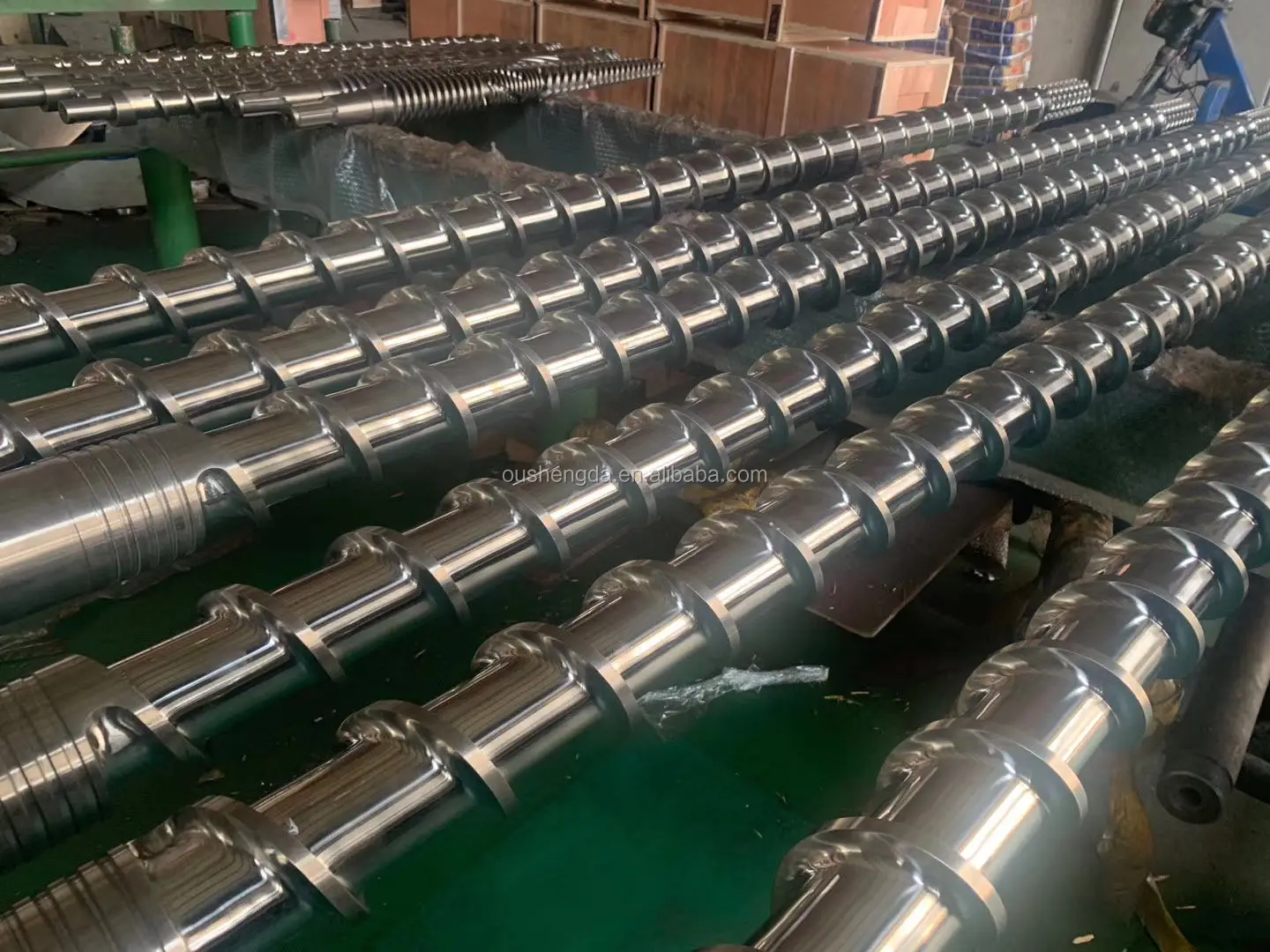

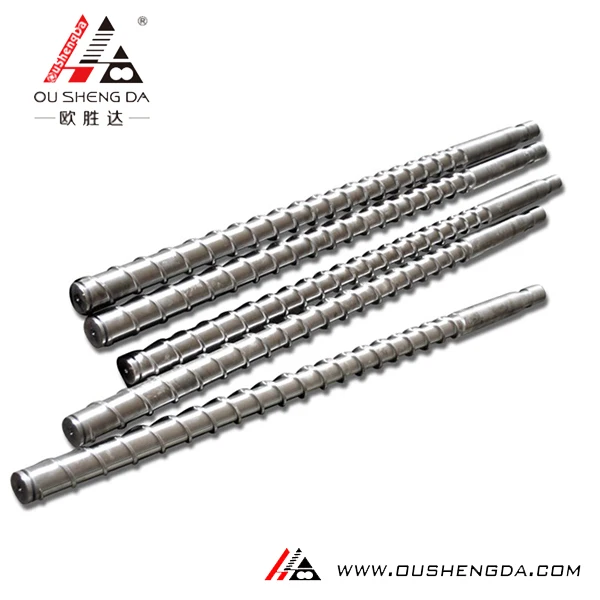

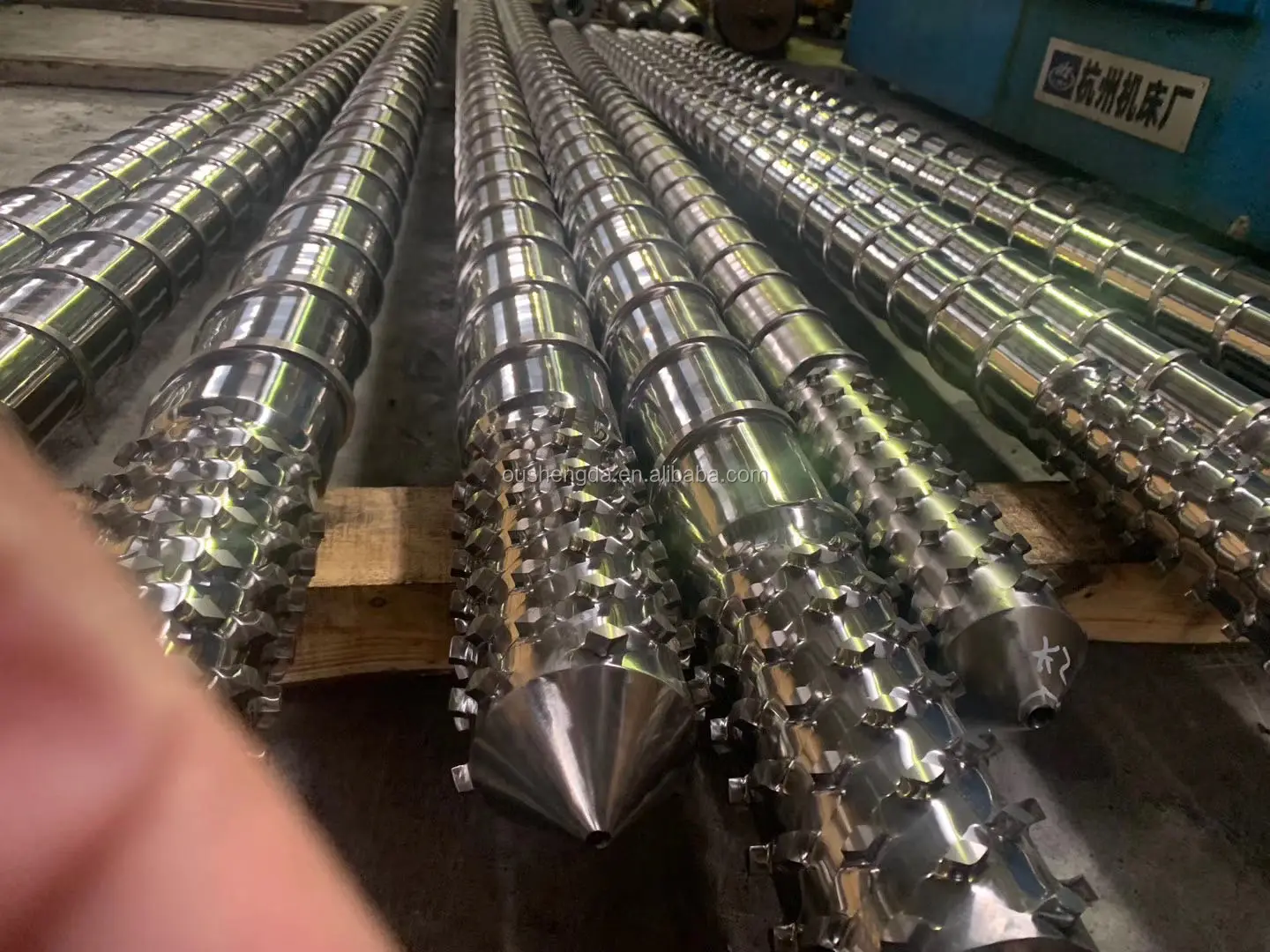

pvc/abs extrusion granules single screw
Diameter	Φ15mm-Φ350mm	Designing	Screw structure and compression ratio can be designed according  to different products  & different output requirement.
Materials	38CrMoAlA  (JIS SACM645) SKD61	Application	pvc ,abs material
Nitride Case Depth	0.5mm-0.8mm	Technology	1)Longer time Gas Nitriding treatment  2)special anti-wear & abrasion alloy (bimetallic) 3)tungsten carbide 4)cobalt base alloy 5)stainless steel  6)Gh113 nickel based alloy
Nitride Hardness	950-1020HV	Packing	Wrapped up by film in wooden
Nitride Brittleness	≤Grade One	Payment Term	T/T , L/C
Surface Roughness	Ra0.4um	Delivery Term	25 working days
Screw Straightness	0.015mm	Port Departure	Shanghai/Ningbo
Alloy Hardness	HRC58-62	Min. Order	1 set
Alloy Depth	0.5mm-0.8mm	Common Nitrided:2.5-4years Bimetallic: much longer lifetime.
Guarantee

If the screw diameter or l/d ratio is not fixed, please feel free to inform the products and output you need, we can

select & design the matching cylinder screw by your requirement







About O.S.D :

1. Our Strength: We have an experience of more than 20 year of manufacturing and designing Plastic machines, varied Screws and Barrels and spares.  We concentrate on improving quality, updating design and enhancing service.


2. Our products: Screws Barrels for Injection, Extrusion, and Blow Molding applications; relevant accessories(such as die head, gearbox, filter screen changer and so on); plastic processing  machinery.


3. Location advantage: located in China's Screw Town - Jintang Town in Zhoushan City, near to Ningbo Port and Shanghai Port.


4. Market areas: global sales network reaching South America, Eastern Europe, Southeast Asia, Africa, Oceania and the Middle East.


5. We promise: We assure the customer benefits, We provide competitive price, We Emphasis On Cooperation.
