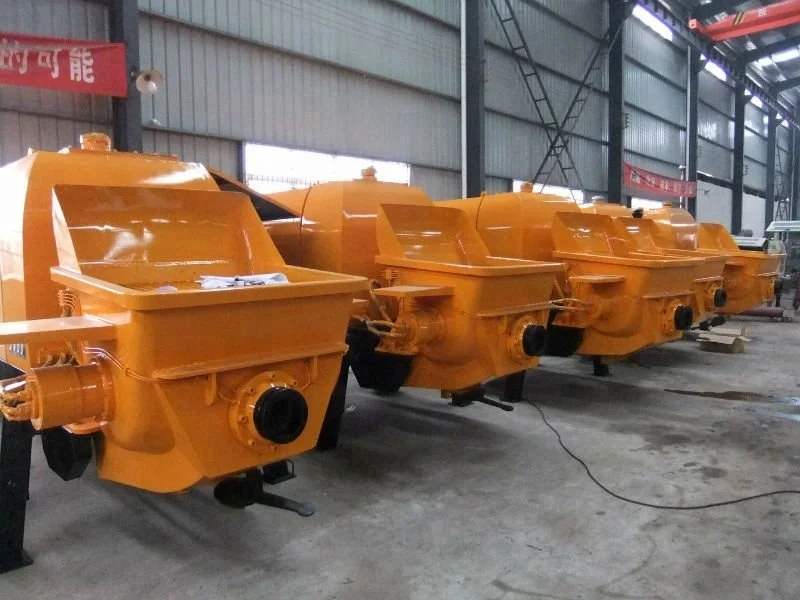

HBT80 Special Trailer Concrete Pump

                                   Models

Technical Parameters

HBT80.16.130RSC

Theoretic discharge capacity of concrete delivery

(under low pressure/under high pressure) (m³/h)

85/56

Theoretic pressure of concrete delivery

(under low pressure/under high pressure) (MPa)

16/9.5

Theoretic maximum

delivery distance (m)

Horizontal

1600

Vertical

330

Concrete slump range (mm)

100~230

Maximum size of

concrete aggregate (mm)

φ150mm placing boom

50

φ125mm placing boom

40

Hopper capacity (m³)

0.7

Feeding height (mm)

1400

Concrete cylinder - diameter (mm)

φ200

Concrete cylinder - stroke (mm)

1800

Main oil cylinder - diameter (mm)

φ150/φ90

Main oil cylinder - stroke (mm)

1800

Motor brand

Weichai DEUTZ

Motor model

226B

Rated power of motor (kw)

130

Hydraulic system - circuit type

Double open circuit

Main hydraulic pump brand

KAWASAKI

Main hydraulic pump discharge (ml)

224

Maximum hydraulic pressure (MPa)

32

Hydraulic oil tank capacity (L)

500

Flow of air-cooled heat exchanger (L/min)

315

Electrical control

PLC

Concrete placing boom diameter (mm)

φ150/φ125

Maximum towing velocity (km/h)

8

Dimension (mm)

Length

6350

Width

2100

Height

2200

Gross Weight (kg)

7000

Remarks

S-valved

Diesel Engine drive
