Ceramic tube directional NDT portable x ray equipment

Product Overview

Description

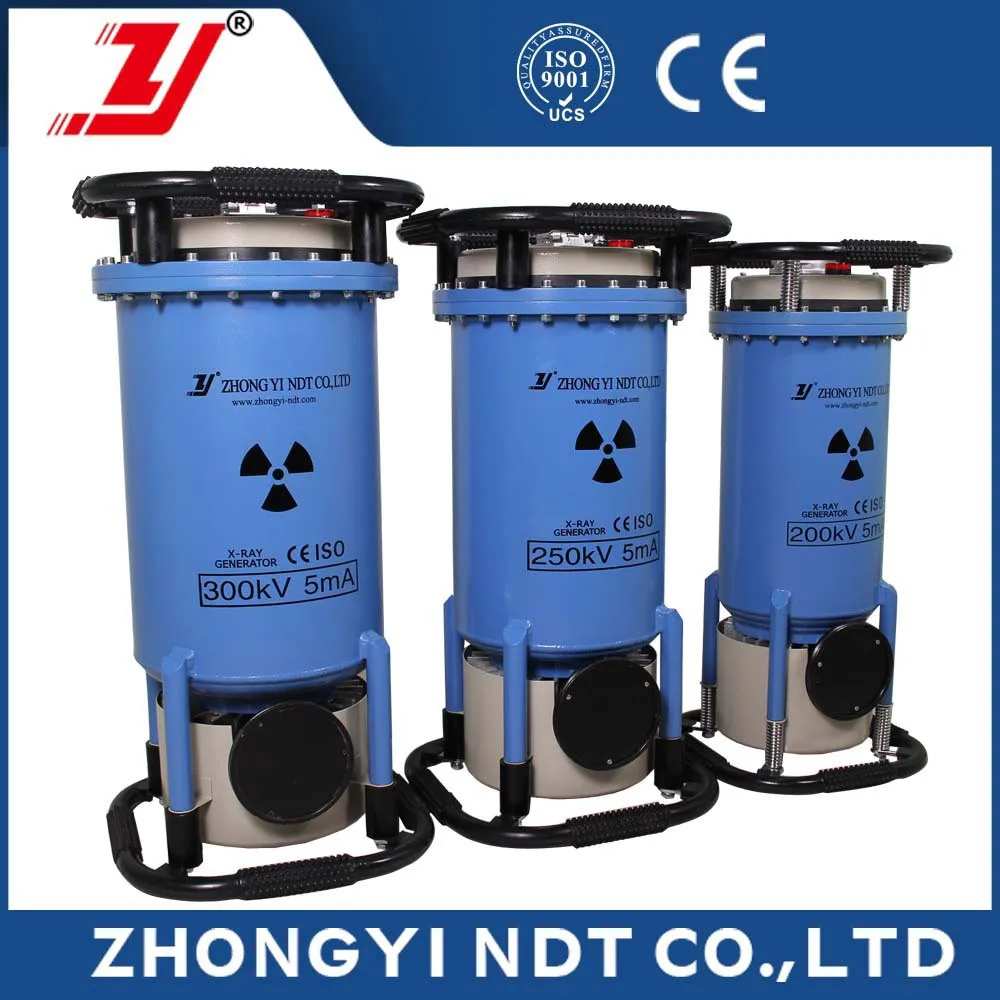

x-ray tube equipment





Introduction



x-ray tube equipment



(1) Small volume, Light Weight, easy to take and simplicity of operation
(2) Safe and reliable generator adopts design of SF6 gaseous insulator, grounded-anode, and fan forced cooling .
(3) Controller adopts design of hardware with a wide operative range, having the advantage of long service and low failure rate.
(4) Excellent anti-jamming performance. Capable to operate from 180V to 250V voltage.
(5) Possess the reliable “Time –delayed” fiction, suitable to operate in the open field.
(6) High degree of automation, with the fiction of trouble self shooting and indication.

(7) Strictly followed with 1:1 working /resting radio , eliminating the disoperation.

(8) The HV windings made by imported enamel wire are applied in the X-ray generator, so as to make the quality of the complete equipment improved a great deal.



Parameters



x-ray tube equipment





Model	x-ray tube equipment XXG-Series
Output Voltage	160kv, 200kv, 250kv, 300kv,350kv
Tube	ceramic tube
Beam Angle	directional 40°
Output Current	5mA
Penetration(A3 Steel)	0-70mm
Power Supply	Battery Pack
Insulating Material	SF6 gas
Save Pressure	0.35-0.50MPa
Working Temperature	-25°~+40°
Cooling	air fan cooling
Relative Humidity	≤85%



More information,plz take the homepage for reference.



x-ray tube equipment











Zhongyi NDT Testing X-ray Flaw Detector/X-ray Generator
Model	Tube Voltage (KV)	Capacity (KW)	Focus Size (mm)	Max. Penetrate (mm)
XXQ-1005	40-100	>1.0	1.0*1.0	8
XXQ-1605	60-160	>1.5	1.5*1.5	20
XXQ-2005	80-200	>2.0	1.5*1.5	29
XXQ-2505	130-250	>2.5	2.0*2.0	39
XXQ-3005	150-300	>3.0	2.5*2.5	49
XXQ-3505	250-350	>3.5	2.5*2.5	59
XXH-1605	60-160	>1.5	1.0*2.0	18
XXH-2005	80-200	>2.0	1.0*2.4	26
XXH-2505	130-250	>2.5	1.0*2.4	36
XXH-3005	150-300	>3.0	1.0*3.4	46
XXH-3505	250-350	>3.5	1.0*3.4	56
XXHA-1005	40-100	>1.0	1.0*2.0	4
XXHA-1605	60-160	>1.5	1.0*2.5	15
XXHA-2005	80-200	>2.0	1.0*2.5	24
XXHA-2505	130-250	>2.5	1.0*2.5	34
XXHA-3005	150-300	>3.0	1.0*3.5	40
XXHA-3505	250-350	>3.5	1.0*3.5	50
XXG-1605	60-160	>1.5	1.5*1.5	20
XXG-2005	80-200	>2.0	1.5*1.5	29
XXG-2505	130-250	>2.5	2.0*2.0	39
XXG-3005	150-300	>3.0	2.5*2.5	49
XXG-3505	250-350	>3.5	2.5*2.5	70



FAQ:



Q 1:Is your Company the Manufacturer or a Trading Company?

A 1 : We are a manufacturer of NDT x ray equipment in China with experience engineer working over 20 years.



Q 2 : What are the payment options?

A 2 : We accept the following payment methods: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance .



Q 3 : Do you have any products that approved by ISO or CE?

A 3 : Yes, all of our products were strictly approved by ISO and CE, and our Zhongyi products can be imported to the overseas market.
