Ready Mixed Mortar Plastering Machine

Product Overview

Description

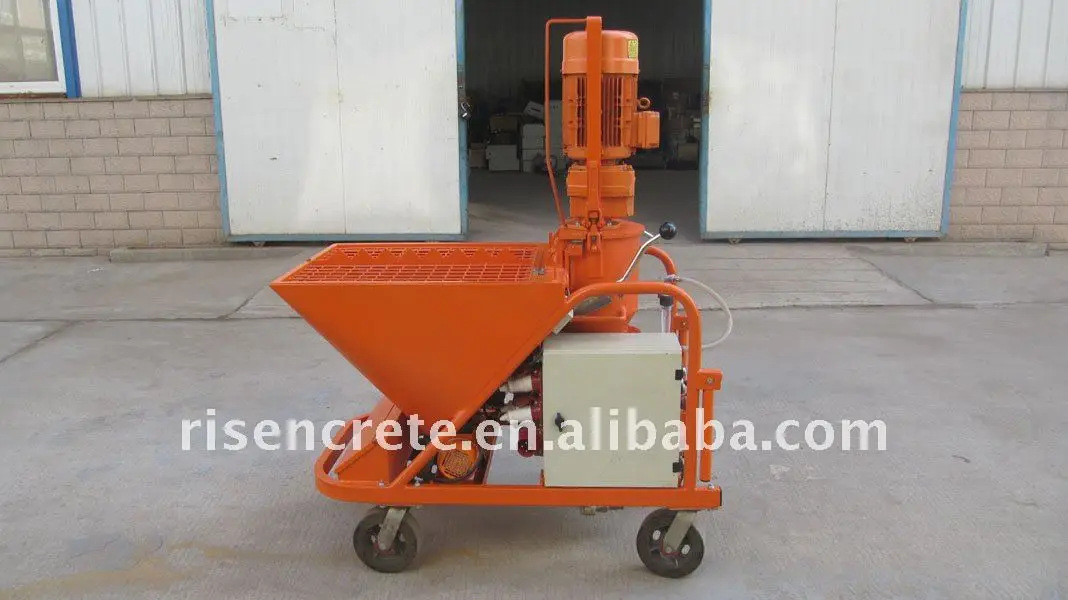

Ready Mixed Mortar Plastering/Spray Machine

Feature

• The integrated machine with mixer, self-suck water pump, mini compressor and rotor/stator pump
• The continuously mixing and pumping machine
• Small and handy dimension and low weight, quickly and easily transport even in the most confined spaces.
• The rotor/stator pump ensures the material is pumped and sprayed out continuously and evenly.
• The machine always works with efficiency and silence
• With air valve remote-control function
• The machine consists of portable units, permitting easy to operate and take maintenance and easy to use in any circumstance.

Application:



All pumpable dry ready-mixed mortars or materials, such as cement mortars, Lime plasters, gypsum plasters, Masonry mortars, Insulating plasters, Self-leveling floor screeds, etc.



Technology Description



Rated Output	30 L/min
Rated Working Pressure	3 MPa
Total Power	8.5Kw
Main Electric Motor	3Phase,380volt,5.5 Kw
Rev.of Rotor	380 RPM
Rated Air Output	250L/min
Water Pump Rated Output	700L/h
Max.Conveying Dist.	50m
Hopper Capacity	120L
Loading Height	1000mm
Conveying Hose ID.	25/32mm
Air Hose ID.	13mm
Overall Dimension(LxWxH)	1240×680×1550mm
Weight	280 kg

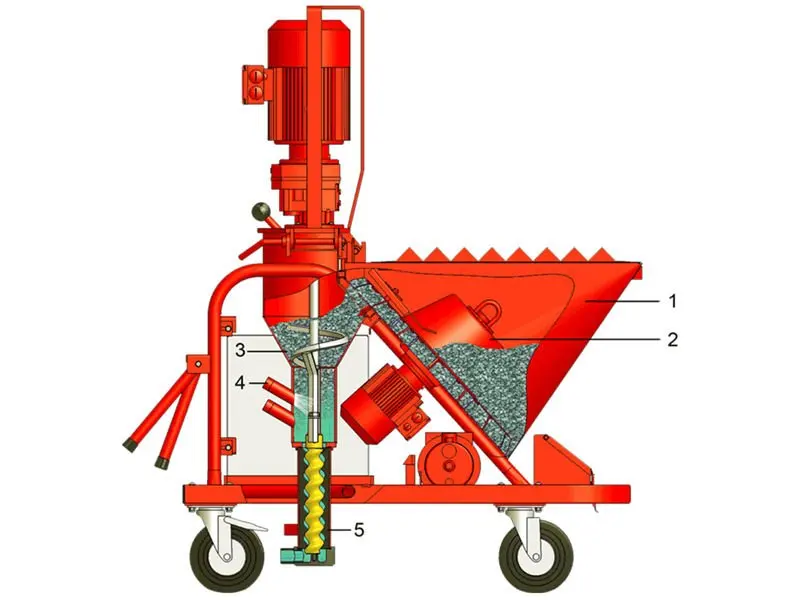

1.Hopper

2.agitator

3.mixing pipe

4.grouting water

5.rotor and stator
