Aqua Gas Ring Vacuum Pump & air blower

Share on (50945042):


Price:$100.00

Quantity:


Product Overview

Description



Product Description


Features:


-Shaft seal with fluorine plastic or imported skeleton maintenance-free shaft seal isolation motor.


-The electrical motor is squirrel cage motor with lP54 protection, Level B insulation.


-Vibration-absorbing baseboard, can reduce vibration.


-The motor adopts die-cast aluminum housing, heat dissipation fast, light weight.


-The impeller is side-stream high efficient aluminum metal impeller.


-The surface of the cavity of the air blower was coated with anticorrosive paint, extend its life cycle.


-This product is suitable for various swimming pools and SPA pools.

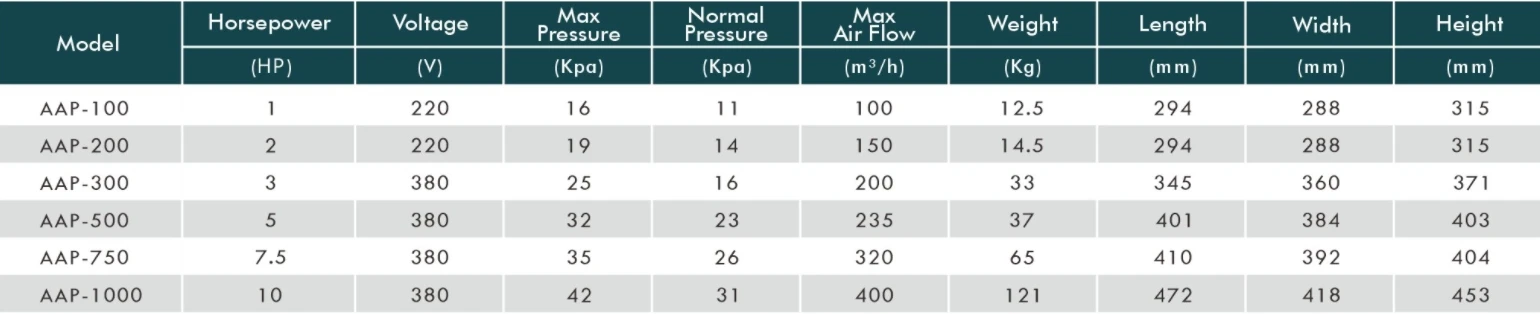

Specifications


Model
Horsepower
Voltage
Max. Pressure
Normal Pressure
Max. Air Flow
AAP-100
1
220
16Kpa
11Kpa
100m3/h
AAP-200
2
220
19Kpa
14Kpa
150m3/h
AAP-300
3
380
25Kpa
16Kpa
200m3/h
AAP-500
5
380
32Kpa
23Kpa
235m3/h
AAP-750
7.5
380
35Kpa
26Kpa
320m3/h
AAP-1000
10
380
42Kpa
31Kpa
400m3/h
