Price:$2,855.00 - $3,127.00

Quantity:


Product Overview

Description





Model
Unit
1BZ-1.8
1BZ-2.2
1BZ-2.5
1BZ-3.0
1BZ-3.4
1BZ-4.0
Working width
m
1.8
2.2
2.5
3.0
3.4
4.0
Working depth
mm
120-200
150-300
No.of discs
pcs
16
20
24
28
32
36
Disc diameter
mm
660
660
Weight
kg
1230
1380
1480
1580
1680
1900
Tractor power
hp
70-85hp
80-90hp
85-100hp
90-120hp
120-150hp
140-160hp

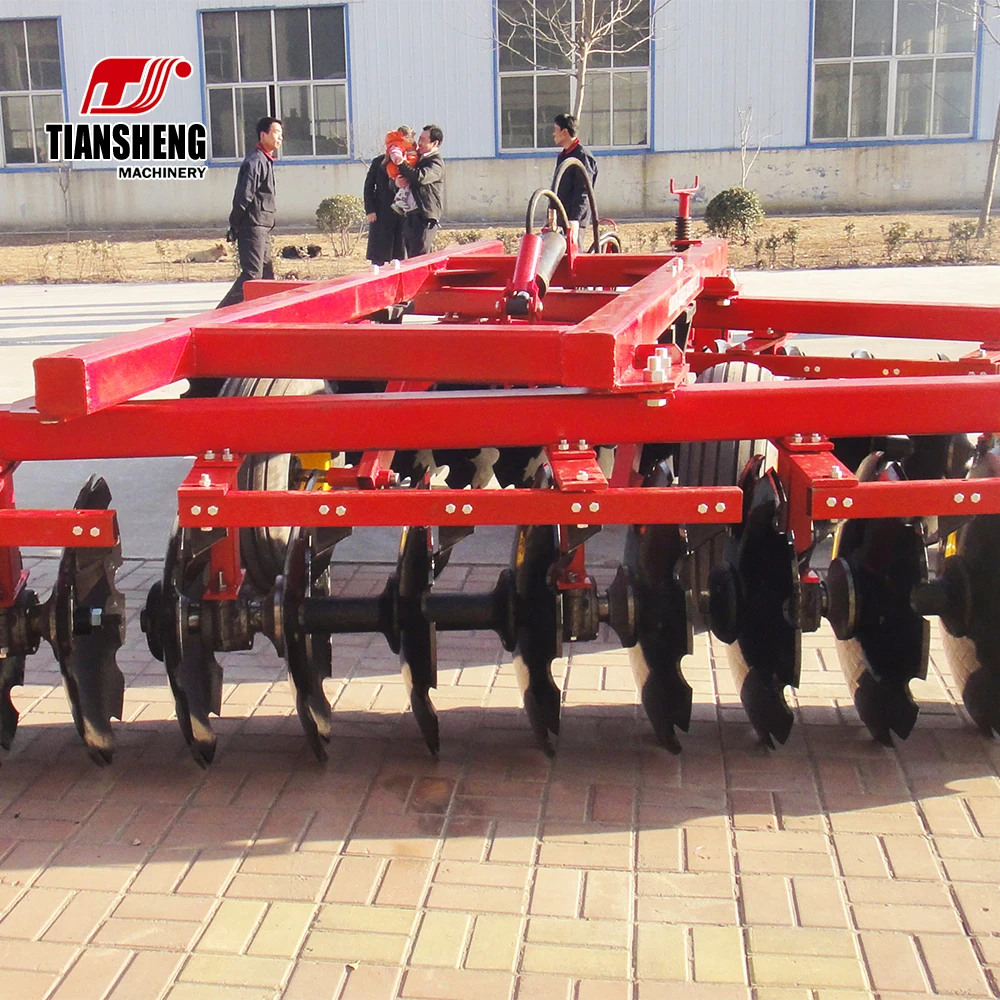

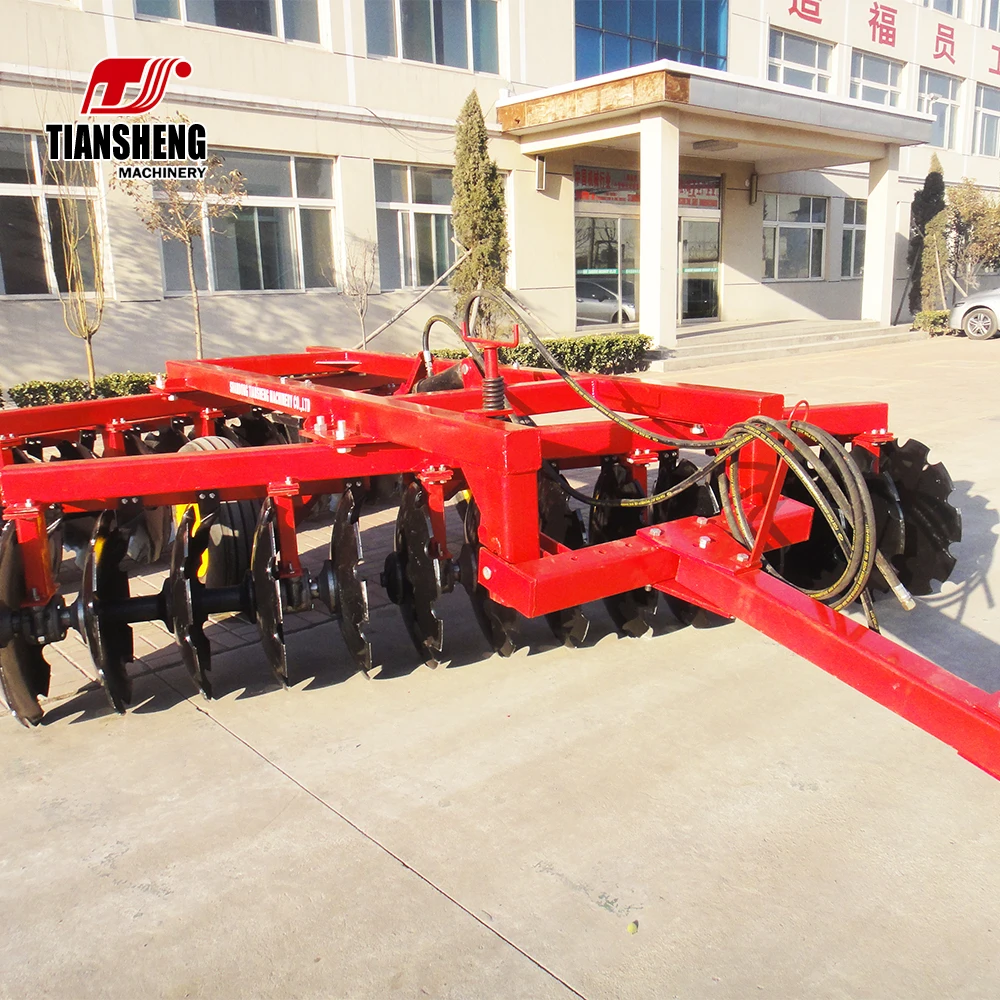

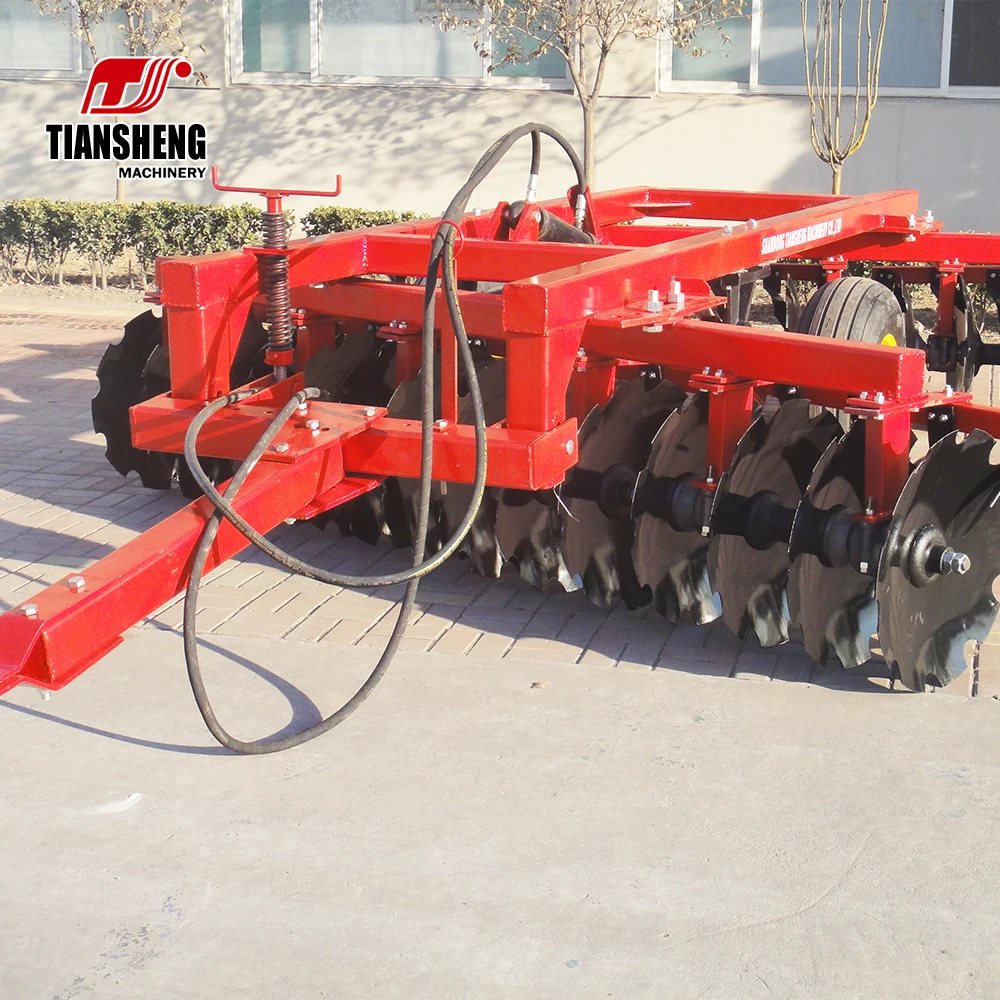

1BZ Series Heavy Hydraulic Offset Disc Harrows, with high-strength harrow frames and discs, are specially used in tougher soilcondition for superficial plowing, shattering of clods, crashing and mixing crop residues or plant roots into soil as greenmanures, for preparation of soil before sowing. This series of disc harrows specially adopt hydraulic & tire mechanism to controlcutting depth of harrow, and facilitate transportation during and after harrow working。
Technique parameter:• 32×32 square harrow shaft used, 225mm spacing between discs, matching 7.00-9 tires
• High Carbon disc blade hardness: 38-44 HRC, assuring the toughness and wear ability of disc blade
• As heavy duty model disc harrow, performing well in tough soil conditions
• 120*120*6mm tubular structure with high-strength steel beam used, more durable in harrowing work

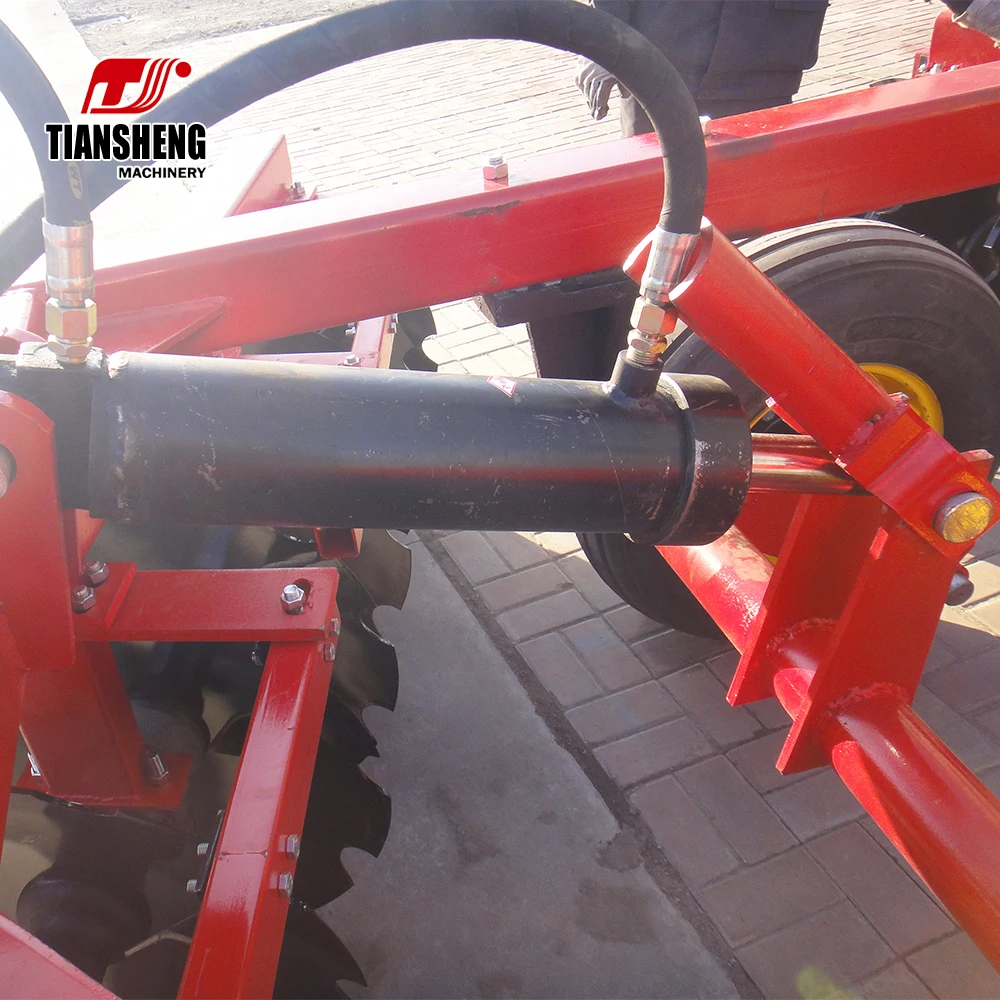

• Wheels linked to hydraulic cylinder, facilitating harrow maneuvers, disc depth control and harrow transportation over long
distance.
