Product description

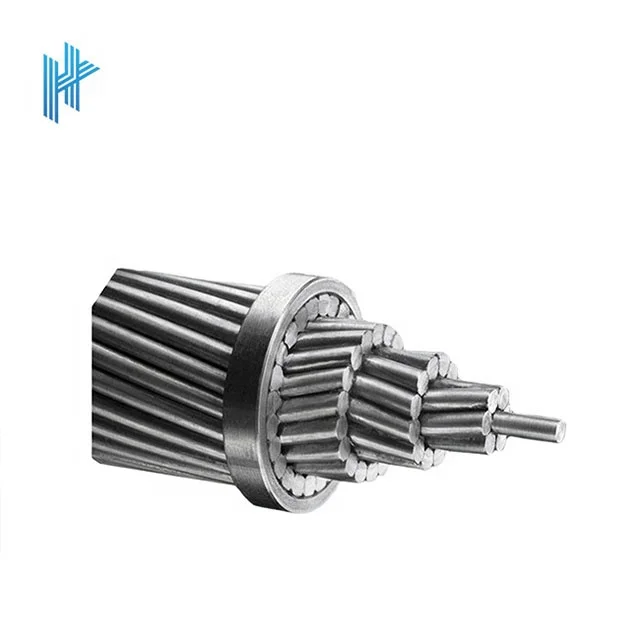

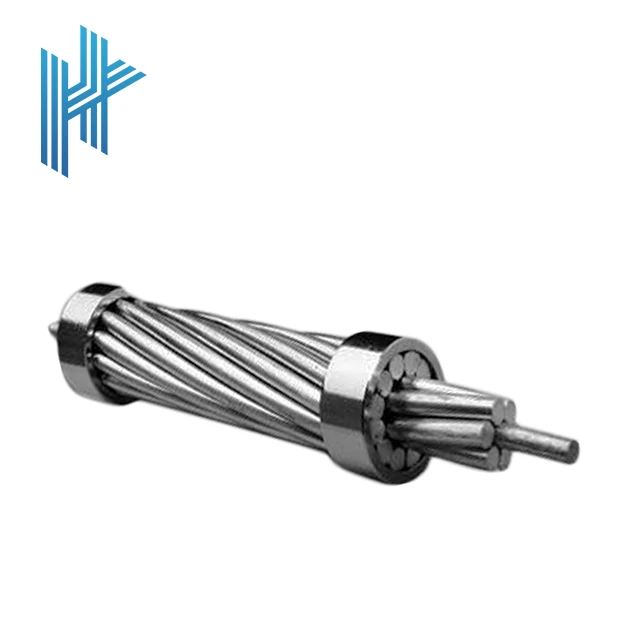

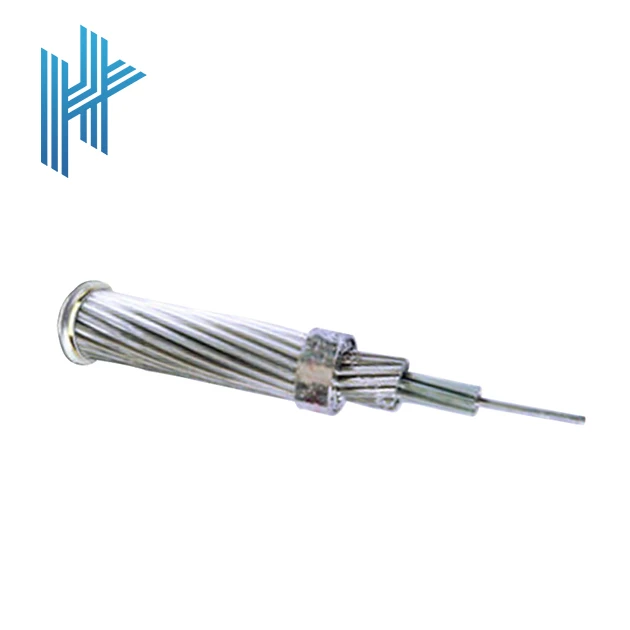

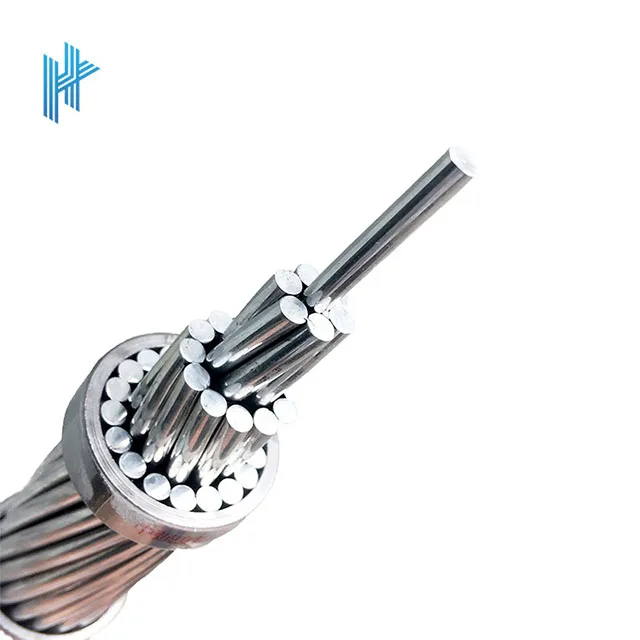

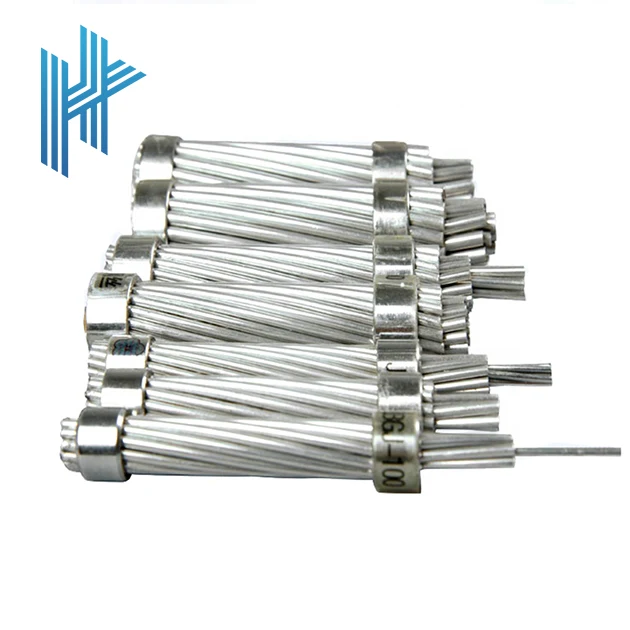

AAAC / All Aluminum Alloy Conductor
Advantage:
1. AAAC has large mechanical resistance than AAC which permits its use as a bare overhead conductor on aerial circuits for power transmission and distribution lines.
2. AAAC has better sag characteristics and strength to weight ratio as compared to AAC.
3. AAAC weight per unit and resistance is also lower which gives it advantage over the ACSR. Also, AAAC conductor has better corrosion protection than ASCR conductors..
1. AAAC has large mechanical resistance than AAC which permits its use as a bare overhead conductor on aerial circuits for power transmission and distribution lines.
2. AAAC has better sag characteristics and strength to weight ratio as compared to AAC.
3. AAAC weight per unit and resistance is also lower which gives it advantage over the ACSR. Also, AAAC conductor has better corrosion protection than ASCR conductors..
Parameter：
AAAC bare conductor meets or exceeds the following ASTM specifications:
B-398 Aluminum Alloy 6201-T81 Wire for Electrical Purposes
B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors
AAAC bare conductor meets or exceeds the following ASTM specifications:
B-398 Aluminum Alloy 6201-T81 Wire for Electrical Purposes
B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors
Application :
Used as bare overhead conductor for primary and secondary distribution. Designed for utilizing a high-strength aluminum-alloy to achieve a high strength-to-weight ratio; affords good sag characteristics.
(1)AAAC conductors are extensively used for overhead distribution and transmission lines adjacent to ocean coastlines where there can be a problem of corrosion in the steel of an ACSR construction.
(2)The aluminum alloy conductors are used in replace of single-layer ACSR conductors to reduce power loss in overhead distribution and transmission lines,when replacing the aluminum conductor steel reinforced , the AAAC can save 5-8% of the construction cost.
Used as bare overhead conductor for primary and secondary distribution. Designed for utilizing a high-strength aluminum-alloy to achieve a high strength-to-weight ratio; affords good sag characteristics.
(1)AAAC conductors are extensively used for overhead distribution and transmission lines adjacent to ocean coastlines where there can be a problem of corrosion in the steel of an ACSR construction.
(2)The aluminum alloy conductors are used in replace of single-layer ACSR conductors to reduce power loss in overhead distribution and transmission lines,when replacing the aluminum conductor steel reinforced , the AAAC can save 5-8% of the construction cost.
(3)AAAC referred to have higher strength but lower conductivity than pure aluminum. Being lighter, alloy conductors can sometimes be used to replace the conventional ACSR.
Product Standard
Code Name | Nominal Area (mm²) | Stranding (No./mm) | Diameter Of Conductor (mm) | Linear Mass(kg/km) | Rated Strength (kgf) |
Box | 15 | 7/1.85 | 5.55 | 51 | 537 |
Acacia | 20 | 7/2.08 | 6.24 | 65 | 680 |
Almond | 25 | 7/2.34 | 7.02 | 82 | 861 |
Cedar | 30 | 7/2.54 | 7.62 | 97 | 1014 |
Fir | 40 | 7/2.95 | 8.85 | 131 | 1367 |
Hazel | 50 | 7/3.30 | 9.9 | 164 | 1711 |
Pine | 60 | 7/3.61 | 10.83 | 196 | 2048 |
Willow | 75 | 7/4.04 | 12.12 | 245 | 2402 |
Oak | 100 | 7/4.65 | 13.95 | 325 | 3398 |
Mulberry | 125 | 19/3.18 | 15.9 | 415 | 4312 |
Ash | 150 | 19/3.48 | 17.4 | 497 | 5164 |
Product packaging
Inspection of quality
Certifications
Company Profile
About Huaxing
Henan Huaxing Wire and Cable Co., Ltd. is one of the wire and cable manufacturers of China Electric Power, located in Yongan Industrial zone, Gongyi City. Our company was founded in January 1984 and expanded in 2005, covering an area of 67,000 square meters.
The building area is 28,000 square meters, and the total assets are 360 million YUAN. The company has 180 employees,including 5 senior technical engineers; Nearly 100 middle and junior technicians. The company integrates research and production.
The main products are AAC/AAAC/ACSR/ACAR Conductor, overhead bunched cable (ABC cable), Control cable, concentric cable, low voltage and medium voltage power cable, plastic wire, solar power cable, protection cable, etc.
The main products are AAC/AAAC/ACSR/ACAR Conductor, overhead bunched cable (ABC cable), Control cable, concentric cable, low voltage and medium voltage power cable, plastic wire, solar power cable, protection cable, etc.
Contact US
Envelope: sales@huaxingcable.com
Phone: +86 – 371 – 86627929
WhatsApp : +86 – 18738196599
Map-marker: No.27 Commercial Outer Ring of Zhengzhou city, Henan Province, China
Industry: No.12 dingxiang Road, Yongan Industrial Park, Gongyi City, Henan Province, China
Phone: +86 – 371 – 86627929
WhatsApp : +86 – 18738196599
Map-marker: No.27 Commercial Outer Ring of Zhengzhou city, Henan Province, China
Industry: No.12 dingxiang Road, Yongan Industrial Park, Gongyi City, Henan Province, China
FAQ
1. who are we?
We are based in Henan, China, start from 2005,sell to Domestic Market(58.00%),North America(10.00%),Southeast Asia(8.00%),South America(6.00%),Africa(6.00%),Oceania(4.00%),Western Europe(3.00%),Mid East(3.00%),Eastern Asia(1.00%),Northern Europe(1.00%),South Asia(0.00%),Southern Europe(0.00%),Central America(0.00%),Eastern Europe(0.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Wire; Cable
4. why should you buy from us not from other suppliers?
we have been producing cable more than 20 years
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Henan, China, start from 2005,sell to Domestic Market(58.00%),North America(10.00%),Southeast Asia(8.00%),South America(6.00%),Africa(6.00%),Oceania(4.00%),Western Europe(3.00%),Mid East(3.00%),Eastern Asia(1.00%),Northern Europe(1.00%),South Asia(0.00%),Southern Europe(0.00%),Central America(0.00%),Eastern Europe(0.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Wire; Cable
4. why should you buy from us not from other suppliers?
we have been producing cable more than 20 years
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
