8 inch rebound swivel steel mechanism

Product Overview

Description

8 inches rebound swivel steel mechanism



Product Description

	Product	8 inch rebound black stainless steel lazy susan
	Model No.	Z-8
	Diameter/Size	8 inch		(other available size:3-14 inch)
	Thickness	25mm	(other available thickness:20mm)
	Material	stainless
	Function	360°free rotation
	Load Capacity	200kg
	Packing	1 piece per PE bags, then to be packed into transit cartons
	Working life	5-8 years
	Applications	•Televsion and Computer Monitor Turntables   •Flower Arranging      •Cake Decorating   •Revolving Chair
	Other	OEM service and open mold, produce all types of products according to your requirements.

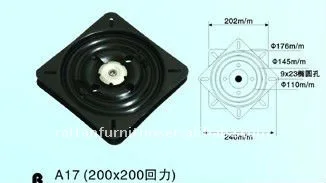

Size: 200*200mm

Thickness of material: 2.5mm

N.W: 1.52kg

Load rating: 200kg

Supplies life count: 30,000 revolutions(This type of mecanism is differ from normaly one, from the result of life time test, the normal one only rotate 5,000 revolutions.)

Surface treatment: Black powder coated

Material: Made from high quality steel and import special steel springs.

Function: can rebound to the start position smoothly and quickly once rotate to the 180 degrees.

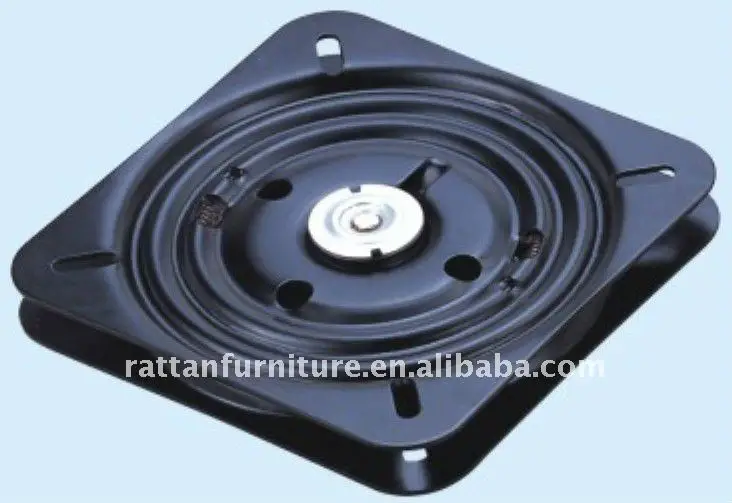

 Product Picture





More technical questions please feel free to contact us!
