double row spherical roller Bearing 22312MBW33 brass cage inner ring guid

Product Overview

Description

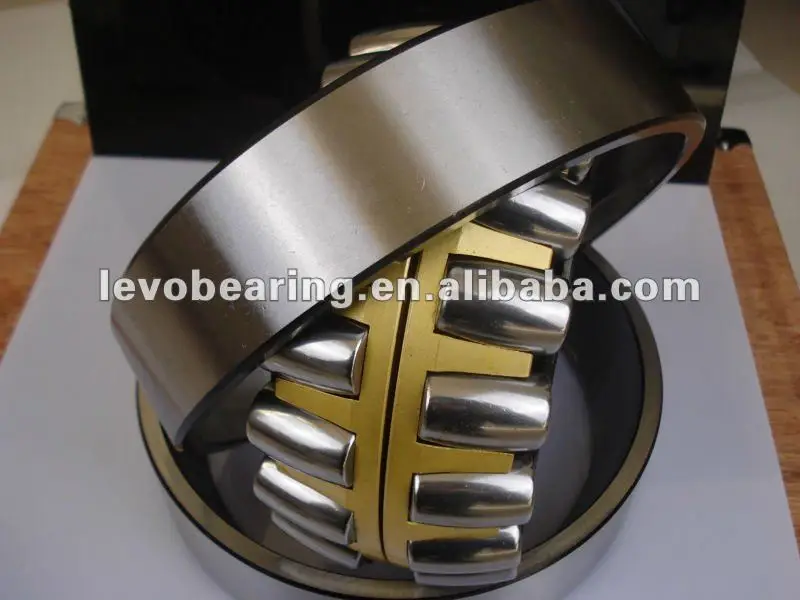

Spherical Roller Bearing22312MBW33

 Item:22312MBW33

Type:Spherical roller bearing

 Material: Chrome Steel

 Cage:brass cage

Tolerance: ABEC3; ABEC5, ABEC7, ABEC9

Vibration: Z2V2; Z1V1

Certificate: ISO9001: 2000, SGS

Lubrication: Self Lubricated (Grease)

Size: 60×130×46 mm

Dynamic load rating Cr:168 KN

Static load rating Cor:225KN

Grease Lubrication: 2800RPM

Oil Lubrication: 3600RPM

Weight: 3.00KG



23022 series 23022 23024 23026 23028 23030 23032 23034 23036 23038
23040 23044 23048 23052 23056 23060 23064 23068 23072 23076 23080
23084 23088 23092 23096
24024 series 24024 24026 24028 24030 24032 24034 24036 24038 24040
24044 24048 24052 24056 24060 24064 24068 24072
23218 series 23218 23220 23222 23224 23226 23228 23230 23232 23234
23236 23238 23240 23244 23248 23252 23256 23260 23264 23280 23284
23296
22208 series 22208 22209 22210 22211 22212 22213 22214 22215 22216
22217 22218 22219 22220 22222 22224 22226 22228 22230 22232 22234
22236 22238 22240 22244 22248 22252 22256 22260
22308 series 22308 22309 22310 22311 22312 22313 22314 22315 22316
22317 22318 22319 22320 22322 22324 22326 22328 22330 22332 22334
22336 22338 22340 22344 22348 22352 22356 22372 22380
23121 series 23121 23122 23124 23126 23128 23130 23132 23134 23136
23138 23140 23144 23148 23152 23156 23160 23164 23168 23172 23176
23180 23184 23188 23192 23196 23936 23940 23948 23960 23972 23976
23996
24122 series 24122 24124 24126 24128 24130 24132 24134 24136 24138
24140 24144 24148 24152 24156 24160 24172
Cage type
Spherical Roller Bearing CC series
Spherical Roller Bearing CA series
Spherical Roller Bearing CAE series
Spherical Roller Bearing MB series
Spherical roller bearing E series
