diesel engine shotcreting machine for dry or damp mix shotcreting /concrete spraying / guniting

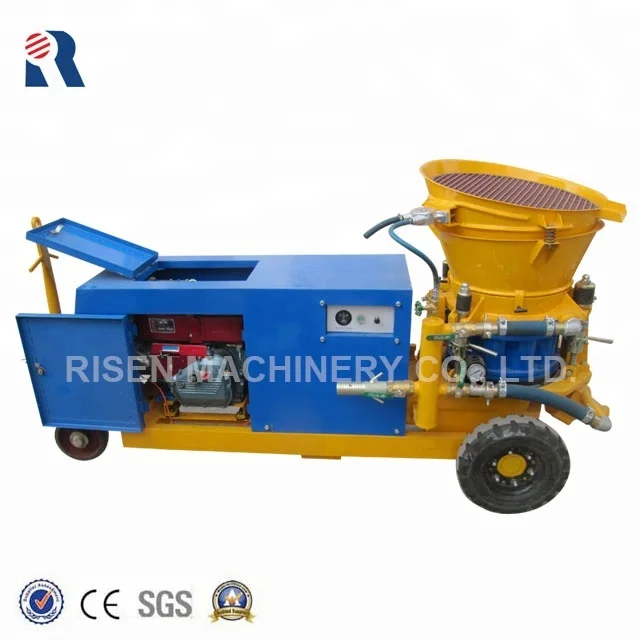

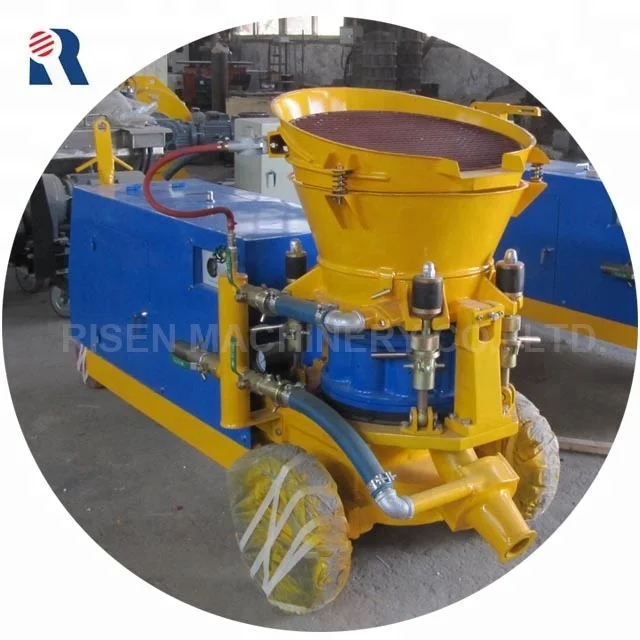

Diesel Engine shotcreting machine RISEN PZ-3  is a a small concrete spraying / gunite machine with diesel engine, mainly applied for dry or damp ready mix shotcreting. RISEN has engaged in the manufacturing and export of the PZ-3 concrete spray/shotcrete machine since 2004. Among RISEN PZ series, the PZ-3 is a small-size model with output 3m3/hour and is a very popular model. The diesel driven RISEN PZ-3 is able to be worked in the construction site without electricla power or the engineering which the E-motor is far away the construction site.

Based on the excellent quality, mature work principle and competitive price, RISEN PZ-3 has been exported to many countries, such as, Malaysia, Singpore, philppines, Sri Lanka, Lebanon, South Afrida, French, Oman, Australia, Peru, etc, widely applied in the construction, railway and super highway engineering, underground engineering, tunneling, mining operations, hydropower projects and slope stabilization, etc.

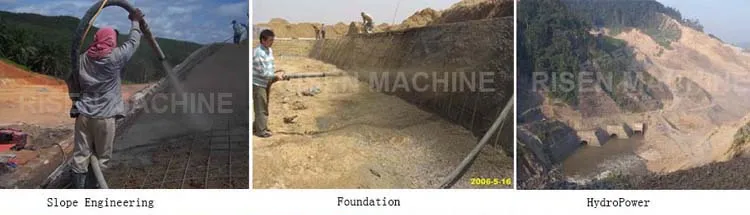

• Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
• Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
• Refractory spraying and repair for industrial kilns or kilns’ inner liner.

• Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
• Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
• Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
• Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.

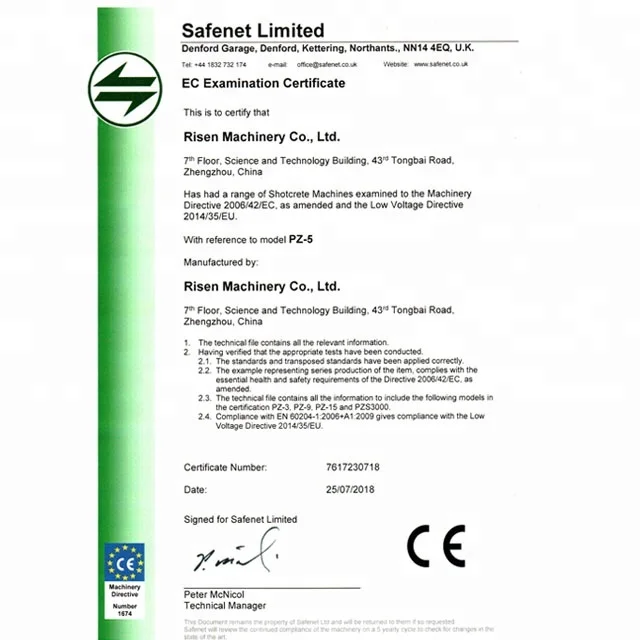

• For the most specific risks of this machine, safety and compliance with the essential health and safety requirements of the Directive 2006/42/EC.

•  High-accuracy Gearbox, high clean degree inside;
• High wear resistance and longer use life consumable parts;
• Military standard solid wheels for different construction site;
• 100% new diesel engine with mature work principle and high quality;
• National standard bearing, valve and screw etc.;
• All the casting units manufactured as our special design to ensure the enough strength and some key parts are the welded parts not the casting;
• The sheet metal parts made of the thicker steel plate to have a stronger quality, such as the hopper;
• Serious handle for details, such as, protector for pressure gauge, special part for dust escaping down to the ground;
• Painted after sandblasting for a pretty appearance;

Spare Parts:

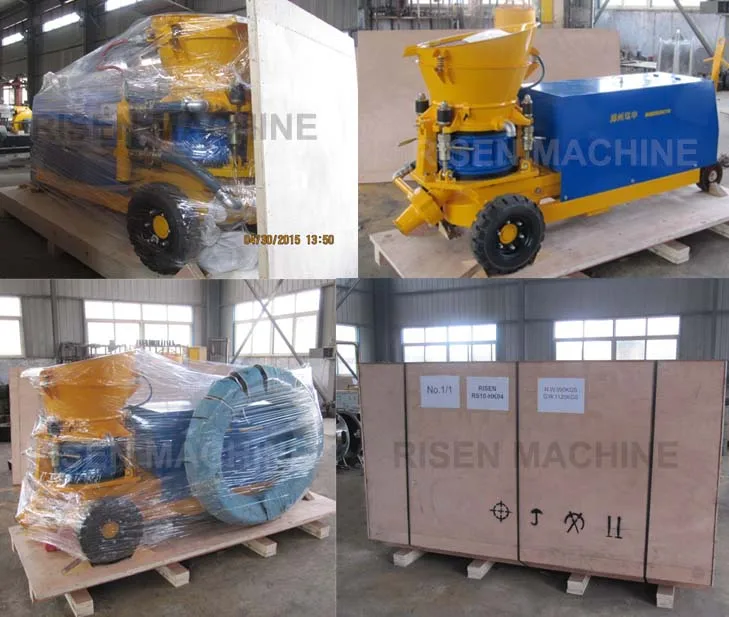

 Sea-worthy Package

RISEN MACHINERY CO., LTD. is a manufacturer. Since 2004, RISEN has engaged in the design & manufacture of different kinds of shotcrete machines, grout pumps, mixer, hose pump, mortar pumps etc. And, RISEN is committed to develop new products to meet the customers’ need, with the ability to provide the necessary technical support and engineering experience required. Today, RISEN products are widely working in China, Australia, Finland, Spain, Egypt, Lebanon, Mexico, Peru, Malaysia, Philippines, Sri Lanka etc. and got the customers’ satisfaction based on the high-quality and competitive price.

Most of RISEN employees have worked in the design and production of the above machines for about twenty years. RISEN can provide the customers with sincere, friendly, timely technical consultation, technical support and after-sale service. RISEN employees are also capable of providing customers the solutions to the site-specific problems in cooperation with the customers.
