Automatic laundry galvanised steel wire hanger making machine
- Category: Other Metal & Metallurgy Machinery >>>
- Supplier: Wuxi Tripod Machinery Imp. & Exp. Co. Ltd.
Share on (510735831):
Product Overview
Description

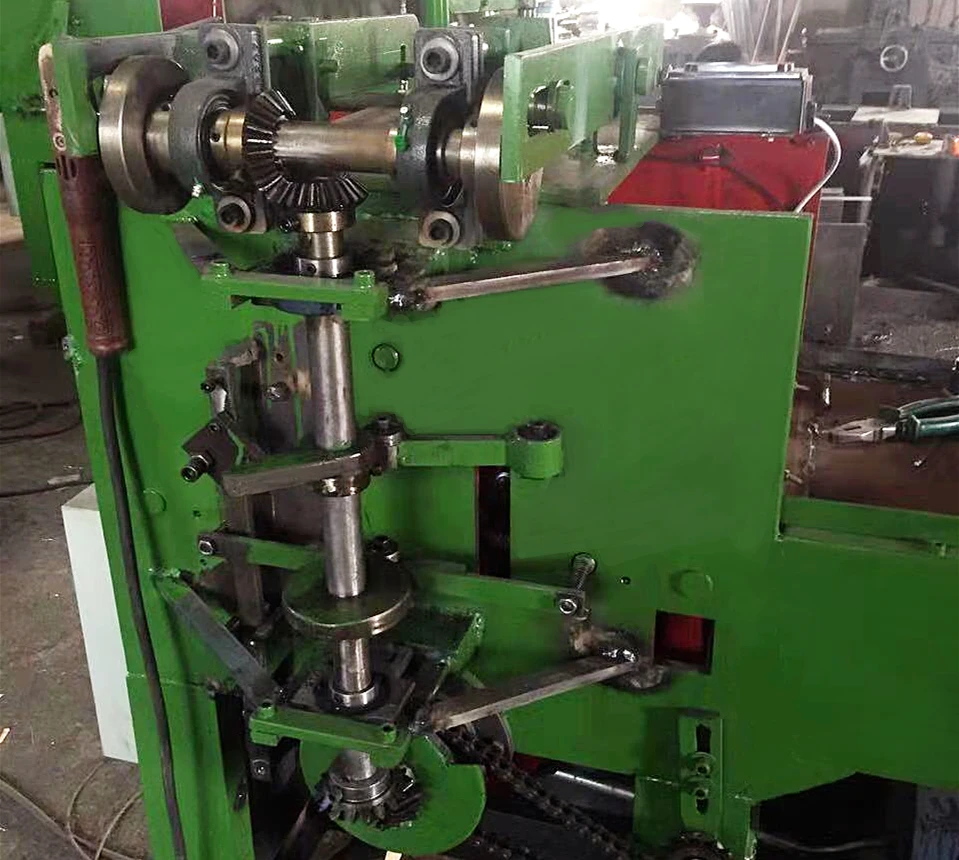

AUTOMATIC LAUNDRY WIRE HANGER MAKING MACHINE
Features
1. Automatic hanger fabrication with higher capacity
2. Automatic detecting sensor for emergency stop
3. Easy operation and simple maintenance
4. Durable dies and lower operation cost.
Model | QK-2(S) | QK-3 | QK-4 | |
Designed capacity | 27 ~ 30pcs/min | 20pcs/min | ||

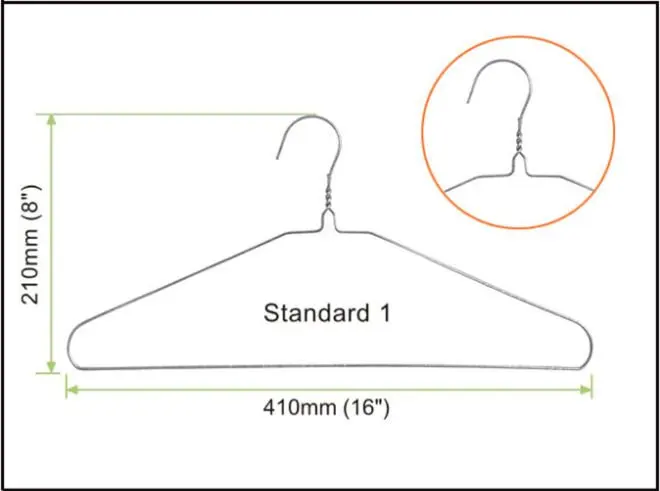

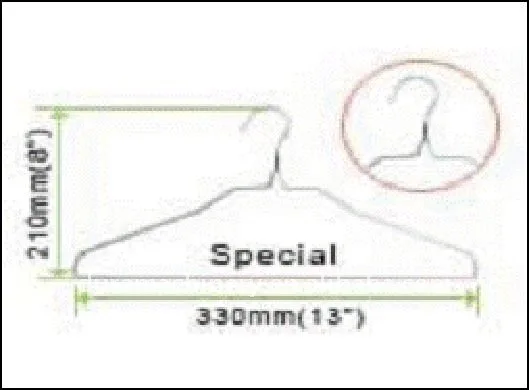

Hanger size range | 13" ~ 15" & 16" ~ 18" | 14 ~ 19" | ||
Wire dia. range | φ1.8 ~ 2.8mm | φ1.6 ~ 4.0mm | ||
Motor power | 1.5KW | 2.2KW | ||
Servo motor power | - | 1KW | 2KW | |
Weight | 700KGS | 720KGS | 1100KGS | |
Overall dimensions | 1.95 × 0.8 × 1.55M | 2.0 × 0.8 × 1.75M | 2.5 × 1.2 × 1.68M | |
Model | QK-2(L) | QK-3(L) | |
Designed capacity | 25 ~ 29pcs/min | ||
Hanger size range | 20" | ||
Wire dia. range | φ1.8 ~ 3.0mm | ||
Motor power | 1.5KW | 1.5KW | |
Servo motor power | - | 1KW | |
Weight | 700KGS | 720KGS | |
Overall dimensions | 1.95×0.8×1.55M | 2.0×0.8×1.75M | |
Customized hanger shape & size !
Provided with user's hanger photo/drawing/sample, the automatic hanger making machine will be adjusted to make the exact hanger size & shape.
Provided with user's hanger photo/drawing/sample, the automatic hanger making machine will be adjusted to make the exact hanger size & shape.

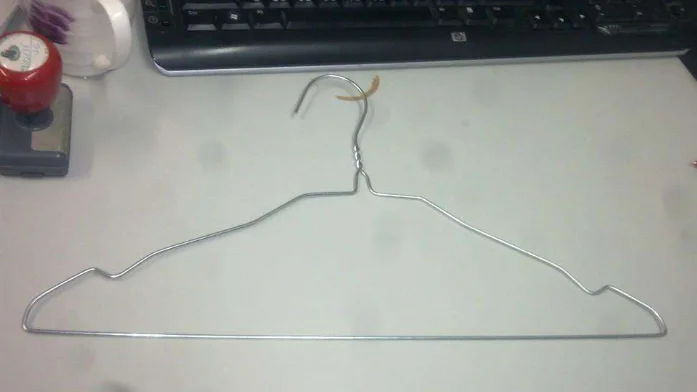

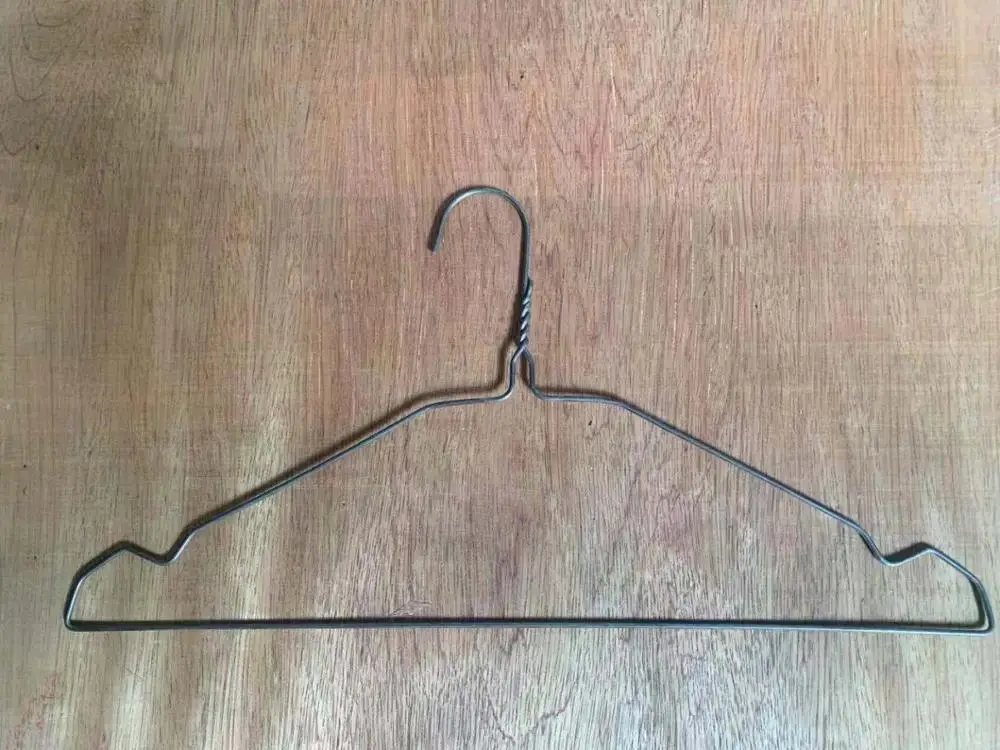

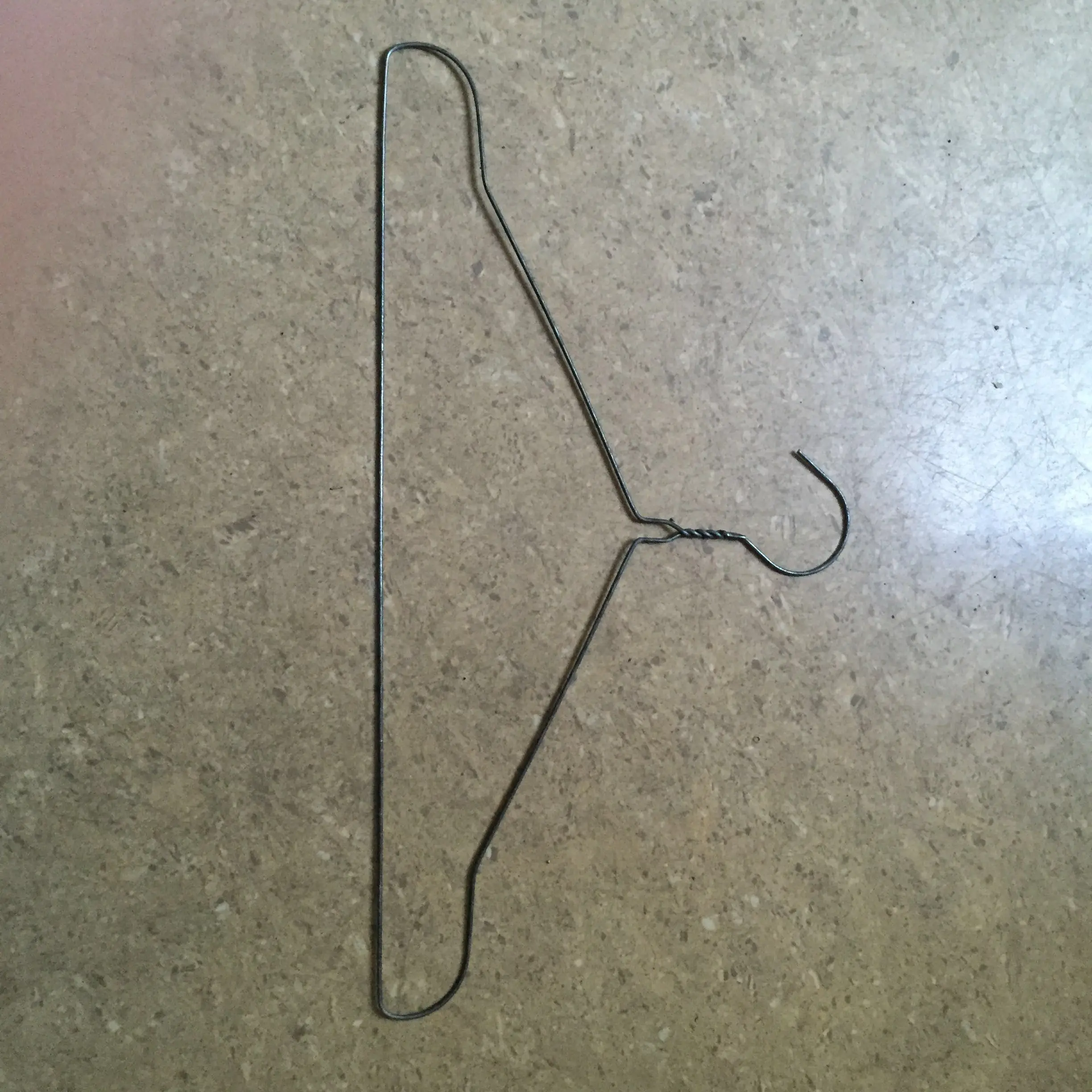

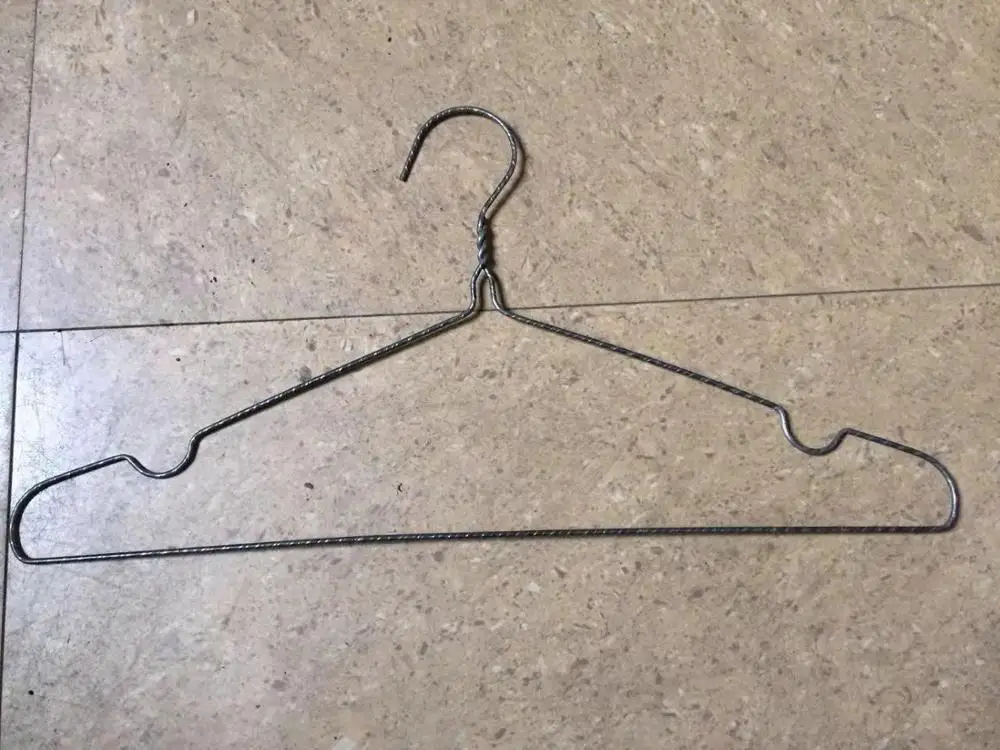

Sample Products
Packing&Shipping
Sea-worthy plywood case
Related Products
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
