Hydraulic Double Piston Mortar Pump / Cement Mortar Spraying Machine

Product Overview

Description

Hydraulic Double Piston Mortar Pump / Cement Mortar Spraying Machine



Introduction

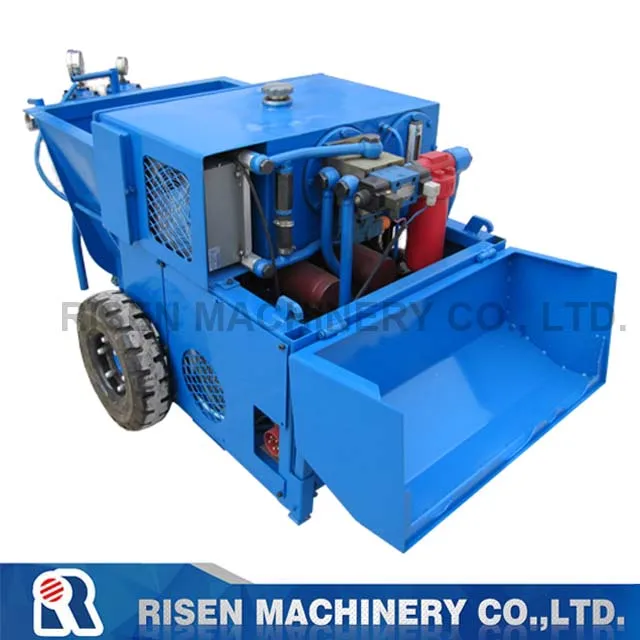

RISEN RG60/50 Mortar Pump is a double-cylinder single-acting piston pump, with the advantages of continuous pumping without pulse, compact structure, reliable operation, low fault rate, convenient cleaning and maintenance, etc. It is mainly applied for tunnel, mining project, dam, foundation engineering of big bridge and high-rise building, and the different kinds of underground engineering etc.

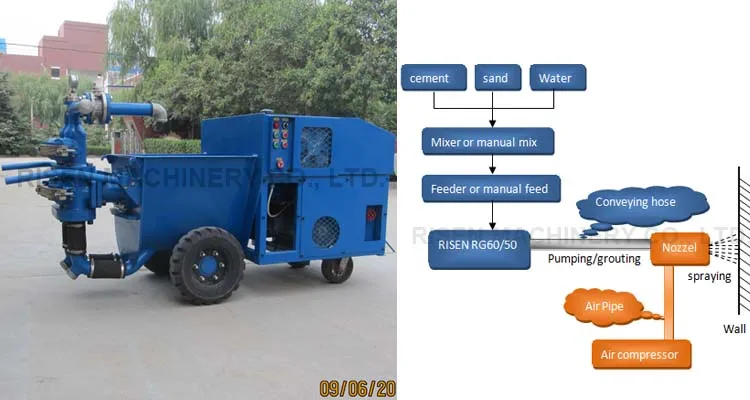

Equipped with the spraying gun, it can work together with an external air compressor to do the mortar spraying job.



Pump feacture

• Double-cylinder single-acting
• Directional-control ball valve
• Hydraulic drive

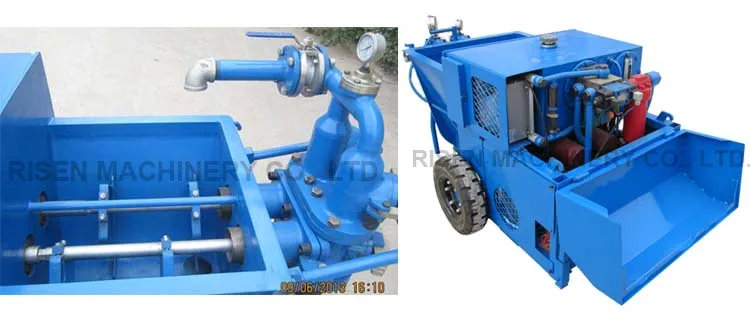

• Integrate pump head and hopper; prevent eduction and deposition together with the paddle agitating
• Compact structure, convenient for maintaining

Technical data

Item	RG60/50
Output	60 L/min
Pressure	5 MPa(50 bar)
Cylinder	2
Cylinder Dia	φ90 mm
Piston stroke	145 mm
Piston Speed	82 /min
Inlet diameter	75 mm
Outlet diameter	50 mm
Max.particle Dia	5 mm
Cement:Sand	≥1:3
Conveying Dist.	50-120 m
Hopper Volume	160 L
Power unit	7.5 kW
Transmission	Fluid drive
Weight	800 kg
Dimensions	1400×650×920 mm
