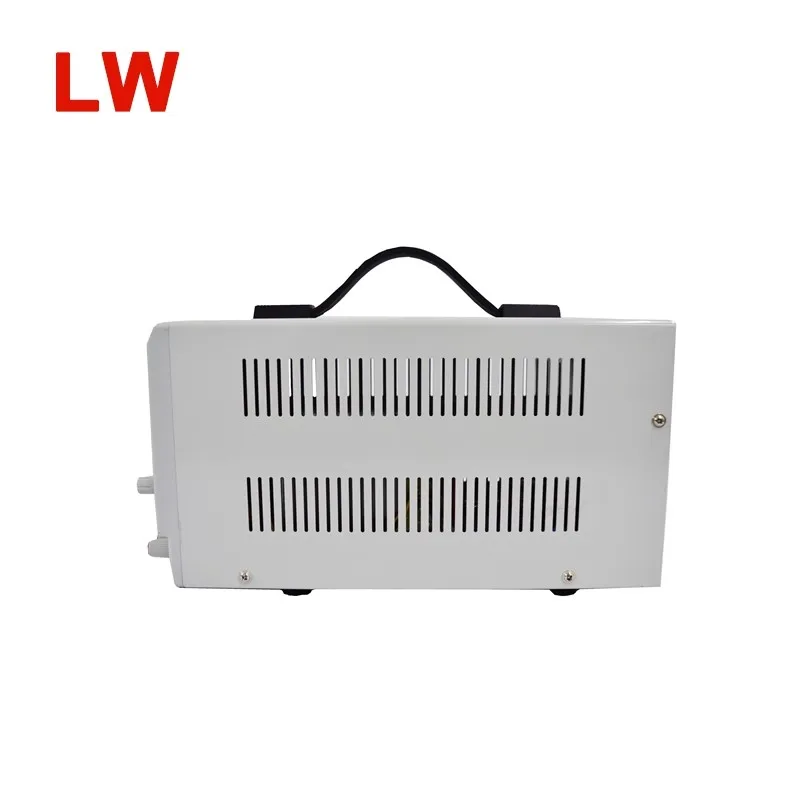

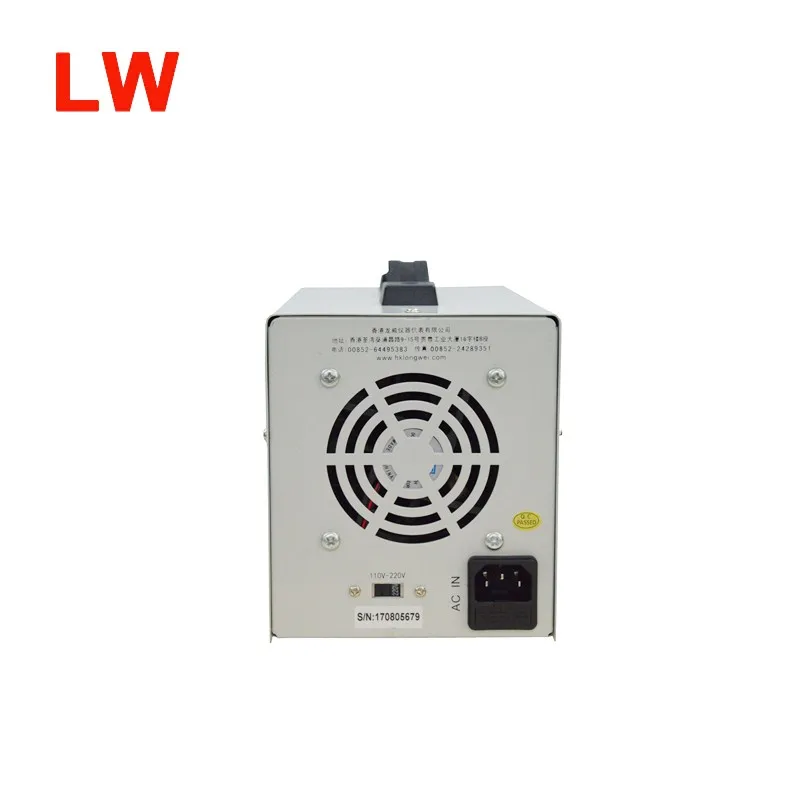

0 30V/5A Variable dc Power Supply,dc stabilized power supply

Product Overview

Description

     PS series DC regulator power supply is a kind of continuously adjustable linear DC voltage regulator power supply for zero voltage to rated voltage value. The power supply can be working under constant voltage output way or constant current output way. When it adopted the constant current output way, the output current can be adjusted from zero to rated value. This series power supply is ideal DC voltage regulator power supply for colleges, factories and science offices.



Feature:

Single Channel
Light and Compact Design
CV/CC Operation
Ideal for Educational Lab



Application:

1. Educational Laboratories
2.electronic production line
3.communications industry
4.product research



Specifications:

Model: PS-305D

Input voltage: 220 V/110V±10% 50/60Hz (setting switch at the back)

Output voltage: 0-30V (actually we will make 0-32V for you)

Output current: 0-5A

Operating Temperature: 0⁰C to 40⁰C

Relative humidity: <80%

Storage Temperature:-10⁰C to 70⁰C

Relative humidity: <70%

Constant voltage state:

Voltage stability: <0.01%+3mV

Load stability :< 0.01%+5mV

Recovery time :< 100μS

Ripple & noise : <1.0mVrms

Temperature coefficient: < 300PPM/⁰C

Constant current state:

Current stability: < 0.2%+3mA

Load stability :< 0.2%+3mA

Ripple & noise :< 3mArms



Other models:

PS-302D: 0-30V/0-2A

PS-303D: 0-30V/0-3A

PS-6402D: 0-64V/0-2A

PS-6403D: 0-64V/0-3A



We always consider all of things for customers. Just give our best service to you.

For the package

We put 2pcs in one carton, so the weight of the carton is not too heavy. Some of other company put 4pcs in carton that increase the trouble of carry and possibility of damage.

Also we use EPE to keep the product from damage. Its softness and buffer are better than that of foam. Also it does not be affected by various climate conditions.



For plug: we supply the plug used in customer’s country, so you do not need to convert it.



Warranty:

Our warranty for the goods is one year, and we always test every product cautiously and strictly before sending them out to our customers.

The following is the package for our products, you will see good protection for them. in addition, we will add an extra outside carton for you, even if you just need one unit.
