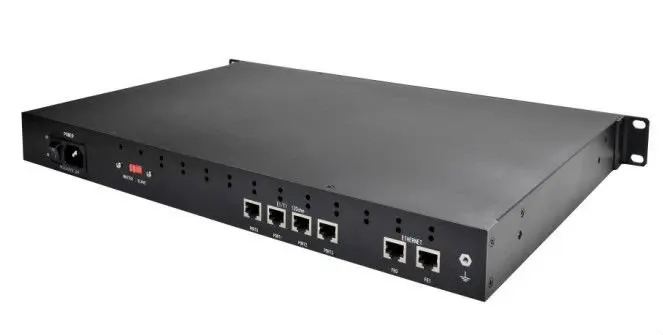

Dinstar 1/2 E1/T1 PRI VoIP gateway MTG1000B

Product Overview

Description

MTG1000B series Trunk Gateway is a compact and cost-effective media gateway solution which has been
designed to interworking between PSTN & IP networks in Service Provider Networks or large-scale
enterprise locations. With powerful hardware design, MTG1000B has comprehensive PSTN access
capabilities as well as SIP to SIP interworking features that enable the interconnection between all these
elements.
MTG1000B trunk gateway has more advantages in terms of performance, system reliability and
interoperability. Its high-efficient design and strong DSP processor ensure the interconversion of PCM voice
signal and IP packets, although the gateway has been fully loaded. It can be connected with multiple devices
such as softswitches, PBX and those servers equipped with digital trunk interfaces.

Key Features

• Efficient concurrent processing, up to 60 channels
• Support flexible dialing rules and operations, allowing users to customize dialing rules
• according to different working environments
• Support T.38,Pass-through fax, as well as modem and POS machines
• Support multiple coding standards: G.711A/U, G.723.1, G.729A/B and AMR
• High compatibility, interoperable with PBX of Avaya, NEC and Alcatel, and also leading softswitch of • Huawei,Cisco and ZTE etc.

Physicl Interfaces



• E1/T1 Ports: 1 or 2 E1/T1
• Interface Type: RJ48(Impedance 120Ω)
• Ethernet Interface
FE1: 10/100 Base-T Adaptive Ethernet
FE0: 10/100 Base-T Adaptive Ethernet
• Serial Port
1* RS232, 115200bps



Voice Capabilities



• Codecs:G.711a/μ law,G.723.1, G.729A/B, iLBC 13k/15k,AMR
• Silence Suppression
• Comfort Noise
• Voice Activity Detection
• Echo Cancellation (G.168),with up to 128ms
• Adaptive Dynamic Buffer
• Voice ,Fax Gain Control
• FAX:T.38 and Pass-through
• Support Modem/POS
• DTMF Mode: RFC2833/SIP Info/In-band
• Clear Channel/Clear Mode



Environmental



• Power Supply: 100-240VAC, 50-60 Hz
• Power Consumption:10W
• Operating Temperature:0 ℃ ~ 45 ℃
Storage Temperature: -20 ℃ ~80 ℃
• Humidity:10%-90% Non-Condensing
• Dimensions(W/D/H): 436*300*44.5mm(1U)
• Unit Weight: 2.0kg
• Compliance: CE, FCC
