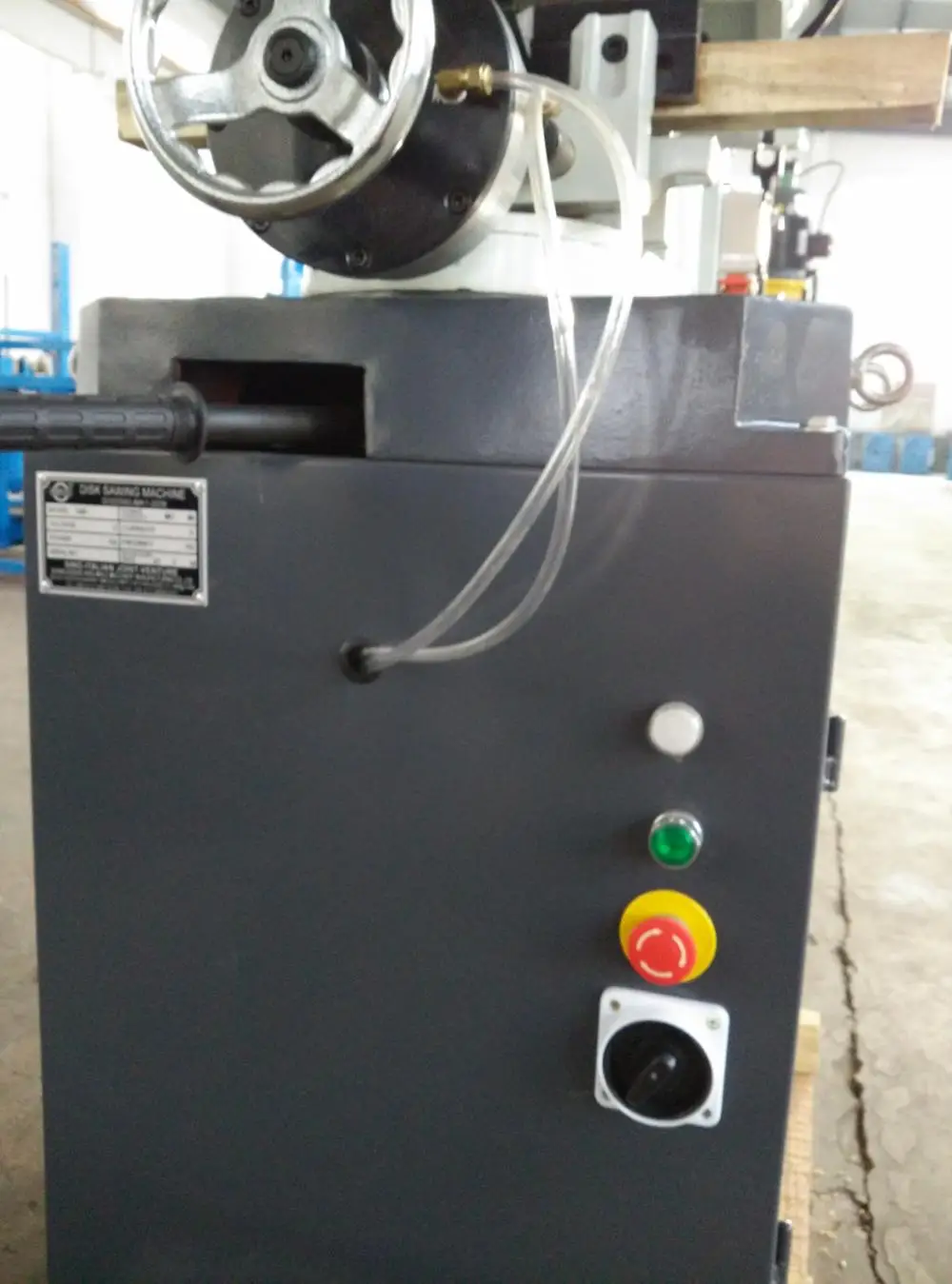

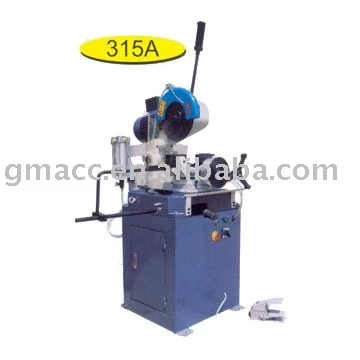

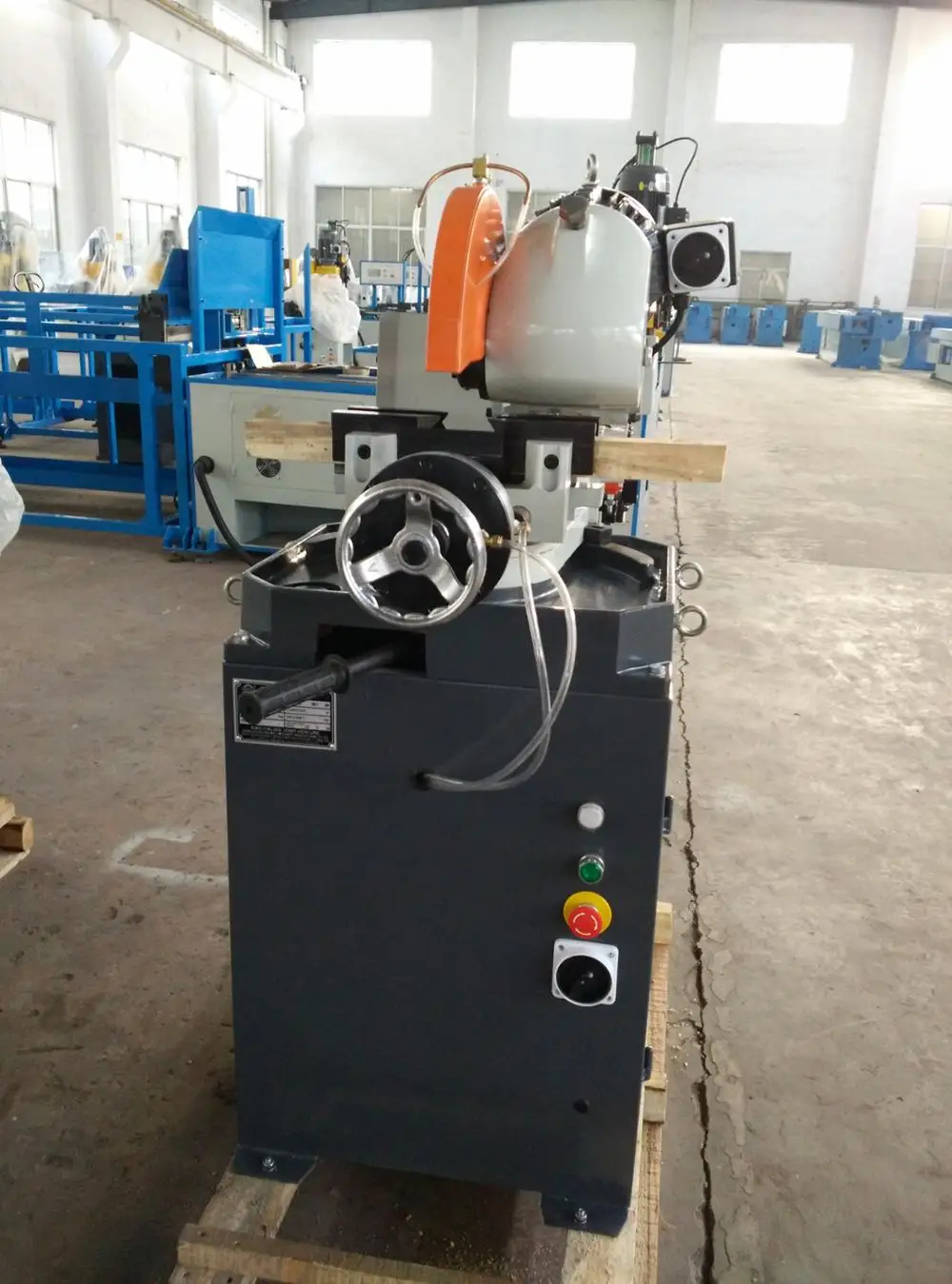

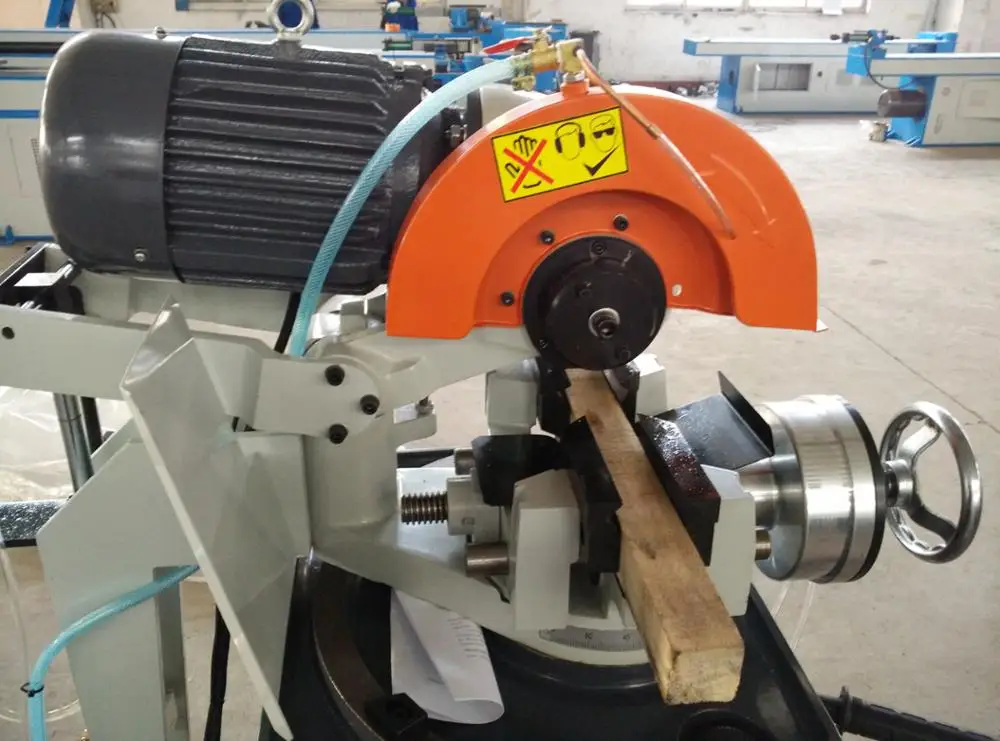

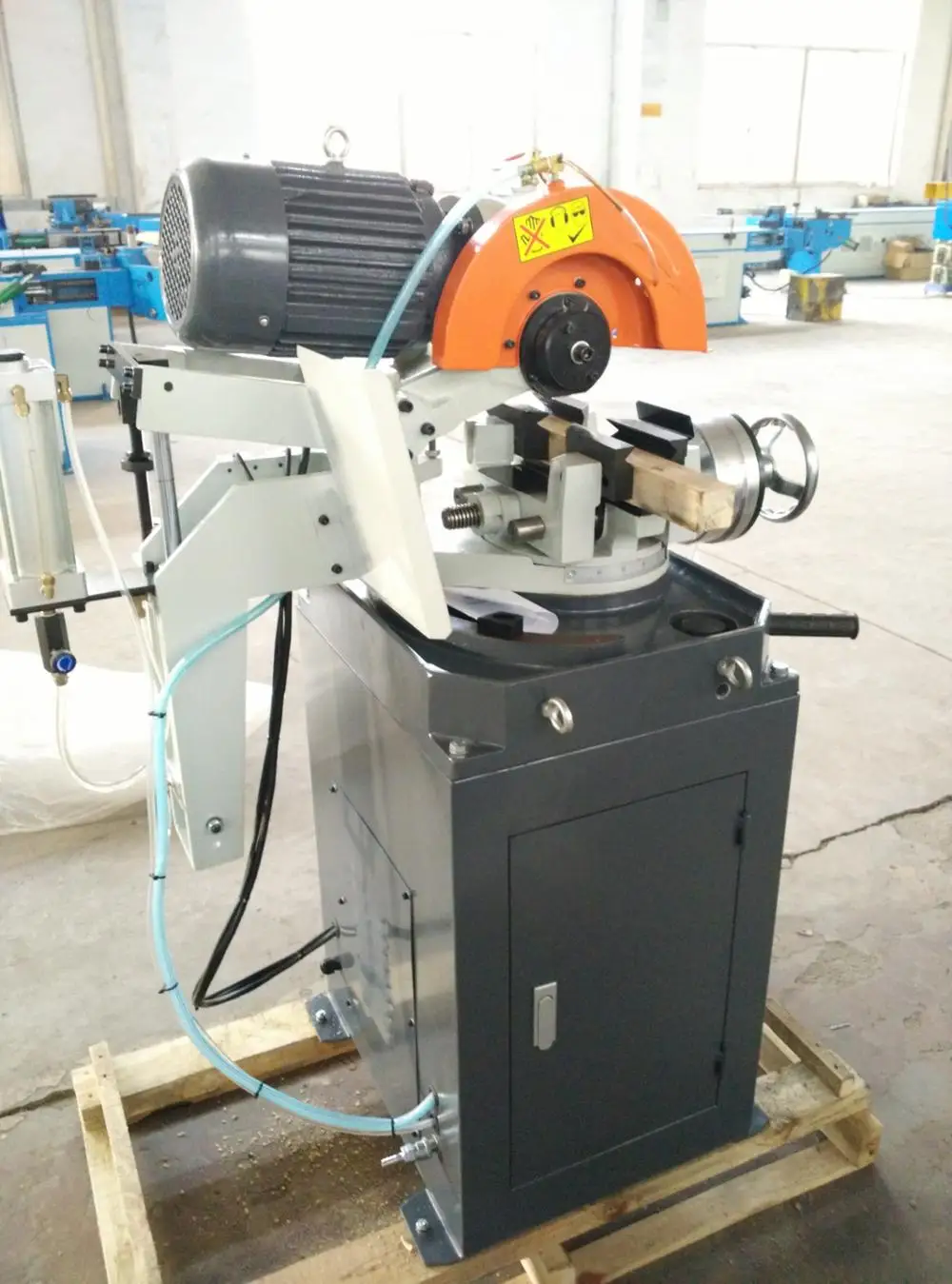

GM-metal disk saw machine is semi-auto pneumatic cutting machine tools, cutting various cross section shapes to the ordinary steel, stainless steel, copper materials, and aluminum materials, in particular the various pipe is ideal cutting equipment.
1.Construction Machine
Bed used welding pieces, imports of pneumatic systems and electric control three of fabric to complete.
2.Design Principle
Apart from the sawing machine manually by the required length feed, the other work piece clamps, saw blade advance and backward, clamp retreating are all pneumatically driven.
3.Major Performance
The machine is operated light, no noise and no dust pollution, cutting good quality internal and external incisions, no thorns, high production efficiency, and the advantages of various angles cutting.
4.Main Parameters
Name
Unit
GM-DS-275A
Cutting Capacity(90°)
38
75
mm
75×75
mm
rectangle
75×70
Cutting Capacity(45°)
25
60
mm
55×55
mm
rectangle
60×55
The motor power
KW
2.0/2.4
The rotating speed
Giri/min
50/100
The largest opening of pincers
mm
105
Saw blade size
Mm
275
weight
kg
180
5.Configuration
(A) As a whole bed of plate welding machine are key components of a CNC machine center completed to ensure the accuracy of machine parts.
(B) Pneumatic pump: made in Taiwan
Pneumatic valves: made in Taiwan
(C) Electronic parts
Motor: made in wuxi
Button switch: made in Taiwan
Photoelectric switches and electrical: made in Taiwan
