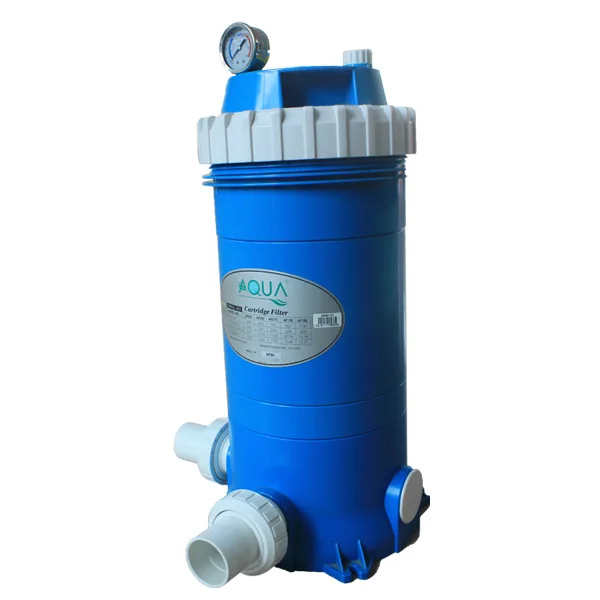

Guang Dong Swimming Pool Products Cartridge Pool Filter
Pool products pool filter material:
1. Constructed by the latest engineering technology;
2. The fiberglass winding& Laminated Polyester Reinforced design allows the filter to have extra strength and resistance to chemical and corrosives;
3. It features an ultra-pure water filtration that operates at Maximum 600KPA;
4. It is the most recommendable equipment for the application of drinking water, swimming pool, aquarium, and industrial water treatment;

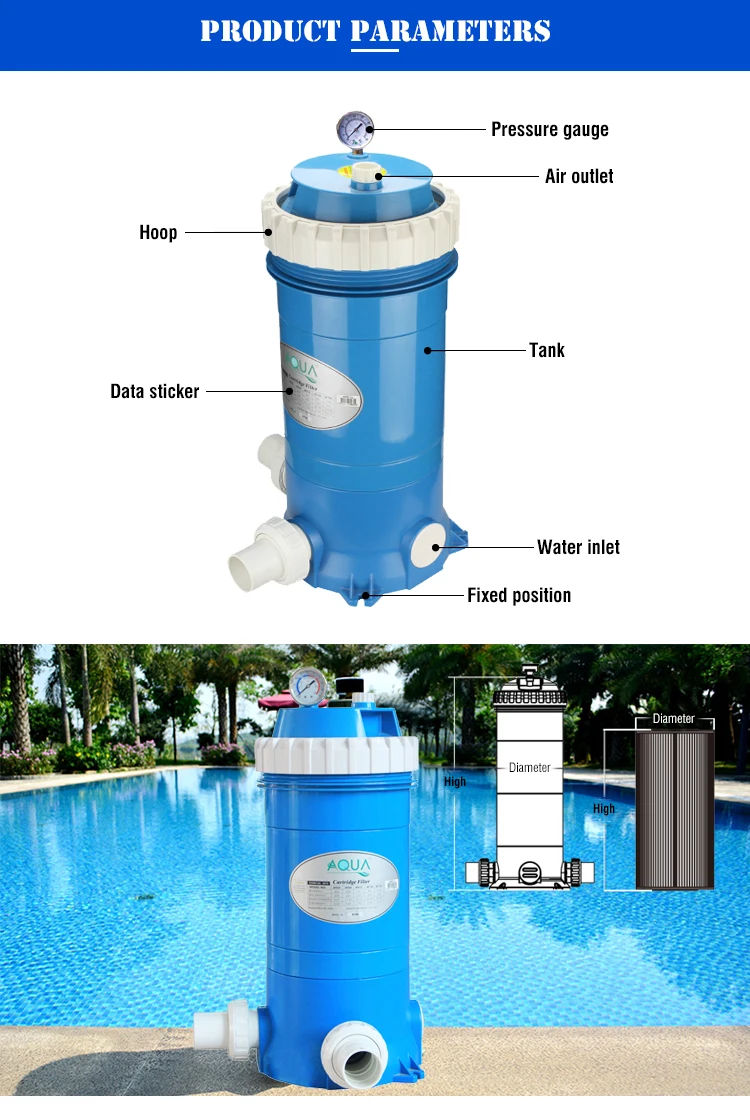

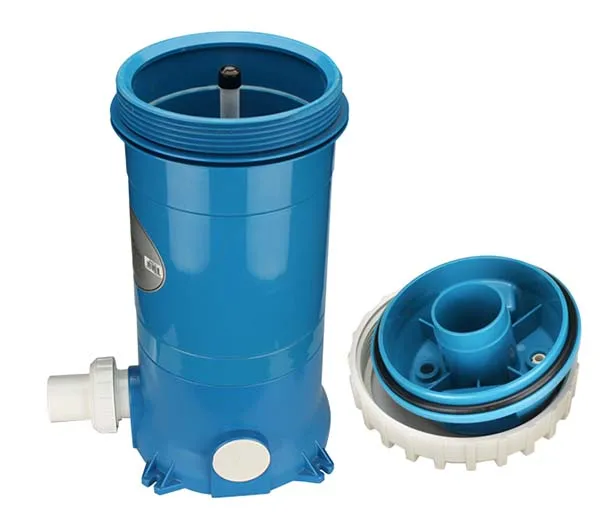

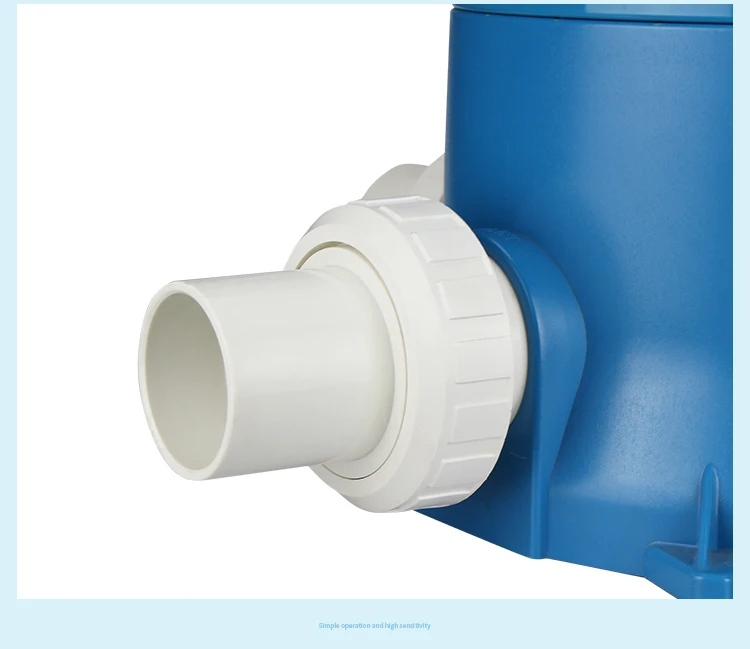

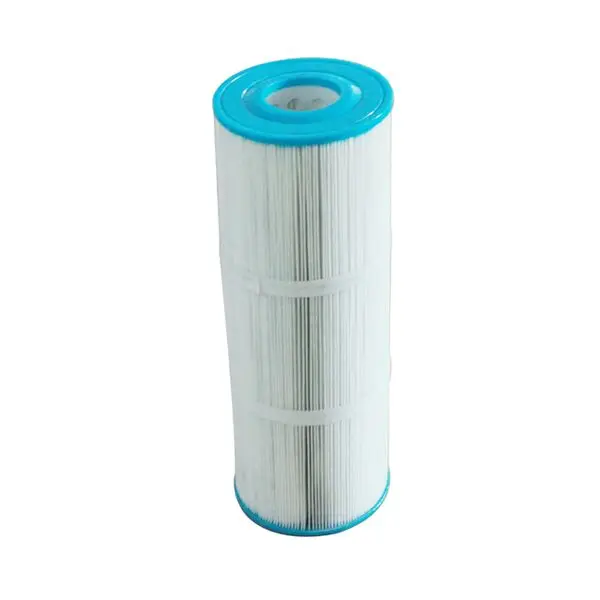

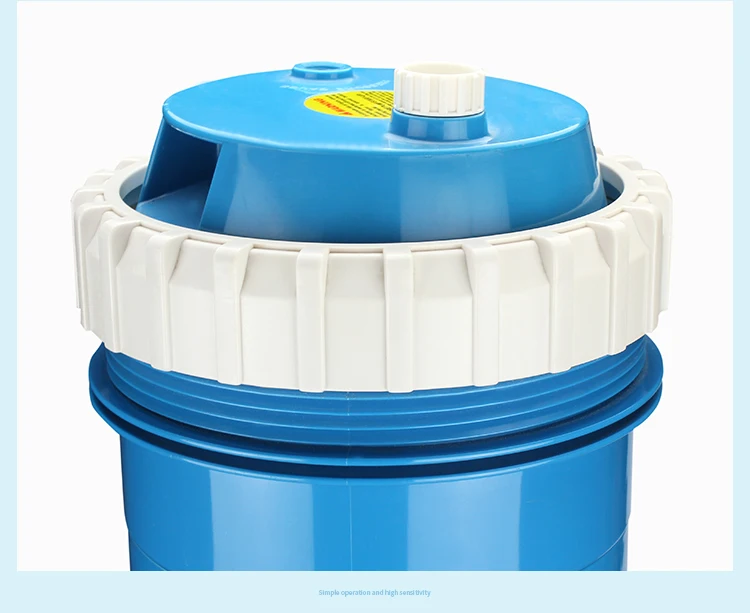

Product Display
Features & Advantages
1. Maximum working pressure up to 600KPA
2. Uniquely designed distribution system makes a stable and efficient water flow
3. Besides silicon sand, filtration media can use other materials as well
a) Active carbon: for filtering away odor and an organic compound
b) Soft water resin: for softening and filtering away the minerals
c) Lean water resin: for filtering away organic compound color fluoride and algae
d) Nitrate selectable resin: for fleshing the fishpond

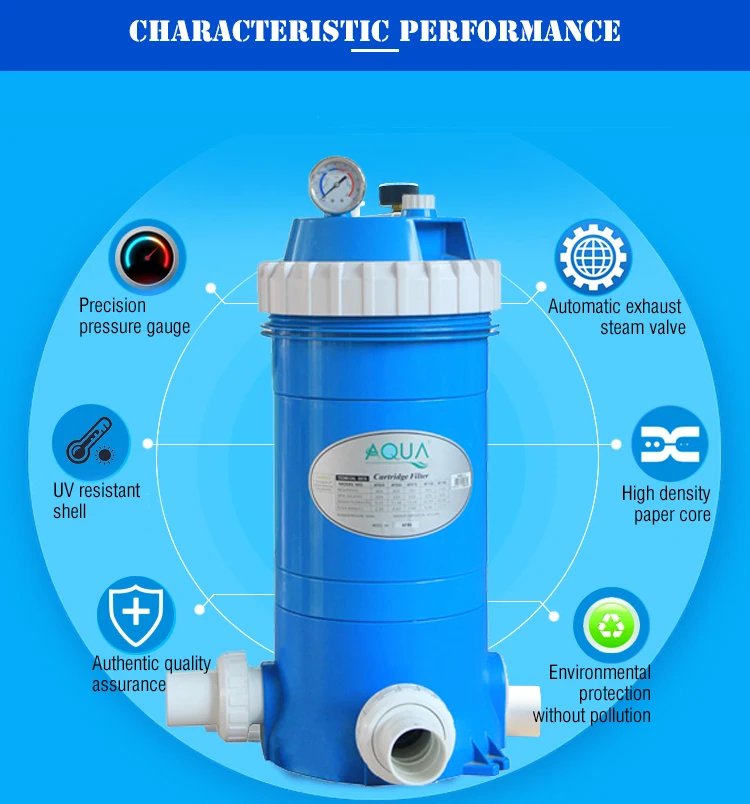

Characteristic Performance


Dimensions of cartridge pool filters:
Model No. | Tand dia (mm) | Height (mm) | Valve port size (mm) | Filter area (m2) | Silica sand (kg) | Design flow (m3/h) |
H11250 | 250 | 1100 | 25 | 0.05 | 100 | 26 |
H11300 | 300 | 1100 | 25 | 0.07 | 120 | 42 |
H11350 | 350 | 1100 | 25 | 0.10 | 135 | 58 |
H11400 | 400 | 1100 | 25 | 0.13 | 170 | 75 |
H13250 | 250 | 1300 | 25 | 0.06 | 118 | 28 |
H13300 | 300 | 1300 | 25 | 0.08 | 131 | 46 |
H13350 | 350 | 1300 | 25 | 0.11 | 147 | 64 |
H13400 | 400 | 1300 | 25 | 0.14 | 185 | 82 |
Model No. | Tand dia (mm) | Height (mm) | Pump size (W) | Cambridge area (m2) | Design flow (m3/h) | Maximum pressure (Lpm) |
Af25 | 225 | 425 | 250-370 | 2.3 | 11 | 350 |
Af50 | 225 | 605 | 550-750 | 4.7 | 14 | 350 |
Af75 | 225 | 781 | 750-1100 | 7 | 17 | 350 |
Af100 | 225 | 961 | 1100-1500 | 9.4 | 19 | 350 |
Af150 | 225 | 1141 | 1100-2200 | 14 | 24 | 350 |
Application


We assure you of our best service at all time!
Full set swimming pool equipment is available, welcome your inquiry and order.
If you are in need of swimming pool products, please contact us immediately!
