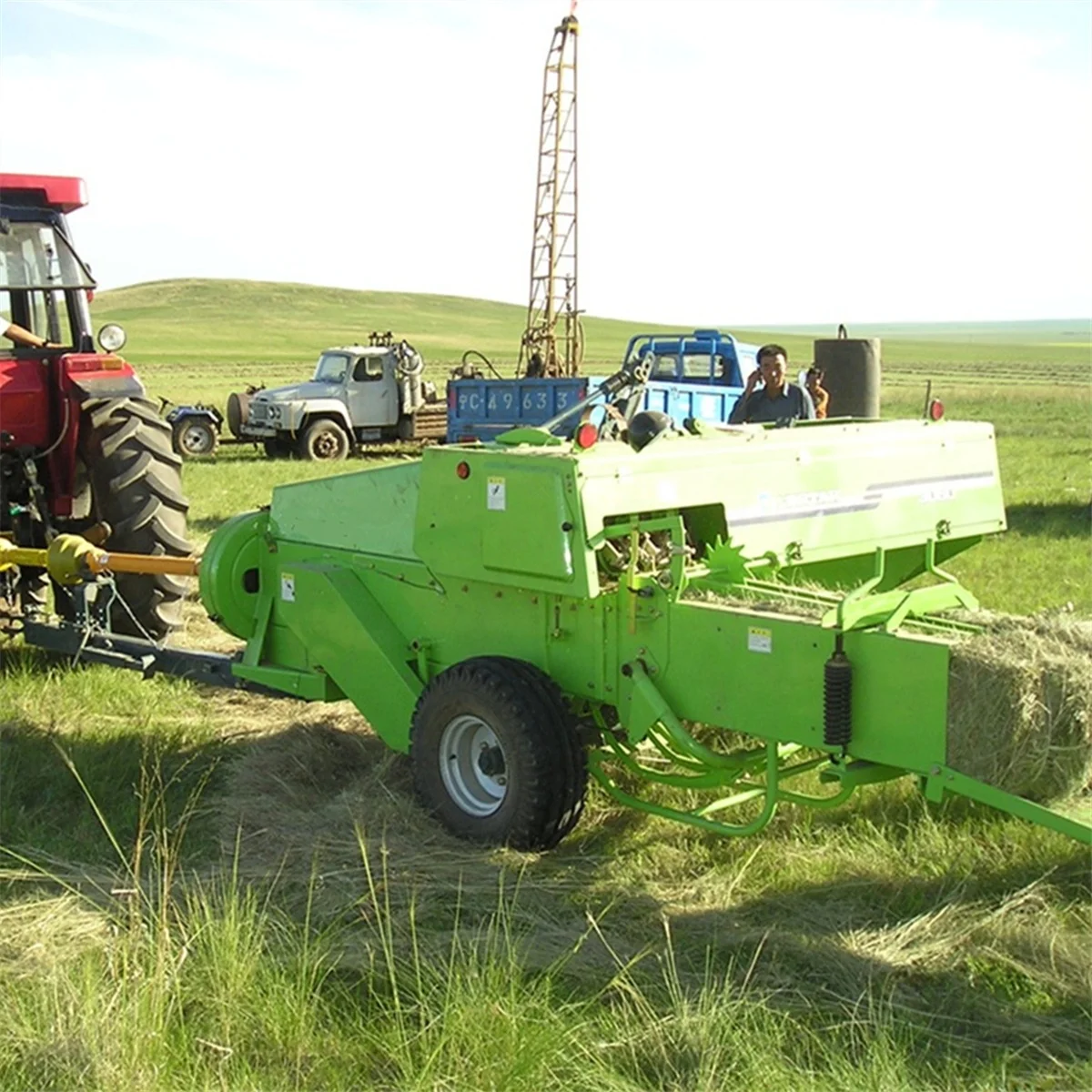

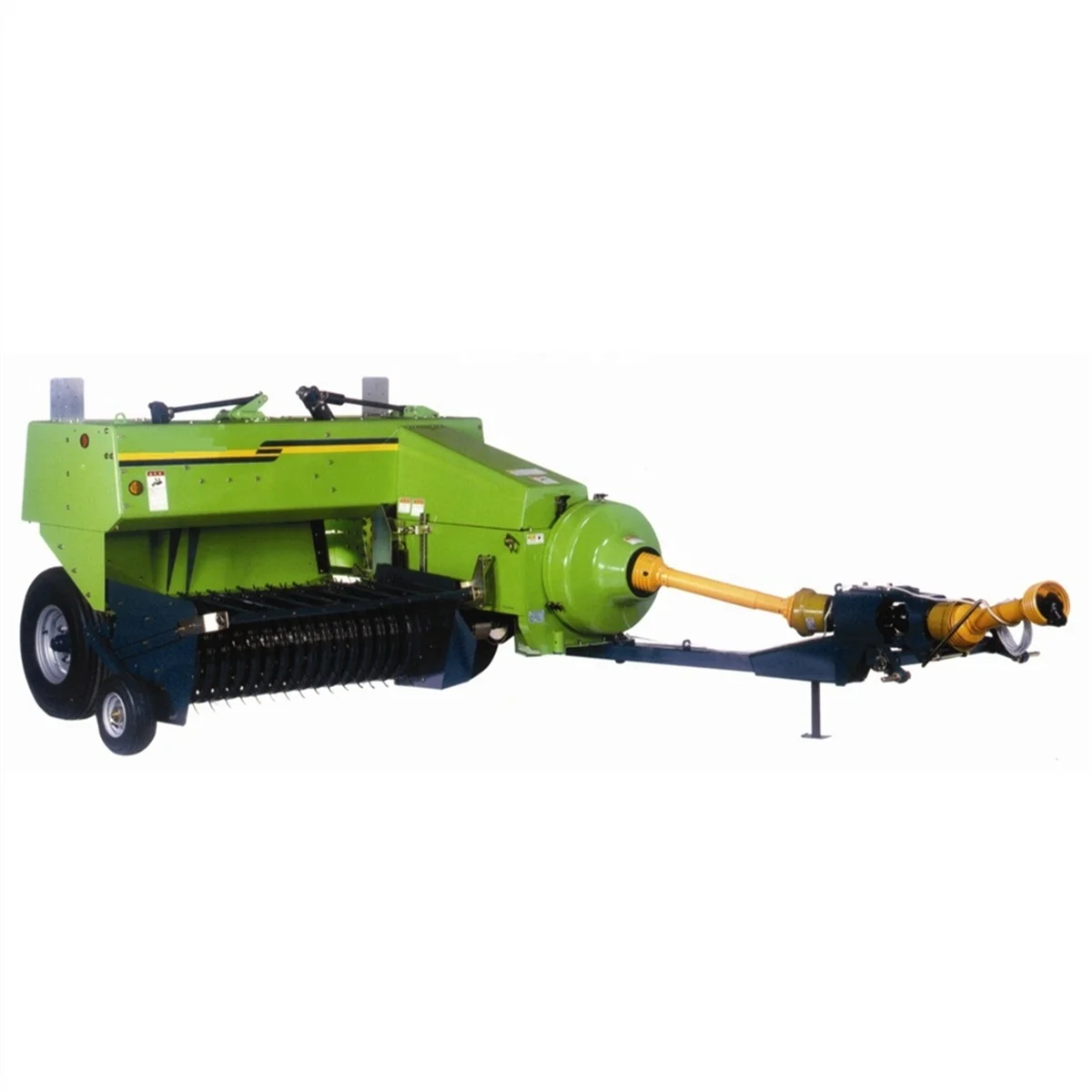

THB1060 Square Hay Baler

Model

THB1060

Sectional size of the size of the bale

32*42cm

Length of the bale

30-100cm(adjustable)

Dimensions/length/width/height

420*167*130cm

Weight

920kg

Pick up the width of opening one's mouth

92cm

Play the tooth number

24

Play the rack to arrange and count

4

Piston stroke

60cm

Number of times of piston stroke

86-90times/min

Homework pace

4-6km/h

Tractor requirement horsepower

25-50hp tractor

Match PTO rotational speed

540rpm

Bale Size

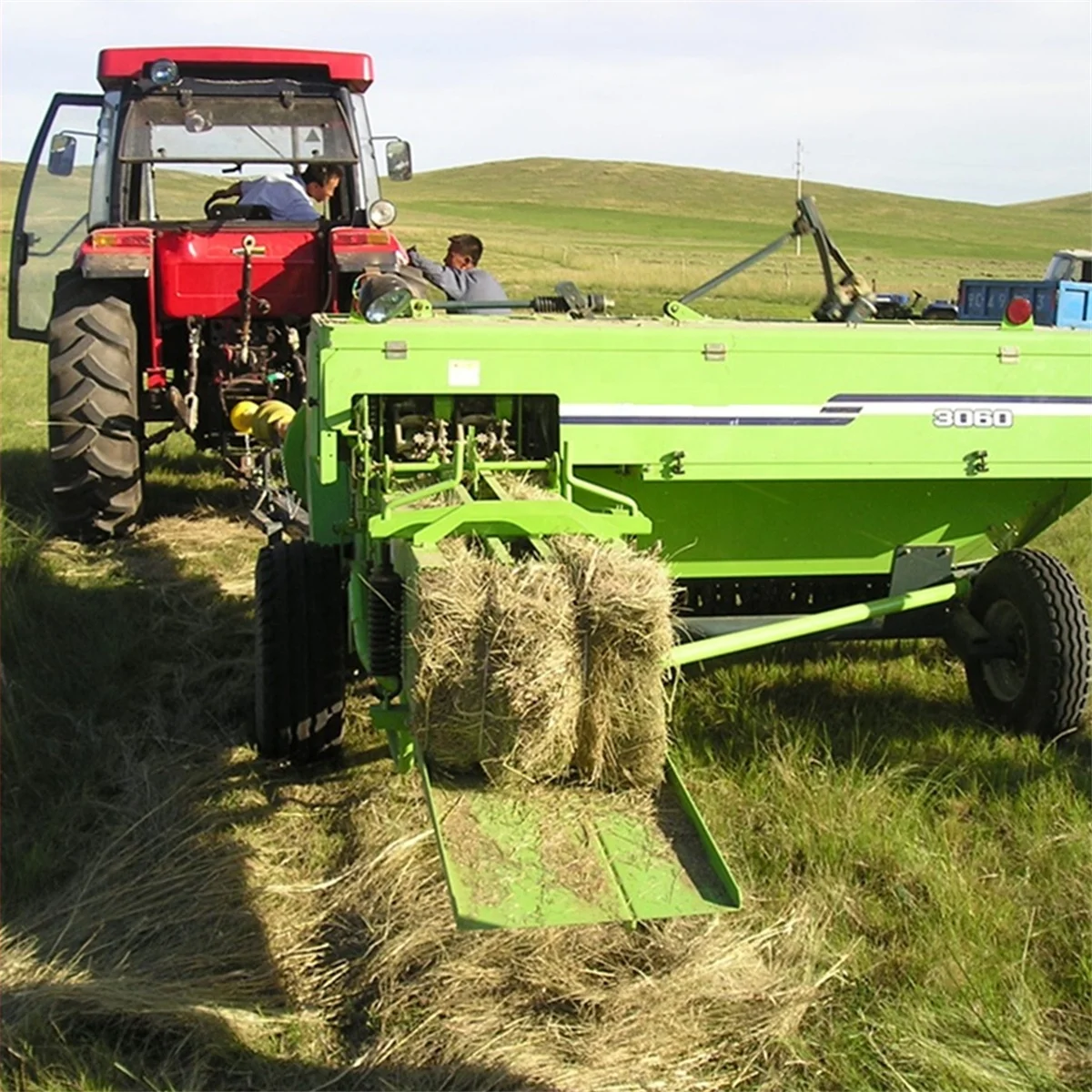

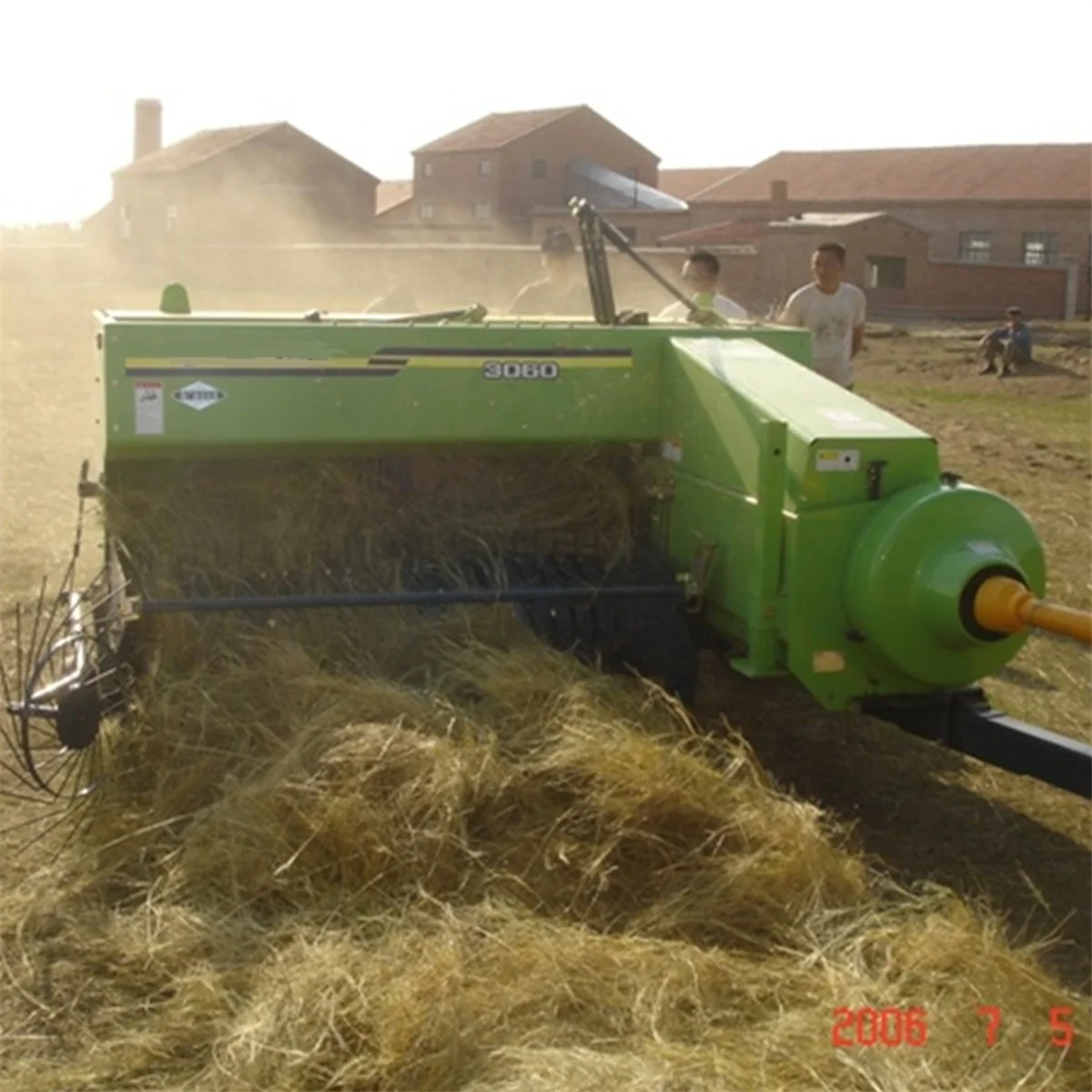

THB3060

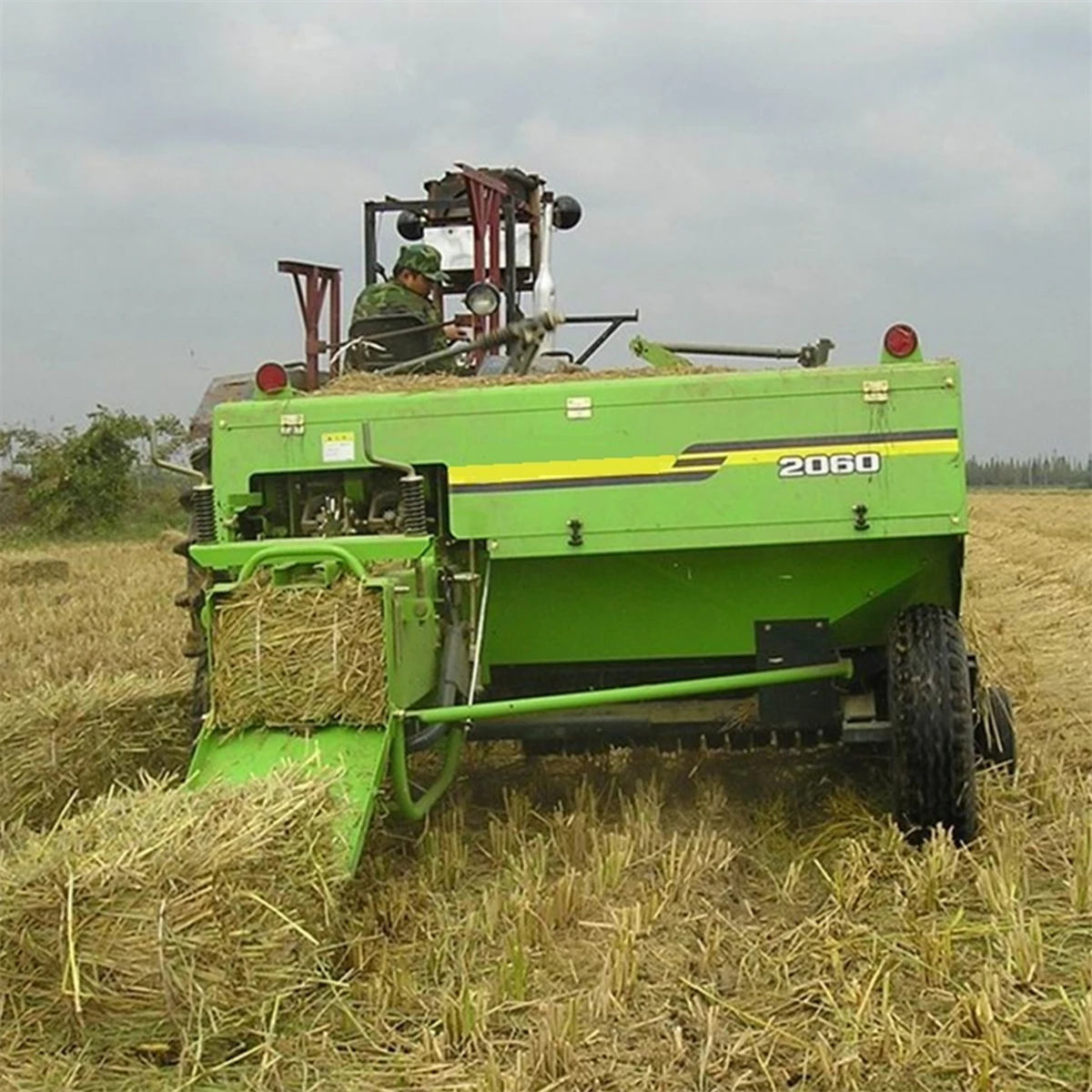

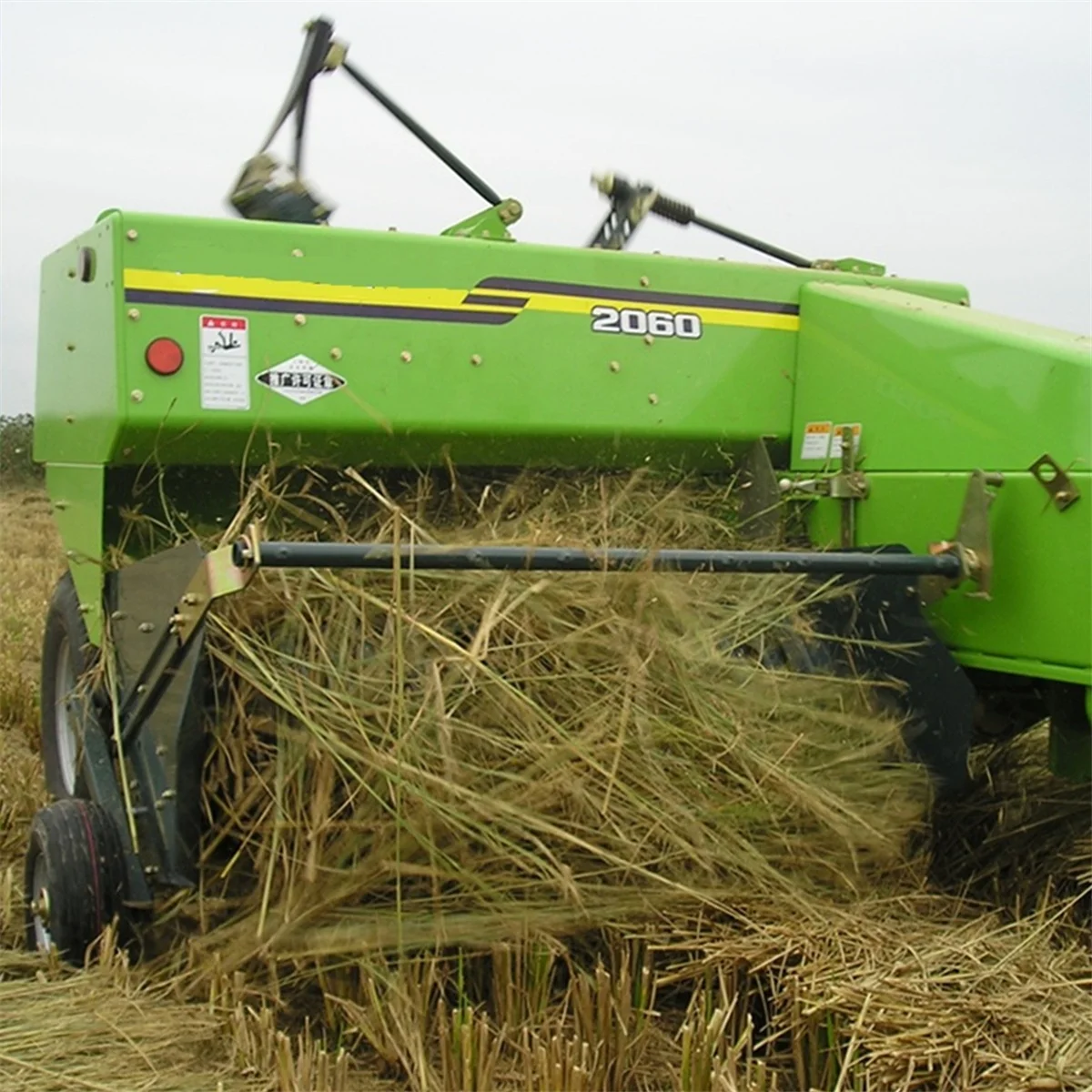

THB2060

Section Dimension

36*48cm

32*42CM

Bale length

60-120cm

30~100CM

Weight

1480kg

1030kg

Pickup Width

180cm

144cm

Working Efficiency

200 bales/h

180~240 bales/h

Required HP of tractor

30-80 hp

25~50 hp

Dimension(LxWxH)

500*280*140cm

410*215*130cm

Teeth

44

32

Row of teeth

4

4

Speed

4-15km/h

4-10km/h

Tire

11L-15-8PR(left)
7.00-12-6PR(Right)

10/80-12-6PR(left)
7.00-12-6PR(right)

PTO

540rpm

540rpm
