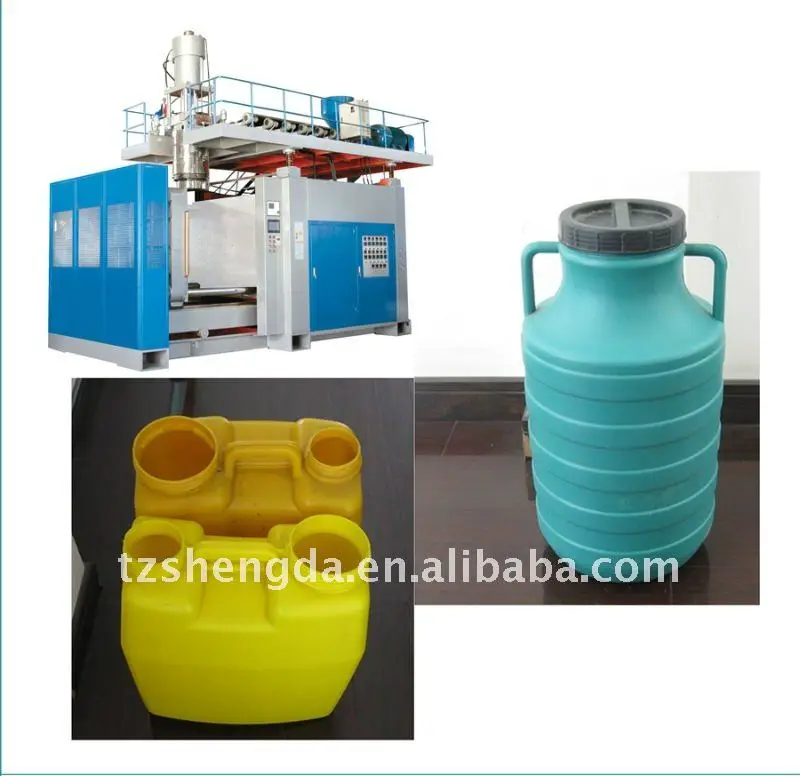

extrusion blow molding machine makes drum containers

Product Overview

Description

automatic plastic extrusion blow molding  machine,plastic  blowing  machine,extrusion blow molding machine

en plastique machine de Modling coup

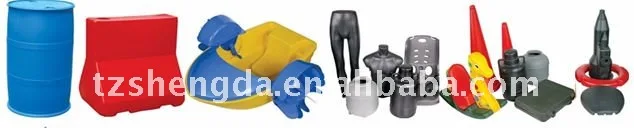

Hollow plastics blow moulding machine can produce all kinds of PE Container, PP Container, ABS Container, PC Container. likes oil buckets, toolbox, chairs,jerrycans, desks,hollow parts,floating pontoon and so on.



PLC plus man-machine interface, operate by touch screen. Self-diagnosis alarm, clear at a glance.
Accumulator die head whose runner is made by high-quality nitride alloy steel with mirror surface treatment, material and color quick reload.
Unique " three tie bar +two cylinder + linear guide" structure of the clamping structure to ensure a more uniform mode-lock, knit line more smooth.
Hydraulic system designed under energy-saving hydraulic principles,adopt two oil pump structure. lower energy consumption by 20% -40% compared with the conventional model. At the same time, a significant reduction in oil temperature extends the service life of hydraulic parts.
Variety of functions for different products matching the technological requirements: bottom blow and lift, rotation, encapsulation, material support, sub-mould, robot, parison control system ,etc.



specification	unit	zk-90A	zk-90B
max container capacity	L	50	50
number of die heads	set	1	1
machine dimension(L*W*H)	M	5*2.3*3.9	5*2.3*3.9
total weight	ton	8	8
clamping unit
clamping force	KN	300	300
platen opening stroke	mm	300-1100	300-1100
max mould size(W*H)	mm	720*800	720*800
mould thickness	mm	350-500	350-500
power
max drive	KW	11	11
total power	KW	90	90
fan power for screw	KW	0.18*5	0.18*5
air pressure	Mpa	0.7	0.7
air consumption	m3/min	0.9	0.9
average energy consumption	KW	35	35
extruder unit
screw diameter	mm	90	90
screw L/D ratio	L/D	25:1	25:1
plasticizing capacity	kg/hr	130	130
number of heating zone	zone	5	5
extruder heating power	KW	12.5	12.5
extruder driving power	KW	12	30
accumulator head
number of heating zone	zone	3	3
power of die heating	KW	6	6
max die-pin diameter	mm	350	350
accumulator volume	L	6	6
