Aluminum Alloy Rod Continuous Casting and Rolling Machine CCR Line
- Category: Machinery Agents >>>
- Supplier: Sichuan 141 Machinery Factory [Sichuan China]Sichuan
Share on (512607957):
Product Overview
Description
1. Product Information
|
Melting furnace |
Type |
Shaft furnace |
|
Melting rate |
5t/h |
|
|
Holding furnace |
Type |
Hydraulic tilting-type |
|
Capacity |
2×9t |
|
|
Casting machine |
Crystallizing wheel diameter |
Φ1600mm |
|
Max. casting speed |
16.8 m/min |
|
|
Casting bar section |
2300mm² |
|
|
Crystallizing wheel type |
4-wheel(Integral casting machine) |
|
|
Water consumption |
100 m³/h |
|
|
Motor for casting machine |
4kW(DC) |
|
|
Accessory shearer |
Max. shearing force |
20000kg |
|
Max. shearing stroke |
65mm |
|
|
Oil pump motor |
7.5 kw, 1440 r/min |
|
|
Straightener & edge shaver |
Max straightening speed |
18m/min |
|
No. of straightening roller |
5 |
|
|

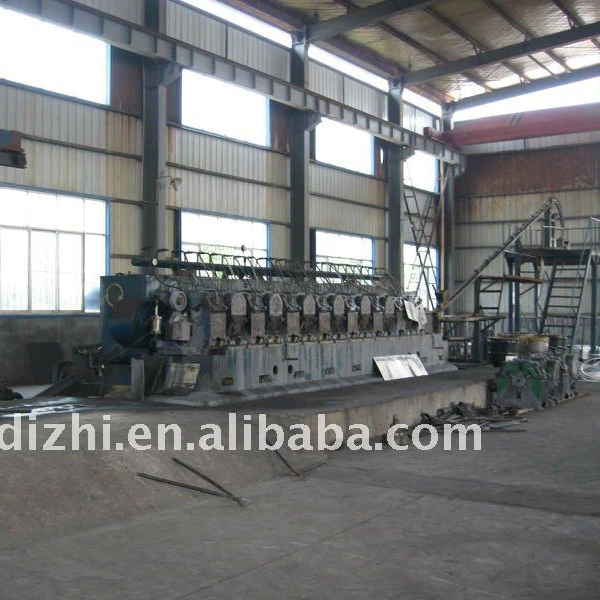

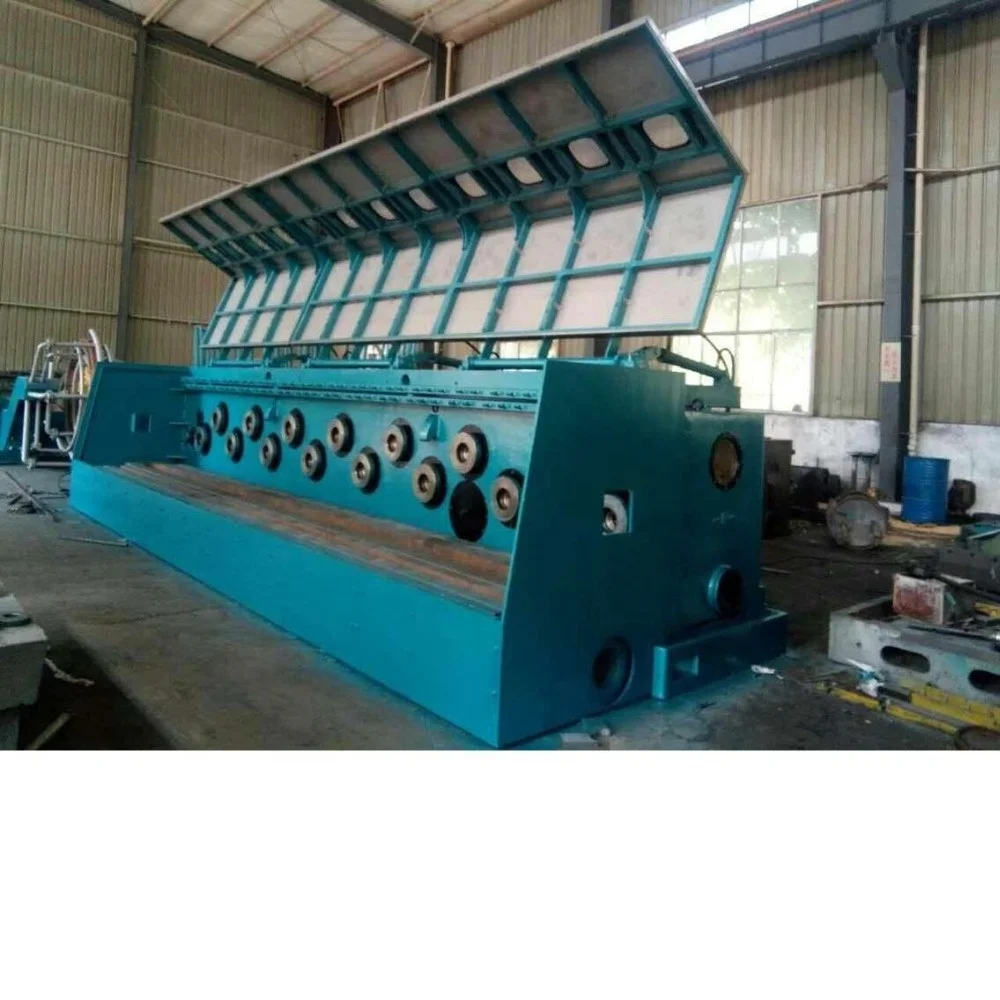

Rolling mill |
Rolling type |
2-high mould in rough rolling stand |
|
3-high mould in finished rolling stand |
||
|
Outlet rod dia. |
Φ9.5mm |
|
|
No. of rolling stand |
14 |
|
|
Rolling pass |
14 |
|
|
Rollers' dia. |
Φ255mm |
|
|
Finished rolling speed |
6.2m/s |
|
|
Production capacity |
5t/h |
|
|
Center height |
902.5mm |
|
|
Main motor power |
355kW(DC) |
|
|
Emulsion consumption |
60m³/h |
|
|
Rod quenching device |
Rod quenching tunnel |
14 |
|
Outlet rod temperature |
<100°C |
|
|
Water consumption |
60m³/h |
|
|

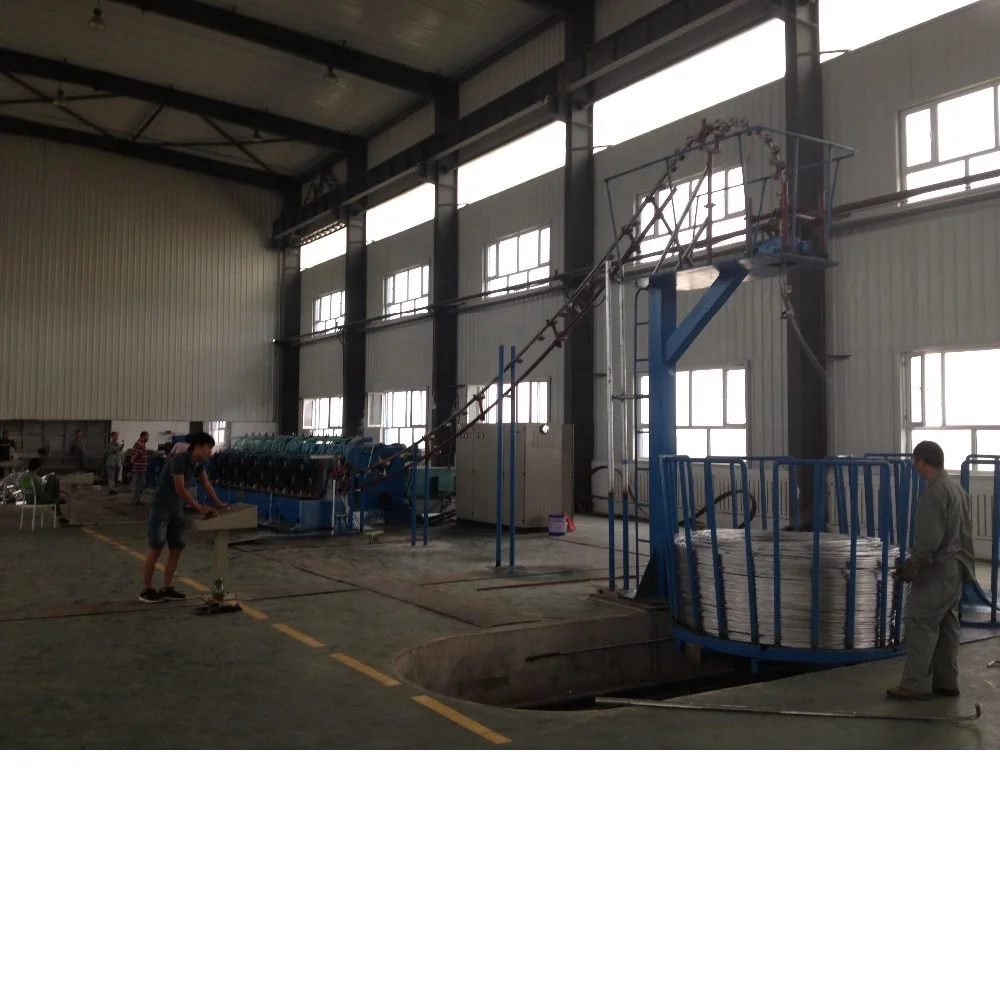

Twin-coiler |
Take-up speed |
6.5m/s |
|
take up dia. |
ø9.5mm |
|
|
Coiling size |
Φ1200×Φ2000mm |
|
|
Max. bundling weight |
2.5t |
|
|
Collecting basket |
Φ2300×1300mm |
|
|
Coiling motor power |
3kw |
|
|
Laying head motor |
4kW(DC) |
|
|
Others |
Total installed power |
500kw |
|
Total weight |
65t |
|
|
Overall dimension |
33×8×5.3m |
2. Design / Structure / Details Pics
1) Features
§ The aluminum alloy rod continuous casting and rolling line is competitive with the relative international products.
§ The function of continuous quenching and fast cooling.
§ The tilting type holding furnace is designed to provide easy access for final preparation of individual alloys.
§ With perfect outlook and lower noise and vibration.
§ High efficiency and quality of production & low dissipation energy.
2) Application
Specially for producing aluminum alloy rod of dia. 9.5mm for electrical wire, such as Al-Mg-Si electrical conductor of high intensity. And also it can produce electrical aluminum rod.
Our Services
Covering an area of 20000 square meters, we now have more than 50 sets of large and medium-sized processing and manufacturing equipments. It has a well-trained design, marketing, managing, machinery processing and equipping team consists of 138 staff.
We can undertake manufacturing all kinds of complete equipments of Copper Rod Continuous Casting and Rolling Line Series, Copper Rod Cold Rolling Mill Series, Aluminum & Alloy RodContinuous Casting and Rolling Line Series, Aluminum Strip Continuous Casting and Rolling Line Series, Copper Rod Wire Drawing Machine Series, Aluminum & Alloy Rod Wire Drawing Machine Series, Aluminum Rod Rewinding Machine Series, Melting Furnace etc. As a result of high quality products and outstanding customer service, we have gained a global sales network reaching Pakistan, India, South Korea, Ukraine, Syria, etc.
The factory has passed the ISO9001:2008 Quality Management System and we adopt the ISO, IEC international standard, national standard, industry standard and enterprise standard to research, develop and manufacture product to ensure the satisfying products be produced perennially and steadily. We were certified by China Association for Quality Inspection as an honorary enterprise for Non-Complaints on Product Quality and Service, Satisfying Product for National Customers and Model High-Integrity Enterprise. Furthermore, the factory owns self-support export right.
We insist on the management idea of “being faithful person, doing credible work, first cooperation will become friends forever” , hold the spirit of “keeping forge ahead in passion, aiming at surpassing”, stick to the work style of “truth-seeking and pioneering”, warmly welcome all the friends coming from all over the world to develop and negotiate together.
Company Information
As a state-owned factory, established in 1956, Sichuan Coalfield Geological Bureau 141 Machinery Factory lies in Deyang City, Sichuan Province which is China's major technical equipment manufacturing base. The factory engages in manufacturing and exporting of electrical cable & power equipment.It is a state-owned enterprise integrating design, machining, manufacturing with installation and commissioning.
In China, we are a state-owned factory. We can assure that it is the best one. We have the advanced design concept and manufacture technology, our machine is stable and reliable, our aluminum and copper rod ccms have more than 70% market share in Chinese market. Our general engineer is the person who participatory designed the first line of aluminum rod continuous casting and rolling line in China.
