Continuous Casting and Rolling Machine, CCR Line

Product Overview

Description

1. Product Information

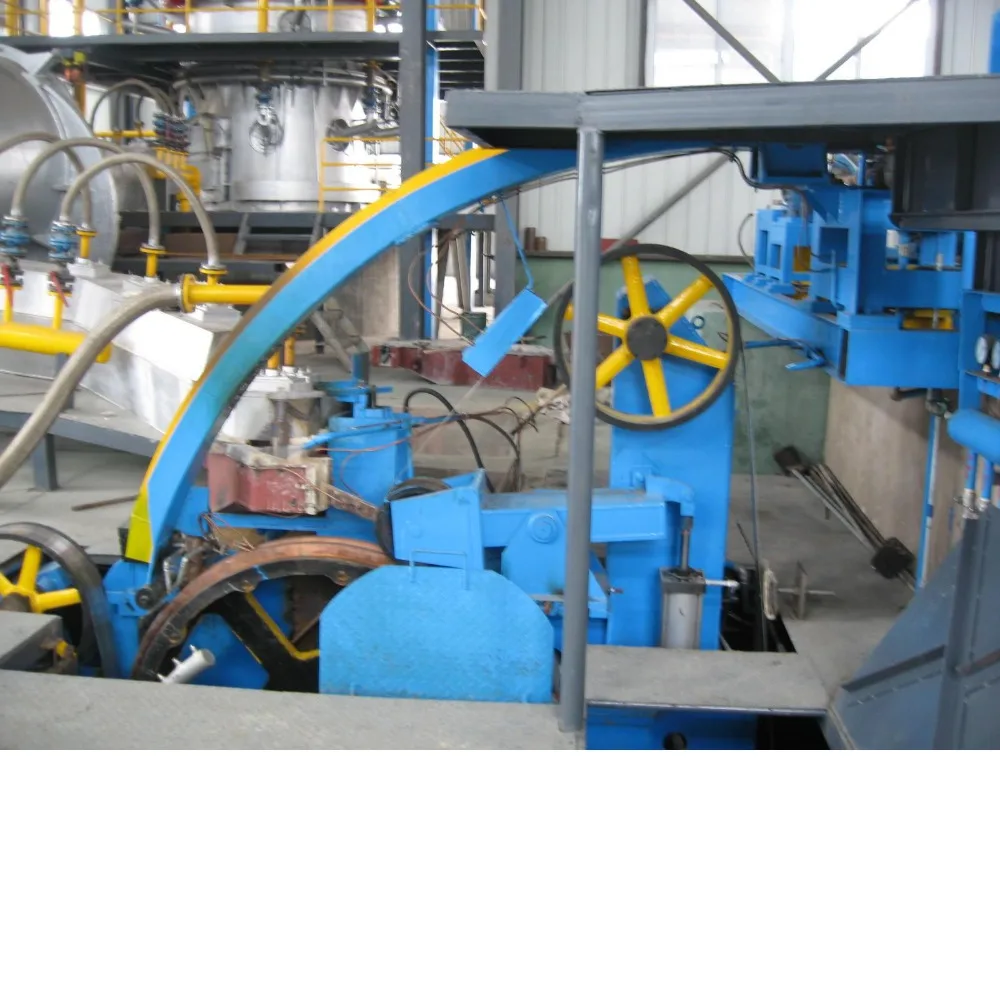

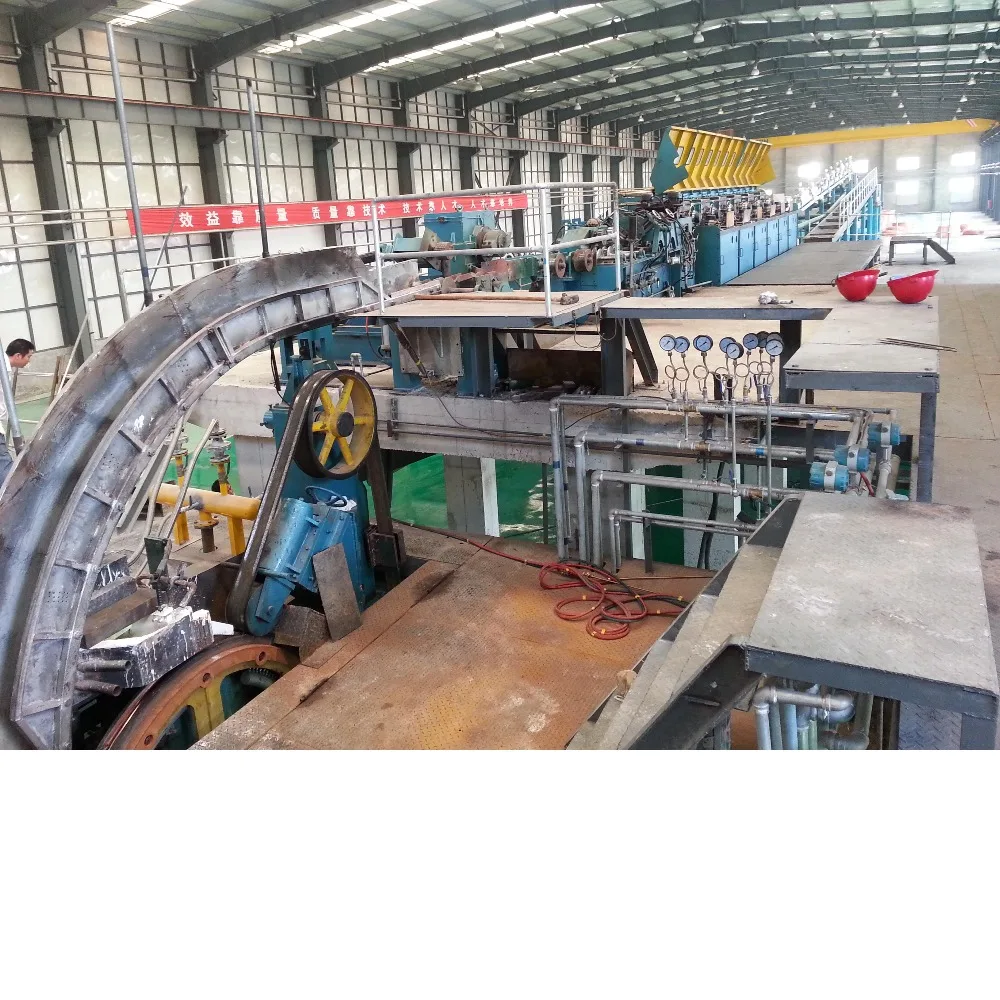

Casting machine	Crystallizing wheel dia.	Φ1500 mm
	Section surface of casting ingot	2420 mm2
	Casting speed	7.8~15.5 m/min
	Crystallizing wheel rotating speed	1.66~3.3 r/min
	Driven motor	3kw
	Type of casting machine	5-wheel
	Cooling water pressure	0.35~0.5MPa
	Cooling water consumption (soft water)	100t/h (inner cooling 60t/h,outer cooling 40t/h)
Monorail hydraulic shear	Max. shearing force	12000kgf
	Max. shearing stroke	65mm
	Motor power	4kw

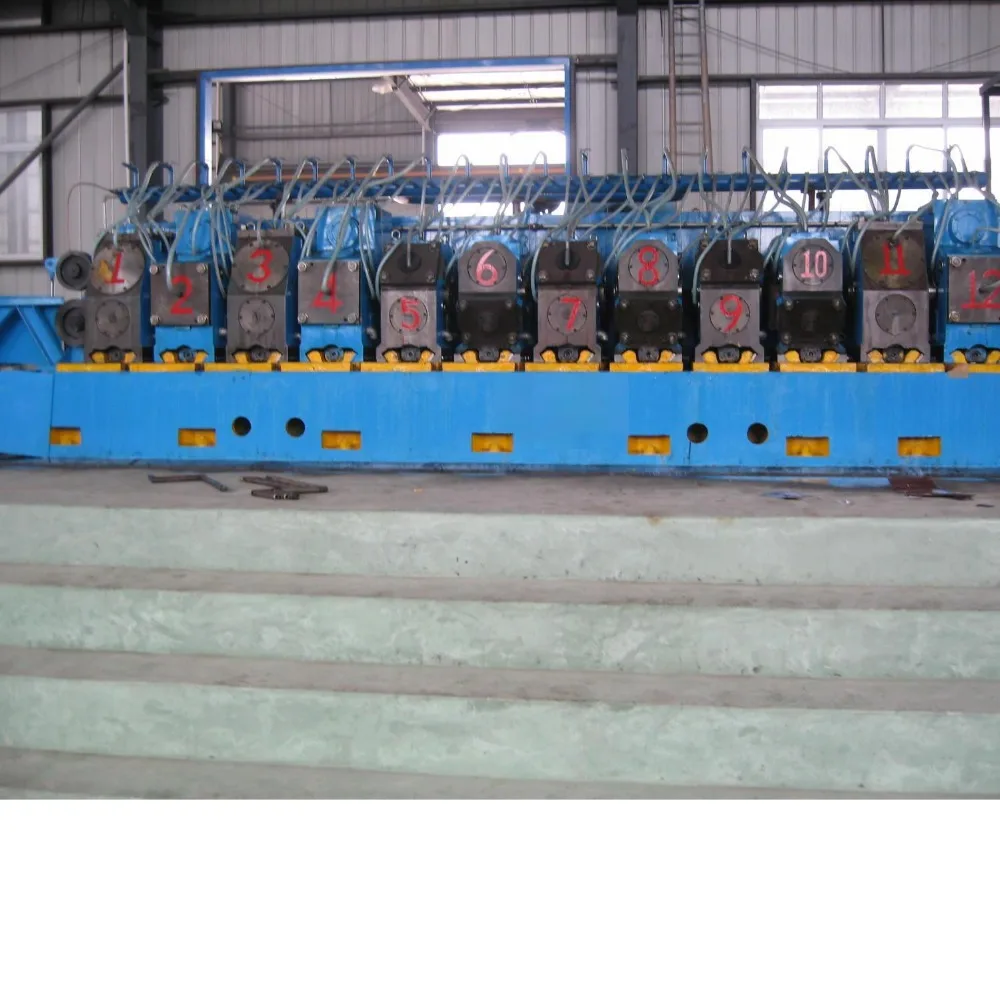

Y-type rolling mill	No. of rolling stand	15, 13, 11
	Outlet rod dia	Φ9.5, Φ12, Φ15mm
	Production capacity	5t/h
	Type	3-roller in “Y” type
	Roller nominal size	Φ255mm
	Transmission ration between capstans	1:1.25
	Finished rolling speed	6.2m/s
	Center height	902.5mm
	Main motor	250kw(DC)
	Lubrication oil tank of gear box	5m3
Drop down coiler	Max. coiling weight	1.5~2t
	Max. coiling diameter	Φ2000mm
	Coiling driven motor power	1.1kw
	Trolley moving speed	0.75m/s
	Trolley Motor power	2.2kw
Others	Overall dimension	30×7.1×4.7m
	Total weight	52t



1) Features

§ The continuous casting and rolling line is competitive with the relative international products.

§ By adopting PLC and man-machine interface for the complete line control, it can check and display the running parameter of machines as well as indicate the breakdown.

§ The continuous casting and rolling line is with perfect outlook and lower noise and vibration.

§ The continuous casting and rolling line is easy to disassemble and assemble.

§ High efficiency and quality of production and low dissipation energy.

2) Application

Using continuous casting and rolling process, this continuous casting and rolling line can produce the electrical aluminum rod of dia. ø15 mm, Φ12mm & Φ9.5mm. The aluminum rod with dia. Φ15mm is of 11 stands, Φ12mm of 13 stands, while Φ9.5mm is of 15 stands.

In China, we are a state-owned factory. We can assure that it is the best one. We having the advanced design concept and manufacture technology, our products are stable and reliable. We can undertake manufacturing all kinds of complete equipments of Melting Furnace Series, Copper, Aluminum & Alloy Rod Continuous Casting and Rolling Line Series, Aluminum Strip Continuous Casting and Rolling Line Series, Wire Drawing Machine Series, etc. As a result of high quality products and outstanding customer service, we have gained a global sales network reaching Pakistan, Iran, Thailand, Malaysia, Belarus, Ukraine, Syria, etc. And our rod ccms have more than 70% market share in Chinese market. Our general engineer is the person who participatory designed the first line of melting furnace & copper rod continuous casting and rolling line in China.
