IP65 Stainless Steel British Standard Exit push button

Product Overview

Description

 • Size: 5(plate) / 26.7(total depth) x 86(W) x 86(L)mm

• Net Weight: 115g±5%

• Hole distance: 60mm

• Material:

        Face plate: stainless steel

        Button: stainless steel

• Operating temperature: -20℃ ~ 55℃

• Circuit: PUSH ON

• Maximum limit power: 2A / 36V

• Contact resistance: ≤50mΩ

• Insulation resistance: ≥50MΩ

• Insulation strength: 500VAC 1min

• Life:

        1,000,000 cycles (Mechanical)

        200,000 cycles (Electrical)

• Key stroke: 2 mm

• Switch sealed to IP65

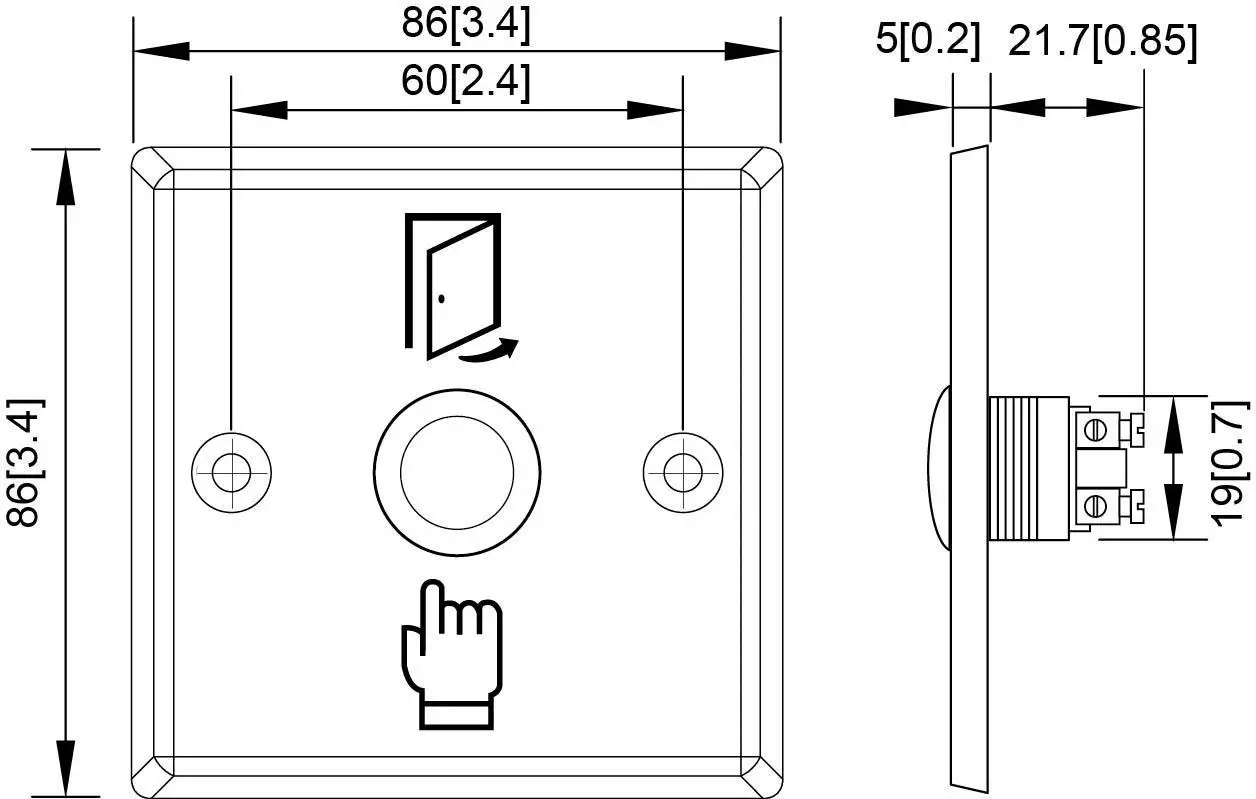

Dimension: mm[inch]











We reserve the right to change the specification without notice or obligation!
