sell dry process 3500tpd cement plant / tyre and girth gear of rotary kiln

Product Overview

Description

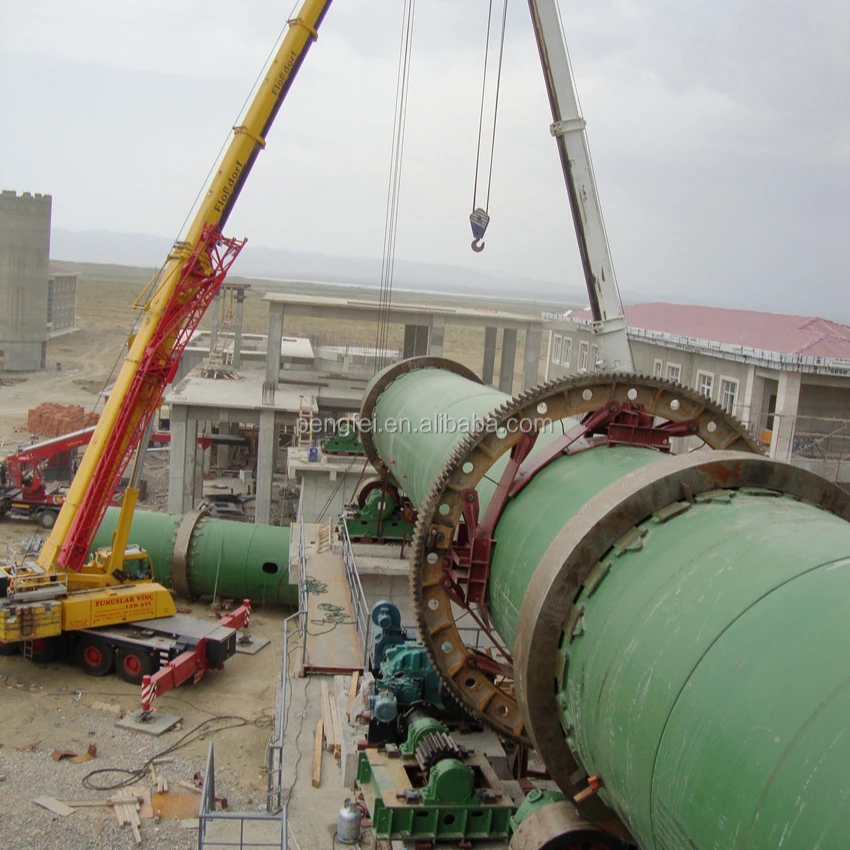

Sell dry process 3500tpd cement plant/tyre  and girth gear of rotary kiln



 The technical parameter of 3500tpd (4.3*65m)rotary kiln

Brief Introduction of Jiangsu Pengfei Group Co., Ltd.

Location advantage: Jiangsu Pengfei Group Co., Ltd. is located in Nantong City which is in the north of Yangtze River delta economic metropolitan area. It connects Yellow Sea in the east and looks south to the Yangtze River. The company is the national famous building material machinery manufacturing and transporting base. The goods will be shipped to focus all over the world by the million tons of seagoing vessel will through the international Nantong Port and Shanghai Port. Ningqi Railway and Xinchang Railway connect here, and at the same time the coastal Highway and Haili Highway also link here. Because of its special harbor location advantages and manufacturing capacity, Pengfei Group has become the largest cement equipment manufacturing and exporting base in our national coastal areas.

   Scope of business: The company has the great comprehensive ability to provide best quality services on turn-key basis with technology design, complete plant, erection and debugging, commissioning for the 10000t /d rotary kiln cement production enterprise. It can also undertake various projects abroad international bidding projects. It supplies complete equipments and technical services of grinding, calcination, crushing, dust collecting, conveying and lifting for the metallurgy, the chemical industry, the electrical power, the mine, the environmental protection enterprises, etc.

  Market position:The total amount in the cement machinery industry is second rank among the same business, and first in Jiangsu Province. The products have been exported to Germany, Russia, Brazil, Egypt, Bangladesh, Pakistan, Turnkey, Vietnam,  Bolivia, South America, etc.

Company instruction: Jiangsu Pengfei Group mainly engages in the design, manufacturing, selling of complete set of equipment for the building material machinery, the environmental protection machinery, the metallurgical machinery and the chemical machinery industry, supplying the complete set of machinery and electrical equipment, installation and debugging, as well as contracting the turn-key basis project and the relevant technical service.The company has won the titles of Chinese leading enterprise in cement machinery industry, Jiangsu Credible and Trustworthy Enterprise and Jiangsu AAA grade credit enterprise. Its leading products have got Chinese famous brand products titles and “Pengfei” trademark also has been awarded “China Famous Trademark”. The company covers an area of 350,000m² and it has 0.82 billion RMB of total assets. There are 450 engineers and technicians. The company has the six subsidiary companies such as the mechanical plant, electronic plant, casting plant, installation plant, the new type building materials plant, etc.The company has the mechanical processing capacity of 300,000t/y; its rotary diameter and gear hobbing diameter are 10m as well as the diameter of the annealing furnace is 6.5m; the maximum hoisting capacity is 400t, own CK52130x50/260(φ13m)vertical lathe,DVT1000x40/200(φ10m)vertical lathe,W11-120X3200(120mm thick 3200mm wide)steel plate rolling machine, C6070x21(φ7m,21m length)shell lathe, C6070x25(φ7m,25m length) shell lathe,C6070x15(φ7m,15m)shell lathe andφ7mx21m annealing furnace and etc. so the company can meet the manufacturing requirements of the rotary kiln and ball mill below φ6m. The large-sized pre-heater, rotary kiln, tube mill, vertical mill, cooler and other main machinery is completely researched, developed and manufactured by Pengfei Group itself. The company has assumed the dual role of supplier for the turn-key services and supplier for main equipments. After obtaining signing right and management qualifications of foreign project-contracting, Jiangsu Pengfei Group Co., Ltd actively develops the international business of project contracting, contracts construction and installation project as well as international bid project of cement, metallurgy, chemical machinery and equipment , at the same time dispatches the needed labors that the above mentioned foreign projects needed. Pengfei Group completed to manufacturing the main machines of Pakistan PLC 3000t/d cement production line for Hefei Cement Research & Design Institute successfully, and then got the business to manufacturing the main machines for Pakistan PLD, PLE and PLF Production Line. The company has taken on the complete project of eight cement production lines like Myanmar Thayet, Dragon, Triple A, King Elephant and Tiger Head Cement Plant, as well as the business to manufacturing the rotary kiln and cement mill for two 2500t/d cement production lines of Vietnam Kaisa Cement Plant. Pengfei Group has contracted the complete set of 1500t/d cement production line with Africa Rwanda company, and the project includes the process from the limestone crushing to the finished cement products, the electrical automation design, the equipments for the whole factory as well as the services of installation & debugging, personnel training, etc. At the same time the company implements the turn-key basis project of 2500t/d cement production line for Russia Volga Cement Plant.

Our board chairman and general manager, Mr. Wang Jia’an, warmly welcome all the overseas experts, colleagues and friends to come to our company, and survey and discuss about cooperation business and make great future together

 1.Application:

     rotary kiln is the main equipment for sintering cement clinker.the rotary kilns produced by our company can be divided into dry process and wet process.they can also be used for chemical industry.metallurgy industry and etc.through technical renovations.the rotary kiln sintering system equipment made by our company has adopted high measuring precession,plunger pump.vairable speed adjusted valve.contact graphite block air seal and other national advanced technologies.in order to raise up automation degree.industrial TV has been used at the kiln head for monitoring of kiln,analog flurescent screen has been used for display of process flow.infrared scanning system has been adopted for sintering zone to directly reflect the burning conditions on the comuputer.with the use of these new technologies.it is direct in vision.convienent in operation and reliable in use.therefore, thermal condition can be stabilized and running rate of equipment can be raised. compared to same sized equipment,its running rate has been raised  3-5%,production has been increased 5-10% and heat consumption has been reduced 15% down.

2.Technical parameter

   The technical parameter of dia 4.3*65m

   1.type:single drive,single hydraulic thrust roller

   2.kiln supports 4 piers.

   3.The slope of kiln shell is 4%

   4.The speed of main drive is 0.4-4r/min,The speed of auxliary drive is 7.93 r/h

   5.The sealing typ  kiln outlet  steel plate sealing. kiln outlet  air cylinder pressed end surfact sealing

   6.kiln outlet cooling air cooling

    7.The total weight 590t

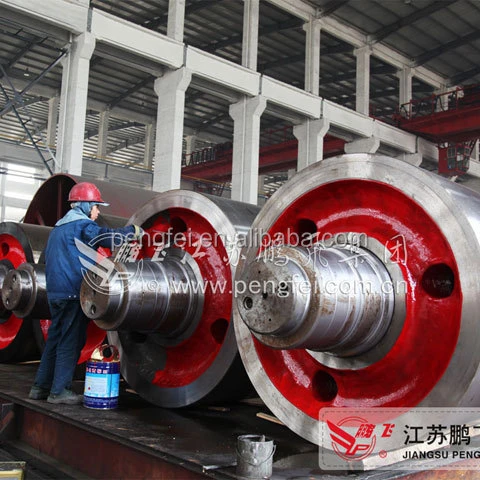

3.The supporting roller and shell sketch

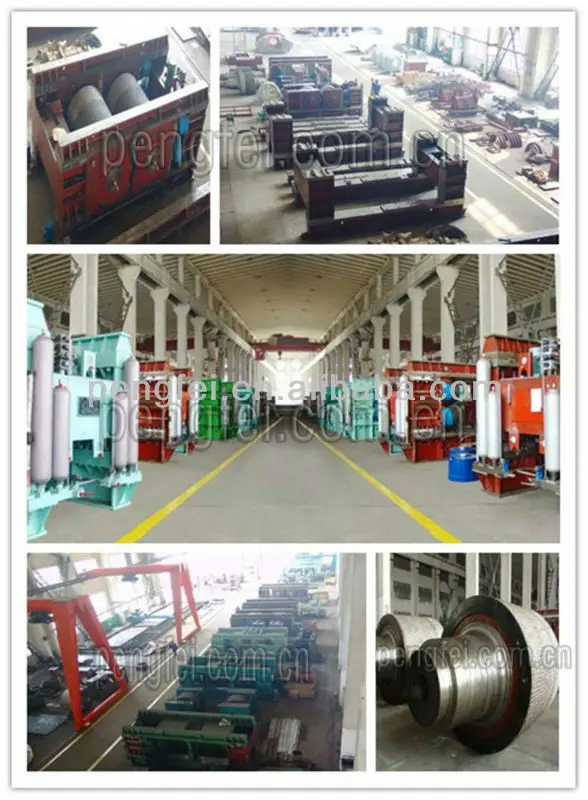

4.The maching unit and certificate
