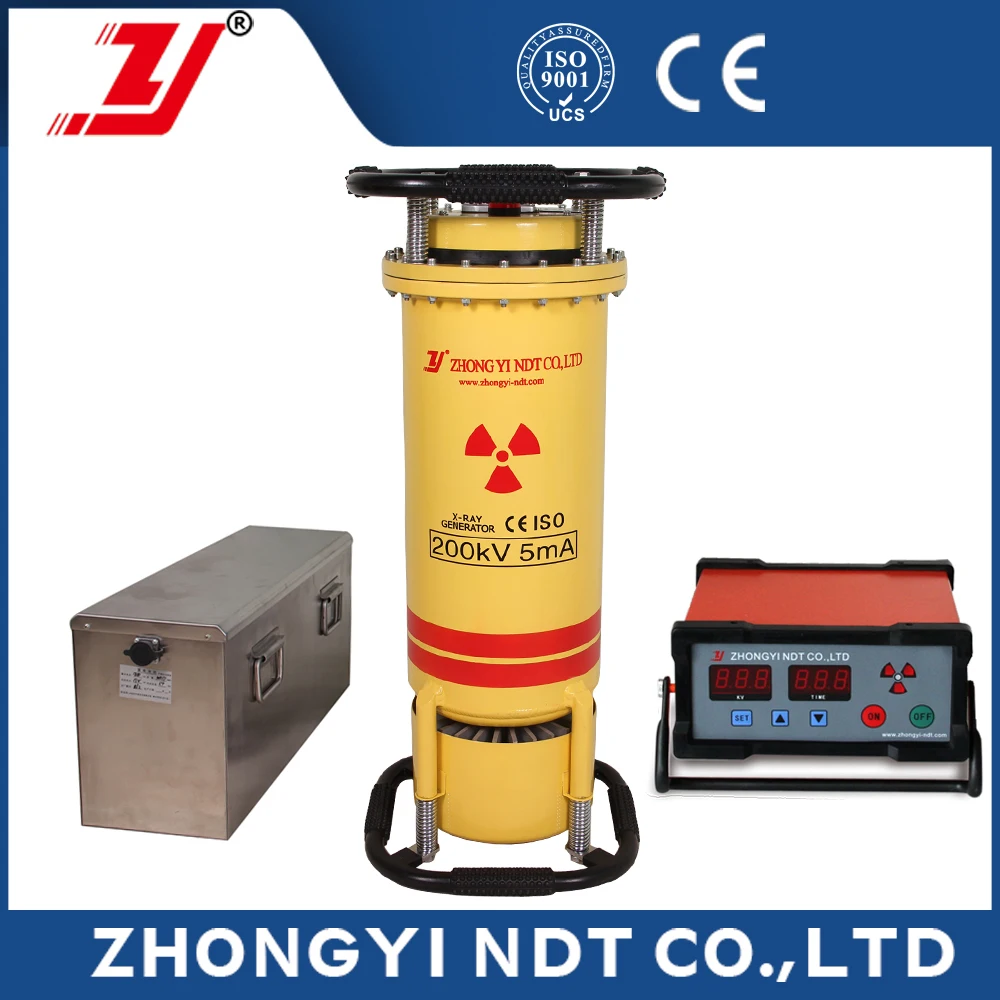

Industrial DC NDT X Ray Flaw Detection Equipment XXH 2005 Machine

Product Overview

Description

x-ray equipment







Features:



x-ray equipment



1.Small volume, Light Weight, easy to take and simplicity of operation
2.Safe and reliable generator adopts design of SF6 gaseous insulator, grounded-anode, and fan forced cooling .
3.Controller adopts design of hardware with a wide operative range, having the advantage of long service and low failure rate.
4.Excellent anti-jamming performance. Capable to operate from 180V to 250V voltage.
5.Possess the reliable “Time –delayed” fiction, suitable to operate in the open field.
6.High degree of automation, with the fiction of trouble self shooting and indication.
7.Strictly followed with 1:1 working /resting radio , eliminating the disoperation.
8.The HV windings made by imported enamel wire are applied in the X-ray generator, so as to make the quality of the complete equipment improved a great deal.



x-ray equipment



x-ray equipment Model	XXQ-1005 XXH-1005 XXHA-1005	XXQ-1605 XXG-1605 XXH-1605 XXG-1605	XXQ-2005 XXG-2005 XXH-2005 XXHA-2005	XXQ-2505 XXG-2505 XXH-2505 XXHA-2505	XXQ-3005 XXG-3005 XXH-3005 XXHA-3005	XXQ-3505 XXG-3505 XXH-3505 XXHA-3505
Power supply	AC220V+-10%   50Hz
Capacity(kW)	>1.0	>1.5	>2.5	>2.5	>3.0	>3.5
Tube voltage(Kvp)	-	60-160	80-200	130-250	150-300	200-350
Max. tube current (mA)	5	5	5	5	5	5



x-ray equipment











Zhongyi NDT Testing X-ray Flaw Detector/X-ray Generator
Model	Tube Voltage (KV)	Capacity (KW)	Focus Size (mm)	Max. Penetrate (mm)
XXQ-1005	40-100	>1.0	1.0*1.0	8
XXQ-1605	60-160	>1.5	1.5*1.5	20
XXQ-2005	80-200	>2.0	1.5*1.5	29
XXQ-2505	130-250	>2.5	2.0*2.0	39
XXQ-3005	150-300	>3.0	2.5*2.5	49
XXQ-3505	250-350	>3.5	2.5*2.5	59
XXH-1605	60-160	>1.5	1.0*2.0	18
XXH-2005	80-200	>2.0	1.0*2.4	26
XXH-2505	130-250	>2.5	1.0*2.4	36
XXH-3005	150-300	>3.0	1.0*3.4	46
XXH-3505	250-350	>3.5	1.0*3.4	56
XXHA-1005	40-100	>1.0	1.0*2.0	4
XXHA-1605	60-160	>1.5	1.0*2.5	15
XXHA-2005	80-200	>2.0	1.0*2.5	24
XXHA-2505	130-250	>2.5	1.0*2.5	34
XXHA-3005	150-300	>3.0	1.0*3.5	40
XXHA-3505	250-350	>3.5	1.0*3.5	50
XXG-1605	60-160	>1.5	1.5*1.5	20
XXG-2005	80-200	>2.0	1.5*1.5	29
XXG-2505	130-250	>2.5	2.0*2.0	39
XXG-3005	150-300	>3.0	2.5*2.5	49
XXG-3505	250-350	>3.5	2.5*2.5	70



x-ray equipment
