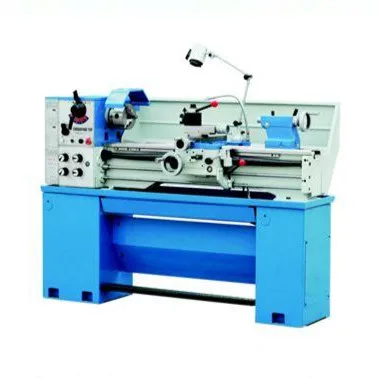

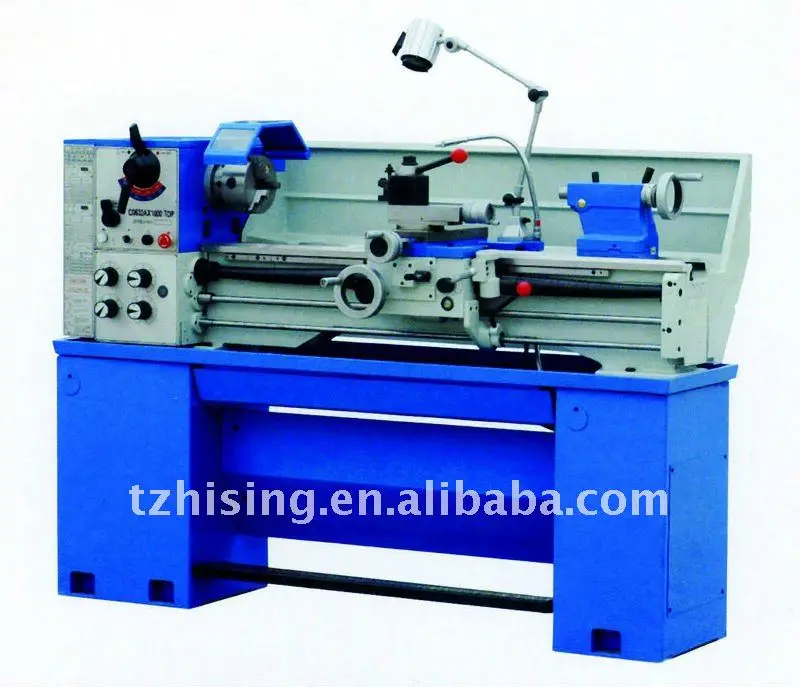

Bench Lathe
- Category: >>>
- Supplier: Tengzhou Hising Machine Tools Co. Ltd. [Shandong China]Tengzhou
Share on (513214461):
Product Overview
Description
For the detailed specification of the Precision Lathe, pls see the table(BL-1340/BL-1440):
Model | Unit | BL-1340 | BL-1440 | |
Swing over bed | mm | 330 | 350 | |
Swing over carriage | mm | 190 | 220 | |
Swing over gap bed | mm | 450 | 470 | |
Max. workpiece length | mm | 1000 | ||
Spindle | Spindle speed | rpm | 70-2000 | |
Spindle diameter | mm | 38 | ||
Feed | Spindle taper | MT | Morse No.5 | |
Longitudinal feed range | mm/r | 0.078-1.044 | ||
Transversal feed range | mm/r | 0.022-0.298 | ||
Metric thread range | mm | 0.45-10 | ||
Inch thread range | T.P.I | 2-1/4-40 | ||
Quill taper | MT | Morse No.3 | ||
Main motor | kw | 1.5 | ||
